| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_014T02_9000000232_01374cztM0_level2.evt | modeM0/AS1G04_014T02_9000000232_01374cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,031,342,400 | 100,828,800 |
| Size | 983.6 MB | 96.2 MB |
| Events in quadrant A | 7,697,541 | 654,506 |
| Events in quadrant B | 8,432,161 | 669,726 |
| Events in quadrant C | 7,413,511 | 660,231 |
| Events in quadrant D | 7,275,899 | 631,865 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27332 | 4 |
| B | 0 | 29509 | 3 |
| C | 0 | 26456 | 3 |
| D | 0 | 26122 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6261 | 66 | 1.054145% |
| B | 6261 | 45 | 0.718735% |
| C | 6261 | 24 | 0.383325% |
| D | 6261 | 173 | 2.763137% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6263 | 292 | 292 | 3.87% | 4.66% |  |
| B | 7541 | 6263 | 451 | 451 | 5.98% | 7.20% |  |
| C | 7541 | 6262 | 168 | 168 | 2.23% | 2.68% |  |
| D | 7541 | 6263 | 346 | 346 | 4.59% | 5.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 305676 | 677.03 | 1884 | 1901 | 448.7 |
| A | 4 | 32 | 108864 | 238.39 | 1884 | 1901 | 448.7 |
| A | 12 | 243 | 49136 | 105.27 | 1884 | 1901 | 448.7 |
| B | 8 | 4 | 546180 | 1174.72 | 1997 | 2002 | 463.2 |
| B | 8 | 219 | 133204 | 283.23 | 1997 | 2002 | 463.2 |
| B | 12 | 52 | 39560 | 81.08 | 1997 | 2002 | 463.2 |
| C | 15 | 241 | 204139 | 401.07 | 1829 | 1895 | 504.3 |
| C | 7 | 159 | 22411 | 40.68 | 1829 | 1895 | 504.3 |
| C | 3 | 111 | 19068 | 34.06 | 1829 | 1895 | 504.3 |
| D | 13 | 73 | 433565 | 802.72 | 1739 | 1799 | 537.9 |
| D | 7 | 34 | 145081 | 266.38 | 1739 | 1799 | 537.9 |
| D | 9 | 53 | 88778 | 161.71 | 1739 | 1799 | 537.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

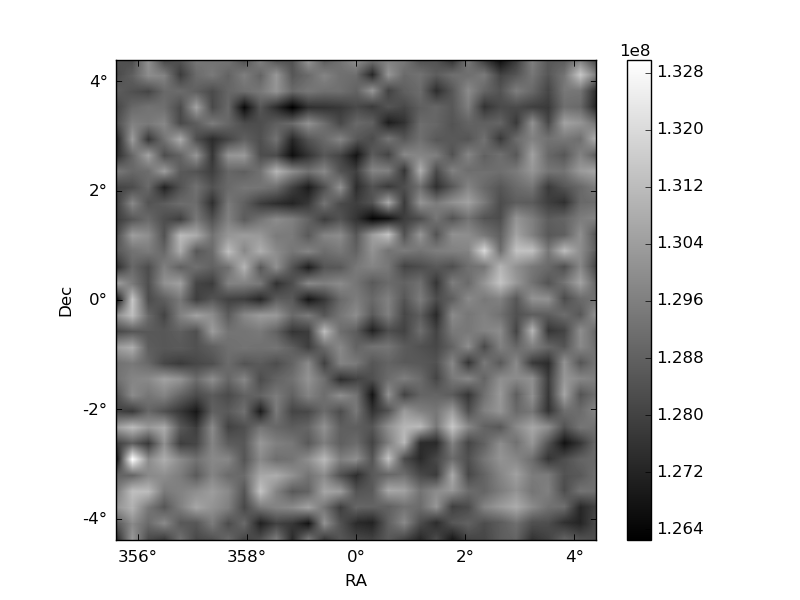

| Quadrant D |  |
 |

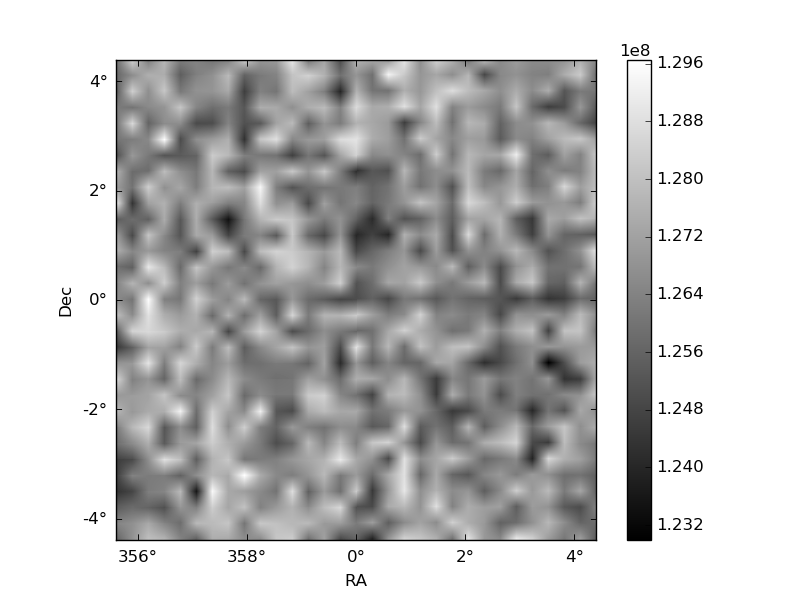

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

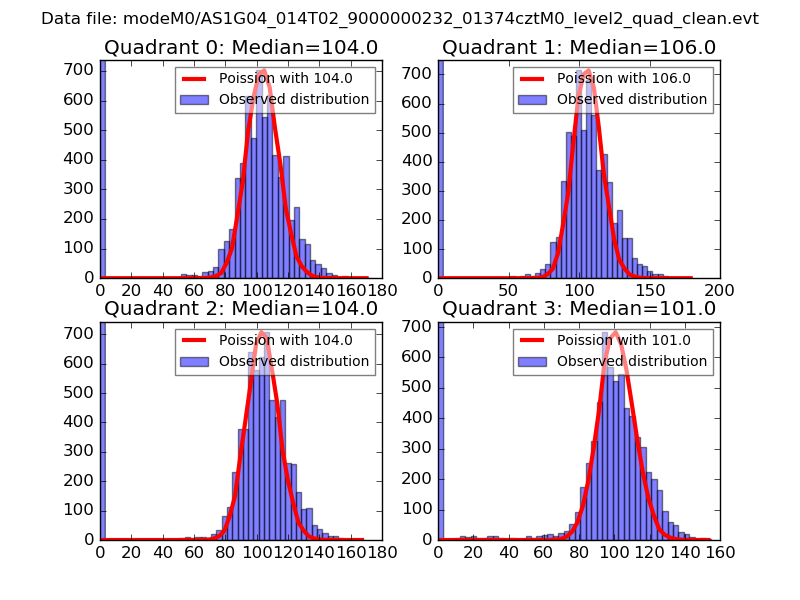

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

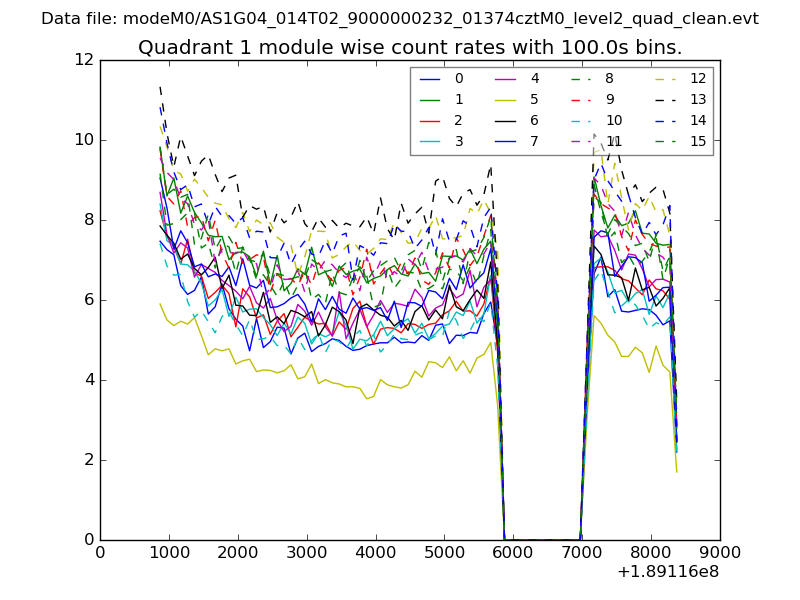

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

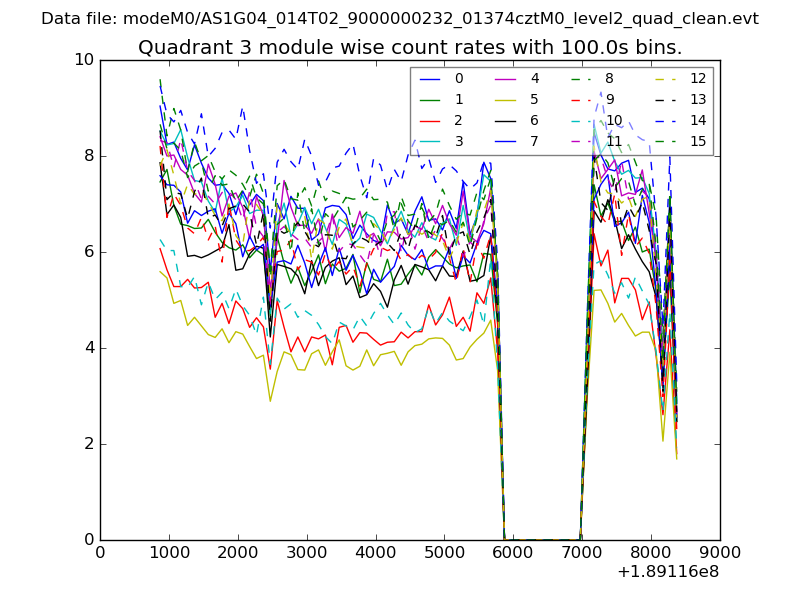

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

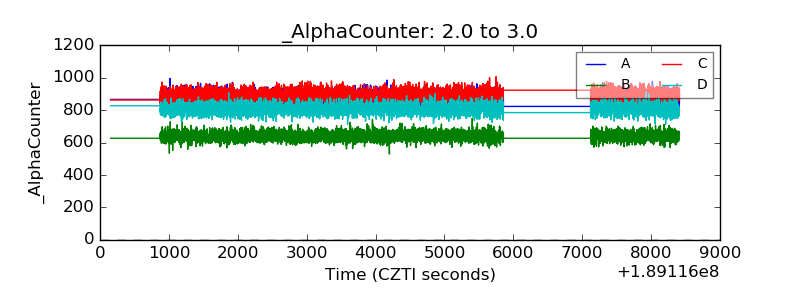

| Alpha Counter |  |
| _CPM_Rate |  |

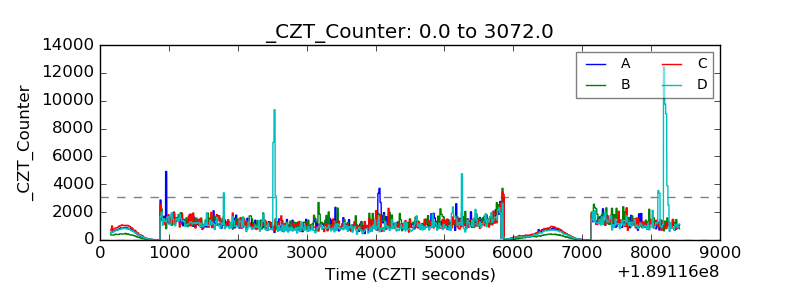

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

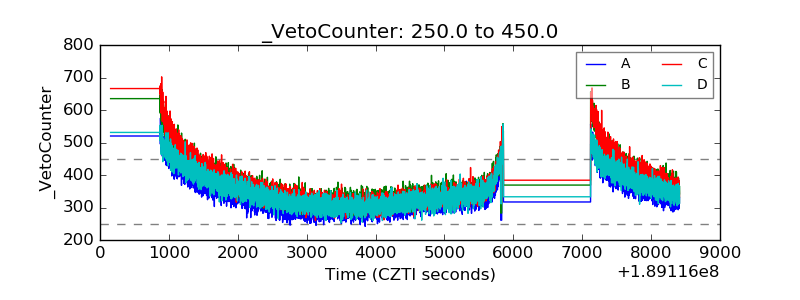

| Veto Counter |  |
