| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_014T02_9000000232_01378cztM0_level2.evt | modeM0/AS1G04_014T02_9000000232_01378cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,236,340,800 | 92,387,520 |
| Size | 1.2 GB | 88.1 MB |
| Events in quadrant A | 10,584,910 | 594,758 |
| Events in quadrant B | 9,018,111 | 632,489 |
| Events in quadrant C | 7,613,430 | 619,294 |
| Events in quadrant D | 9,796,872 | 497,085 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36149 | 2 |
| B | 0 | 31355 | 1 |
| C | 0 | 27228 | 1 |
| D | 0 | 33997 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6496 | 662 | 10.190887% |
| B | 6496 | 133 | 2.047414% |
| C | 6496 | 8 | 0.123153% |
| D | 6496 | 1454 | 22.383005% |

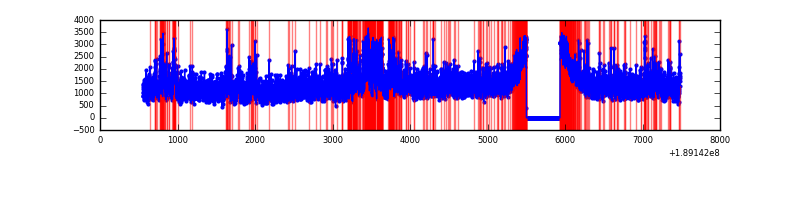

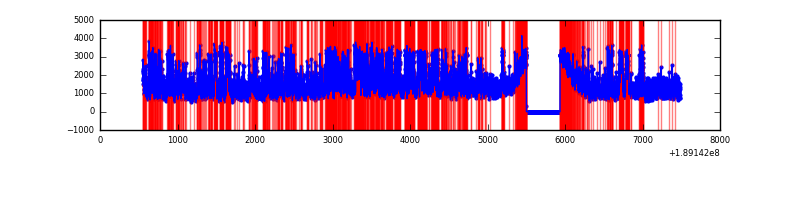

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6931 | 6497 | 1555 | 1555 | 22.44% | 23.93% |  |
| B | 6931 | 6497 | 713 | 713 | 10.29% | 10.97% |  |
| C | 6931 | 6497 | 261 | 261 | 3.77% | 4.02% |  |
| D | 6931 | 6496 | 1688 | 1688 | 24.35% | 25.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 3025995 | 6359.52 | 1957 | 1972 | 475.5 |
| A | 15 | 233 | 26245 | 51.05 | 1957 | 1972 | 475.5 |
| A | 4 | 32 | 13414 | 24.06 | 1957 | 1972 | 475.5 |
| B | 8 | 4 | 781391 | 1557.74 | 2097 | 2106 | 500.3 |
| B | 12 | 52 | 101936 | 199.55 | 2097 | 2106 | 500.3 |
| B | 6 | 53 | 98413 | 192.51 | 2097 | 2106 | 500.3 |
| C | 15 | 241 | 221677 | 418.85 | 1867 | 1929 | 524.6 |
| C | 7 | 222 | 42009 | 76.39 | 1867 | 1929 | 524.6 |
| C | 3 | 111 | 24237 | 42.52 | 1867 | 1929 | 524.6 |
| D | 13 | 73 | 3929548 | 8294.15 | 1511 | 1560 | 473.6 |
| D | 1 | 83 | 111464 | 232.07 | 1511 | 1560 | 473.6 |
| D | 9 | 53 | 75880 | 156.93 | 1511 | 1560 | 473.6 |

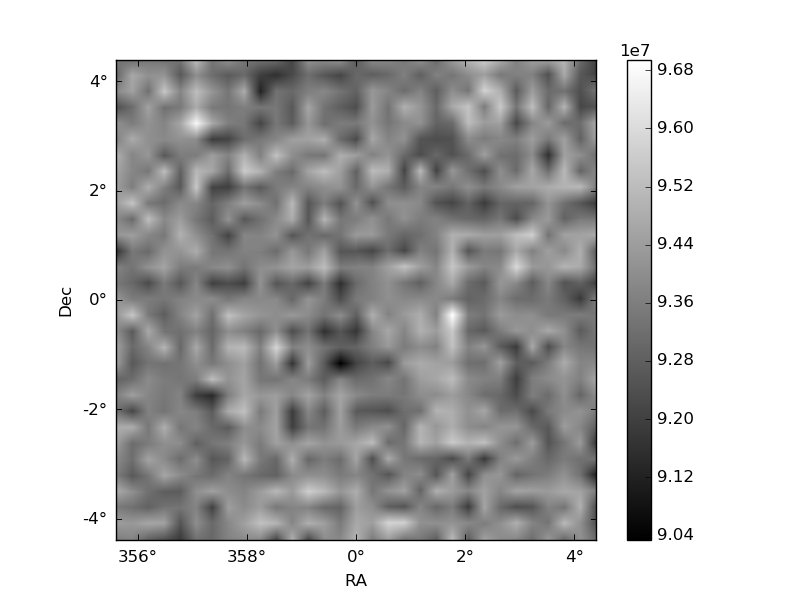

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

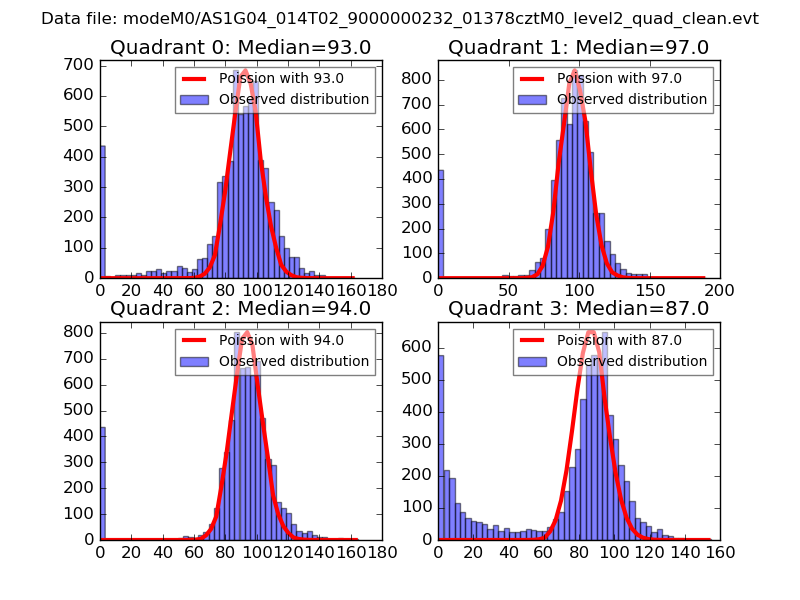

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

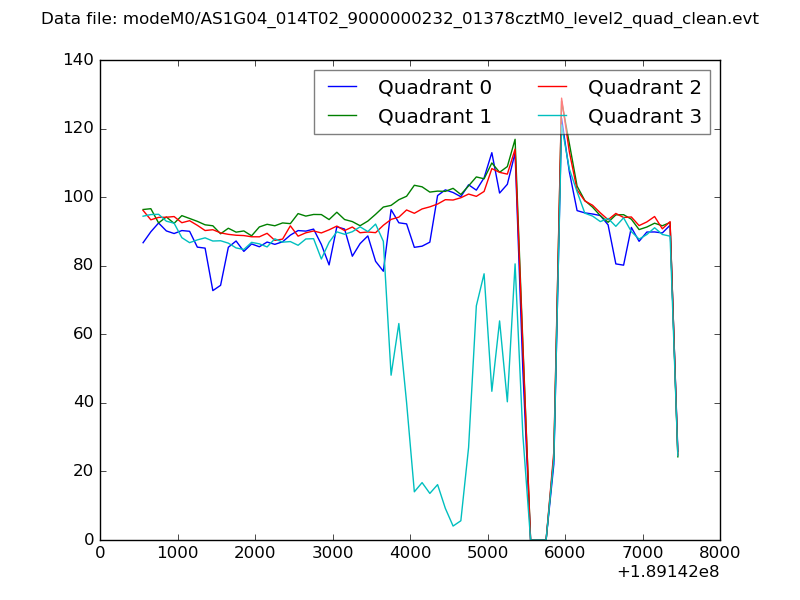

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

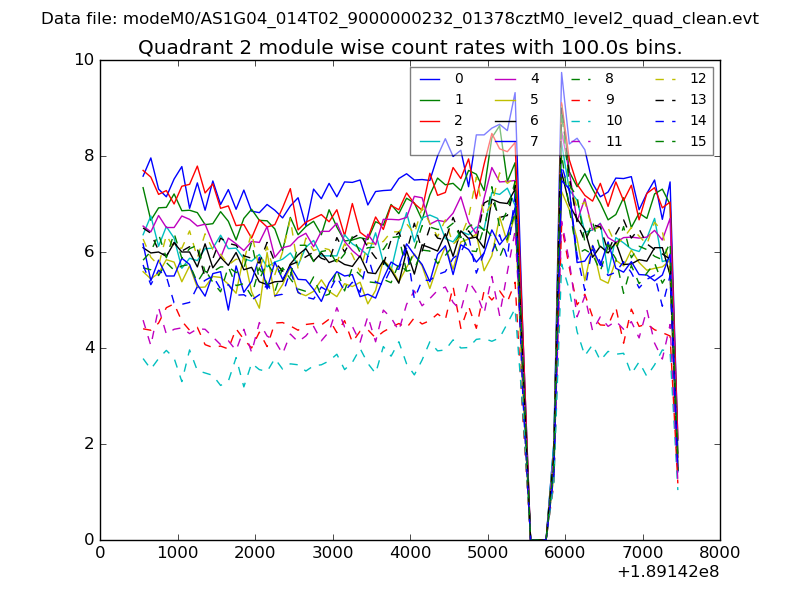

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

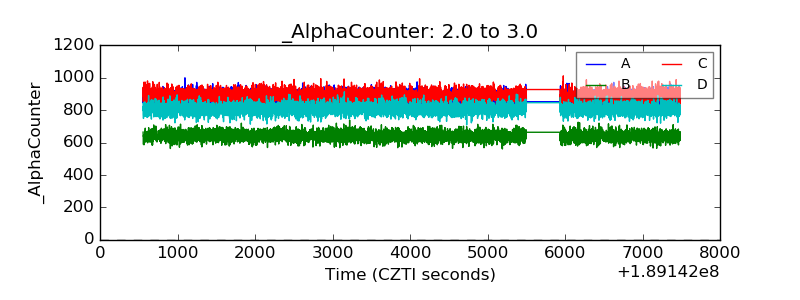

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

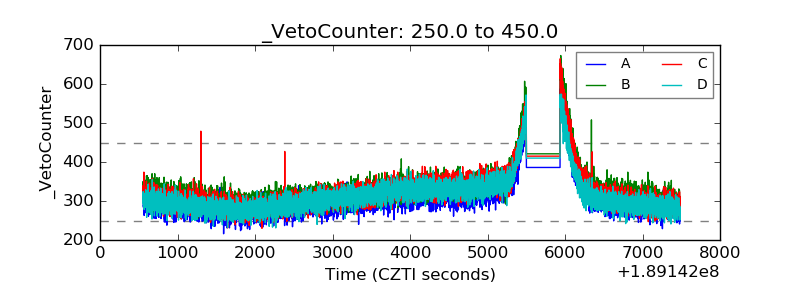

| Veto Counter |  |
