| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_014T02_9000000232_01384cztM0_level2.evt | modeM0/AS1G04_014T02_9000000232_01384cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,128,890,880 | 91,713,600 |
| Size | 1.1 GB | 87.5 MB |
| Events in quadrant A | 8,978,786 | 604,084 |
| Events in quadrant B | 8,155,732 | 615,969 |
| Events in quadrant C | 7,482,688 | 596,918 |
| Events in quadrant D | 9,156,192 | 522,040 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31161 | 2 |
| B | 0 | 28697 | 1 |
| C | 0 | 26658 | 1 |
| D | 0 | 31842 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6282 | 190 | 3.024514% |
| B | 6282 | 45 | 0.716332% |
| C | 6282 | 17 | 0.270614% |
| D | 6282 | 1016 | 16.173193% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

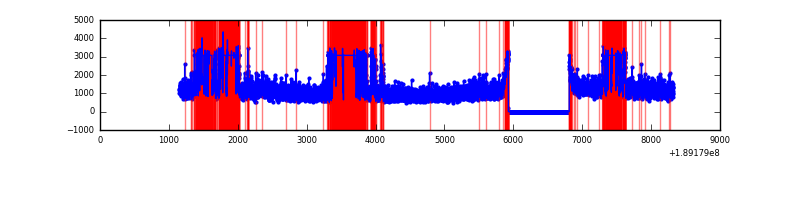

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7167 | 6283 | 725 | 725 | 10.12% | 11.54% |  |
| B | 7167 | 6282 | 379 | 379 | 5.29% | 6.03% |  |
| C | 7167 | 6282 | 161 | 161 | 2.25% | 2.56% |  |
| D | 7167 | 6283 | 1264 | 1264 | 17.64% | 20.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 1267048 | 2741.8 | 1911 | 1922 | 461.4 |
| A | 3 | 80 | 292713 | 630.2 | 1911 | 1922 | 461.4 |
| A | 0 | 253 | 37177 | 76.4 | 1911 | 1922 | 461.4 |
| B | 8 | 4 | 405318 | 857.62 | 1991 | 2000 | 470.3 |
| B | 15 | 22 | 37576 | 75.65 | 1991 | 2000 | 470.3 |
| B | 6 | 53 | 36696 | 73.78 | 1991 | 2000 | 470.3 |
| C | 15 | 241 | 211139 | 408.72 | 1839 | 1904 | 511.9 |
| C | 3 | 79 | 27125 | 49.27 | 1839 | 1904 | 511.9 |
| C | 7 | 222 | 26895 | 48.82 | 1839 | 1904 | 511.9 |
| D | 13 | 73 | 2970250 | 5924.74 | 1619 | 1681 | 501.0 |
| D | 15 | 13 | 38419 | 73.32 | 1619 | 1681 | 501.0 |
| D | 13 | 53 | 23230 | 43.01 | 1619 | 1681 | 501.0 |

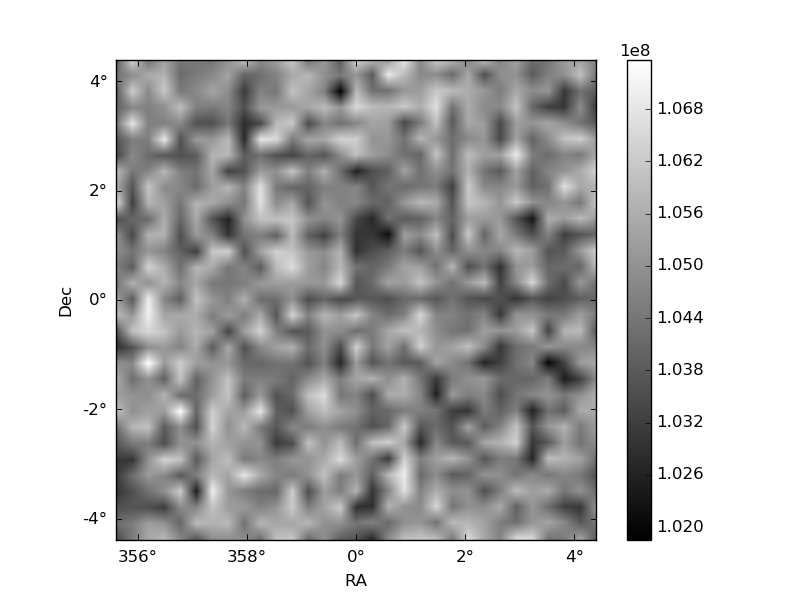

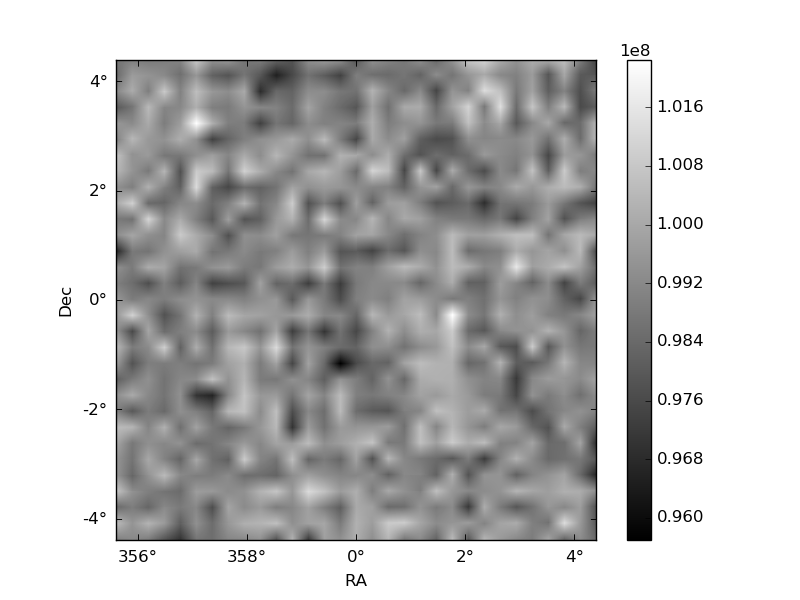

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

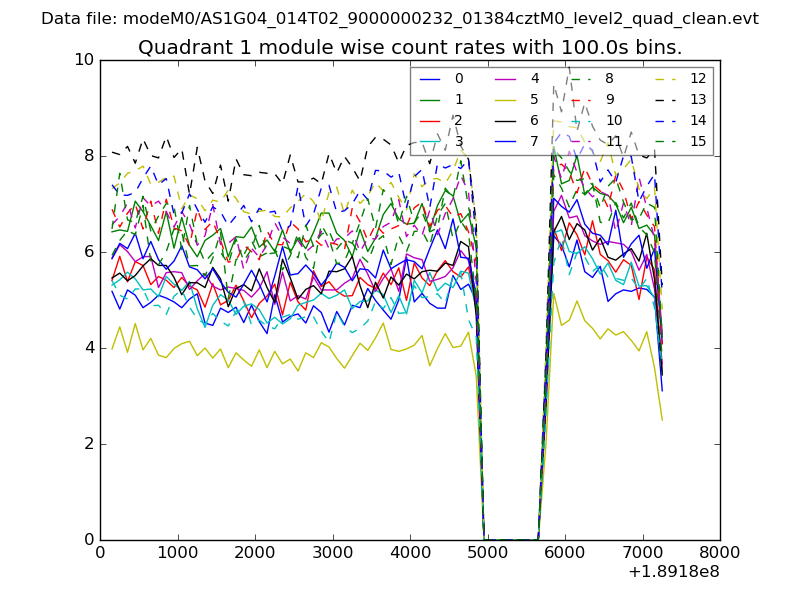

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

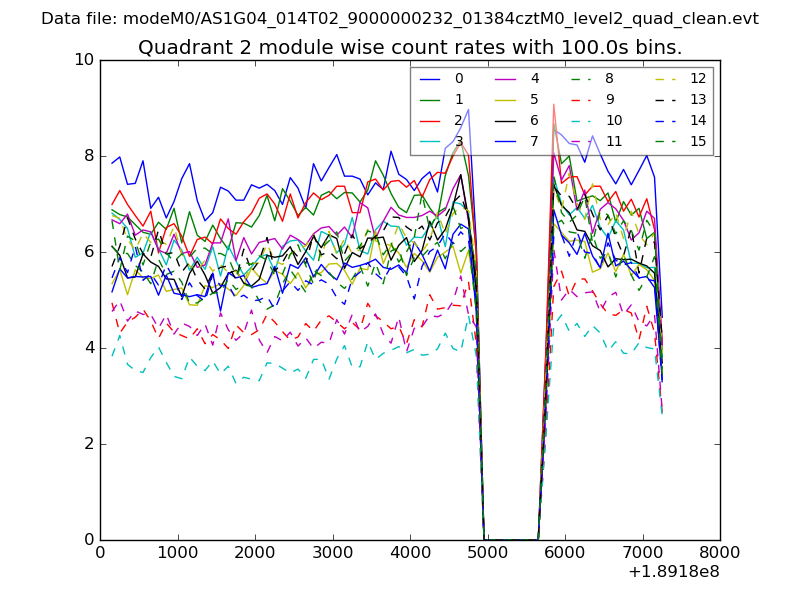

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

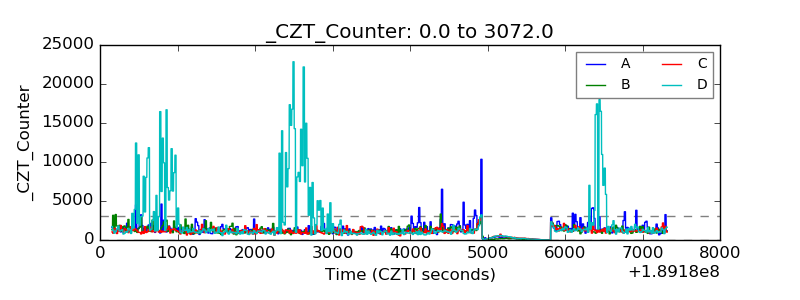

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

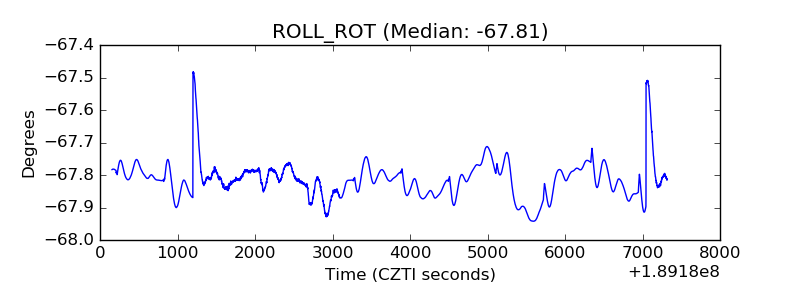

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

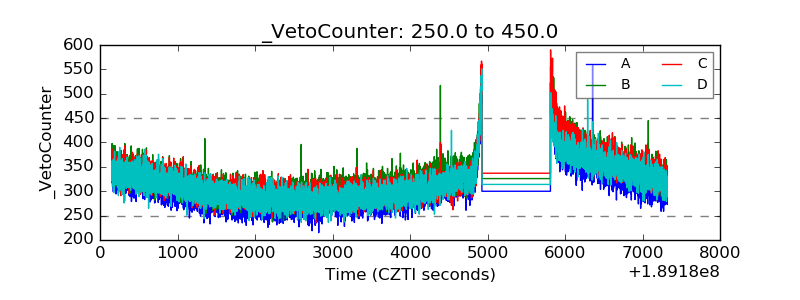

| Veto Counter |  |
