| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_014T02_9000000232_01398cztM0_level2.evt | modeM0/AS1G04_014T02_9000000232_01398cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,264,248,000 | 97,395,840 |
| Size | 1.2 GB | 92.9 MB |
| Events in quadrant A | 14,491,574 | 561,410 |
| Events in quadrant B | 8,322,917 | 653,844 |
| Events in quadrant C | 7,631,237 | 641,640 |
| Events in quadrant D | 7,417,761 | 643,060 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47818 | 2 |
| B | 0 | 29286 | 1 |
| C | 0 | 27202 | 1 |
| D | 0 | 26616 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6436 | 1897 | 29.474829% |
| B | 6436 | 54 | 0.839030% |
| C | 6436 | 31 | 0.481666% |
| D | 6436 | 66 | 1.025482% |

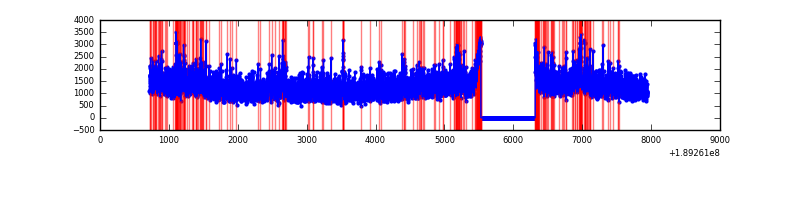

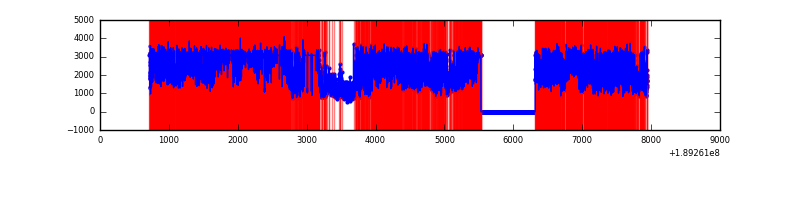

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7226 | 6436 | 3731 | 3731 | 51.63% | 57.97% |  |
| B | 7226 | 6436 | 320 | 320 | 4.43% | 4.97% |  |
| C | 7226 | 6436 | 130 | 130 | 1.80% | 2.02% |  |
| D | 7226 | 6436 | 248 | 248 | 3.43% | 3.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 6320577 | 14849.68 | 1768 | 1780 | 425.5 |
| A | 15 | 233 | 807065 | 1892.48 | 1768 | 1780 | 425.5 |
| A | 4 | 32 | 495136 | 1159.43 | 1768 | 1780 | 425.5 |
| B | 5 | 191 | 116669 | 239.03 | 2044 | 2053 | 479.5 |
| B | 12 | 52 | 116107 | 237.86 | 2044 | 2053 | 479.5 |
| B | 6 | 53 | 91519 | 186.58 | 2044 | 2053 | 479.5 |
| C | 15 | 241 | 227253 | 430.67 | 1878 | 1950 | 523.1 |
| C | 3 | 79 | 32452 | 58.31 | 1878 | 1950 | 523.1 |
| C | 3 | 111 | 26371 | 46.68 | 1878 | 1950 | 523.1 |
| D | 12 | 22 | 176104 | 308.64 | 1837 | 1910 | 564.4 |
| D | 2 | 16 | 107257 | 186.66 | 1837 | 1910 | 564.4 |
| D | 9 | 65 | 86624 | 150.1 | 1837 | 1910 | 564.4 |

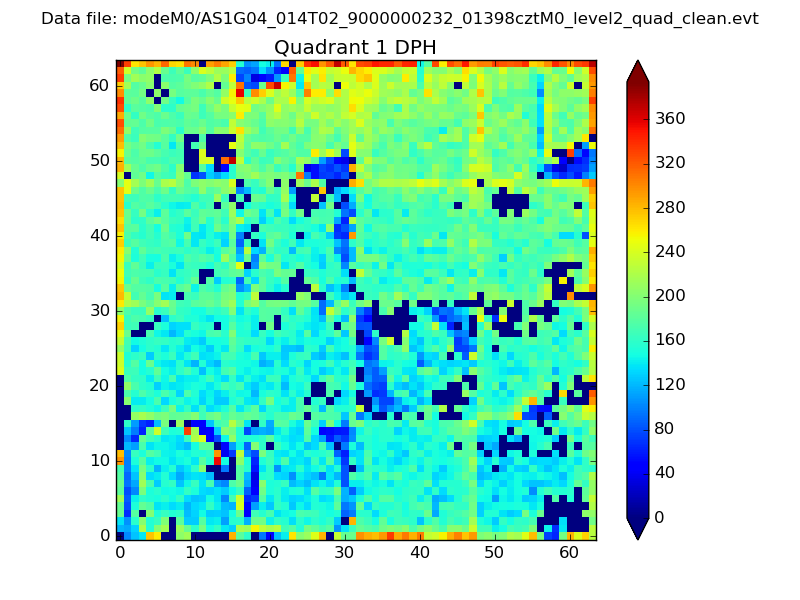

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

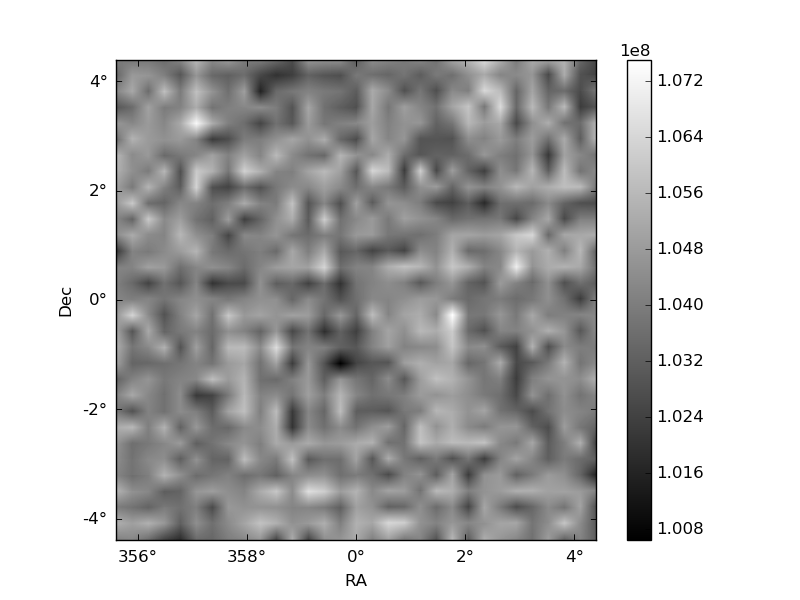

| Plot type | Count rate plots | Images |
|---|---|---|

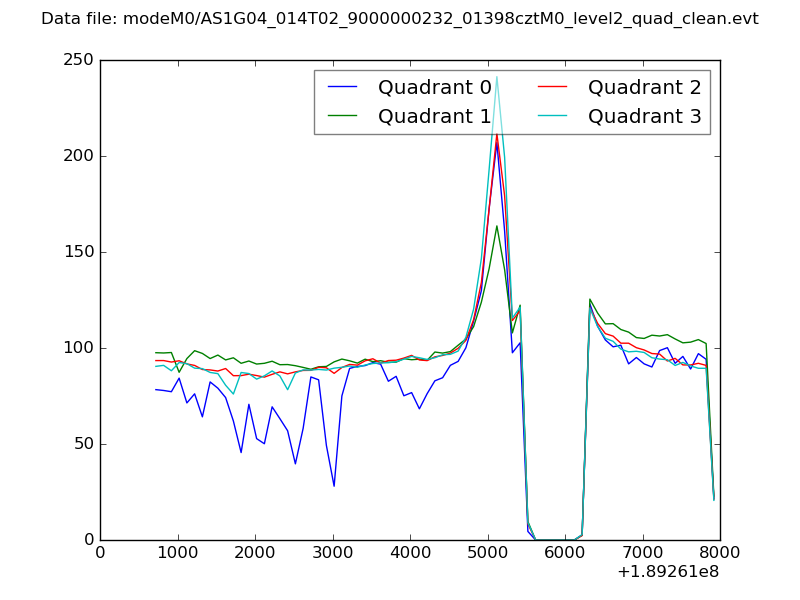

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

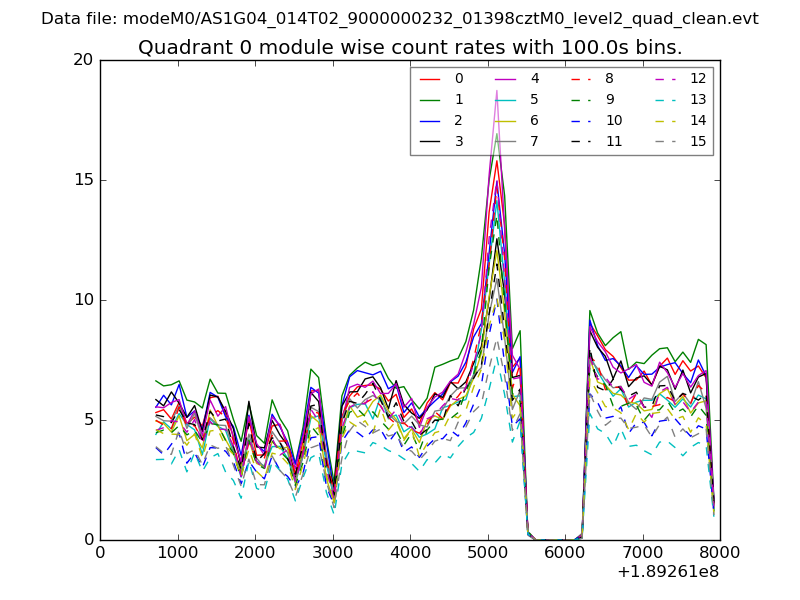

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

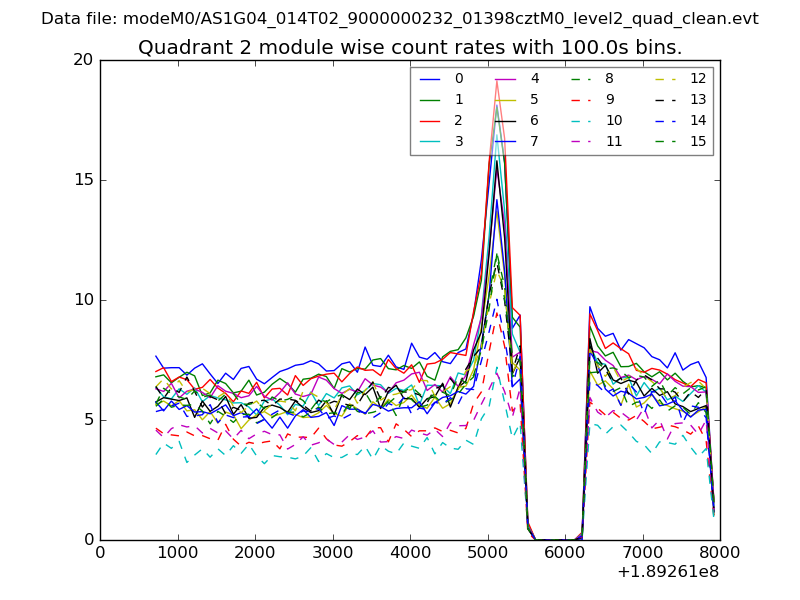

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

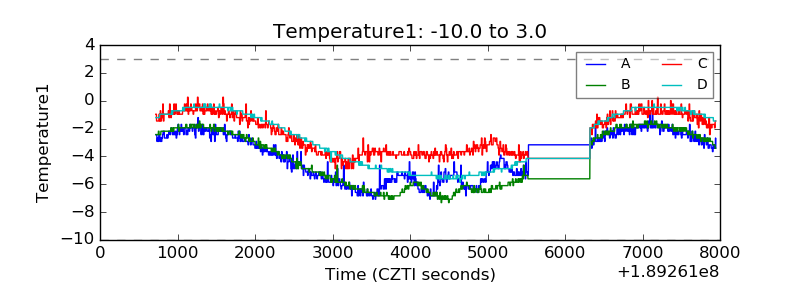

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
