| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G04_003T01_9000000234_01407cztM0_level2.evt | modeM0/AS1G04_003T01_9000000234_01407cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,124,426,880 | 95,952,960 |
| Size | 1.0 GB | 91.5 MB |
| Events in quadrant A | 10,703,396 | 599,988 |
| Events in quadrant B | 8,453,548 | 626,823 |
| Events in quadrant C | 7,440,230 | 617,909 |
| Events in quadrant D | 7,027,103 | 608,457 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36347 | 2 |
| B | 0 | 29660 | 1 |
| C | 0 | 26695 | 1 |
| D | 0 | 25567 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6488 | 310 | 4.778052% |
| B | 6488 | 46 | 0.709001% |
| C | 6488 | 2 | 0.030826% |
| D | 6488 | 48 | 0.739827% |

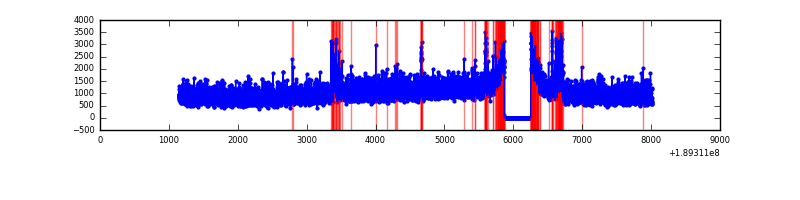

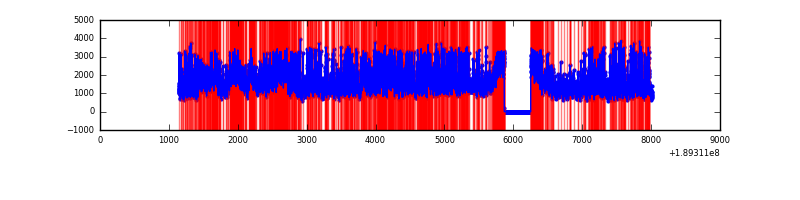

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6873 | 6489 | 1472 | 1472 | 21.42% | 22.68% |  |
| B | 6873 | 6489 | 430 | 430 | 6.26% | 6.63% |  |
| C | 6873 | 6489 | 188 | 188 | 2.74% | 2.90% |  |
| D | 6873 | 6489 | 223 | 223 | 3.24% | 3.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 3232728 | 6915.41 | 1931 | 1945 | 467.2 |
| A | 0 | 36 | 21055 | 40.9 | 1931 | 1945 | 467.2 |
| A | 4 | 32 | 17107 | 32.45 | 1931 | 1945 | 467.2 |
| B | 8 | 4 | 344620 | 702.54 | 2042 | 2057 | 487.6 |
| B | 12 | 52 | 141357 | 285.68 | 2042 | 2057 | 487.6 |
| B | 6 | 53 | 130090 | 262.58 | 2042 | 2057 | 487.6 |
| C | 15 | 241 | 247558 | 483.23 | 1829 | 1894 | 508.4 |
| C | 3 | 111 | 24038 | 43.56 | 1829 | 1894 | 508.4 |
| C | 3 | 79 | 22286 | 40.11 | 1829 | 1894 | 508.4 |
| D | 2 | 88 | 168848 | 313.01 | 1773 | 1830 | 533.6 |
| D | 9 | 53 | 55818 | 101.18 | 1773 | 1830 | 533.6 |
| D | 13 | 169 | 51333 | 92.77 | 1773 | 1830 | 533.6 |

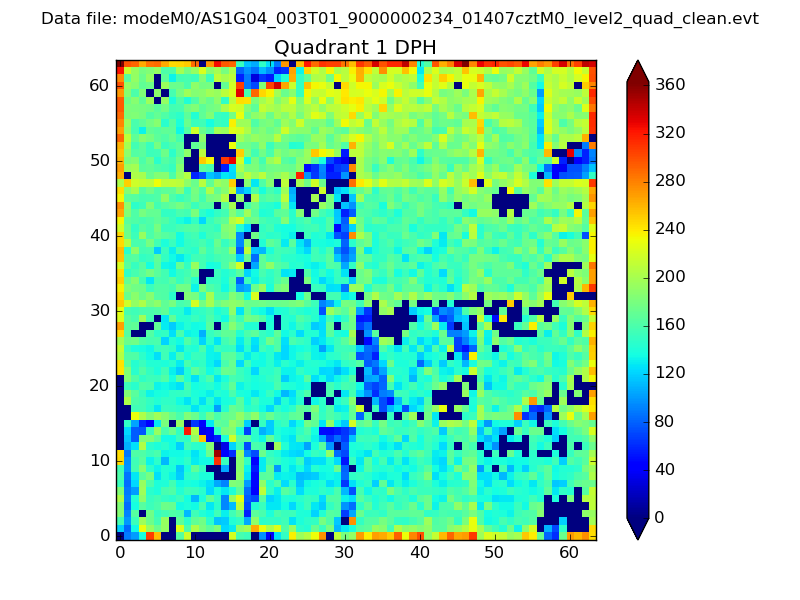

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

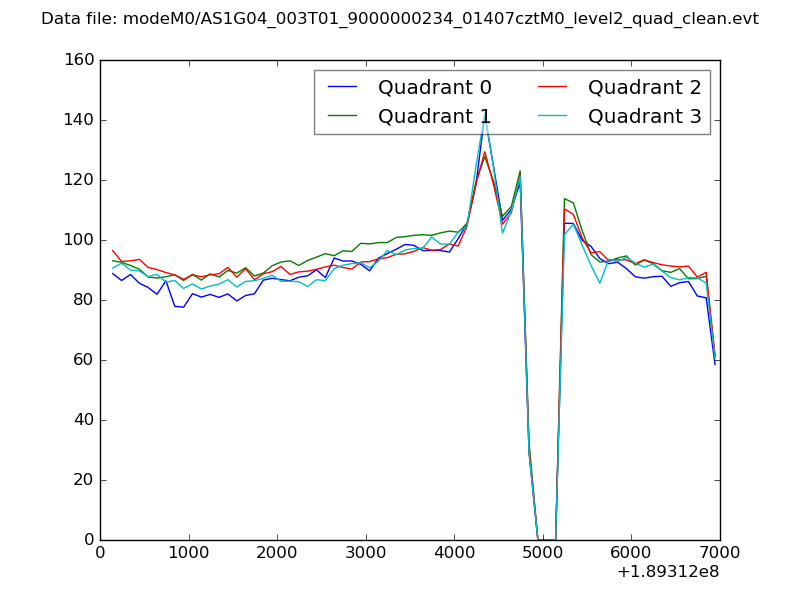

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

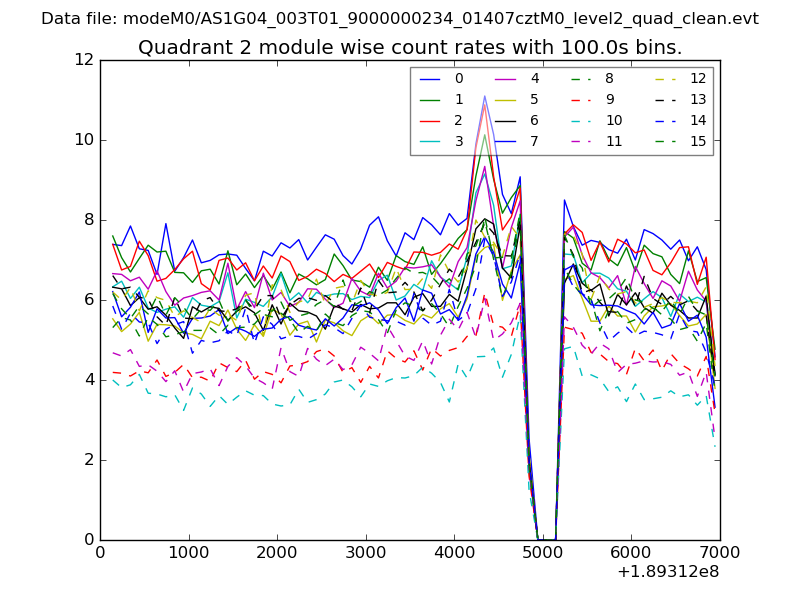

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

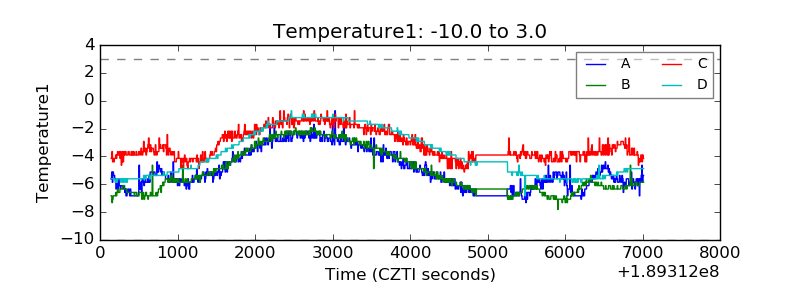

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

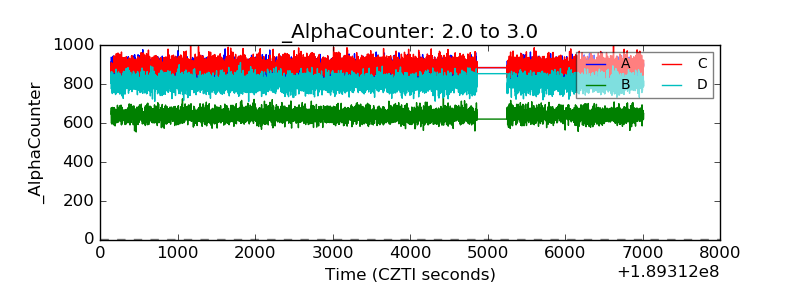

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

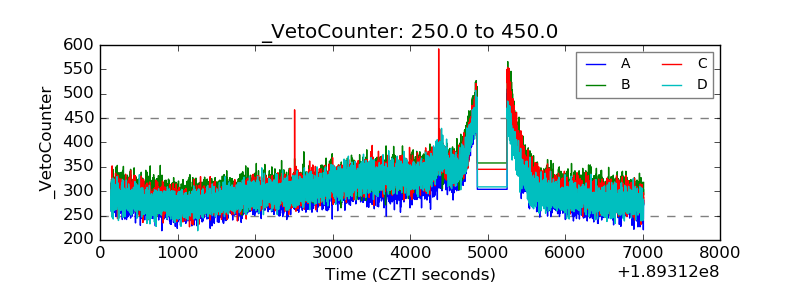

| Veto Counter |  |
