| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_034T01_9000000240_01436cztM0_level2.fits | modeM0/AS1G02_034T01_9000000240_01436cztM0_level2_quad_clean.evt |
| Size (bytes) | 236,563,200 | 26,282,880 |
| Size | 225.6 MB | 25.1 MB |
| Events in quadrant A | 2,423,144 | 170,083 |
| Events in quadrant B | 2,316,381 | 177,516 |
| Events in quadrant C | 2,099,700 | 171,676 |
| Events in quadrant D | 1,790,447 | 156,795 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8354 | 2 |
| B | 0 | 8026 | 1 |
| C | 0 | 7414 | 1 |
| D | 0 | 6484 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1633 | 40 | 2.449479% |
| B | 1633 | 15 | 0.918555% |
| C | 1633 | 5 | 0.306185% |
| D | 1633 | 2 | 0.122474% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1633 | 1633 | 259 | 259 | 15.86% | 15.86% |  |
| B | 1633 | 1633 | 223 | 223 | 13.66% | 13.66% |  |
| C | 1633 | 1633 | 122 | 122 | 7.47% | 7.47% |  |
| D | 1633 | 1633 | 65 | 65 | 3.98% | 3.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 395633 | 3043.86 | 526 | 530 | 129.8 |
| A | 12 | 133 | 7662 | 54.94 | 526 | 530 | 129.8 |
| A | 11 | 79 | 2038 | 11.61 | 526 | 530 | 129.8 |
| B | 8 | 4 | 128162 | 948.23 | 567 | 572 | 134.6 |
| B | 6 | 53 | 16325 | 117.07 | 567 | 572 | 134.6 |
| B | 0 | 220 | 4948 | 32.52 | 567 | 572 | 134.6 |
| C | 15 | 241 | 62928 | 430.84 | 512 | 531 | 144.8 |
| C | 3 | 143 | 27015 | 182.87 | 512 | 531 | 144.8 |
| C | 3 | 111 | 5792 | 36.33 | 512 | 531 | 144.8 |
| D | 9 | 53 | 7121 | 44.15 | 473 | 489 | 150.2 |
| D | 10 | 125 | 6260 | 38.42 | 473 | 489 | 150.2 |
| D | 9 | 65 | 5041 | 30.3 | 473 | 489 | 150.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

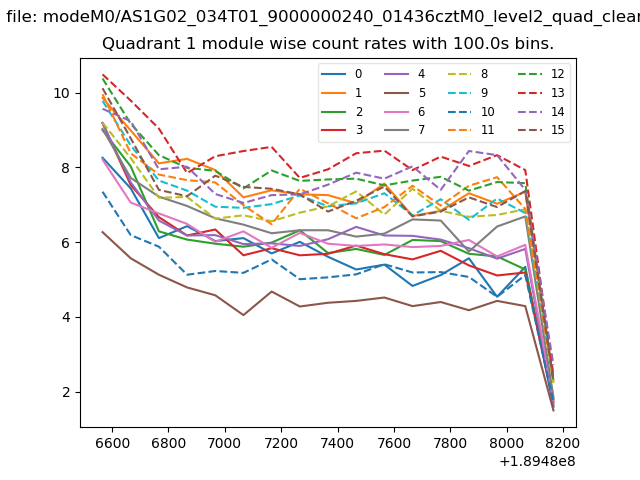

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

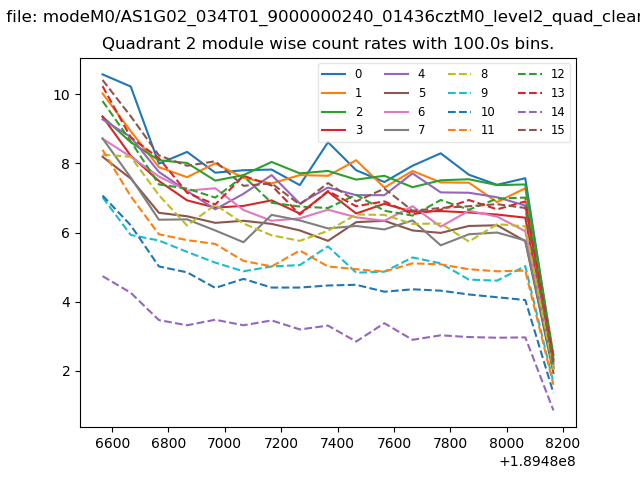

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

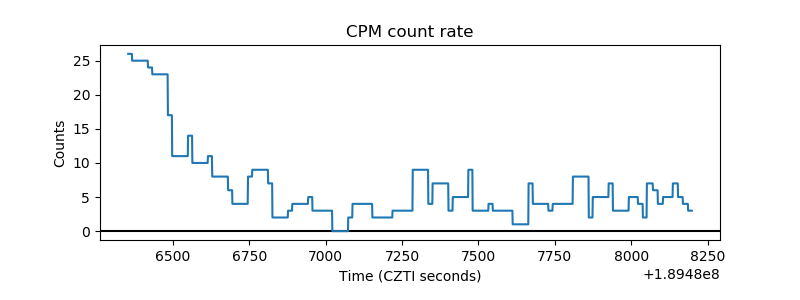

| _CPM_Rate |  |

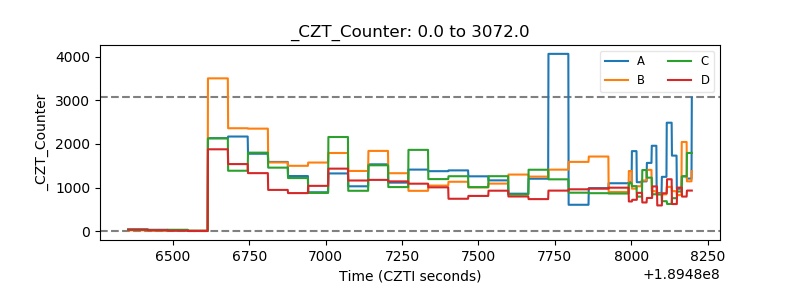

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

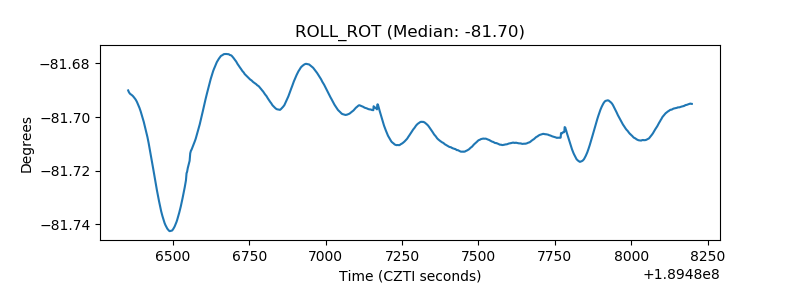

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
