| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_052T02_9000000276_01657cztM0_level2.fits | modeM0/AS1G02_052T02_9000000276_01657cztM0_level2_quad_clean.evt |
| Size (bytes) | 885,412,800 | 104,077,440 |
| Size | 844.4 MB | 99.3 MB |
| Events in quadrant A | 7,970,687 | 693,446 |
| Events in quadrant B | 8,953,808 | 702,832 |
| Events in quadrant C | 7,769,327 | 678,818 |
| Events in quadrant D | 7,578,653 | 617,335 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28340 | 3 |
| B | 0 | 31293 | 2 |
| C | 0 | 27781 | 2 |
| D | 0 | 27280 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6591 | 5 | 0.075861% |
| B | 6591 | 82 | 1.244121% |
| C | 6591 | 13 | 0.197239% |
| D | 6591 | 100 | 1.517220% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7441 | 6593 | 287 | 287 | 3.86% | 4.35% |  |
| B | 7441 | 6593 | 608 | 608 | 8.17% | 9.22% |  |
| C | 7441 | 6593 | 266 | 266 | 3.57% | 4.03% |  |
| D | 7441 | 6593 | 315 | 315 | 4.23% | 4.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 6352 | 8.44 | 2083 | 2103 | 503.3 |
| A | 8 | 14 | 5740 | 7.23 | 2083 | 2103 | 503.3 |
| A | -1 | -1 | -1 | -1.0 | 2083 | 2103 | 503.3 |
| B | 7 | 205 | 625662 | 1204.87 | 2179 | 2192 | 517.5 |
| B | 0 | 220 | 35757 | 64.86 | 2179 | 2192 | 517.5 |
| B | 15 | 85 | 19260 | 32.98 | 2179 | 2192 | 517.5 |
| C | 8 | 229 | 31607 | 53.13 | 1979 | 2051 | 556.3 |
| C | 5 | 234 | 12693 | 19.13 | 1979 | 2051 | 556.3 |
| C | 12 | 4 | 7878 | 10.47 | 1979 | 2051 | 556.3 |
| D | 13 | 53 | 357045 | 632.8 | 1905 | 1954 | 561.1 |
| D | 13 | 105 | 72484 | 125.69 | 1905 | 1954 | 561.1 |
| D | 2 | 54 | 41790 | 70.99 | 1905 | 1954 | 561.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

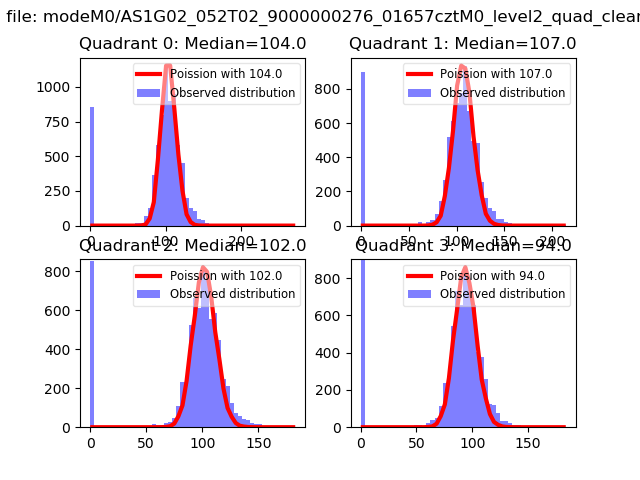

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

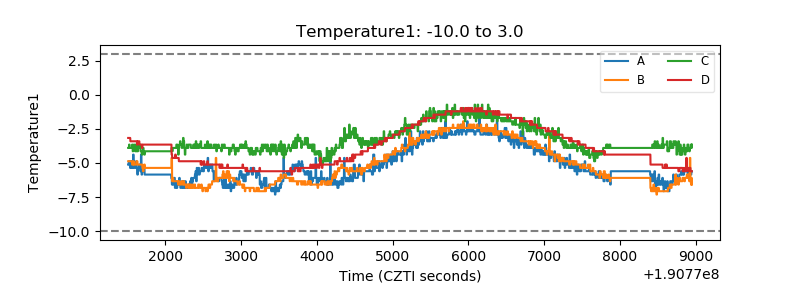

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

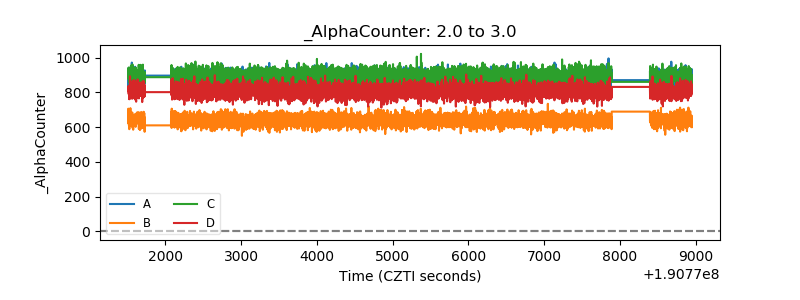

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
