| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_020T01_9000000296_01779cztM0_level2.evt | modeM0/AS1G02_020T01_9000000296_01779cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,635,200 | 32,068,800 |
| Size | 397.3 MB | 30.6 MB |
| Events in quadrant A | 3,328,016 | 200,250 |
| Events in quadrant B | 3,133,179 | 207,150 |
| Events in quadrant C | 2,916,274 | 201,486 |
| Events in quadrant D | 3,087,685 | 197,384 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11520 | 1 |
| B | 0 | 10892 | 1 |
| C | 0 | 10265 | 1 |
| D | 0 | 10806 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2277 | 47 | 2.064119% |
| B | 2277 | 34 | 1.493193% |
| C | 2277 | 24 | 1.054018% |
| D | 2277 | 113 | 4.962670% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3487 | 2278 | 205 | 205 | 5.88% | 9.00% |  |
| B | 3487 | 2277 | 163 | 163 | 4.67% | 7.16% |  |
| C | 3487 | 2278 | 132 | 132 | 3.79% | 5.79% |  |
| D | 3487 | 2278 | 227 | 227 | 6.51% | 9.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 231 | 339386 | 1783.87 | 781 | 785 | 189.8 |
| A | 10 | 2 | 2910 | 11.2 | 781 | 785 | 189.8 |
| A | -1 | -1 | -1 | -1.0 | 781 | 785 | 189.8 |
| B | 0 | 234 | 8744 | 40.82 | 822 | 824 | 194.0 |
| B | 5 | 6 | 6177 | 27.59 | 822 | 824 | 194.0 |
| B | 4 | 200 | 2706 | 9.7 | 822 | 824 | 194.0 |
| C | 8 | 208 | 15057 | 69.15 | 741 | 765 | 206.7 |
| C | 9 | 236 | 4338 | 17.29 | 741 | 765 | 206.7 |
| C | 7 | 159 | 4052 | 15.9 | 741 | 765 | 206.7 |
| D | 13 | 138 | 256504 | 1187.96 | 694 | 717 | 215.3 |
| D | 7 | 85 | 174144 | 805.45 | 694 | 717 | 215.3 |
| D | 13 | 53 | 22449 | 100.93 | 694 | 717 | 215.3 |

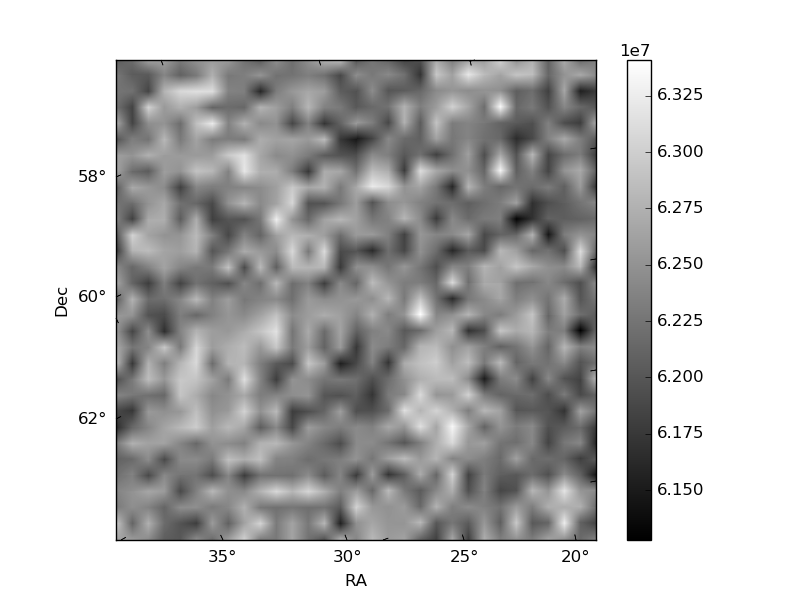

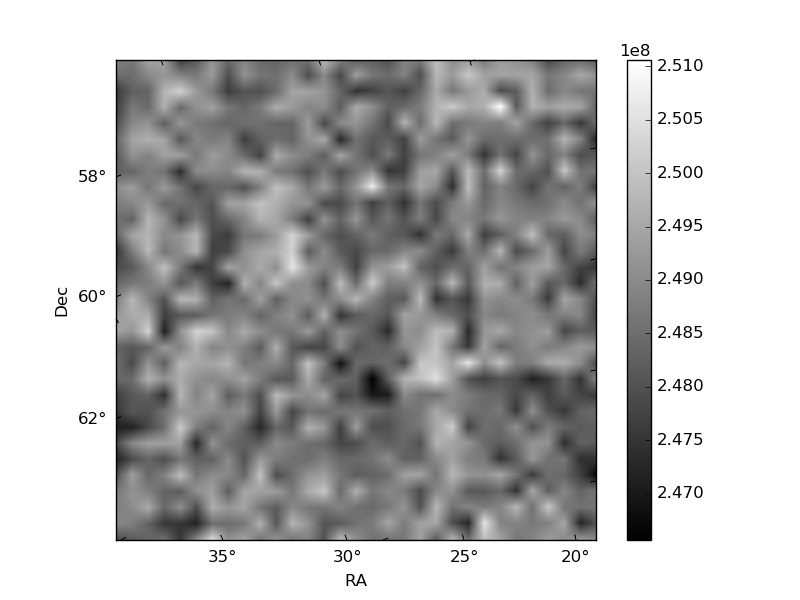

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

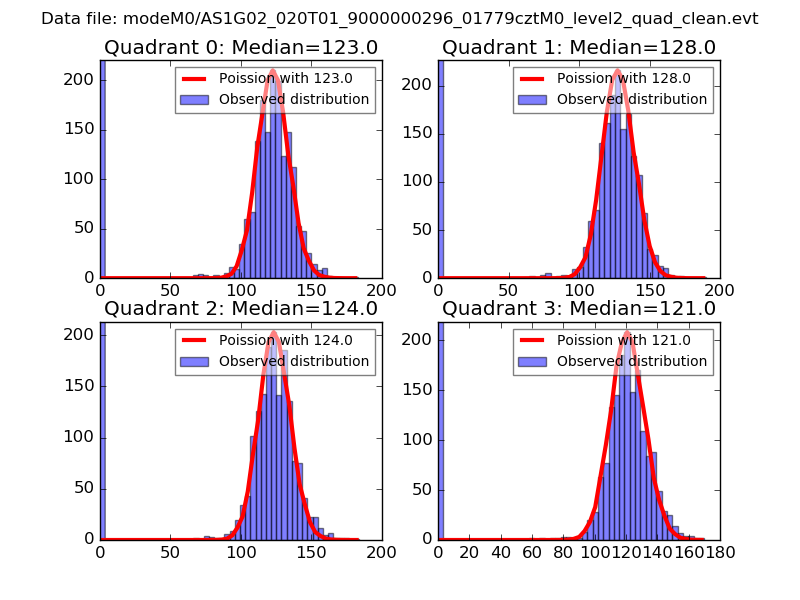

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

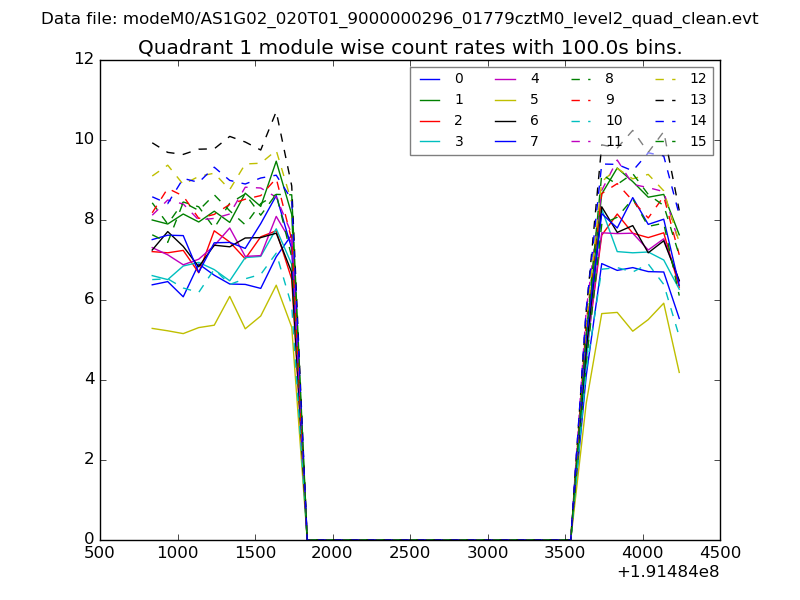

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

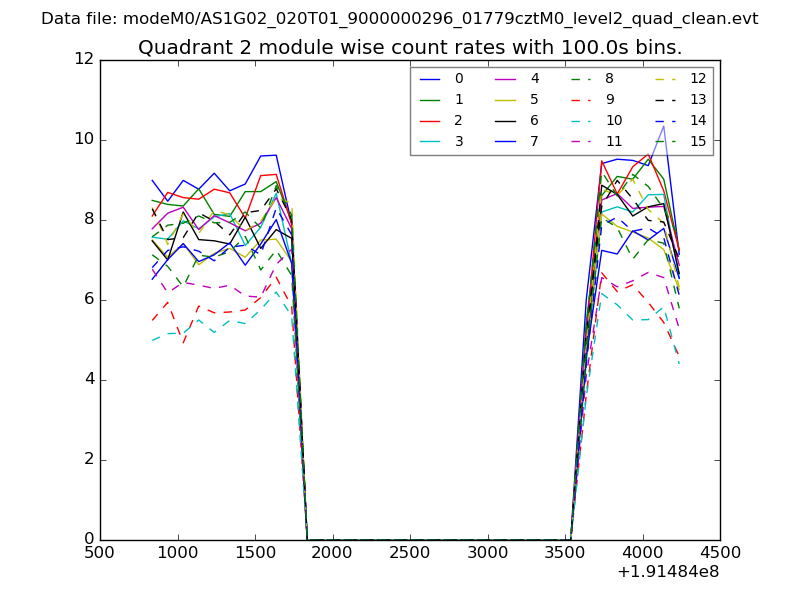

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

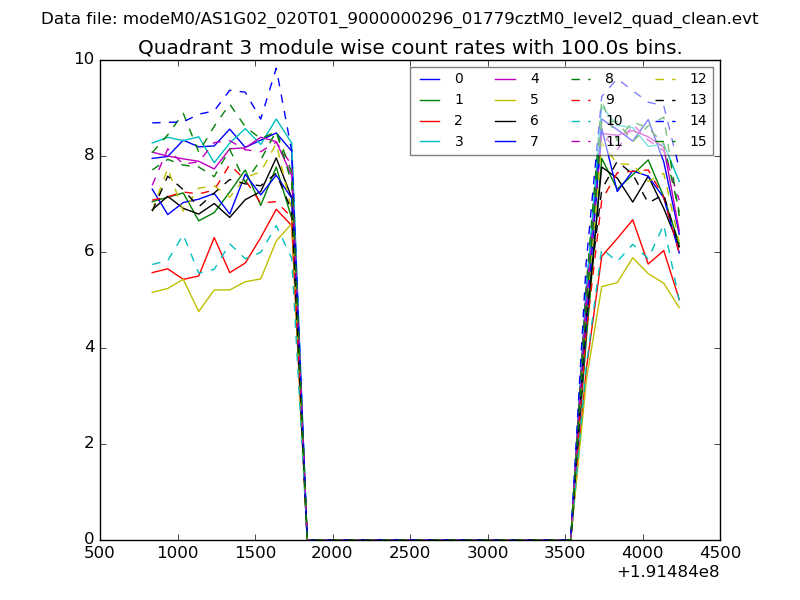

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

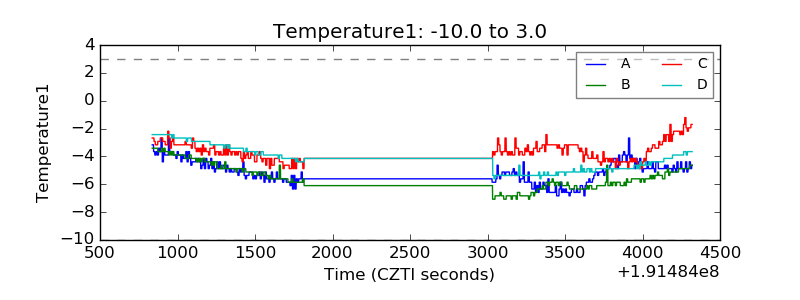

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

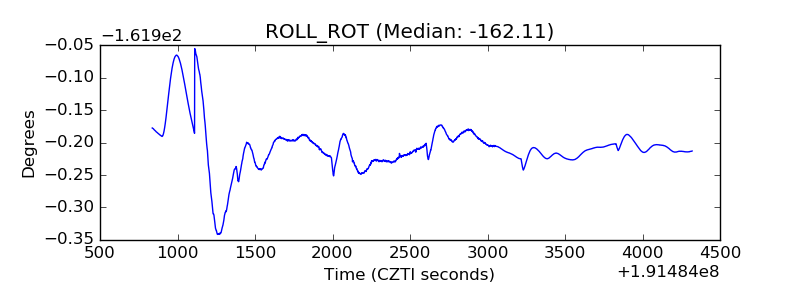

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
