| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_020T01_9000000296_01780cztM0_level2.evt | modeM0/AS1G02_020T01_9000000296_01780cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,023,638,400 | 97,989,120 |
| Size | 976.2 MB | 93.4 MB |
| Events in quadrant A | 8,204,727 | 639,305 |
| Events in quadrant B | 7,587,429 | 653,486 |
| Events in quadrant C | 7,086,357 | 633,993 |
| Events in quadrant D | 7,722,903 | 619,383 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28699 | 1 |
| B | 0 | 26854 | 10 |
| C | 0 | 25334 | 1 |
| D | 0 | 27240 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6037 | 58 | 0.960742% |
| B | 6035 | 56 | 0.927920% |
| C | 6037 | 32 | 0.530065% |
| D | 6037 | 143 | 2.368726% |

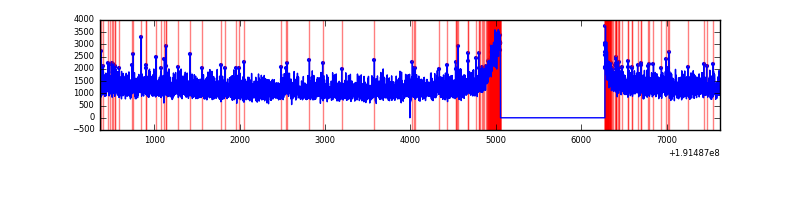

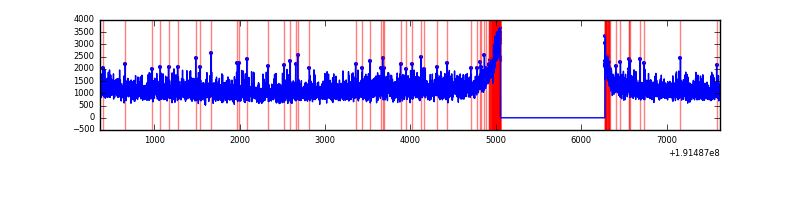

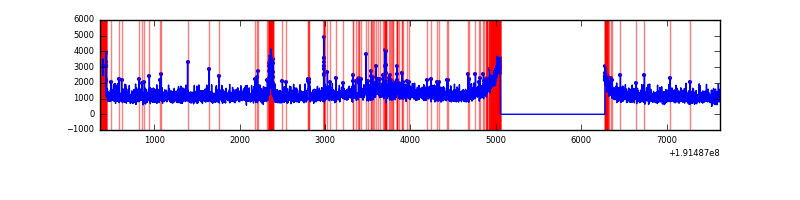

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7262 | 6038 | 305 | 305 | 4.20% | 5.05% |  |
| B | 7262 | 6036 | 242 | 242 | 3.33% | 4.01% |  |
| C | 7262 | 6037 | 172 | 172 | 2.37% | 2.85% |  |
| D | 7262 | 6037 | 349 | 349 | 4.81% | 5.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 231 | 761230 | 1631.43 | 1941 | 1952 | 465.4 |
| A | 13 | 9 | 17893 | 34.25 | 1941 | 1952 | 465.4 |
| A | 13 | 170 | 4786 | 6.09 | 1941 | 1952 | 465.4 |
| B | 0 | 234 | 24369 | 47.51 | 1993 | 2001 | 470.8 |
| B | 15 | 85 | 9593 | 16.13 | 1993 | 2001 | 470.8 |
| B | 0 | 229 | 7799 | 12.32 | 1993 | 2001 | 470.8 |
| C | 9 | 236 | 45666 | 87.94 | 1796 | 1856 | 498.2 |
| C | 8 | 208 | 27907 | 52.3 | 1796 | 1856 | 498.2 |
| C | 14 | 48 | 5174 | 6.66 | 1796 | 1856 | 498.2 |
| D | 7 | 85 | 626614 | 1164.01 | 1743 | 1804 | 536.8 |
| D | 13 | 138 | 344746 | 638.9 | 1743 | 1804 | 536.8 |
| D | 13 | 53 | 102423 | 187.45 | 1743 | 1804 | 536.8 |

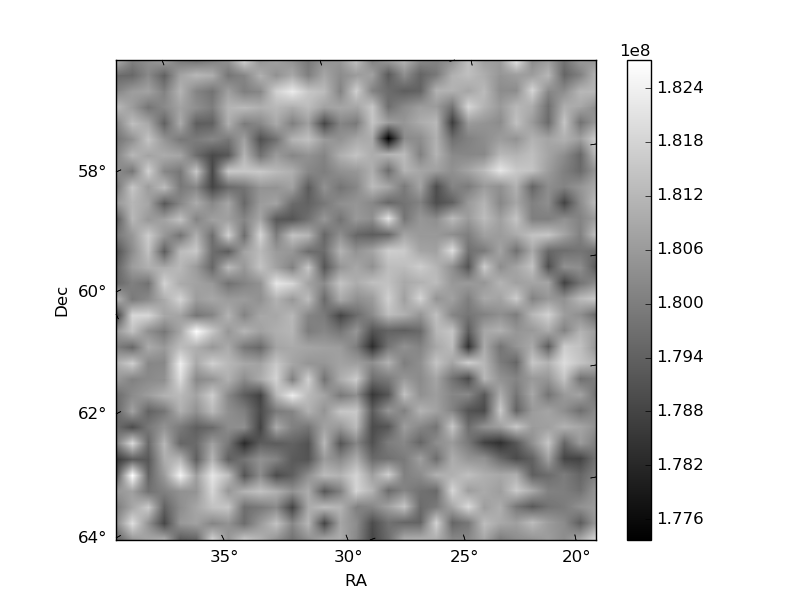

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

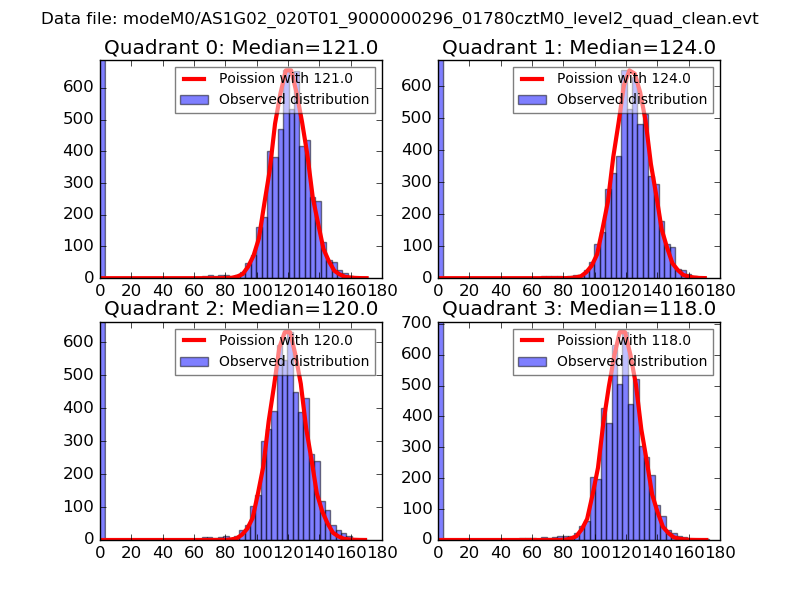

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

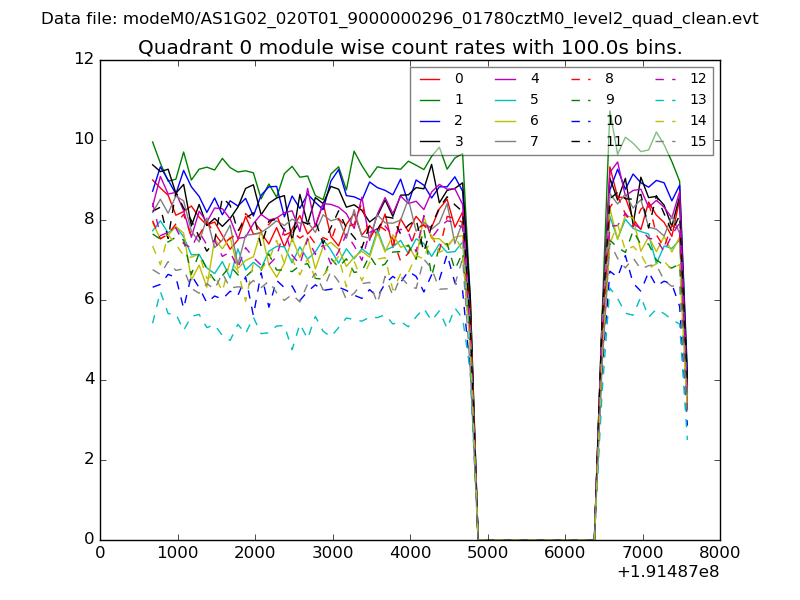

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

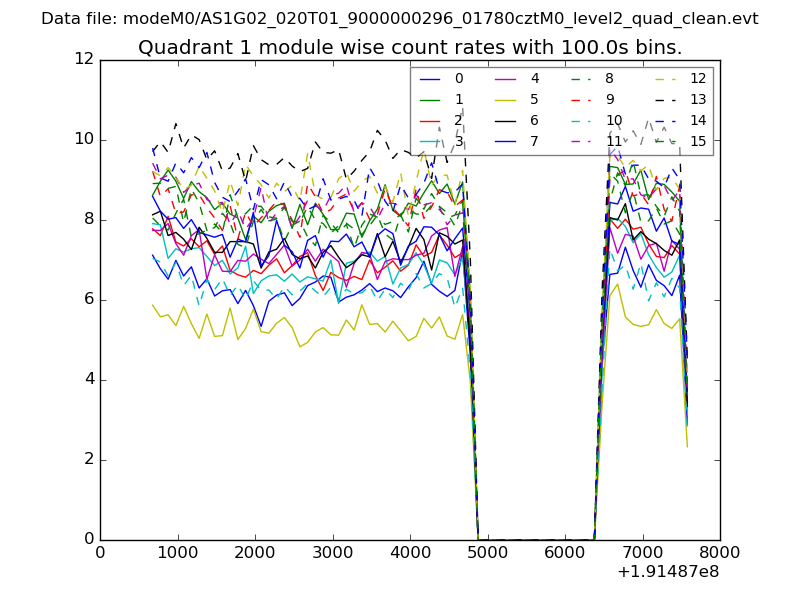

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

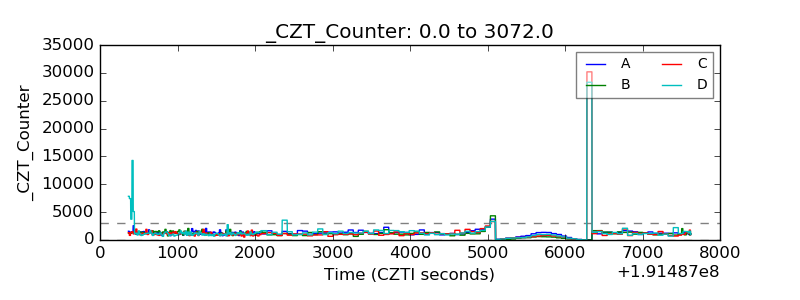

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
