| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_020T01_9000000296_01787cztM0_level2.evt | modeM0/AS1G02_020T01_9000000296_01787cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,159,312,320 | 97,856,640 |
| Size | 1.1 GB | 93.3 MB |
| Events in quadrant A | 8,740,785 | 621,340 |
| Events in quadrant B | 8,781,839 | 630,996 |
| Events in quadrant C | 8,354,770 | 612,546 |
| Events in quadrant D | 8,756,484 | 598,310 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31051 | 1 |
| B | 0 | 31181 | 1 |
| C | 0 | 29897 | 1 |
| D | 0 | 31161 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7193 | 12 | 0.166829% |
| B | 7193 | 11 | 0.152926% |
| C | 7193 | 15 | 0.208536% |
| D | 7191 | 92 | 1.279377% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7738 | 7194 | 199 | 199 | 2.57% | 2.77% |  |
| B | 7738 | 7194 | 178 | 178 | 2.30% | 2.47% |  |
| C | 7738 | 7194 | 140 | 140 | 1.81% | 1.95% |  |
| D | 7738 | 7193 | 434 | 434 | 5.61% | 6.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 231 | 207304 | 382.98 | 2217 | 2233 | 535.5 |
| A | 15 | 236 | 49516 | 88.3 | 2217 | 2233 | 535.5 |
| A | 10 | 2 | 12096 | 18.42 | 2217 | 2233 | 535.5 |
| B | 4 | 216 | 24692 | 40.84 | 2306 | 2313 | 547.9 |
| B | 0 | 244 | 16015 | 25.01 | 2306 | 2313 | 547.9 |
| B | 0 | 220 | 13870 | 21.09 | 2306 | 2313 | 547.9 |
| C | 10 | 82 | 26766 | 41.4 | 2131 | 2213 | 593.0 |
| C | 9 | 236 | 8085 | 9.9 | 2131 | 2213 | 593.0 |
| C | 15 | 246 | 7682 | 9.22 | 2131 | 2213 | 593.0 |
| D | 2 | 16 | 317121 | 496.91 | 2051 | 2126 | 633.9 |
| D | 7 | 85 | 304960 | 477.73 | 2051 | 2126 | 633.9 |
| D | 13 | 169 | 259515 | 406.04 | 2051 | 2126 | 633.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

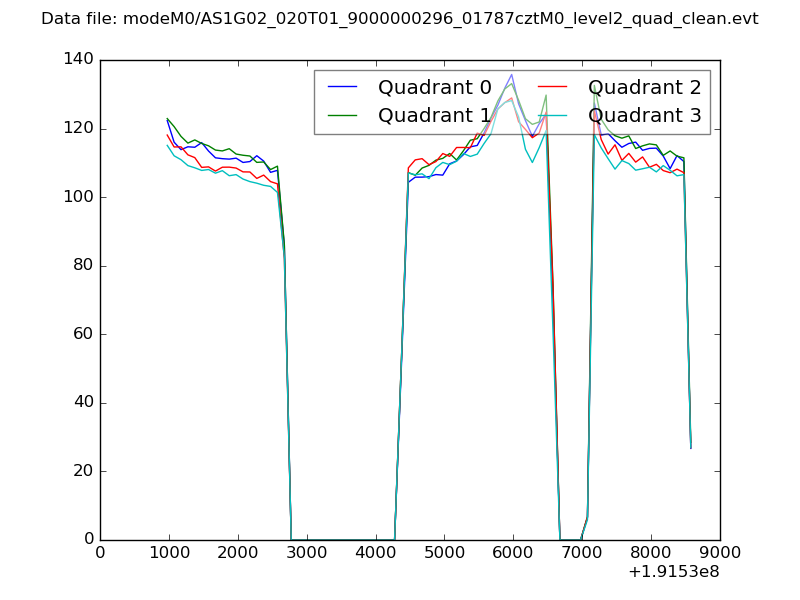

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

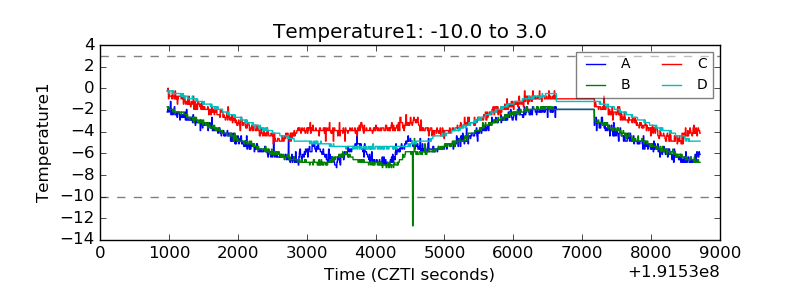

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

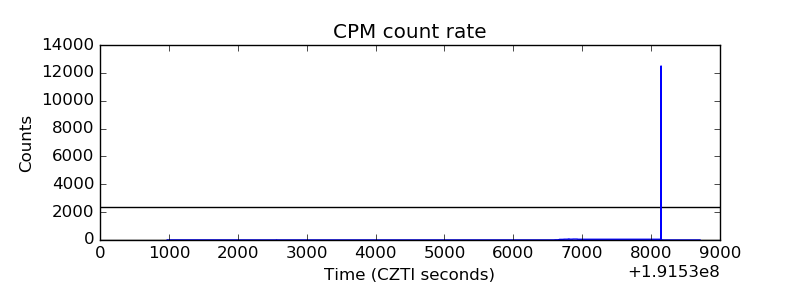

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

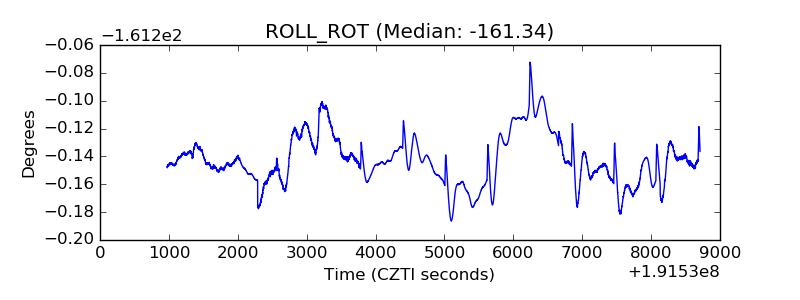

| _ROLL_ROT |  |

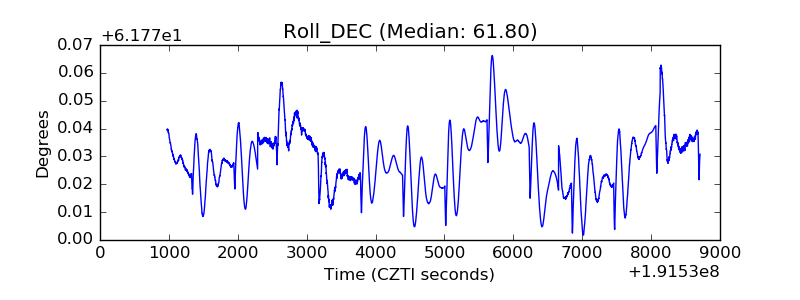

| _Roll_DEC |  |

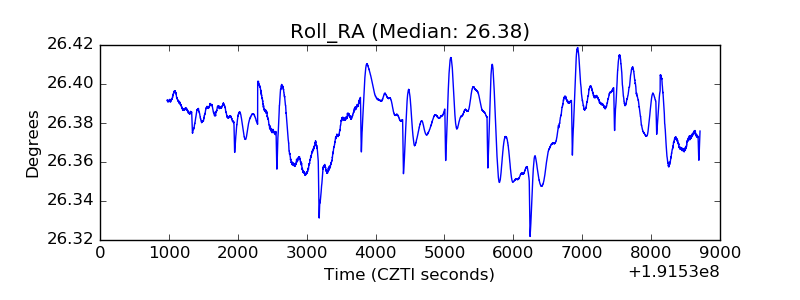

| _Roll_RA |  |

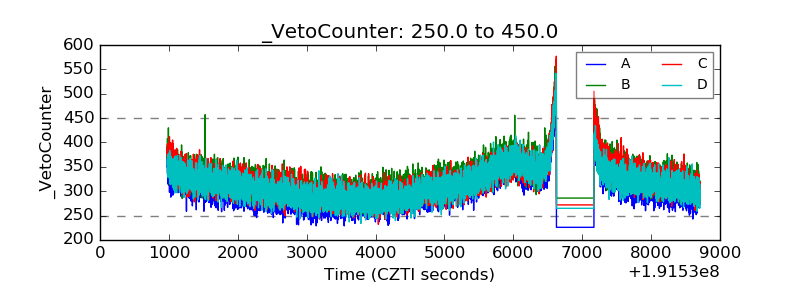

| Veto Counter |  |
