| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_020T01_9000000296_01790cztM0_level2.evt | modeM0/AS1G02_020T01_9000000296_01790cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,064,462,400 | 71,547,840 |
| Size | 1015.2 MB | 68.2 MB |
| Events in quadrant A | 7,991,192 | 425,132 |
| Events in quadrant B | 8,475,338 | 431,560 |
| Events in quadrant C | 7,776,815 | 425,392 |
| Events in quadrant D | 7,547,439 | 415,013 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28532 | 2 |
| B | 0 | 29961 | 11 |
| C | 0 | 27912 | 13 |
| D | 0 | 27263 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6742 | 25 | 0.370810% |
| B | 6740 | 38 | 0.563798% |
| C | 6740 | 23 | 0.341246% |
| D | 6742 | 53 | 0.786117% |

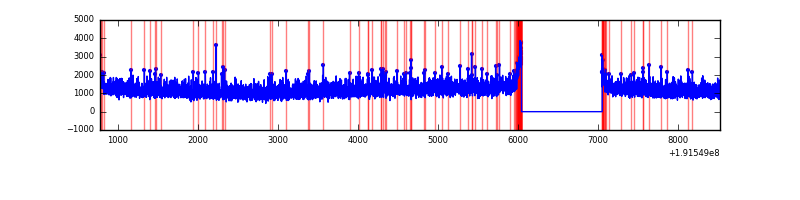

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7752 | 6742 | 132 | 132 | 1.70% | 1.96% |  |
| B | 7752 | 6742 | 258 | 258 | 3.33% | 3.83% |  |
| C | 7752 | 6742 | 139 | 139 | 1.79% | 2.06% |  |
| D | 7752 | 6743 | 187 | 187 | 2.41% | 2.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 231 | 54907 | 106.41 | 2074 | 2086 | 496.4 |
| A | 15 | 236 | 10911 | 17.78 | 2074 | 2086 | 496.4 |
| A | -1 | -1 | -1 | -1.0 | 2074 | 2086 | 496.4 |
| B | 4 | 216 | 125440 | 239.91 | 2185 | 2198 | 513.7 |
| B | 0 | 229 | 41055 | 75.64 | 2185 | 2198 | 513.7 |
| B | 3 | 32 | 17899 | 30.56 | 2185 | 2198 | 513.7 |
| C | 10 | 82 | 31435 | 53.12 | 1983 | 2049 | 553.2 |
| C | 9 | 236 | 8276 | 11.25 | 1983 | 2049 | 553.2 |
| C | -1 | -1 | -1 | -1.0 | 1983 | 2049 | 553.2 |
| D | 10 | 199 | 136693 | 228.69 | 1896 | 1966 | 589.1 |
| D | 13 | 169 | 107698 | 179.48 | 1896 | 1966 | 589.1 |
| D | 10 | 102 | 83445 | 138.31 | 1896 | 1966 | 589.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

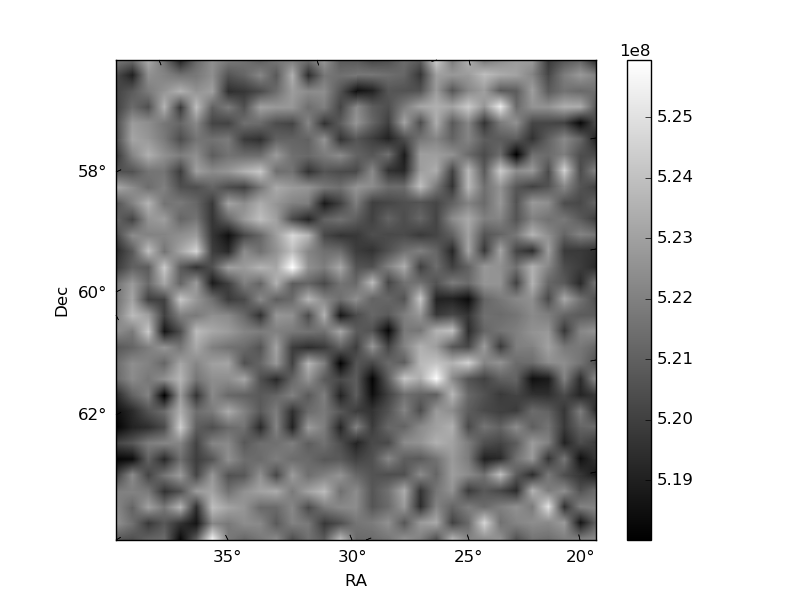

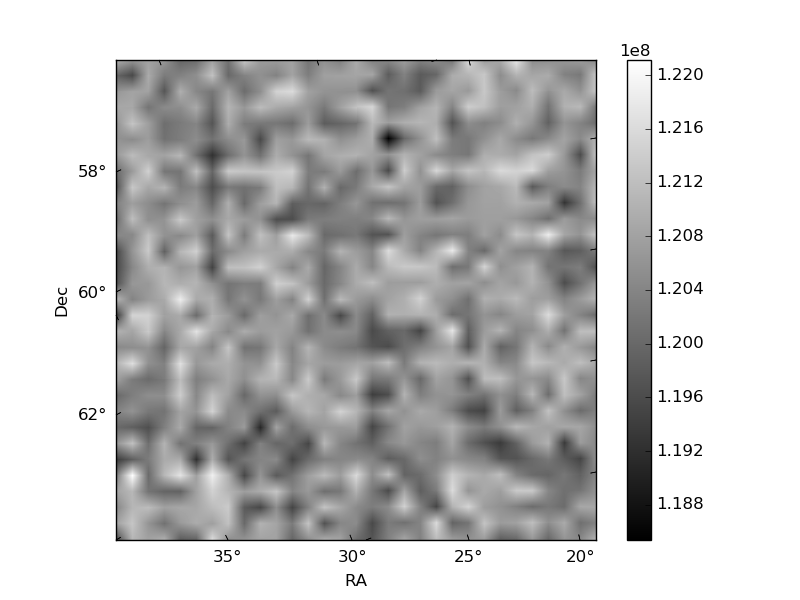

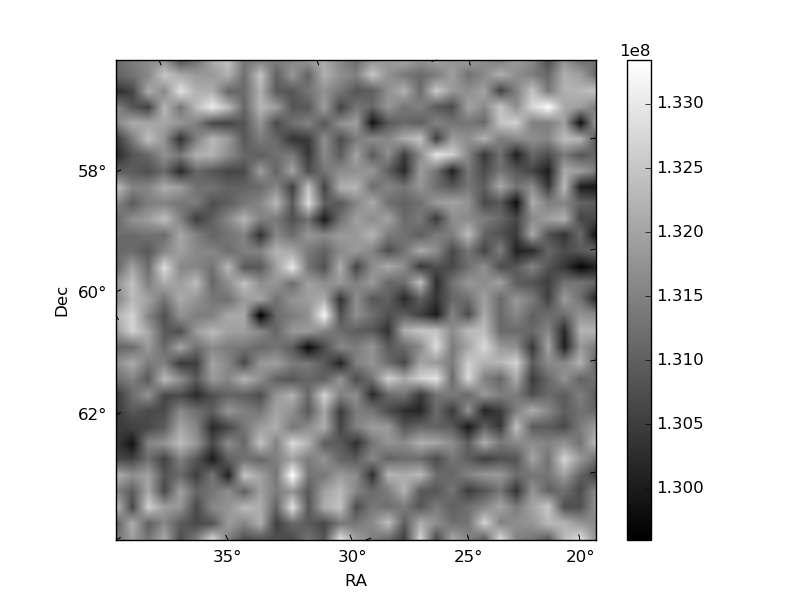

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

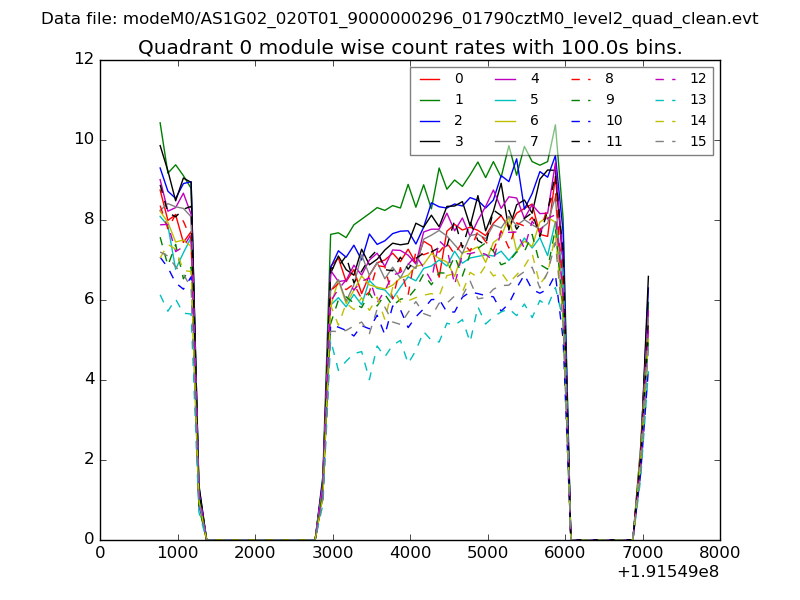

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

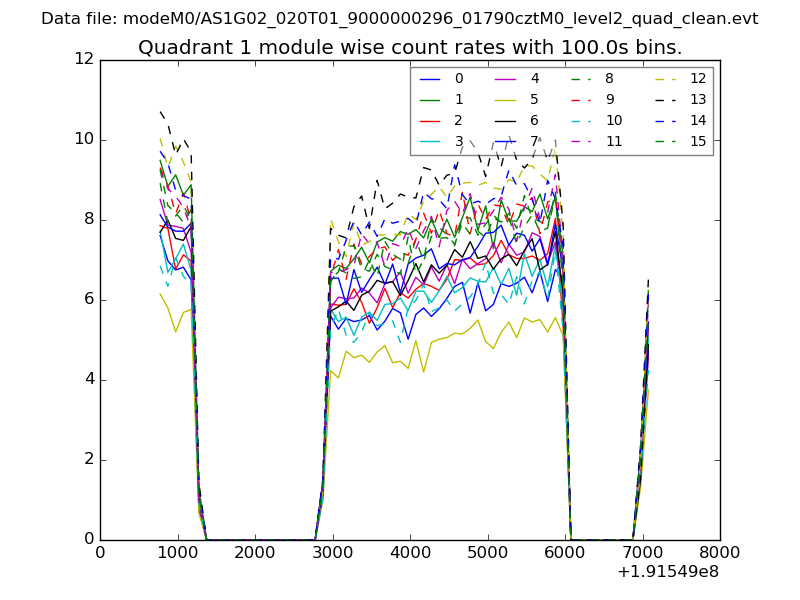

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

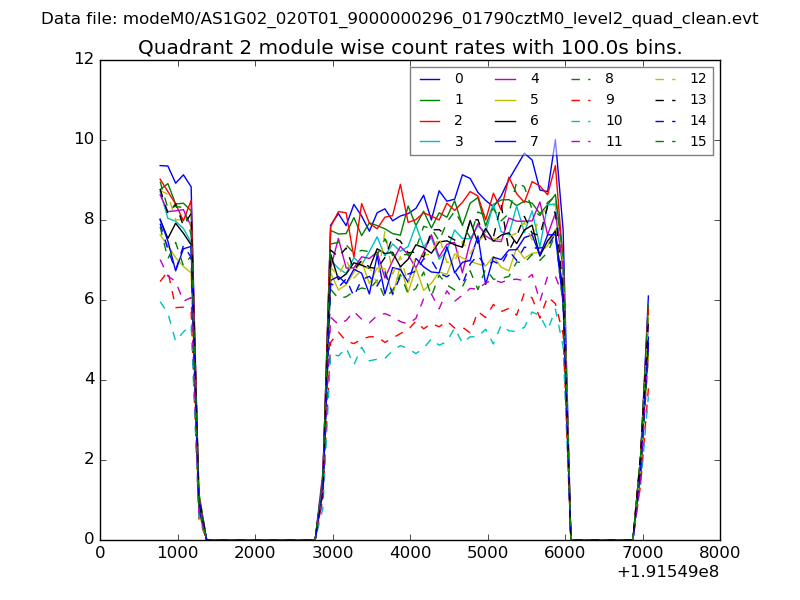

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

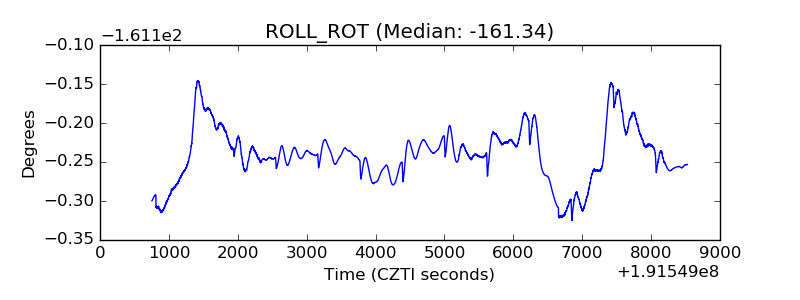

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
