| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_020T01_9000000296_01792cztM0_level2.evt | modeM0/AS1G02_020T01_9000000296_01792cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,026,486,720 | 67,317,120 |
| Size | 978.9 MB | 64.2 MB |
| Events in quadrant A | 7,899,656 | 395,461 |
| Events in quadrant B | 8,082,889 | 402,547 |
| Events in quadrant C | 7,508,281 | 397,215 |
| Events in quadrant D | 7,164,655 | 389,083 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28062 | 2 |
| B | 0 | 28655 | 2 |
| C | 0 | 26977 | 2 |
| D | 0 | 25931 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6507 | 13 | 0.199785% |
| B | 6507 | 17 | 0.261257% |
| C | 6507 | 10 | 0.153681% |
| D | 6507 | 30 | 0.461042% |

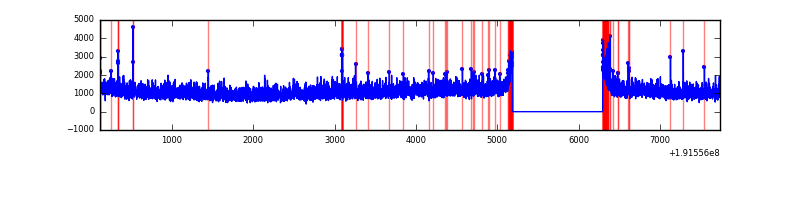

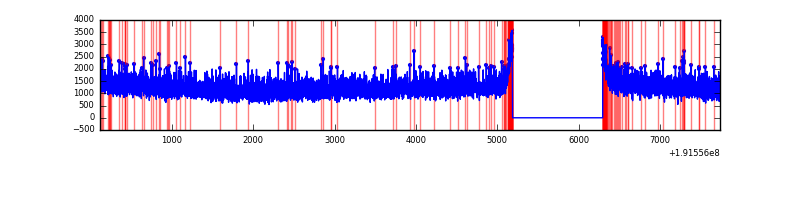

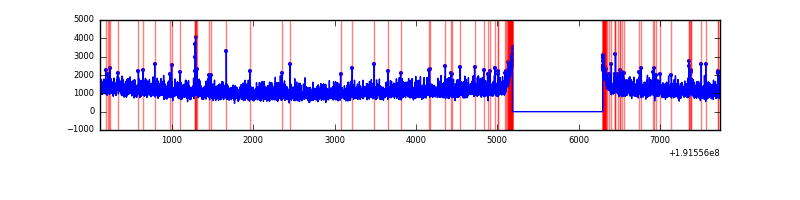

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7617 | 6508 | 162 | 162 | 2.13% | 2.49% |  |
| B | 7617 | 6508 | 187 | 187 | 2.46% | 2.87% |  |
| C | 7617 | 6508 | 138 | 138 | 1.81% | 2.12% |  |
| D | 7617 | 6508 | 127 | 127 | 1.67% | 1.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 231 | 164546 | 336.2 | 2019 | 2037 | 483.4 |
| A | 13 | 9 | 17372 | 31.72 | 2019 | 2037 | 483.4 |
| A | 14 | 218 | 4814 | 5.75 | 2019 | 2037 | 483.4 |
| B | 0 | 220 | 11664 | 18.97 | 2129 | 2139 | 502.2 |
| B | 4 | 200 | 6204 | 8.09 | 2129 | 2139 | 502.2 |
| B | 0 | 229 | 6045 | 7.78 | 2129 | 2139 | 502.2 |
| C | 10 | 82 | 73541 | 135.82 | 1904 | 1970 | 527.0 |
| C | 9 | 236 | 6109 | 7.85 | 1904 | 1970 | 527.0 |
| C | -1 | -1 | -1 | -1.0 | 1904 | 1970 | 527.0 |
| D | 10 | 199 | 94993 | 164.49 | 1826 | 1891 | 566.0 |
| D | 7 | 85 | 88933 | 153.78 | 1826 | 1891 | 566.0 |
| D | 13 | 169 | 49403 | 83.94 | 1826 | 1891 | 566.0 |

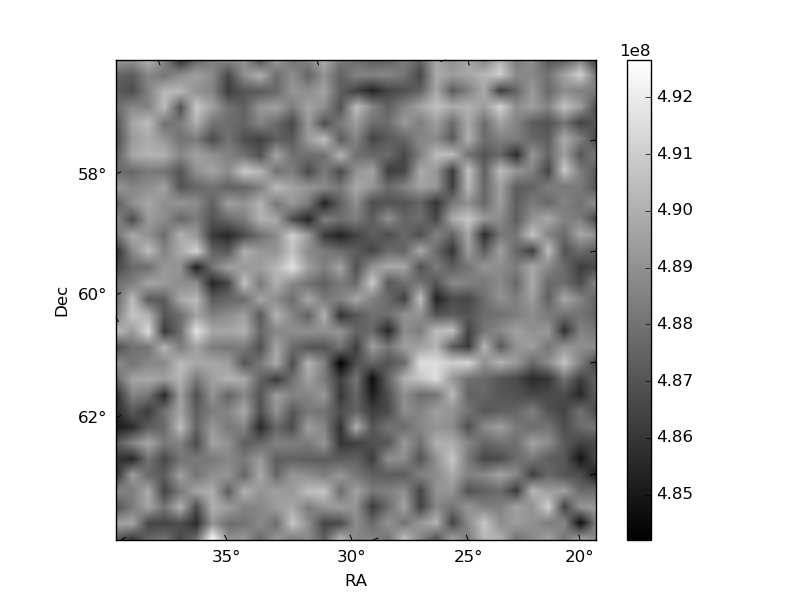

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

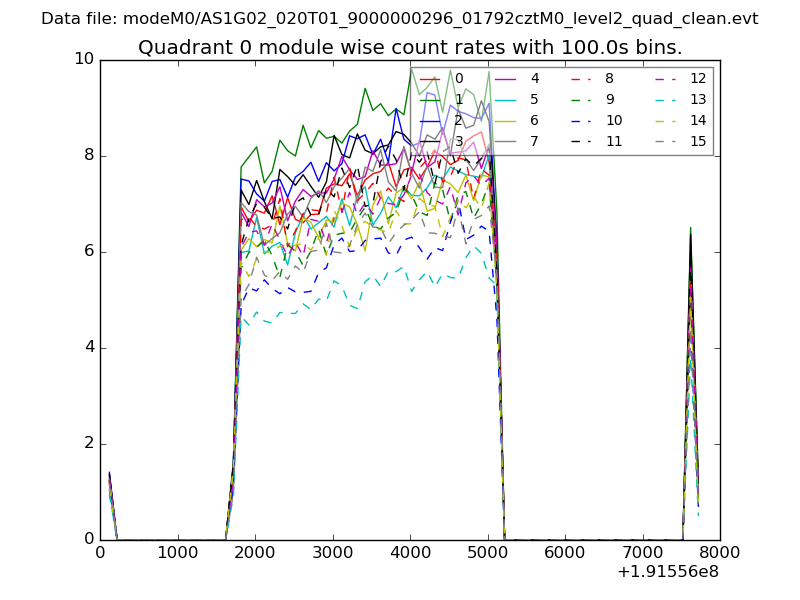

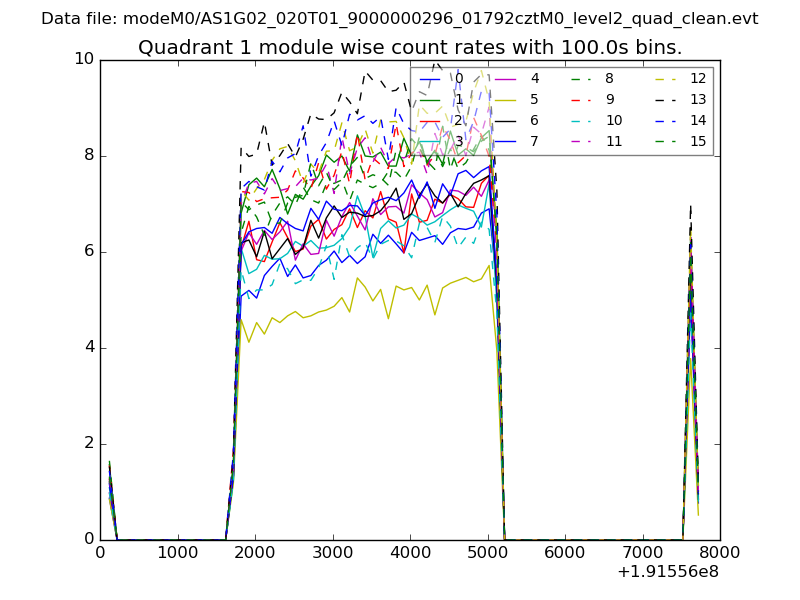

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

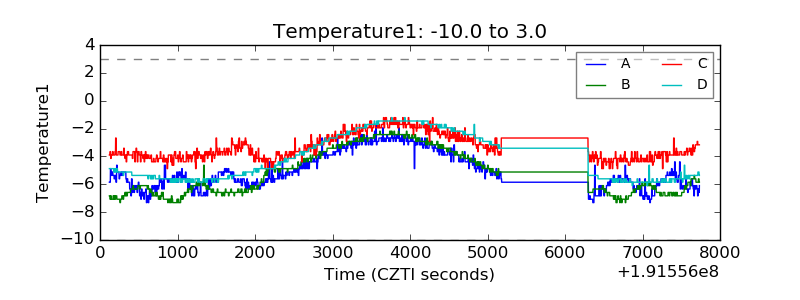

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

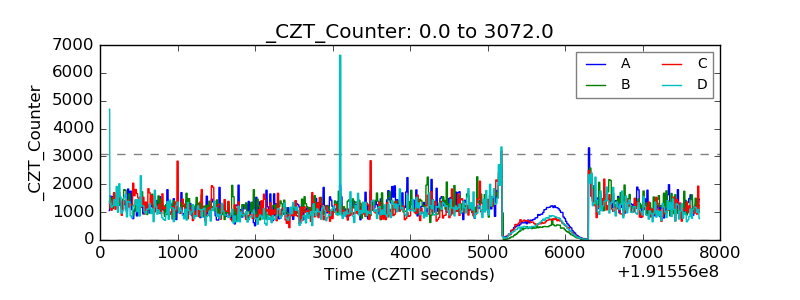

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
