| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_020T01_9000000296_01798cztM0_level2.evt | modeM0/AS1G02_020T01_9000000296_01798cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,213,608,960 | 101,891,520 |
| Size | 1.1 GB | 97.2 MB |
| Events in quadrant A | 9,132,094 | 651,373 |
| Events in quadrant B | 9,226,379 | 660,503 |
| Events in quadrant C | 8,630,751 | 640,320 |
| Events in quadrant D | 9,283,006 | 626,317 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32286 | 9 |
| B | 0 | 32619 | 2 |
| C | 0 | 30750 | 2 |
| D | 0 | 32754 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7285 | 29 | 0.398078% |
| B | 7287 | 23 | 0.315631% |
| C | 7287 | 29 | 0.397969% |
| D | 7287 | 70 | 0.960615% |

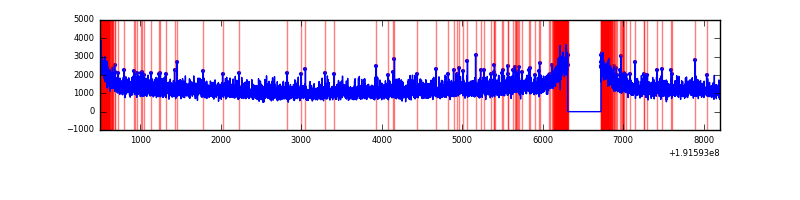

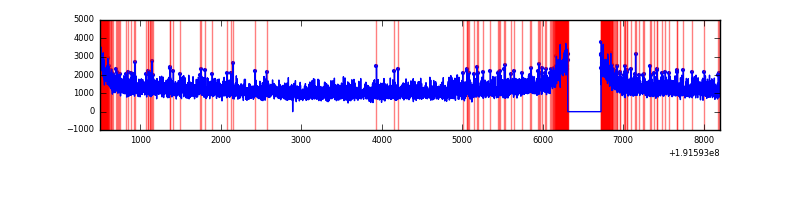

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7702 | 7287 | 400 | 400 | 5.19% | 5.49% |  |
| B | 7702 | 7288 | 403 | 403 | 5.23% | 5.53% |  |
| C | 7702 | 7288 | 298 | 298 | 3.87% | 4.09% |  |
| D | 7702 | 7288 | 490 | 490 | 6.36% | 6.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 231 | 104229 | 178.43 | 2361 | 2376 | 570.8 |
| A | 14 | 5 | 5291 | 5.11 | 2361 | 2376 | 570.8 |
| A | -1 | -1 | -1 | -1.0 | 2361 | 2376 | 570.8 |
| B | 15 | 85 | 15757 | 23.14 | 2425 | 2445 | 575.4 |
| B | 4 | 200 | 8336 | 10.24 | 2425 | 2445 | 575.4 |
| B | 3 | 32 | 8273 | 10.13 | 2425 | 2445 | 575.4 |
| C | 14 | 223 | 31399 | 47.4 | 2193 | 2271 | 614.5 |
| C | 9 | 236 | 24189 | 35.67 | 2193 | 2271 | 614.5 |
| C | 10 | 82 | 15947 | 22.26 | 2193 | 2271 | 614.5 |
| D | 7 | 85 | 477556 | 707.71 | 2165 | 2244 | 671.6 |
| D | 13 | 169 | 208103 | 306.51 | 2165 | 2244 | 671.6 |
| D | 10 | 172 | 190541 | 280.36 | 2165 | 2244 | 671.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

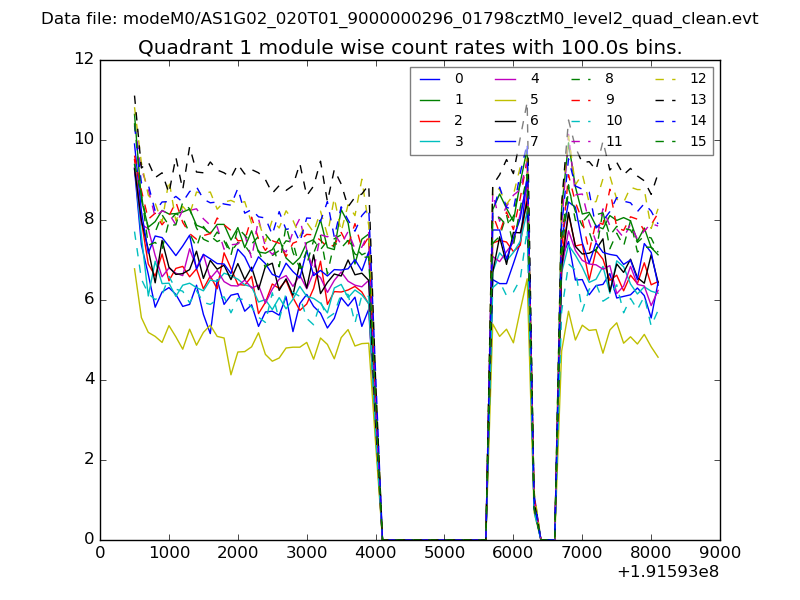

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

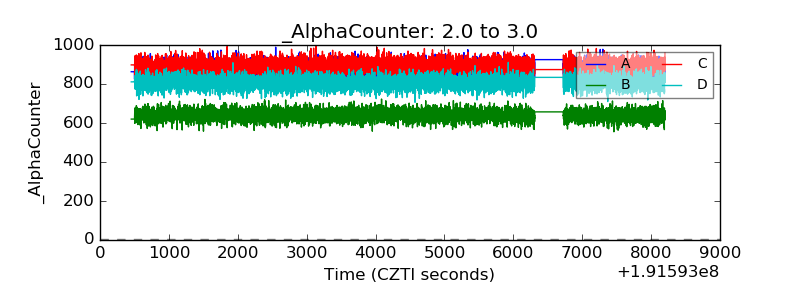

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

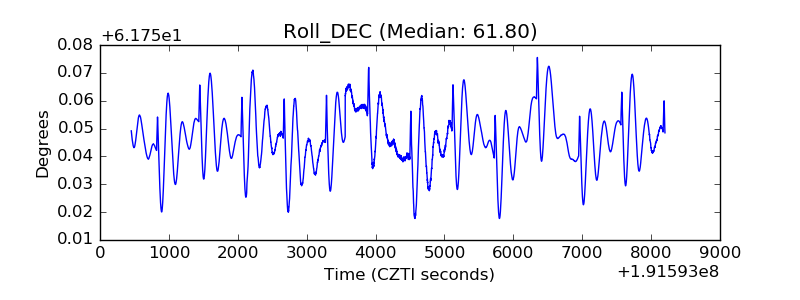

| _Roll_DEC |  |
| _Roll_RA |  |

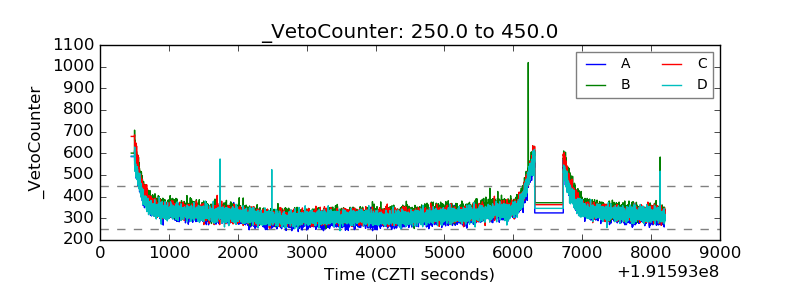

| Veto Counter |  |
