| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_175T03_9000000322_02078cztM0_level2.evt | modeM0/AS1P01_175T03_9000000322_02078cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,256,113,600 | 242,072,640 |
| Size | 3.0 GB | 230.9 MB |
| Events in quadrant A | 23,516,544 | 1,521,428 |
| Events in quadrant B | 29,005,215 | 1,536,209 |
| Events in quadrant C | 22,589,940 | 1,522,346 |
| Events in quadrant D | 22,273,319 | 1,465,977 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 83188 | 4 |
| B | 0 | 99316 | 3 |
| C | 0 | 80372 | 3 |
| D | 0 | 79527 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18663 | 278 | 1.489578% |
| B | 18663 | 460 | 2.464770% |
| C | 18663 | 181 | 0.969833% |
| D | 18663 | 429 | 2.298666% |

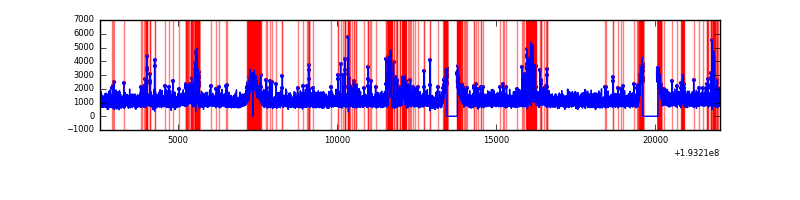

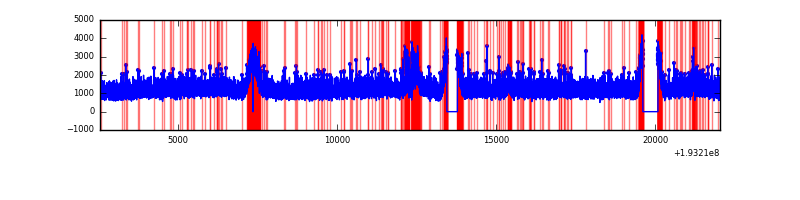

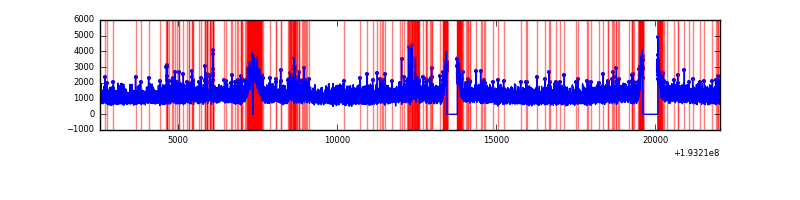

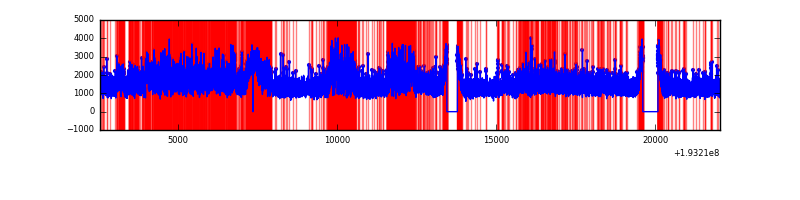

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19493 | 18666 | 1074 | 1074 | 5.51% | 5.75% |  |
| B | 19493 | 18666 | 3073 | 3073 | 15.76% | 16.46% |  |
| C | 19493 | 18666 | 868 | 868 | 4.45% | 4.65% |  |
| D | 19493 | 18666 | 1170 | 1170 | 6.00% | 6.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 715927 | 491.32 | 5952 | 5975 | 1445.0 |
| A | 10 | 2 | 36858 | 21.37 | 5952 | 5975 | 1445.0 |
| A | 0 | 1 | 18045 | 8.35 | 5952 | 5975 | 1445.0 |
| B | 5 | 68 | 4535399 | 3120.12 | 6154 | 6158 | 1451.6 |
| B | 4 | 48 | 729071 | 498.0 | 6154 | 6158 | 1451.6 |
| B | 8 | 3 | 264987 | 178.3 | 6154 | 6158 | 1451.6 |
| C | 14 | 223 | 447669 | 278.18 | 5657 | 5844 | 1588.3 |
| C | 10 | 82 | 52500 | 29.38 | 5657 | 5844 | 1588.3 |
| C | 10 | 34 | 26301 | 12.88 | 5657 | 5844 | 1588.3 |
| D | 2 | 32 | 868154 | 502.37 | 5495 | 5696 | 1716.8 |
| D | 2 | 89 | 364021 | 208.72 | 5495 | 5696 | 1716.8 |
| D | 11 | 135 | 245529 | 139.7 | 5495 | 5696 | 1716.8 |

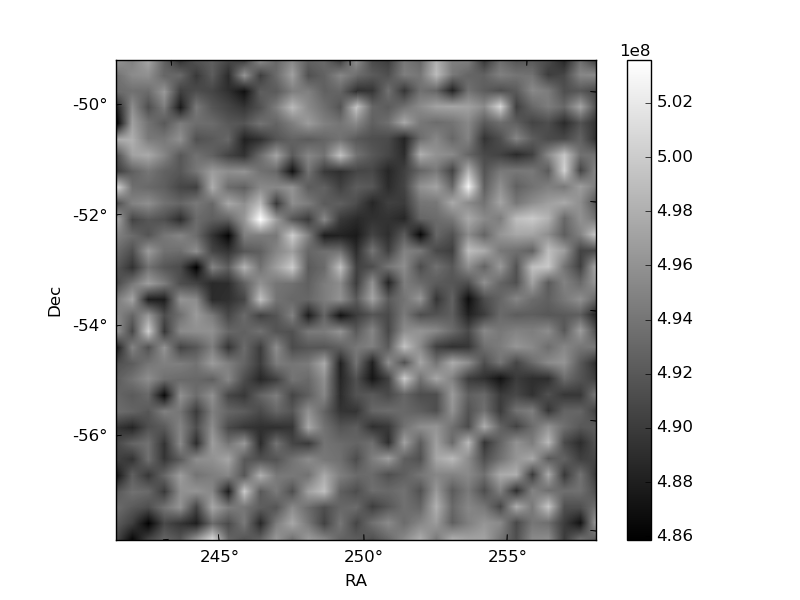

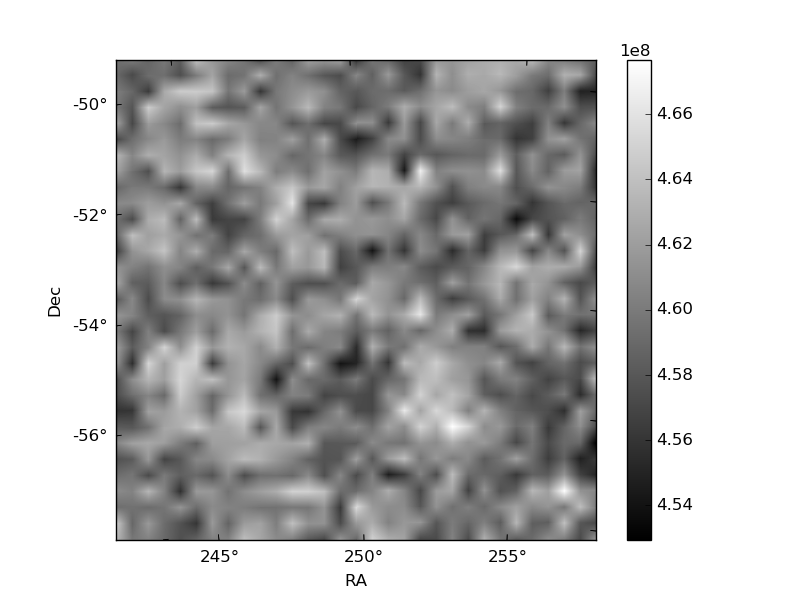

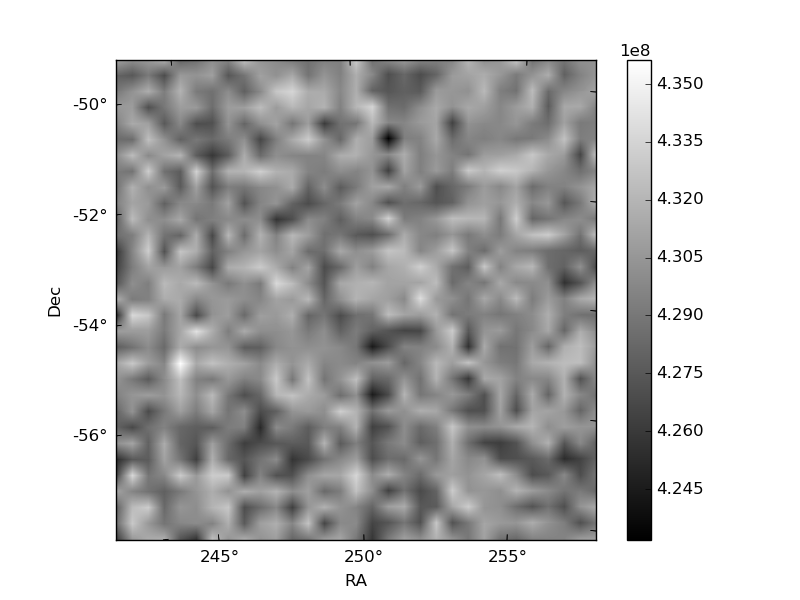

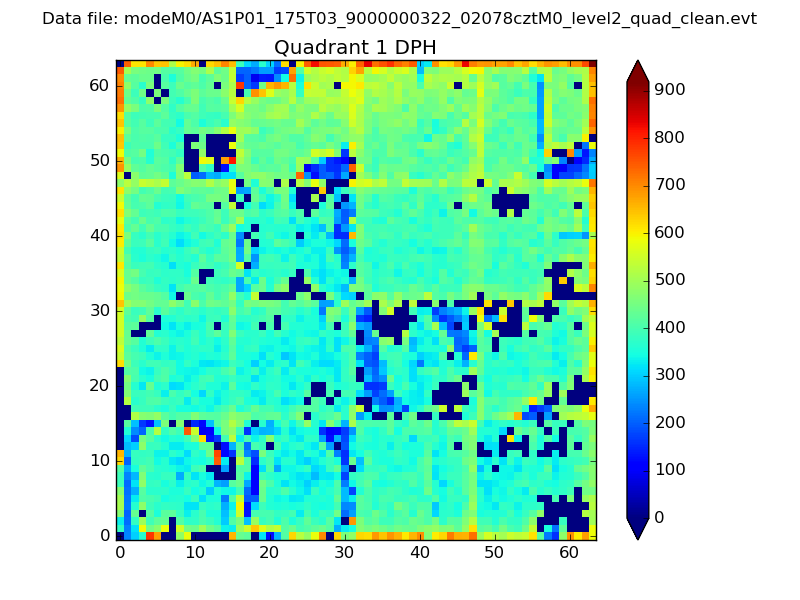

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

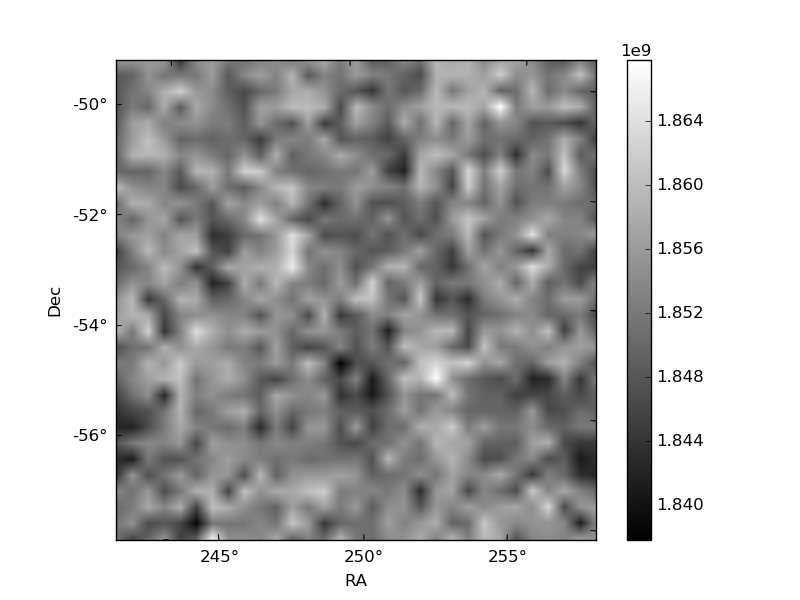

| Plot type | Count rate plots | Images |
|---|---|---|

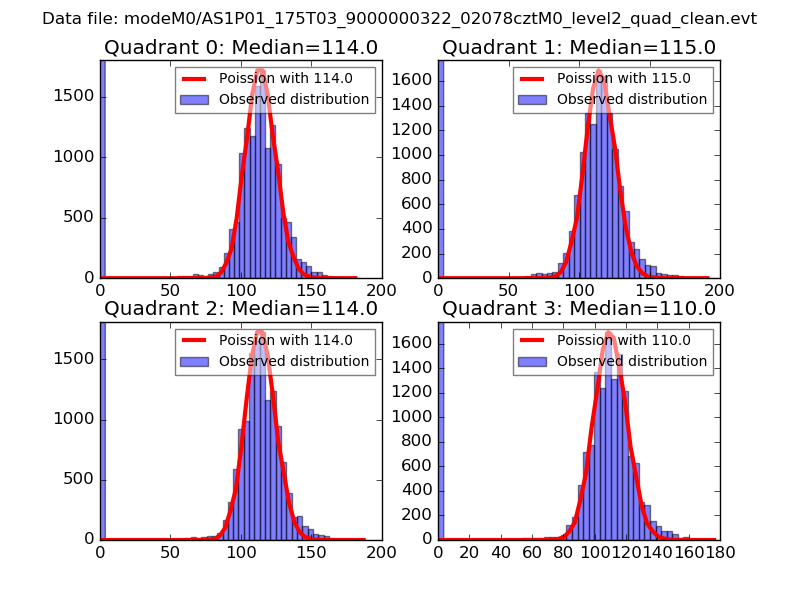

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

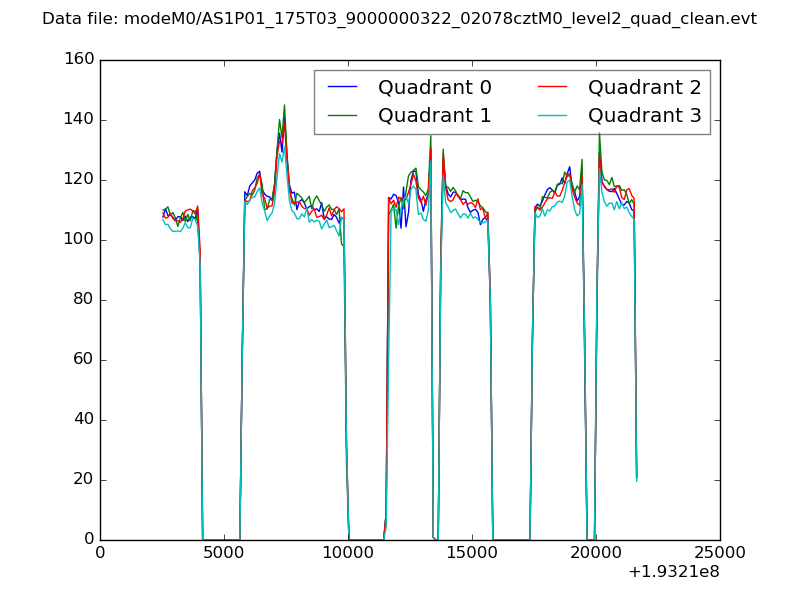

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

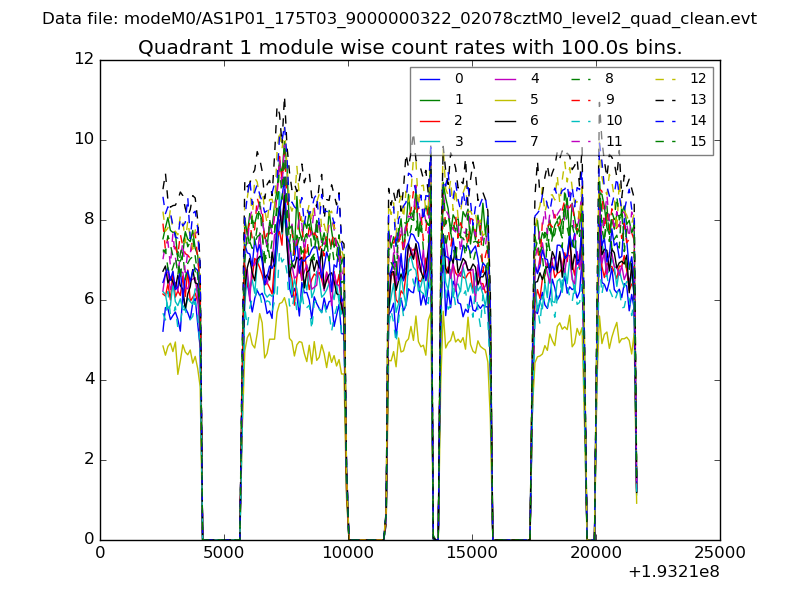

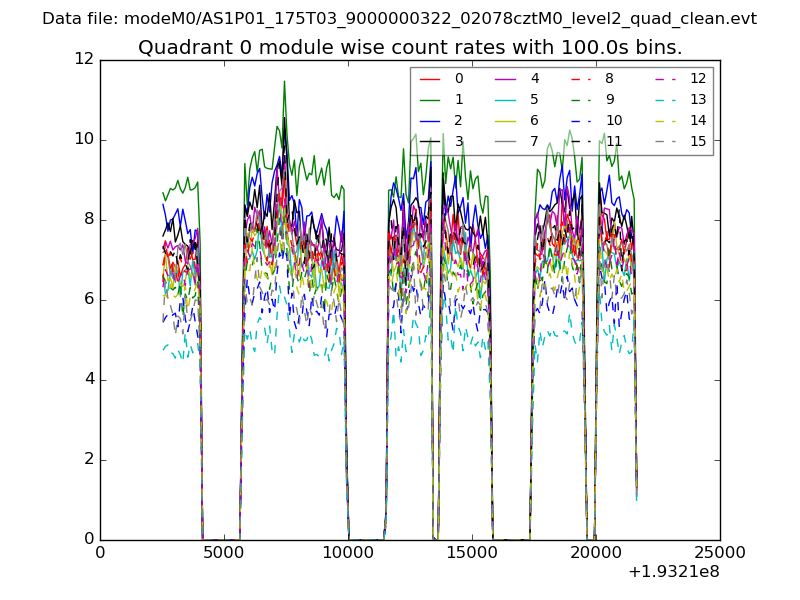

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

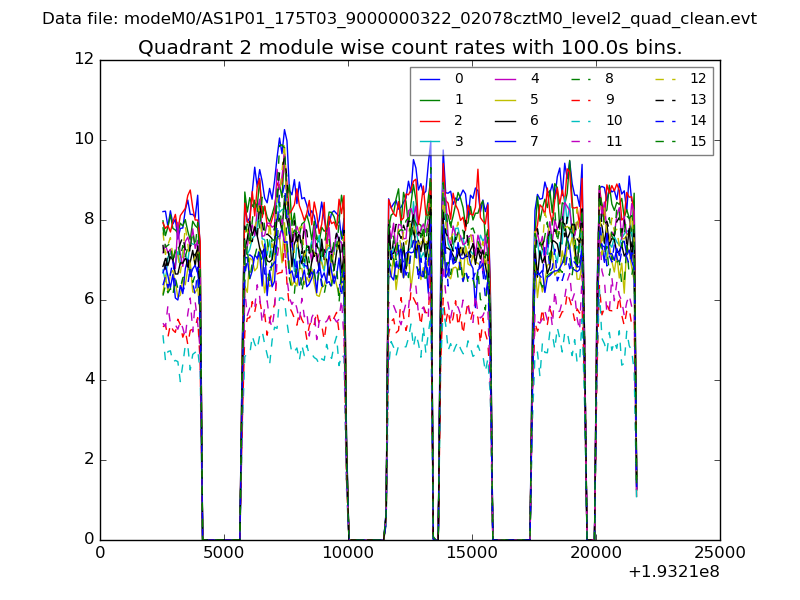

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

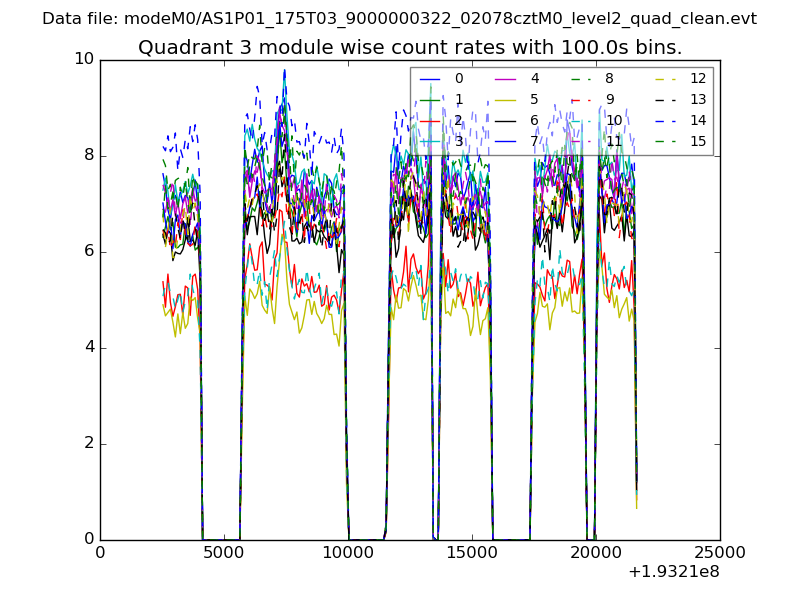

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

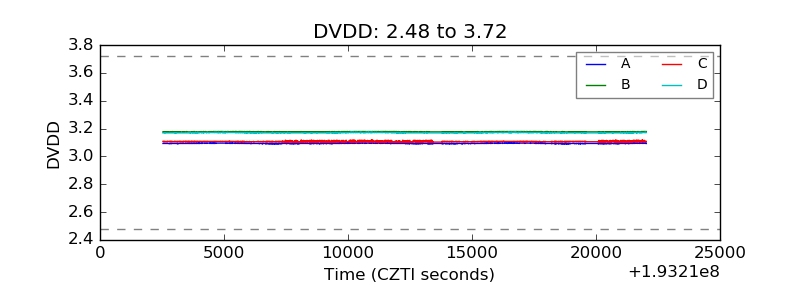

| D_VDD |  |

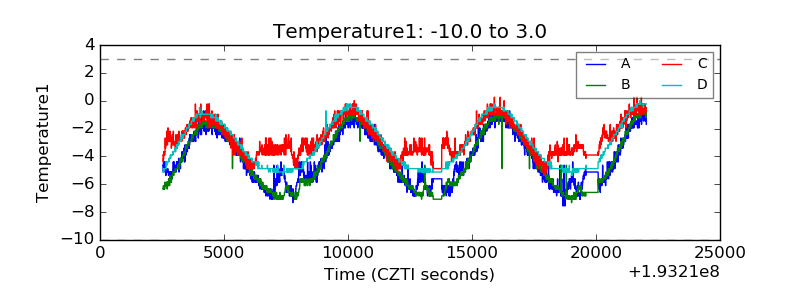

| Temperature 1 |  |
| Veto HV Monitor |  |

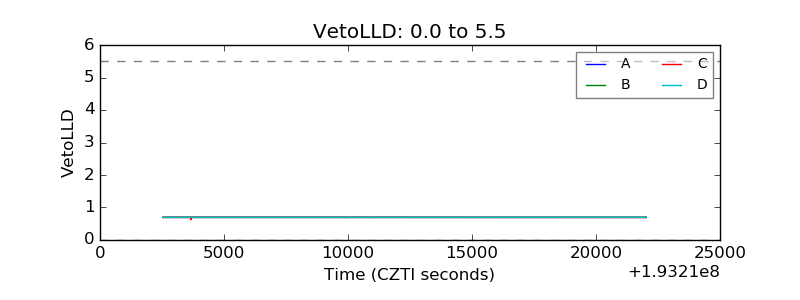

| Veto LLD |  |

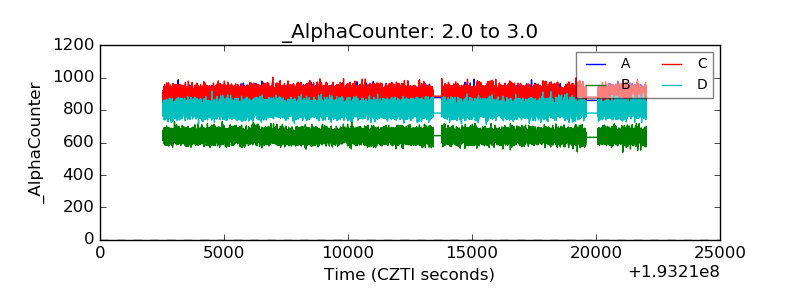

| Alpha Counter |  |
| _CPM_Rate |  |

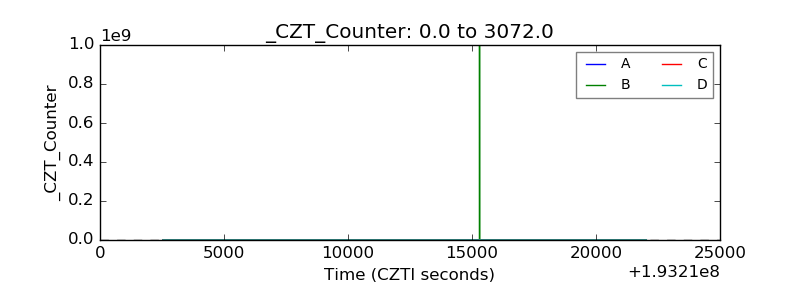

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

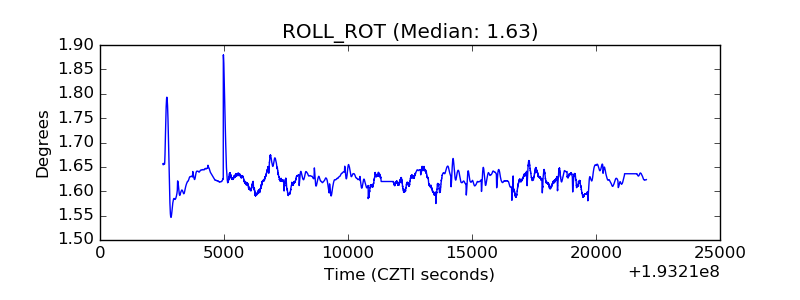

| _ROLL_ROT |  |

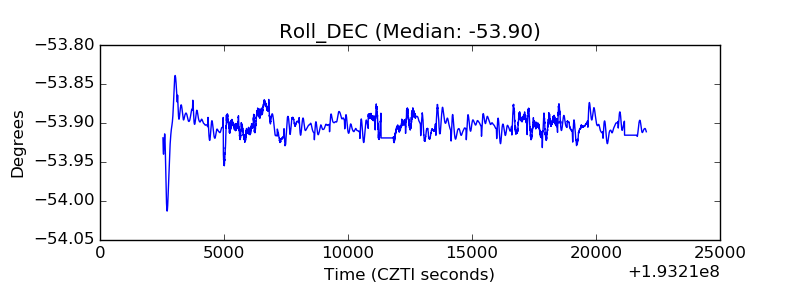

| _Roll_DEC |  |

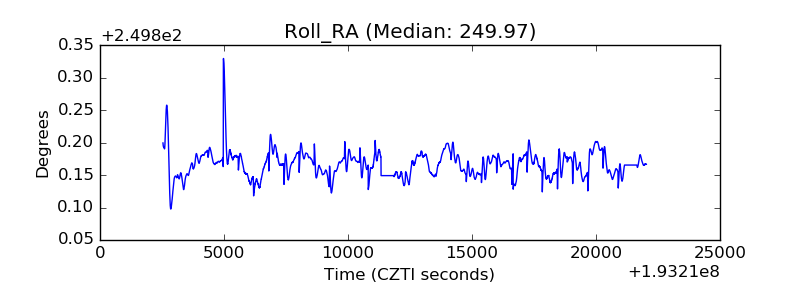

| _Roll_RA |  |

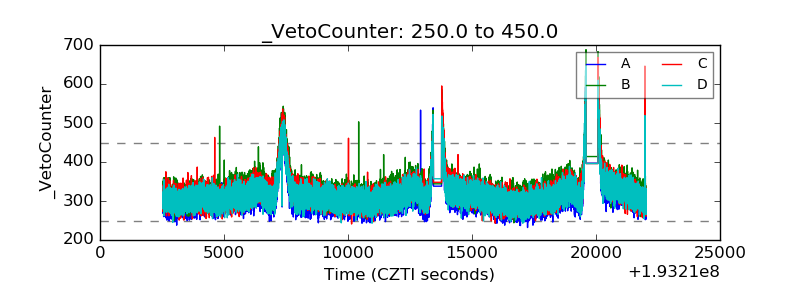

| Veto Counter |  |
