| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_175T02_9000000326_02105cztM0_level2.evt | modeM0/AS1P01_175T02_9000000326_02105cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,841,600 | 95,590,080 |
| Size | 411.8 MB | 91.2 MB |
| Events in quadrant A | 3,159,048 | 606,825 |
| Events in quadrant B | 3,052,513 | 622,623 |
| Events in quadrant C | 3,139,955 | 602,629 |
| Events in quadrant D | 3,258,993 | 583,656 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14341 | 1 |
| B | 0 | 14222 | 1 |
| C | 0 | 14809 | 1 |
| D | 0 | 15415 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6872 | 97 | 1.411525% |
| B | 6872 | 98 | 1.426077% |
| C | 6872 | 120 | 1.746217% |
| D | 6872 | 161 | 2.342841% |

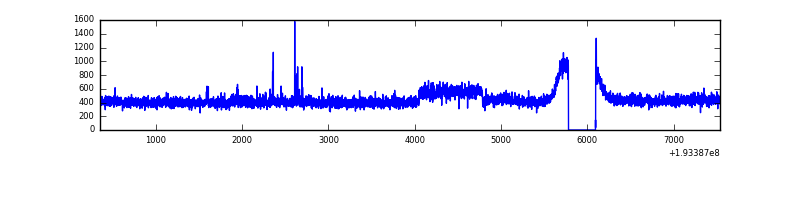

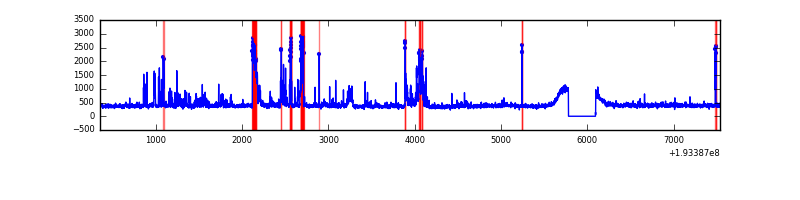

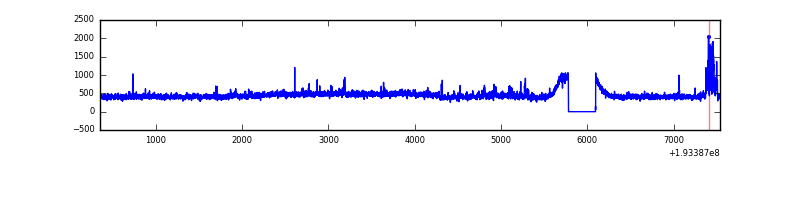

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7187 | 6873 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7187 | 6873 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7187 | 6873 | 22 | 22 | 0.31% | 0.32% |  |
| D | 7187 | 6873 | 97 | 97 | 1.35% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 209223 | 1444.44 | 727 | 713 | 144.4 |
| A | 0 | 199 | 137464 | 947.33 | 727 | 713 | 144.4 |
| A | 15 | 175 | 11751 | 76.46 | 727 | 713 | 144.4 |
| B | 0 | 198 | 134957 | 983.7 | 750 | 734 | 136.4 |
| B | 15 | 85 | 19099 | 134.59 | 750 | 734 | 136.4 |
| B | 5 | 68 | 17963 | 126.27 | 750 | 734 | 136.4 |
| C | 10 | 82 | 291806 | 1850.24 | 716 | 718 | 157.3 |
| C | 9 | 85 | 17091 | 104.07 | 716 | 718 | 157.3 |
| C | 10 | 65 | 14784 | 89.41 | 716 | 718 | 157.3 |
| D | 2 | 32 | 420861 | 2655.66 | 702 | 685 | 158.2 |
| D | 10 | 215 | 114267 | 717.88 | 702 | 685 | 158.2 |
| D | 7 | 85 | 25627 | 157.64 | 702 | 685 | 158.2 |

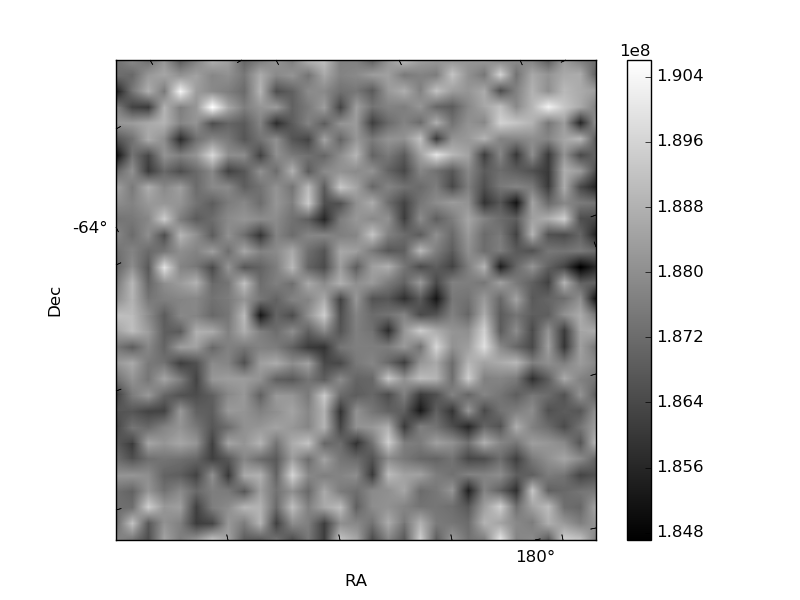

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

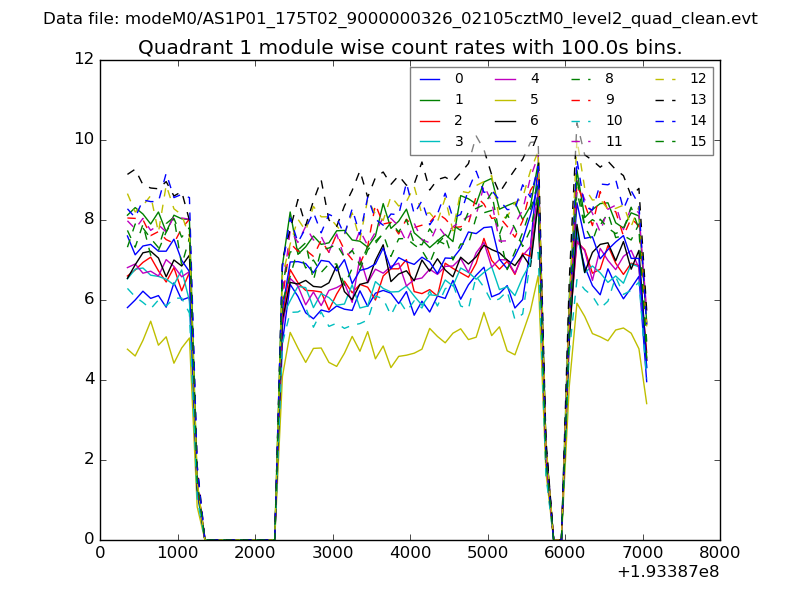

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

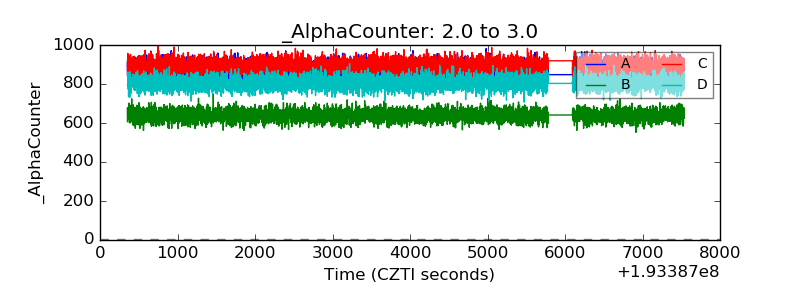

| Alpha Counter |  |
| _CPM_Rate |  |

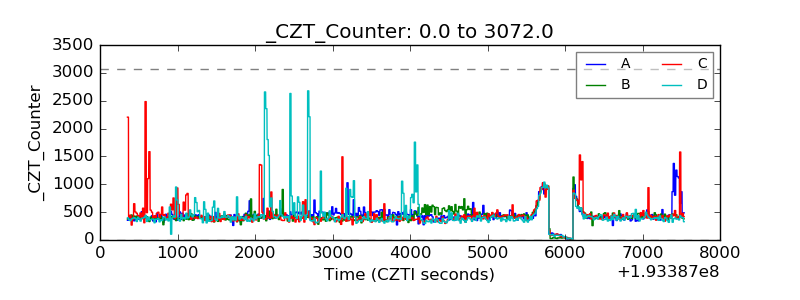

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

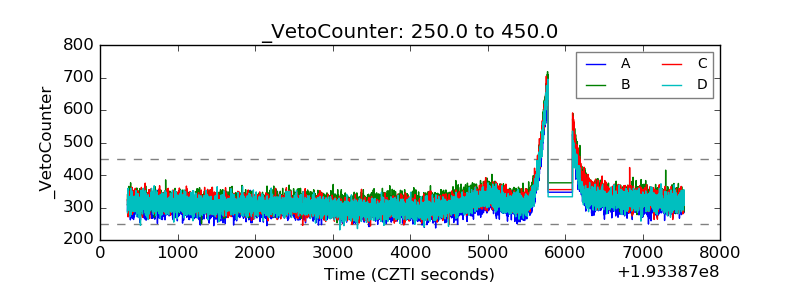

| Veto Counter |  |
