| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_072T02_9000000336_02135cztM0_level2.evt | modeM0/AS1T01_072T02_9000000336_02135cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,884,480 | 88,784,640 |
| Size | 408.1 MB | 84.7 MB |
| Events in quadrant A | 2,957,239 | 550,679 |
| Events in quadrant B | 3,147,923 | 561,295 |
| Events in quadrant C | 2,968,452 | 545,546 |
| Events in quadrant D | 3,393,906 | 528,999 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14576 | 2 |
| B | 0 | 14652 | 2 |
| C | 0 | 14650 | 2 |
| D | 0 | 16034 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7212 | 29 | 0.402108% |
| B | 7212 | 18 | 0.249584% |
| C | 7212 | 13 | 0.180255% |
| D | 7212 | 143 | 1.982806% |

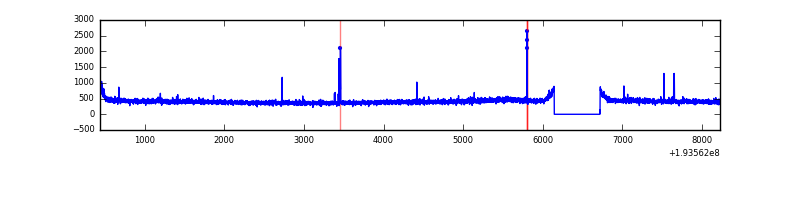

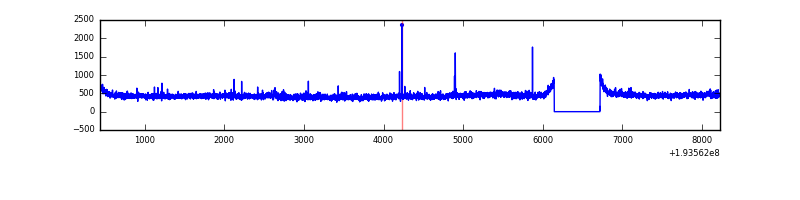

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7787 | 7213 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7787 | 7213 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7787 | 7213 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7787 | 7213 | 142 | 142 | 1.82% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 28 | 8865 | 53.12 | 766 | 751 | 152.8 |
| A | 3 | 1 | 4180 | 22.45 | 766 | 751 | 152.8 |
| A | 0 | 1 | 3083 | 15.27 | 766 | 751 | 152.8 |
| B | 0 | 198 | 43356 | 294.82 | 788 | 773 | 144.4 |
| B | 0 | 234 | 28611 | 192.73 | 788 | 773 | 144.4 |
| B | 15 | 85 | 24902 | 167.05 | 788 | 773 | 144.4 |
| C | 10 | 65 | 18569 | 109.25 | 744 | 748 | 163.1 |
| C | 10 | 82 | 13493 | 78.13 | 744 | 748 | 163.1 |
| C | 1 | 3 | 9002 | 50.6 | 744 | 748 | 163.1 |
| D | 2 | 31 | 583285 | 3490.19 | 736 | 719 | 166.9 |
| D | 9 | 66 | 11603 | 65.21 | 736 | 719 | 166.9 |
| D | 9 | 64 | 9774 | 54.25 | 736 | 719 | 166.9 |

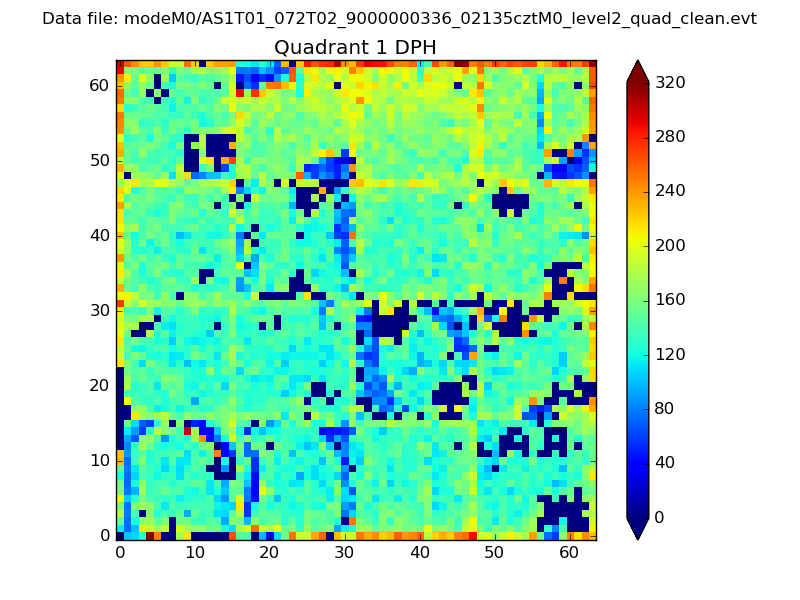

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

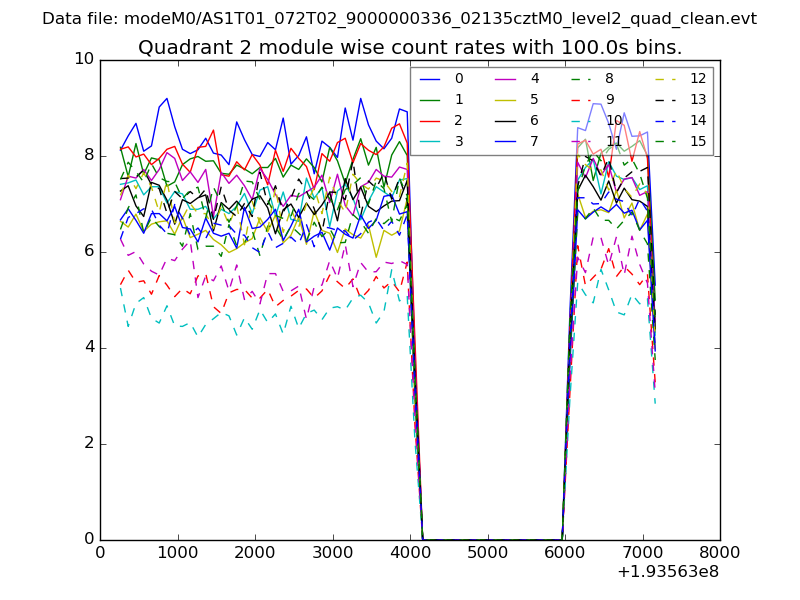

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

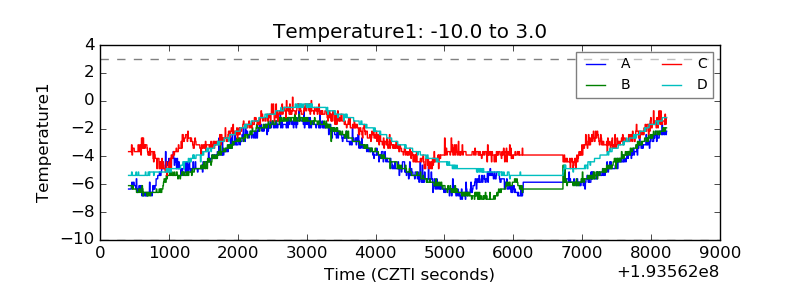

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

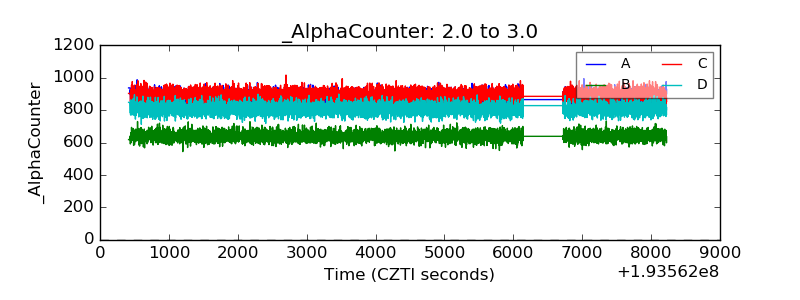

| Alpha Counter |  |

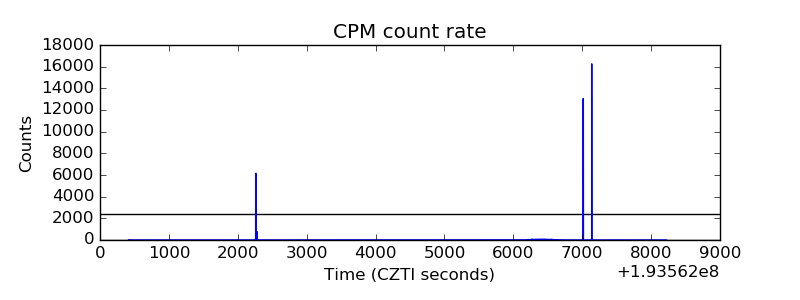

| _CPM_Rate |  |

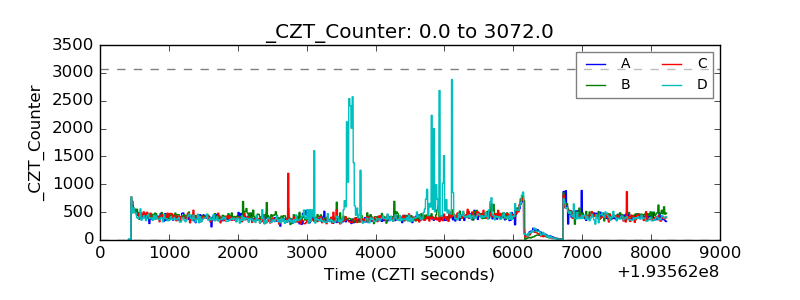

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
