| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_072T02_9000000336_02137cztM0_level2.evt | modeM0/AS1T01_072T02_9000000336_02137cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,135,040 | 88,375,680 |
| Size | 399.7 MB | 84.3 MB |
| Events in quadrant A | 2,676,625 | 566,308 |
| Events in quadrant B | 3,788,436 | 566,218 |
| Events in quadrant C | 2,648,291 | 552,482 |
| Events in quadrant D | 3,138,670 | 538,765 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13156 | 1 |
| B | 0 | 16043 | 5 |
| C | 0 | 13176 | 1 |
| D | 0 | 14685 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6487 | 23 | 0.354555% |
| B | 6485 | 30 | 0.462606% |
| C | 6487 | 20 | 0.308309% |
| D | 6487 | 187 | 2.882688% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7402 | 6488 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7402 | 6487 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7402 | 6488 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7402 | 6488 | 194 | 194 | 2.62% | 2.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 20441 | 144.13 | 689 | 677 | 137.1 |
| A | 0 | 231 | 4681 | 29.2 | 689 | 677 | 137.1 |
| A | 0 | 1 | 4610 | 28.68 | 689 | 677 | 137.1 |
| B | 5 | 68 | 968954 | 7540.62 | 703 | 690 | 128.4 |
| B | 5 | 189 | 37641 | 287.77 | 703 | 690 | 128.4 |
| B | 0 | 198 | 37516 | 286.79 | 703 | 690 | 128.4 |
| C | 9 | 85 | 16724 | 109.34 | 667 | 672 | 146.8 |
| C | 10 | 82 | 12934 | 83.52 | 667 | 672 | 146.8 |
| C | 1 | 3 | 4614 | 26.85 | 667 | 672 | 146.8 |
| D | 2 | 31 | 533542 | 3563.46 | 661 | 646 | 149.5 |
| D | 10 | 199 | 41452 | 272.87 | 661 | 646 | 149.5 |
| D | 9 | 64 | 35776 | 234.91 | 661 | 646 | 149.5 |

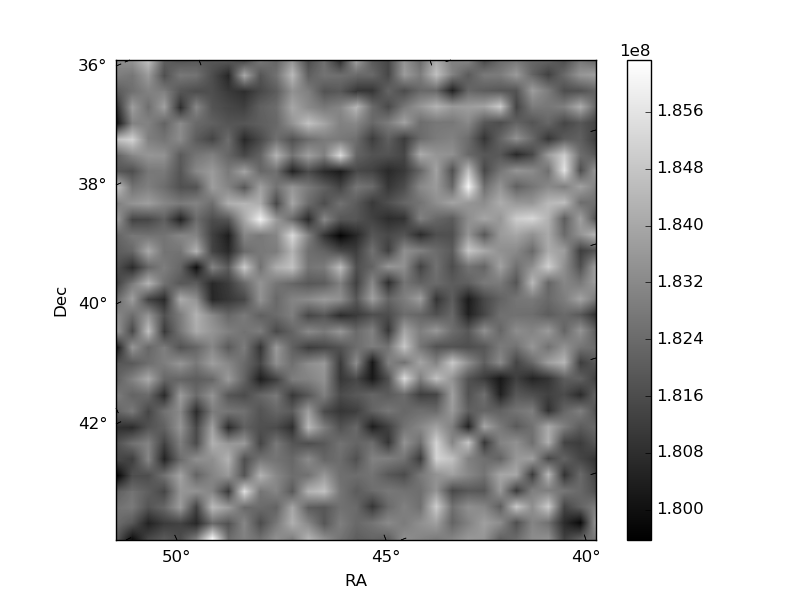

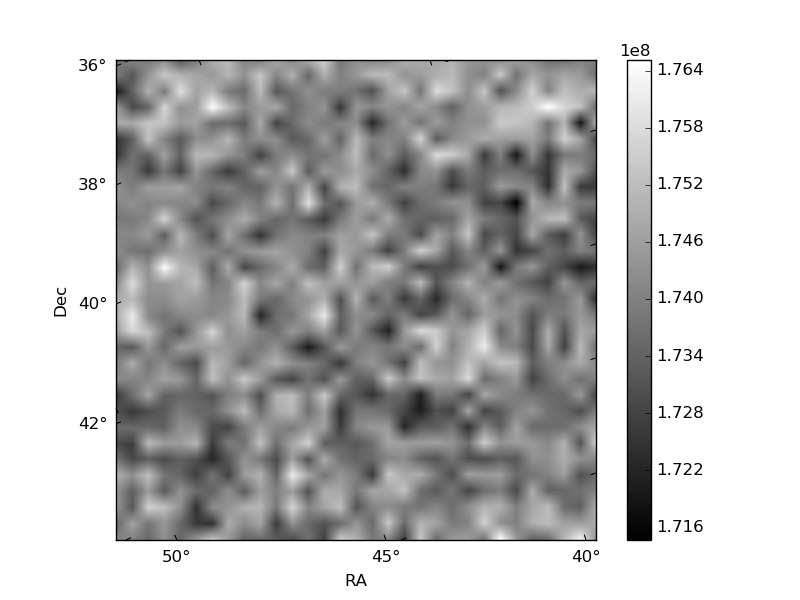

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

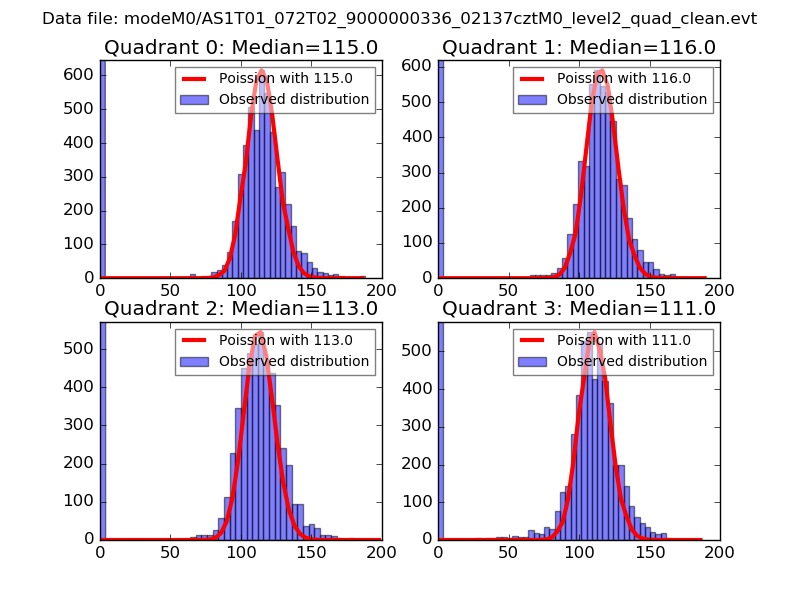

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

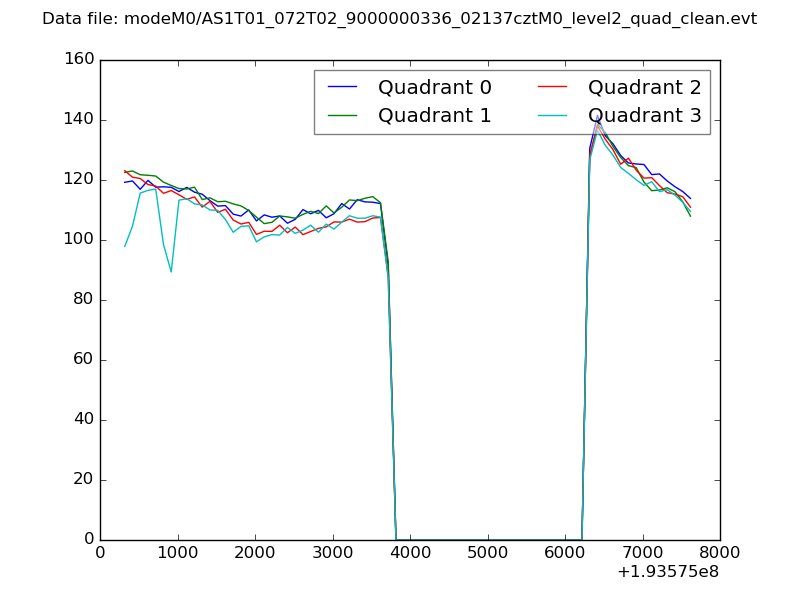

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

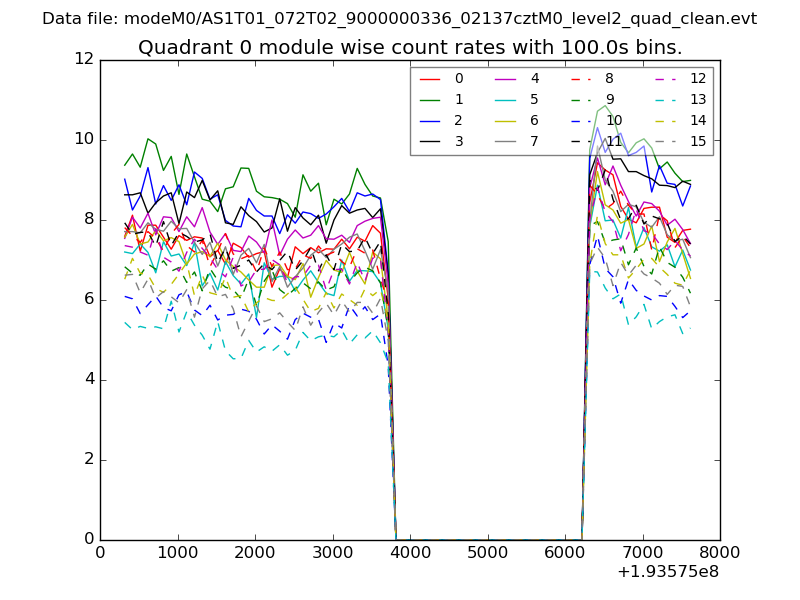

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

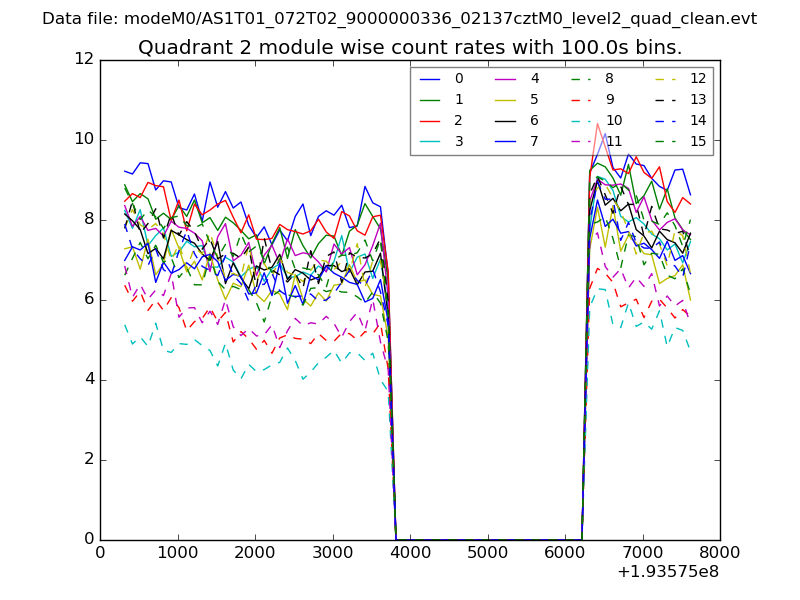

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

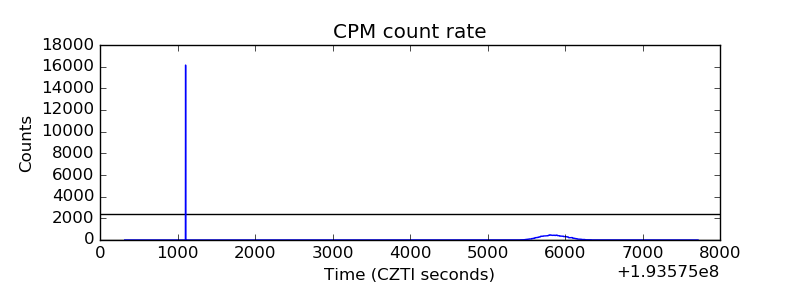

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
