| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_072T02_9000000336_02142cztM0_level2.evt | modeM0/AS1T01_072T02_9000000336_02142cztM0_level2_quad_clean.evt |
| Size (bytes) | 375,166,080 | 84,231,360 |
| Size | 357.8 MB | 80.3 MB |
| Events in quadrant A | 2,591,577 | 532,192 |
| Events in quadrant B | 3,129,372 | 544,287 |
| Events in quadrant C | 2,652,890 | 530,553 |
| Events in quadrant D | 2,569,530 | 514,672 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12474 | 2 |
| B | 0 | 13761 | 2 |
| C | 0 | 12583 | 2 |
| D | 0 | 12670 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6140 | 10 | 0.162866% |
| B | 6140 | 13 | 0.211726% |
| C | 6140 | 10 | 0.162866% |
| D | 6140 | 17 | 0.276873% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7390 | 6141 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7390 | 6141 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7390 | 6141 | 4 | 4 | 0.05% | 0.07% |  |
| D | 7390 | 6141 | 10 | 10 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 13276 | 97.09 | 664 | 651 | 130.0 |
| A | 15 | 191 | 11886 | 86.4 | 664 | 651 | 130.0 |
| A | 0 | 1 | 5580 | 37.91 | 664 | 651 | 130.0 |
| B | 5 | 68 | 420292 | 3391.35 | 691 | 679 | 123.7 |
| B | 0 | 234 | 26816 | 211.24 | 691 | 679 | 123.7 |
| B | 6 | 36 | 24346 | 191.28 | 691 | 679 | 123.7 |
| C | 10 | 82 | 35607 | 242.14 | 661 | 664 | 144.3 |
| C | 9 | 85 | 26660 | 180.14 | 661 | 664 | 144.3 |
| C | 1 | 3 | 2345 | 11.65 | 661 | 664 | 144.3 |
| D | 10 | 199 | 79927 | 542.21 | 650 | 637 | 146.2 |
| D | 13 | 53 | 17018 | 112.02 | 650 | 637 | 146.2 |
| D | 15 | 47 | 12932 | 84.08 | 650 | 637 | 146.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

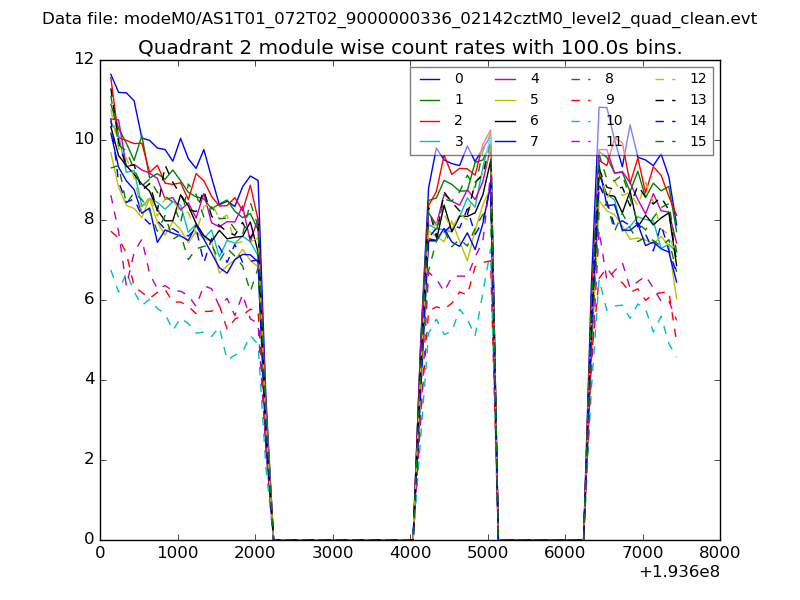

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
