| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_072T02_9000000336_02143cztM0_level2.evt | modeM0/AS1T01_072T02_9000000336_02143cztM0_level2_quad_clean.evt |
| Size (bytes) | 383,734,080 | 84,931,200 |
| Size | 366.0 MB | 81.0 MB |
| Events in quadrant A | 2,627,404 | 533,854 |
| Events in quadrant B | 3,316,884 | 547,786 |
| Events in quadrant C | 2,683,330 | 530,011 |
| Events in quadrant D | 2,562,355 | 518,192 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12859 | 2 |
| B | 0 | 14498 | 2 |
| C | 0 | 12903 | 2 |
| D | 0 | 12927 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6330 | 5 | 0.078989% |
| B | 6330 | 15 | 0.236967% |
| C | 6330 | 10 | 0.157978% |
| D | 6330 | 10 | 0.157978% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6331 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7530 | 6331 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7530 | 6331 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7530 | 6331 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 16989 | 123.3 | 674 | 663 | 132.4 |
| A | 13 | 251 | 8158 | 56.6 | 674 | 663 | 132.4 |
| A | 15 | 191 | 4857 | 31.67 | 674 | 663 | 132.4 |
| B | 5 | 68 | 501903 | 3999.53 | 701 | 690 | 125.3 |
| B | 0 | 234 | 49080 | 386.14 | 701 | 690 | 125.3 |
| B | 4 | 216 | 41040 | 321.98 | 701 | 690 | 125.3 |
| C | 9 | 85 | 23767 | 158.33 | 669 | 672 | 145.9 |
| C | 1 | 192 | 20585 | 136.51 | 669 | 672 | 145.9 |
| C | 10 | 82 | 11297 | 72.84 | 669 | 672 | 145.9 |
| D | 15 | 47 | 48900 | 324.15 | 658 | 643 | 148.9 |
| D | 13 | 53 | 18792 | 121.91 | 658 | 643 | 148.9 |
| D | 10 | 199 | 11605 | 73.63 | 658 | 643 | 148.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

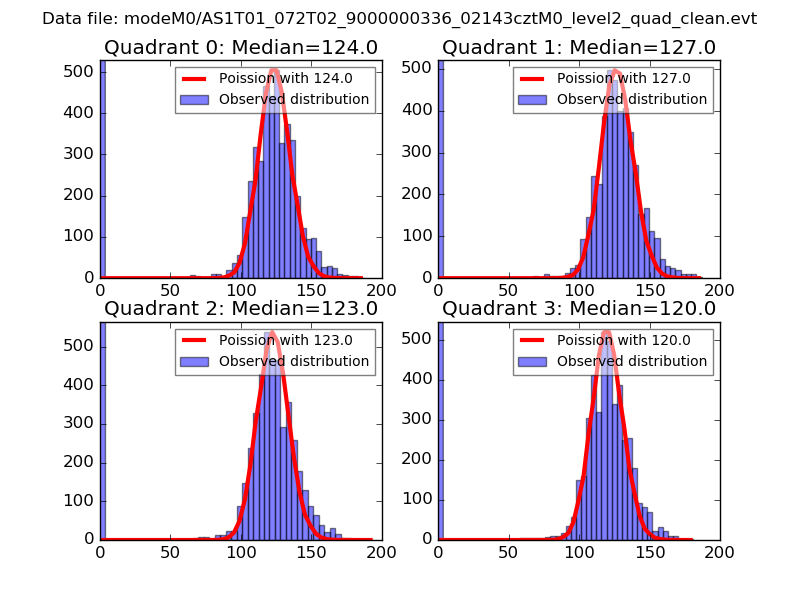

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

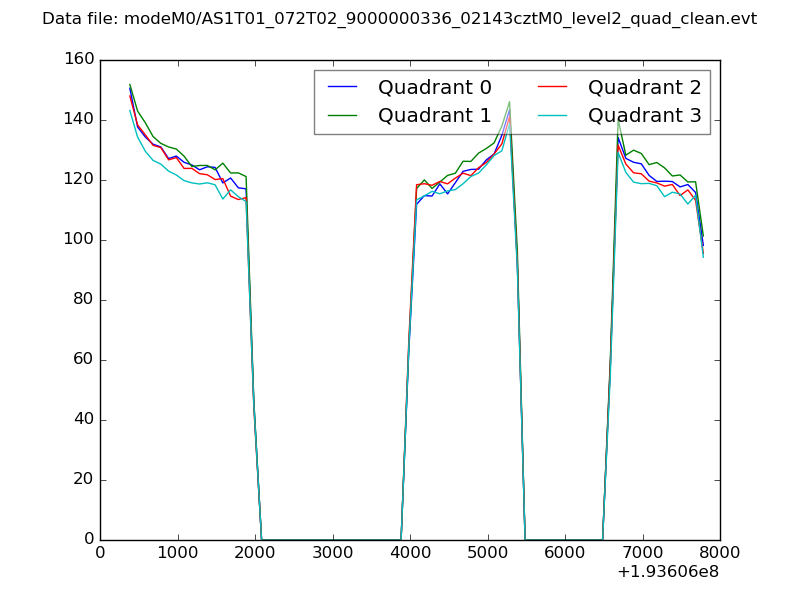

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

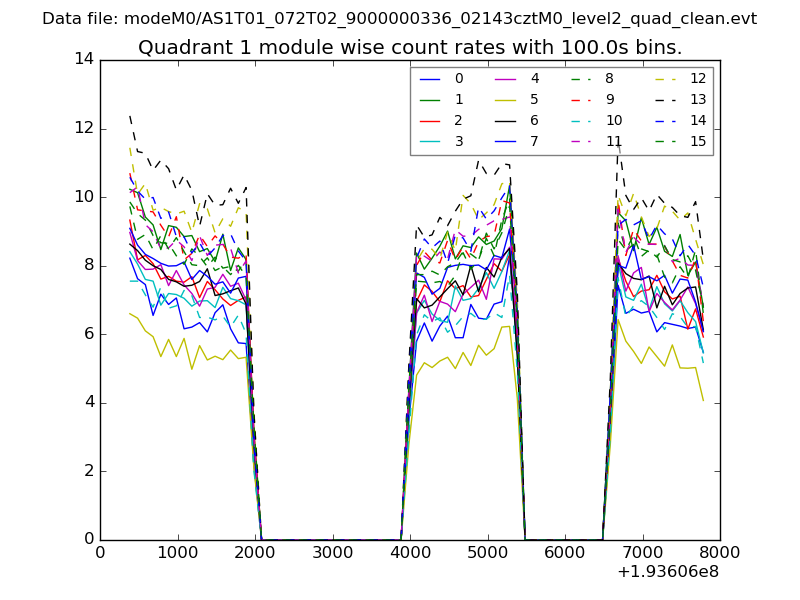

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
