| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_072T02_9000000336_02151cztM0_level2.evt | modeM0/AS1T01_072T02_9000000336_02151cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,568,960 | 84,084,480 |
| Size | 388.7 MB | 80.2 MB |
| Events in quadrant A | 2,851,369 | 523,743 |
| Events in quadrant B | 3,227,720 | 528,309 |
| Events in quadrant C | 2,971,479 | 509,925 |
| Events in quadrant D | 2,825,100 | 505,745 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13925 | 2 |
| B | 0 | 14380 | 2 |
| C | 0 | 14106 | 6 |
| D | 0 | 14110 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6866 | 31 | 0.451500% |
| B | 6866 | 27 | 0.393242% |
| C | 6864 | 12 | 0.174825% |
| D | 6866 | 24 | 0.349548% |

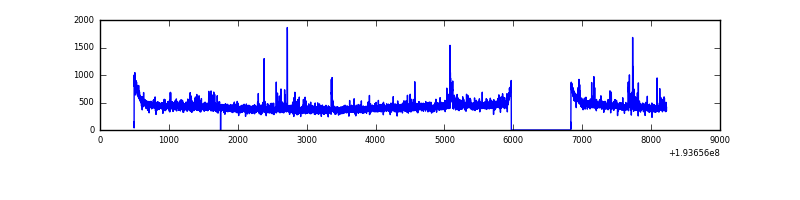

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7731 | 6867 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7731 | 6867 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7731 | 6866 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7731 | 6867 | 11 | 11 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 1 | 7440 | 45.77 | 740 | 726 | 146.7 |
| A | 15 | 175 | 3797 | 20.94 | 740 | 726 | 146.7 |
| A | 10 | 2 | 2042 | 8.97 | 740 | 726 | 146.7 |
| B | 5 | 68 | 191479 | 1369.72 | 756 | 742 | 139.3 |
| B | 0 | 234 | 70577 | 501.5 | 756 | 742 | 139.3 |
| B | 0 | 198 | 35484 | 249.49 | 756 | 742 | 139.3 |
| C | 9 | 85 | 126791 | 799.91 | 714 | 718 | 157.6 |
| C | 10 | 82 | 24817 | 152.9 | 714 | 718 | 157.6 |
| C | 1 | 192 | 7127 | 40.66 | 714 | 718 | 157.6 |
| D | 9 | 64 | 40394 | 245.52 | 712 | 696 | 161.7 |
| D | 13 | 53 | 31549 | 190.82 | 712 | 696 | 161.7 |
| D | 5 | 233 | 28052 | 169.19 | 712 | 696 | 161.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

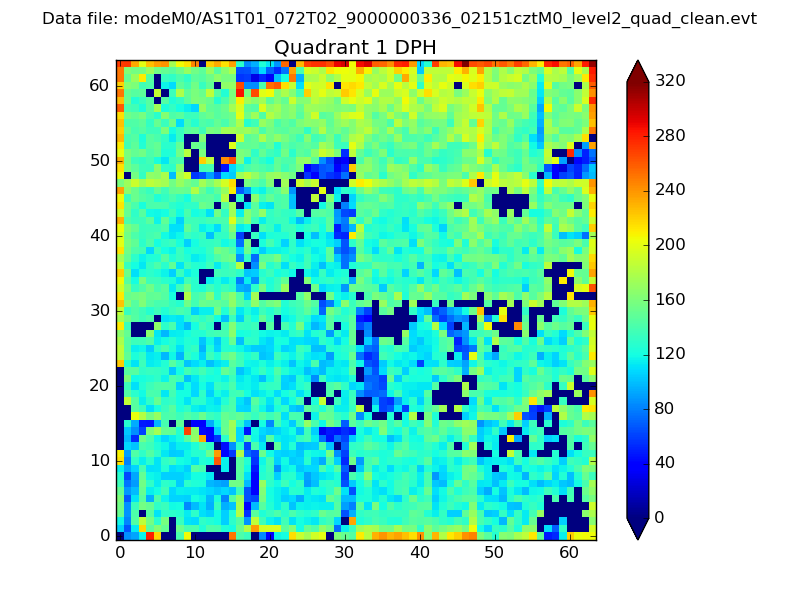

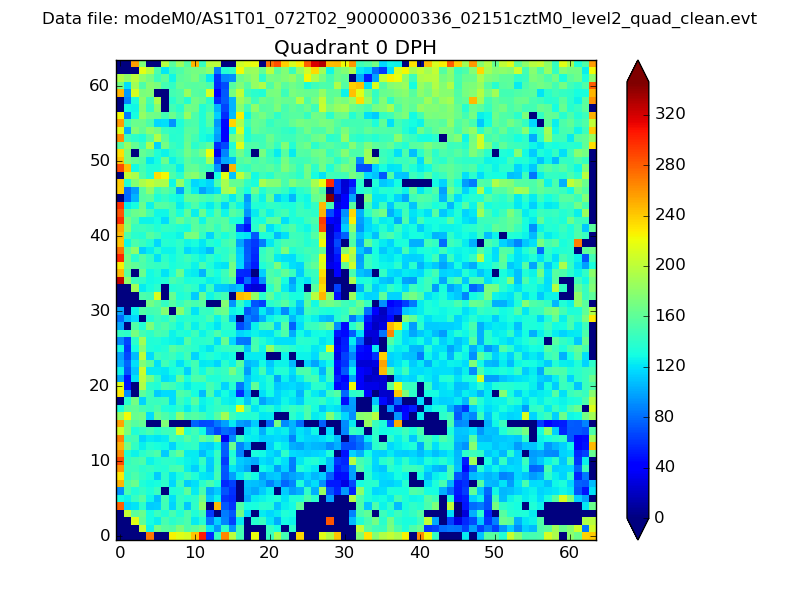

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

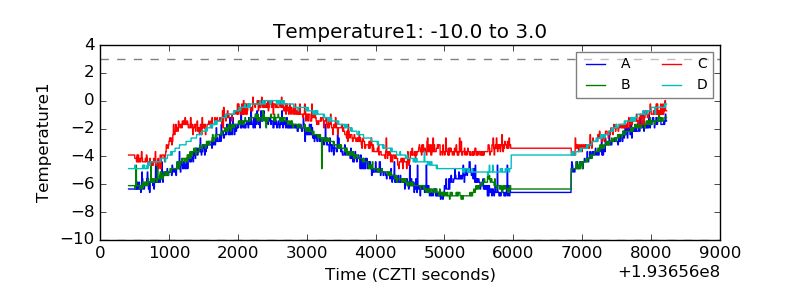

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

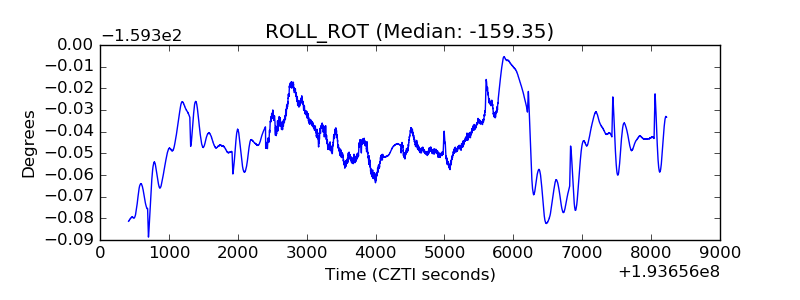

| _ROLL_ROT |  |

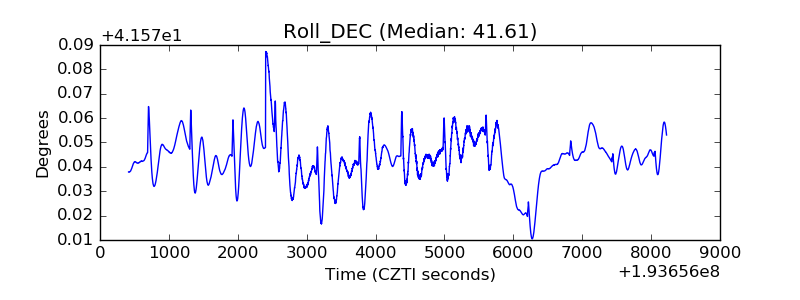

| _Roll_DEC |  |

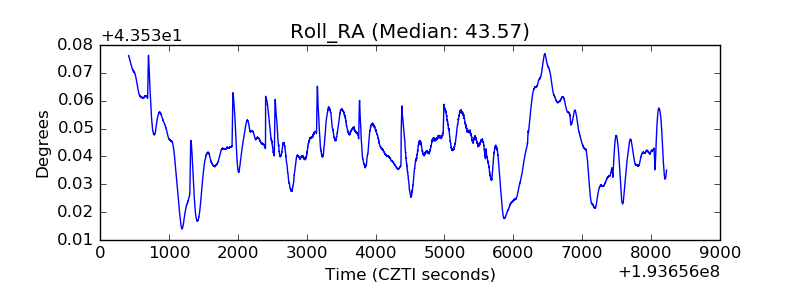

| _Roll_RA |  |

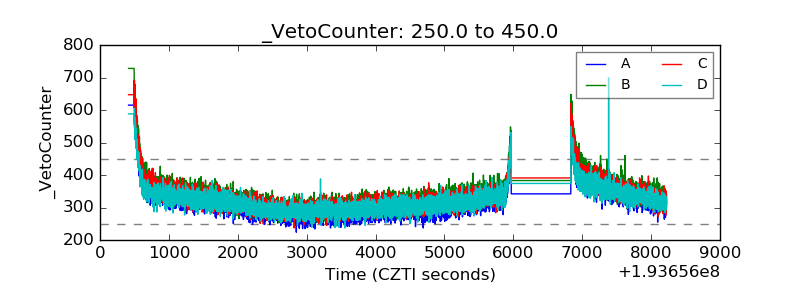

| Veto Counter |  |
