| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_072T04_9000000342_02201cztM0_level2.evt | modeM0/AS1T01_072T04_9000000342_02201cztM0_level2_quad_clean.evt |
| Size (bytes) | 807,888,960 | 63,336,960 |
| Size | 770.5 MB | 60.4 MB |
| Events in quadrant A | 2,855,421 | 490,645 |
| Events in quadrant B | 2,846,039 | 503,177 |
| Events in quadrant C | 15,807,538 | 27,893 |
| Events in quadrant D | 2,548,941 | 472,641 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12712 | 1 |
| B | 0 | 12693 | 1 |
| C | 0 | 51466 | 17 |
| D | 0 | 12282 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6031 | 22 | 0.364782% |
| B | 6031 | 40 | 0.663240% |
| C | 6029 | 6029 | 100.000000% |
| D | 6031 | 21 | 0.348201% |

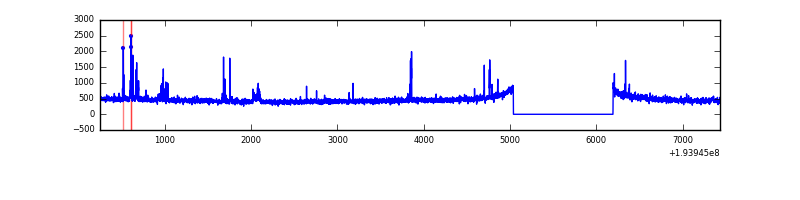

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7186 | 6032 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7186 | 6031 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7186 | 6031 | 5982 | 5982 | 83.25% | 99.19% |  |
| D | 7186 | 6031 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 171 | 181678 | 1294.21 | 682 | 665 | 139.9 |
| A | 10 | 2 | 31218 | 218.45 | 682 | 665 | 139.9 |
| A | 15 | 47 | 10844 | 72.78 | 682 | 665 | 139.9 |
| B | 10 | 244 | 63702 | 474.47 | 697 | 679 | 132.8 |
| B | 4 | 158 | 25948 | 190.24 | 697 | 679 | 132.8 |
| B | 4 | 200 | 23962 | 175.29 | 697 | 679 | 132.8 |
| C | 7 | 111 | 5158581 | 80051.32 | 97 | 88 | 64.4 |
| C | 0 | 187 | 2279498 | 35372.69 | 97 | 88 | 64.4 |
| C | 7 | 247 | 1197965 | 18589.07 | 97 | 88 | 64.4 |
| D | 15 | 194 | 12547 | 75.22 | 666 | 649 | 158.2 |
| D | 14 | 226 | 7640 | 44.2 | 666 | 649 | 158.2 |
| D | 5 | 233 | 7022 | 40.29 | 666 | 649 | 158.2 |

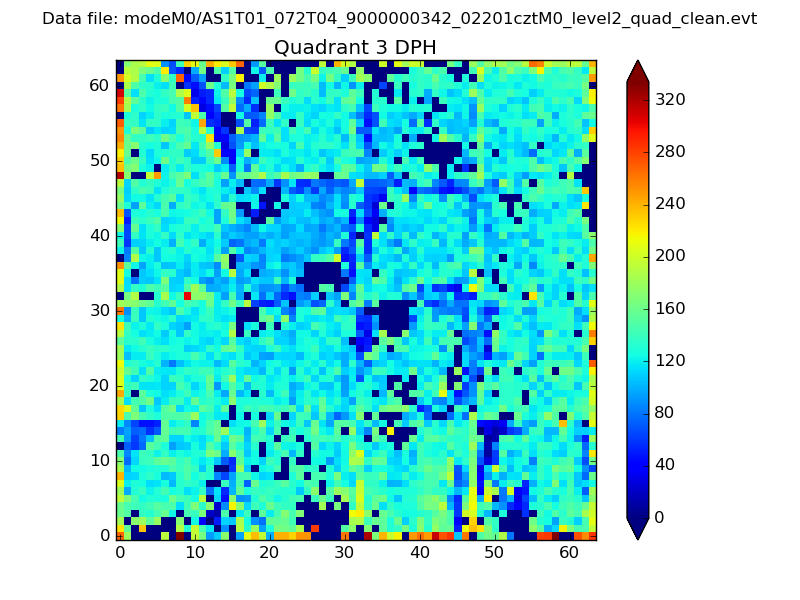

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

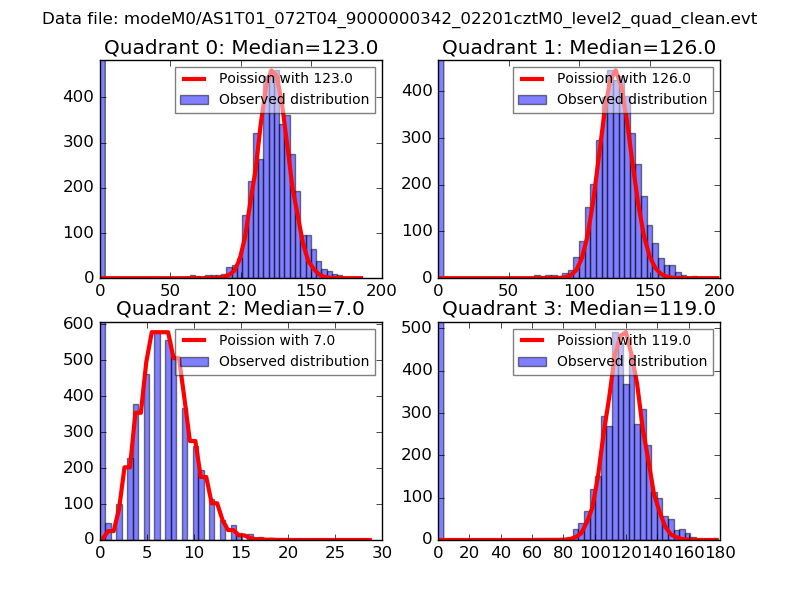

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

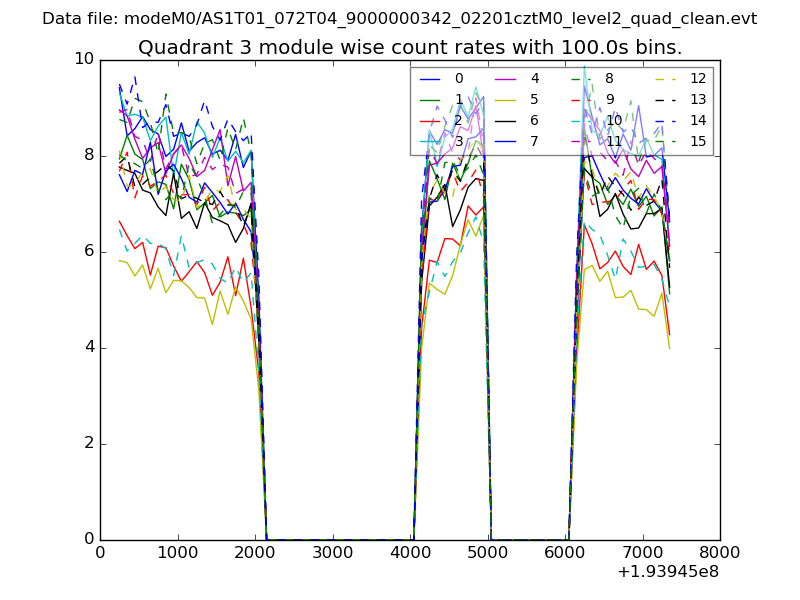

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

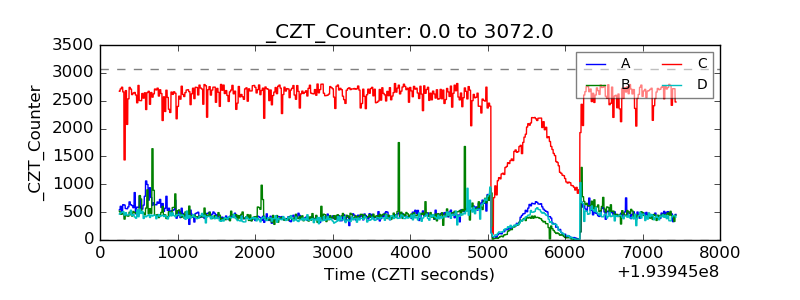

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

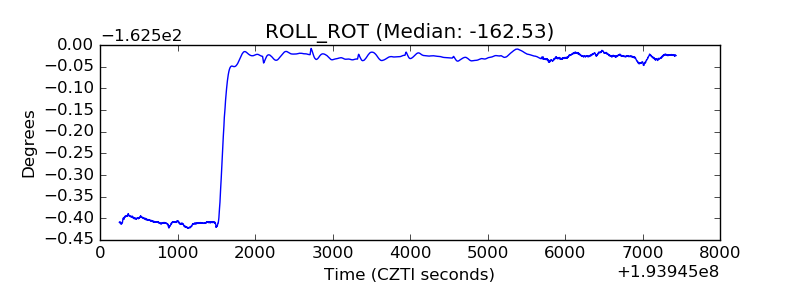

| _ROLL_ROT |  |

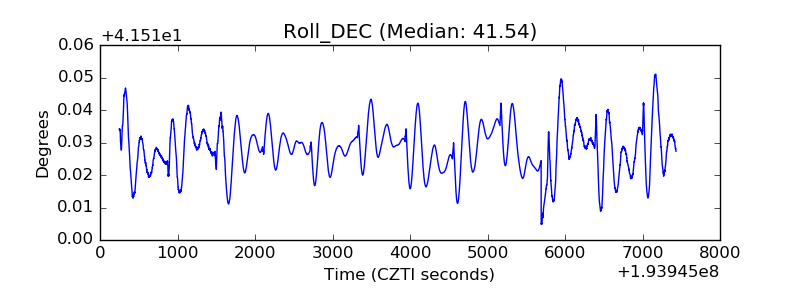

| _Roll_DEC |  |

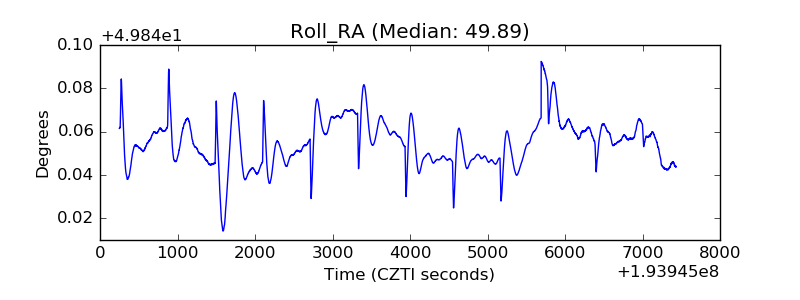

| _Roll_RA |  |
| Veto Counter |  |
