| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_058T01_9000000348_02273cztM0_level2.evt | modeM0/AS1T01_058T01_9000000348_02273cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,148,800 | 67,317,120 |
| Size | 443.6 MB | 64.2 MB |
| Events in quadrant A | 2,687,291 | 409,475 |
| Events in quadrant B | 2,638,707 | 420,600 |
| Events in quadrant C | 3,176,583 | 417,036 |
| Events in quadrant D | 5,198,646 | 393,618 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11967 | 1 |
| B | 0 | 11645 | 1 |
| C | 0 | 12929 | 1 |
| D | 0 | 19304 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5688 | 75 | 1.318565% |
| B | 5688 | 70 | 1.230661% |
| C | 5688 | 164 | 2.883263% |
| D | 5688 | 431 | 7.577356% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6873 | 5688 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6873 | 5688 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6873 | 5688 | 94 | 94 | 1.37% | 1.65% |  |
| D | 6873 | 5688 | 429 | 429 | 6.24% | 7.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 33 | 87888 | 635.99 | 675 | 660 | 137.2 |
| A | 12 | 194 | 7801 | 52.07 | 675 | 660 | 137.2 |
| A | 0 | 226 | 7231 | 47.91 | 675 | 660 | 137.2 |
| B | 15 | 85 | 13167 | 96.75 | 682 | 666 | 129.2 |
| B | 12 | 111 | 9034 | 64.77 | 682 | 666 | 129.2 |
| B | 11 | 111 | 7958 | 56.44 | 682 | 666 | 129.2 |
| C | 2 | 53 | 457368 | 2996.29 | 661 | 665 | 152.4 |
| C | 5 | 234 | 113536 | 740.51 | 661 | 665 | 152.4 |
| C | 14 | 252 | 11249 | 69.44 | 661 | 665 | 152.4 |
| D | 9 | 66 | 2137650 | 13948.87 | 649 | 632 | 153.2 |
| D | 12 | 126 | 543200 | 3541.48 | 649 | 632 | 153.2 |
| D | 13 | 172 | 25630 | 163.17 | 649 | 632 | 153.2 |

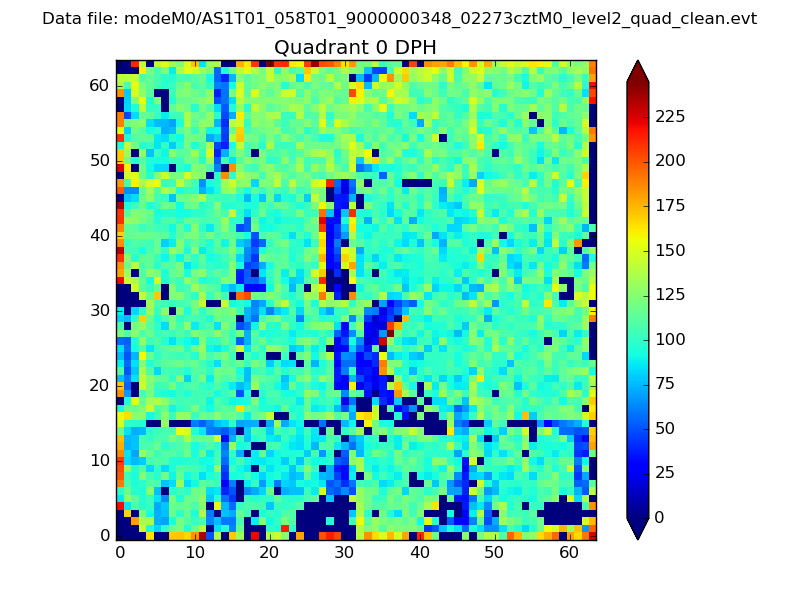

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

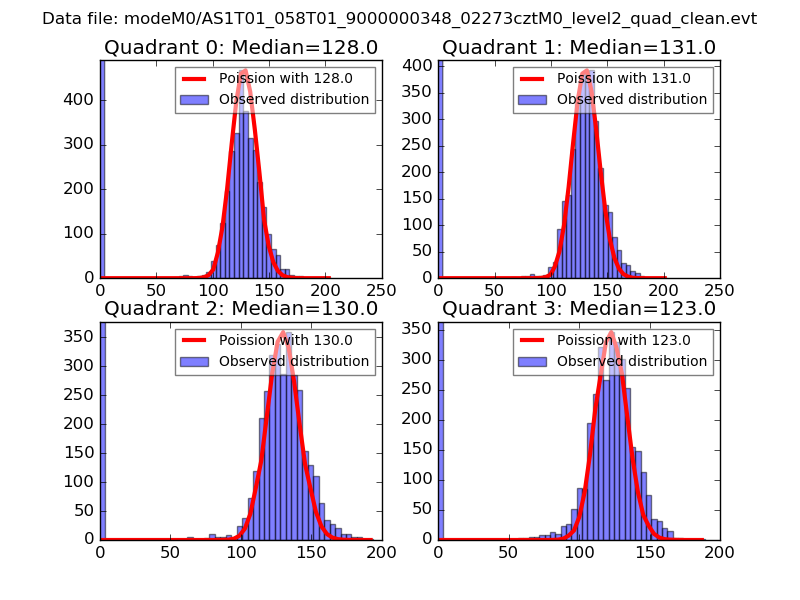

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

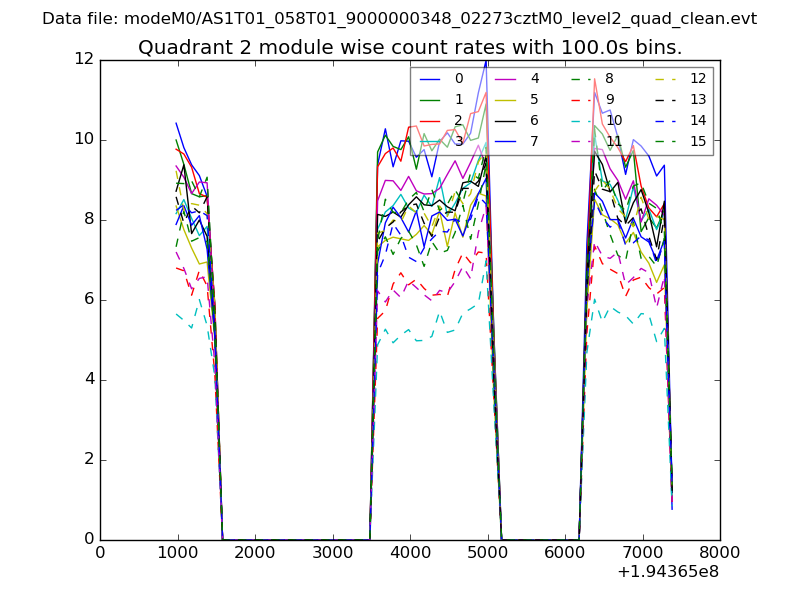

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

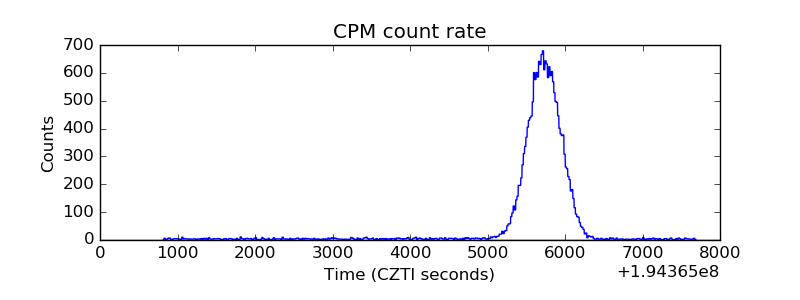

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

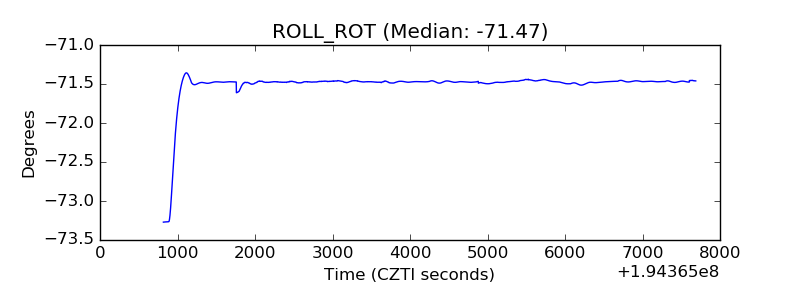

| _ROLL_ROT |  |

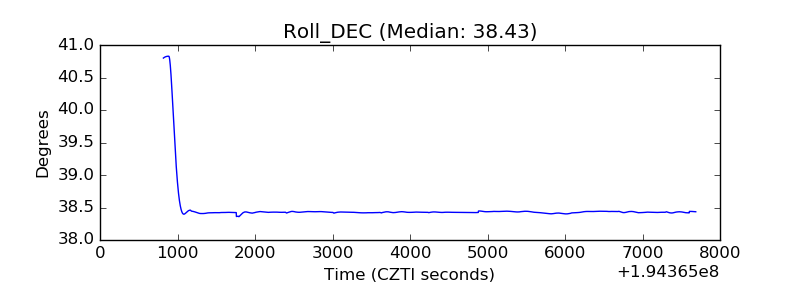

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
