| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_058T01_9000000348_02274cztM0_level2.evt | modeM0/AS1T01_058T01_9000000348_02274cztM0_level2_quad_clean.evt |
| Size (bytes) | 639,970,560 | 74,612,160 |
| Size | 610.3 MB | 71.2 MB |
| Events in quadrant A | 2,996,250 | 462,481 |
| Events in quadrant B | 2,931,048 | 473,814 |
| Events in quadrant C | 6,915,687 | 435,555 |
| Events in quadrant D | 6,097,596 | 432,553 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13599 | 1 |
| B | 0 | 13252 | 1 |
| C | 0 | 24897 | 1 |
| D | 0 | 22581 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6510 | 79 | 1.213518% |
| B | 6510 | 84 | 1.290323% |
| C | 6510 | 1353 | 20.783410% |
| D | 6510 | 859 | 13.195084% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

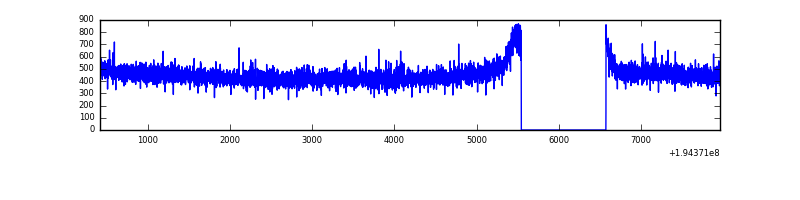

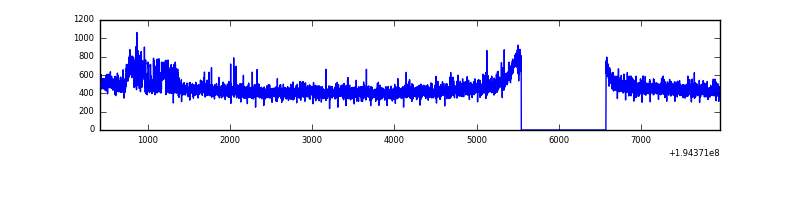

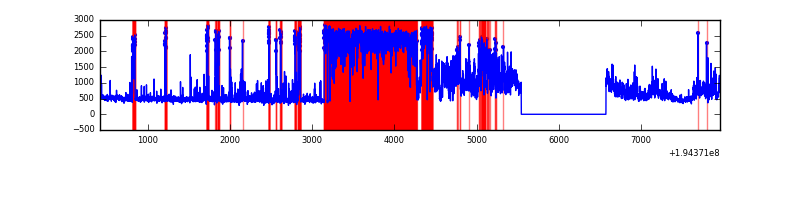

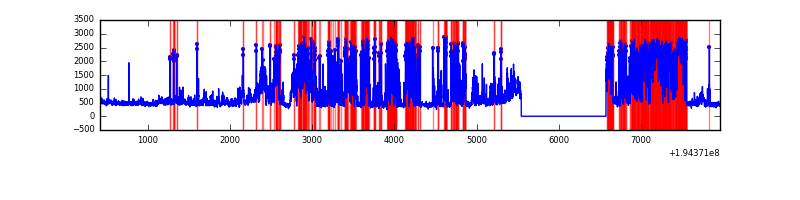

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7539 | 6509 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7540 | 6510 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7540 | 6510 | 1287 | 1287 | 17.07% | 19.77% |  |
| D | 7540 | 6510 | 845 | 845 | 11.21% | 12.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 33 | 99112 | 639.62 | 752 | 735 | 153.8 |
| A | 12 | 194 | 8589 | 51.06 | 752 | 735 | 153.8 |
| A | 0 | 226 | 7988 | 47.16 | 752 | 735 | 153.8 |
| B | 12 | 111 | 10658 | 68.19 | 761 | 741 | 145.4 |
| B | 11 | 111 | 9181 | 58.03 | 761 | 741 | 145.4 |
| B | 8 | 61 | 7721 | 47.99 | 761 | 741 | 145.4 |
| C | 2 | 53 | 3853190 | 23255.93 | 709 | 712 | 165.7 |
| C | 5 | 234 | 256406 | 1543.53 | 709 | 712 | 165.7 |
| C | 9 | 54 | 19592 | 113.97 | 709 | 712 | 165.7 |
| D | 12 | 126 | 3373388 | 20205.85 | 707 | 691 | 166.9 |
| D | 13 | 169 | 14200 | 80.93 | 707 | 691 | 166.9 |
| D | 15 | 194 | 12992 | 73.7 | 707 | 691 | 166.9 |

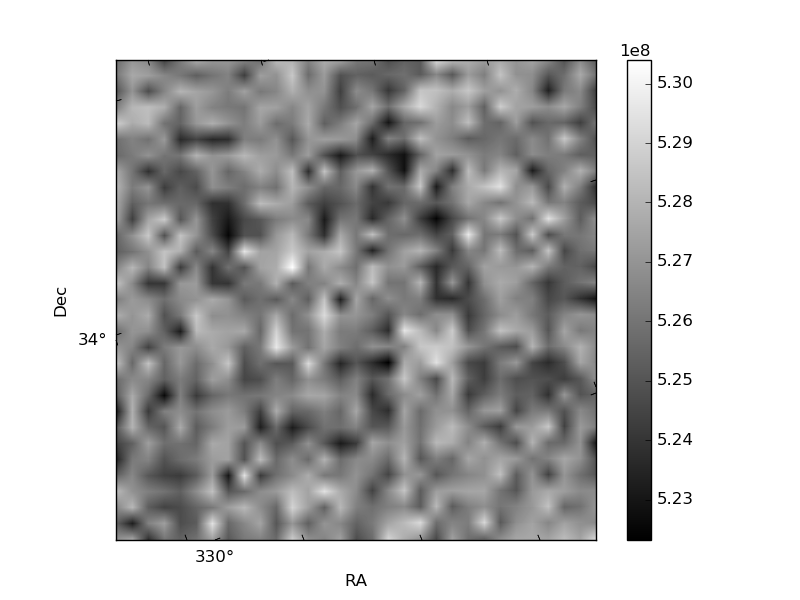

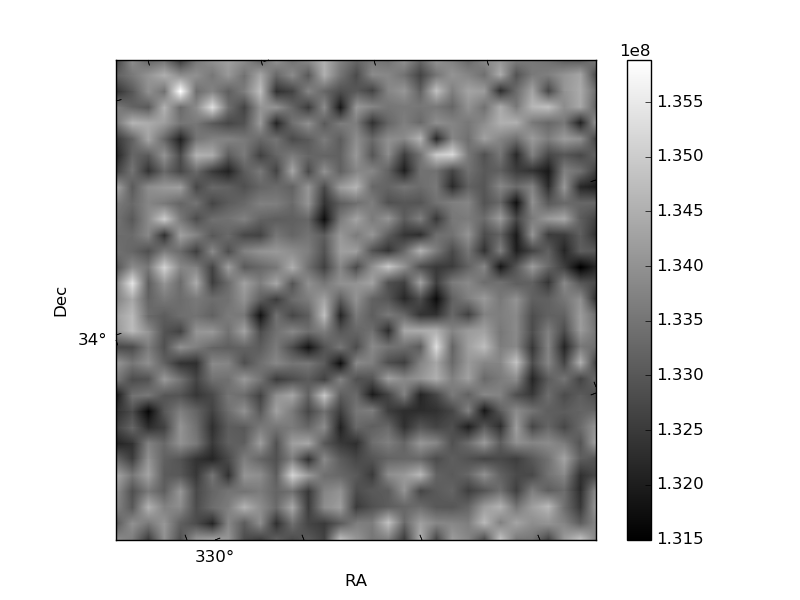

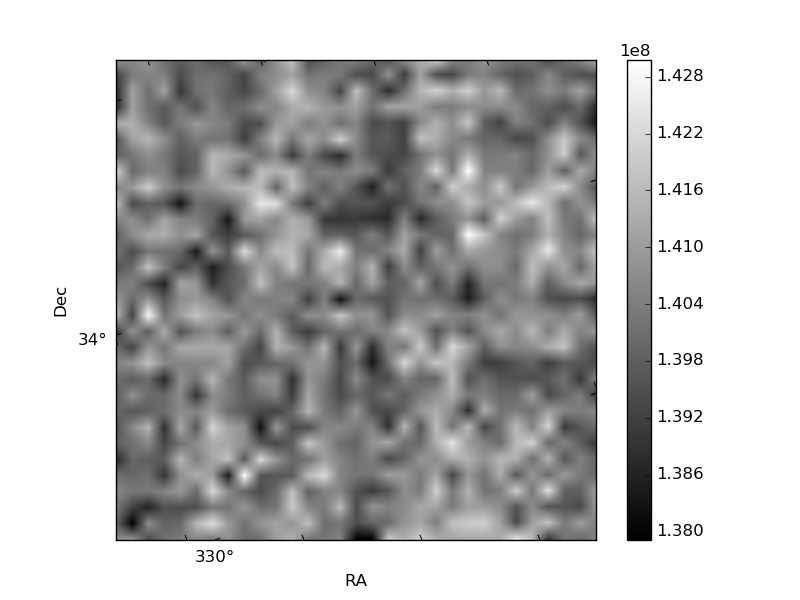

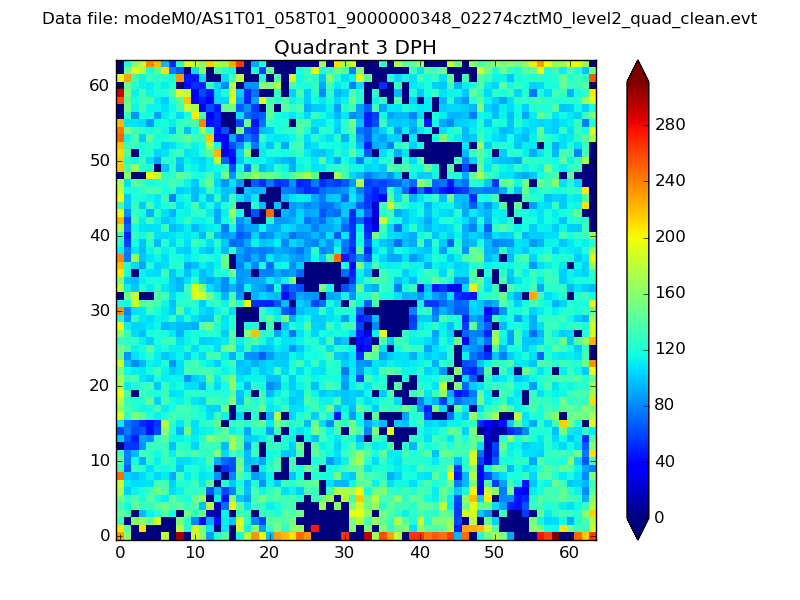

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

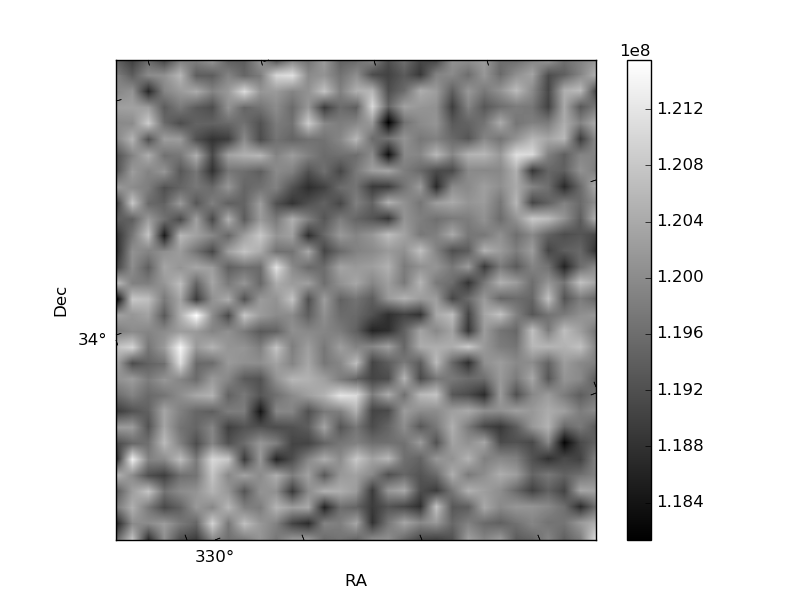

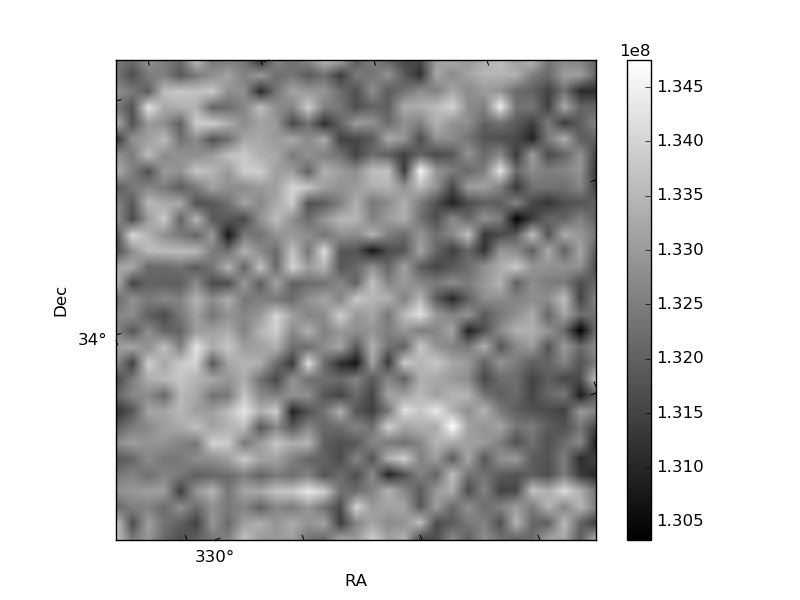

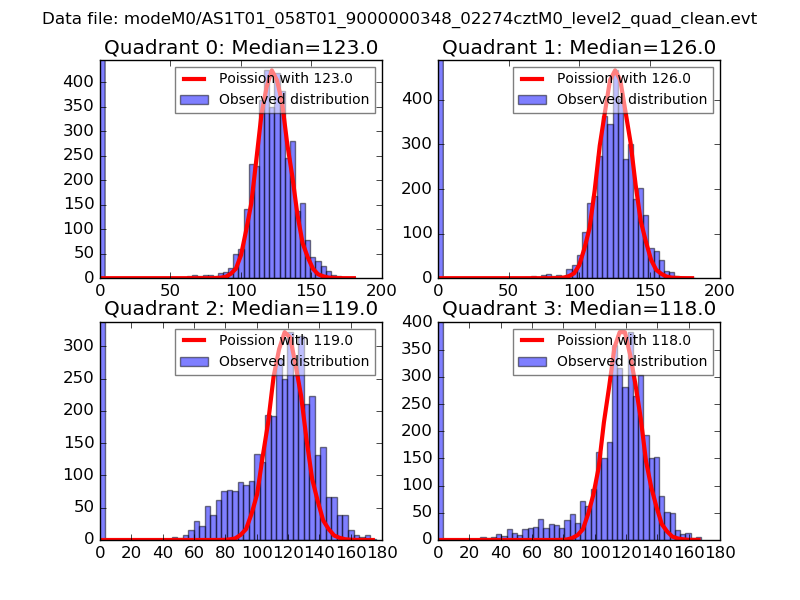

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

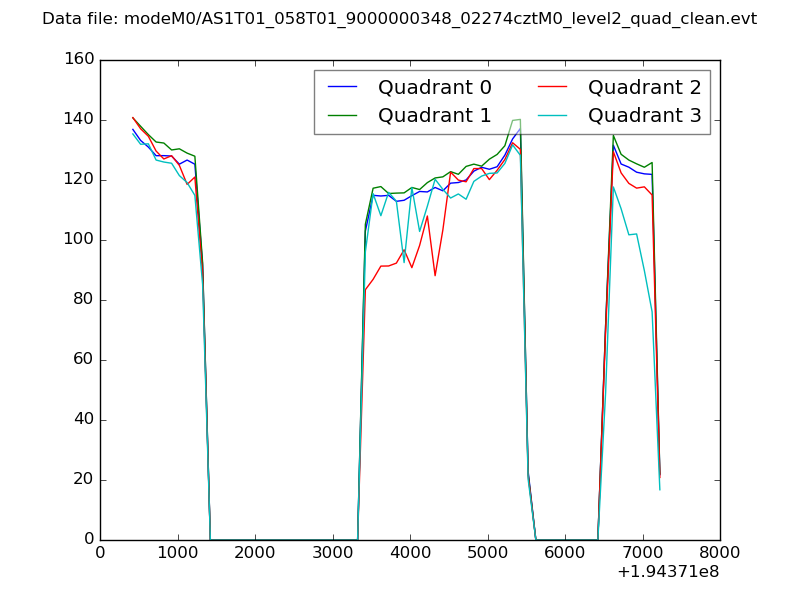

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

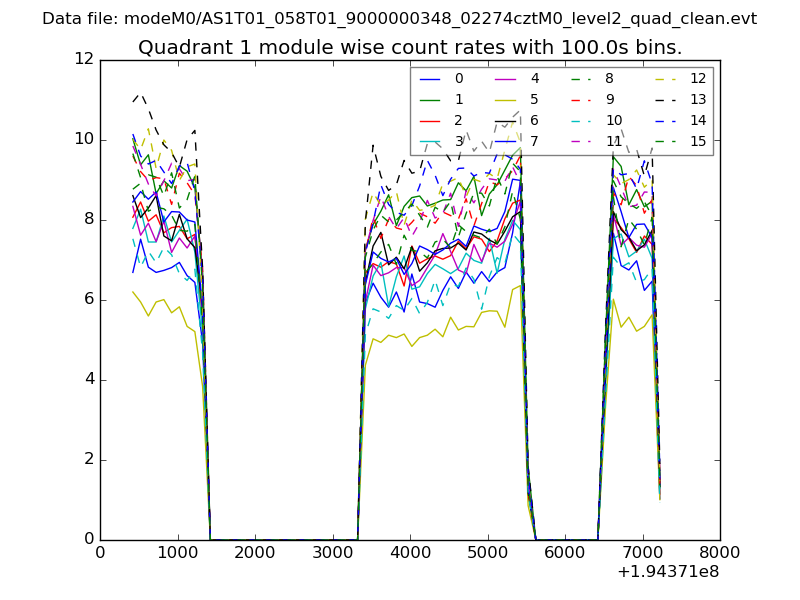

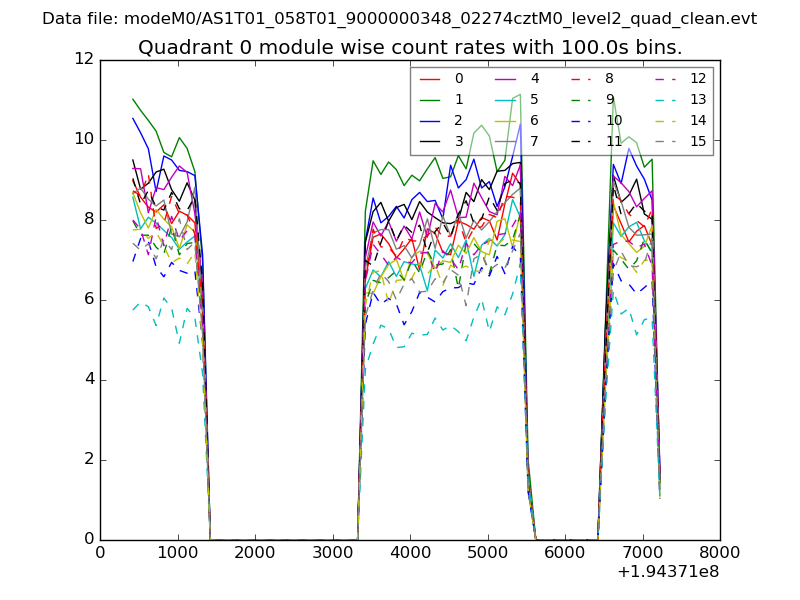

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

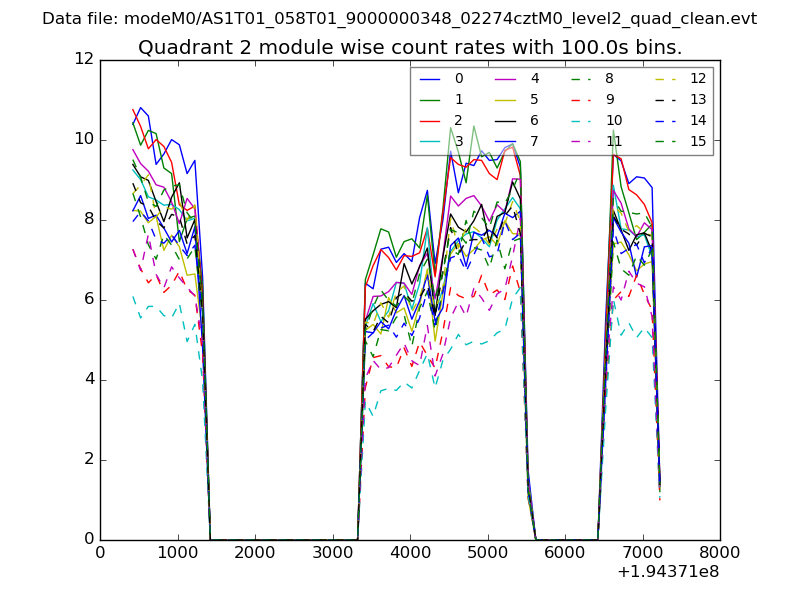

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

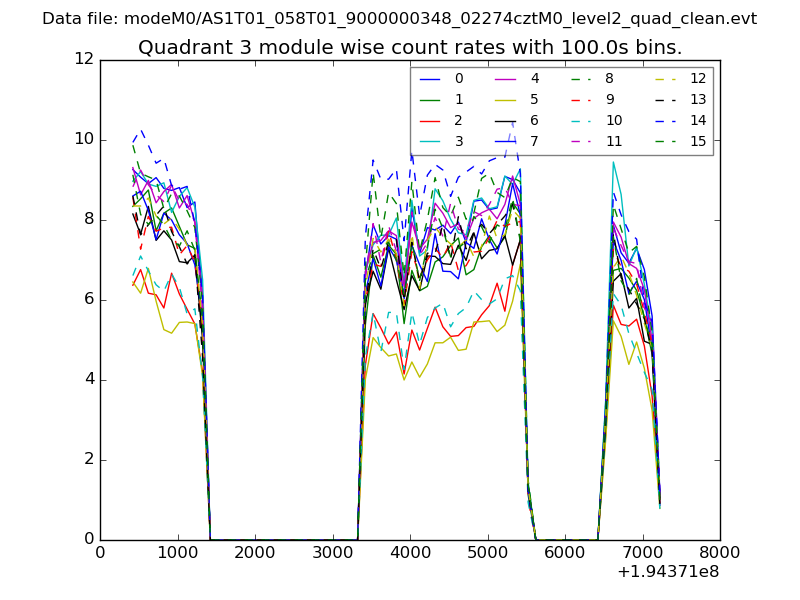

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

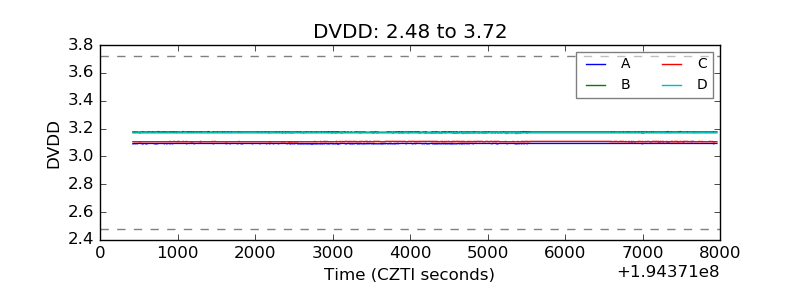

| D_VDD |  |

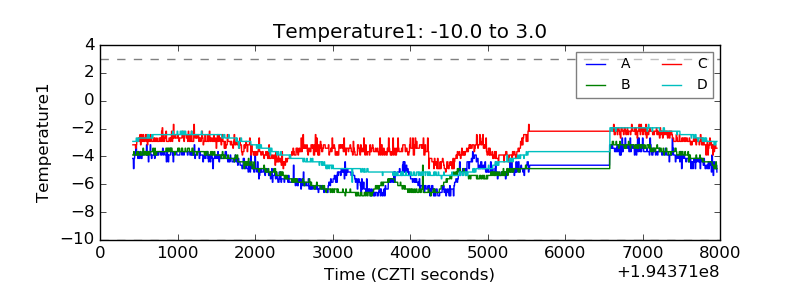

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

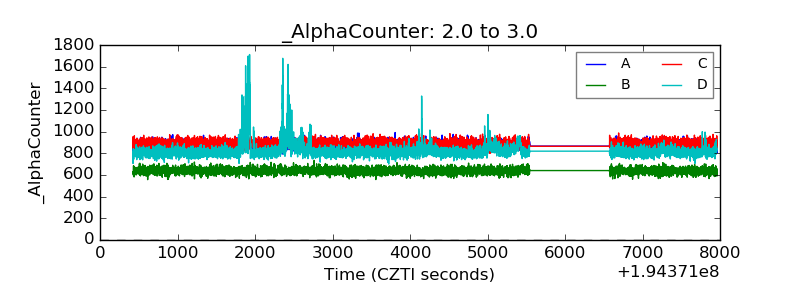

| Alpha Counter |  |

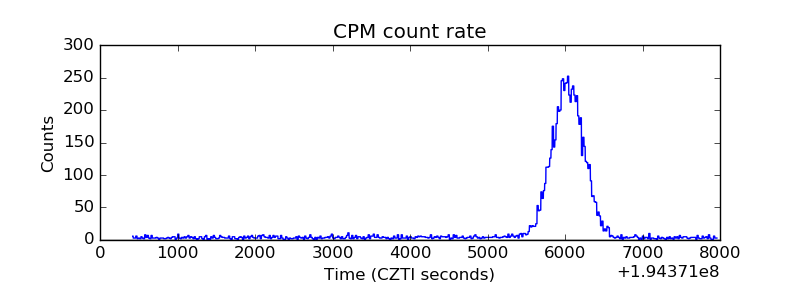

| _CPM_Rate |  |

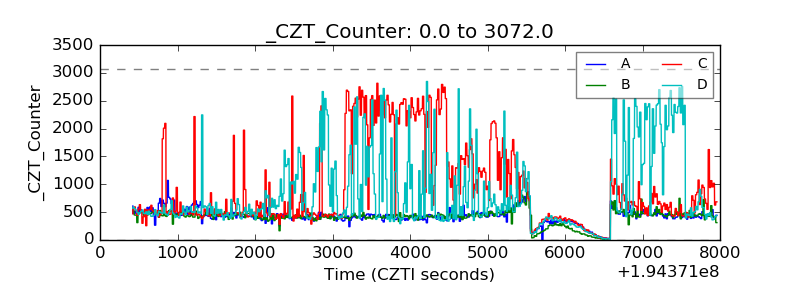

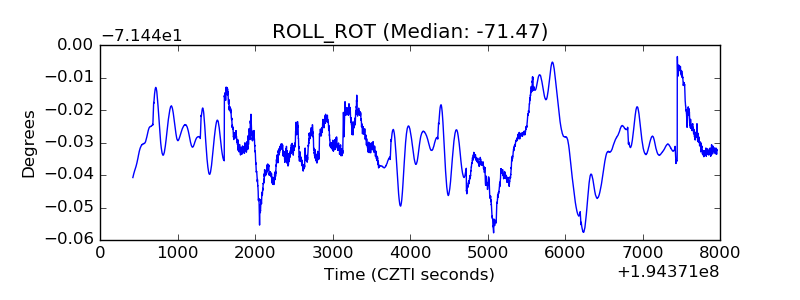

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

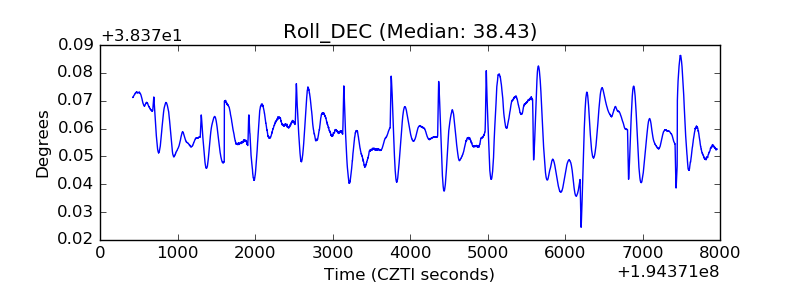

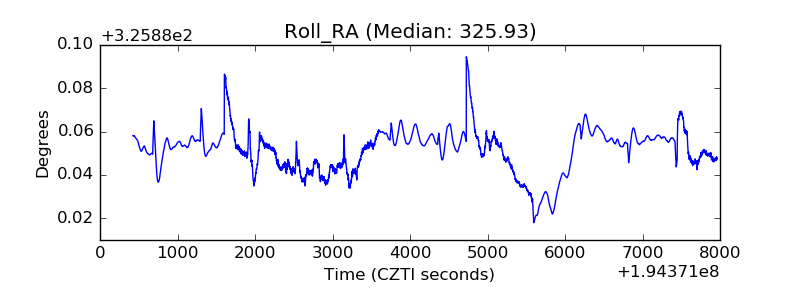

| _Roll_DEC |  |
| _Roll_RA |  |

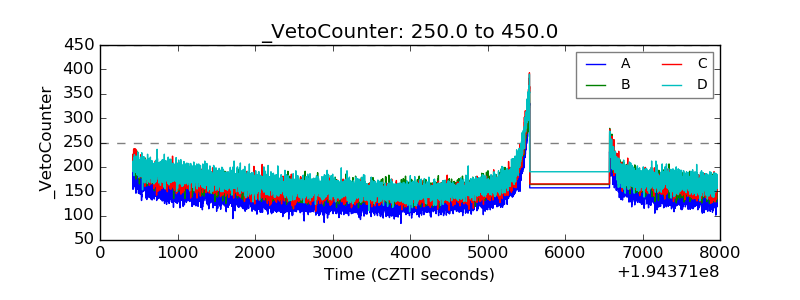

| Veto Counter |  |
