| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_058T01_9000000348_02276cztM0_level2.evt | modeM0/AS1T01_058T01_9000000348_02276cztM0_level2_quad_clean.evt |
| Size (bytes) | 656,323,200 | 76,291,200 |
| Size | 625.9 MB | 72.8 MB |
| Events in quadrant A | 3,292,594 | 448,223 |
| Events in quadrant B | 3,343,312 | 455,656 |
| Events in quadrant C | 8,816,168 | 446,337 |
| Events in quadrant D | 3,926,622 | 447,908 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15183 | 2 |
| B | 0 | 15272 | 6 |
| C | 0 | 31225 | 2 |
| D | 0 | 17262 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7357 | 62 | 0.842735% |
| B | 7355 | 56 | 0.761387% |
| C | 7357 | 1719 | 23.365502% |
| D | 7357 | 183 | 2.487427% |

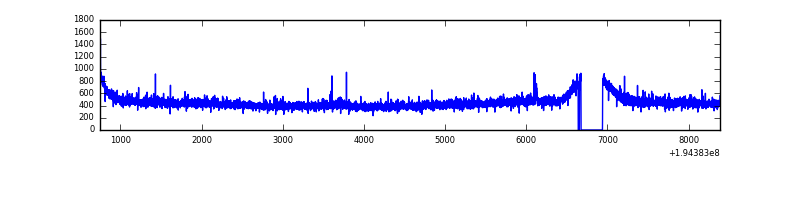

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 7358 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7636 | 7355 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7636 | 7358 | 1672 | 1672 | 21.90% | 22.72% |  |
| D | 7637 | 7358 | 131 | 131 | 1.72% | 1.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 33 | 25477 | 141.84 | 847 | 827 | 173.8 |
| A | 12 | 194 | 9612 | 50.55 | 847 | 827 | 173.8 |
| A | 0 | 226 | 9105 | 47.63 | 847 | 827 | 173.8 |
| B | 10 | 244 | 48108 | 287.81 | 855 | 829 | 164.3 |
| B | 12 | 111 | 12614 | 71.74 | 855 | 829 | 164.3 |
| B | 11 | 111 | 10718 | 60.2 | 855 | 829 | 164.3 |
| C | 2 | 53 | 4850638 | 28240.4 | 735 | 737 | 171.7 |
| C | 5 | 234 | 854191 | 4969.56 | 735 | 737 | 171.7 |
| C | 14 | 223 | 198976 | 1154.32 | 735 | 737 | 171.7 |
| D | 12 | 126 | 721512 | 3678.24 | 823 | 802 | 195.9 |
| D | 13 | 169 | 38003 | 189.86 | 823 | 802 | 195.9 |
| D | 15 | 194 | 15309 | 74.04 | 823 | 802 | 195.9 |

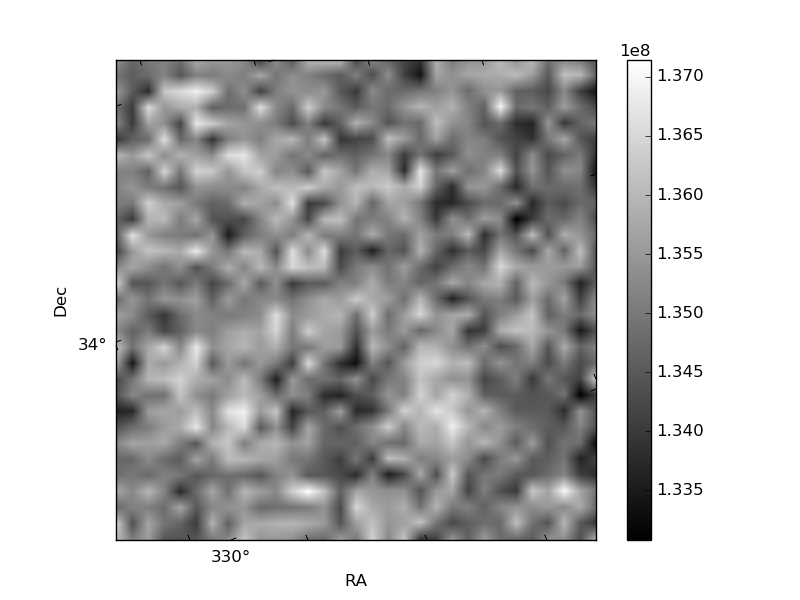

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

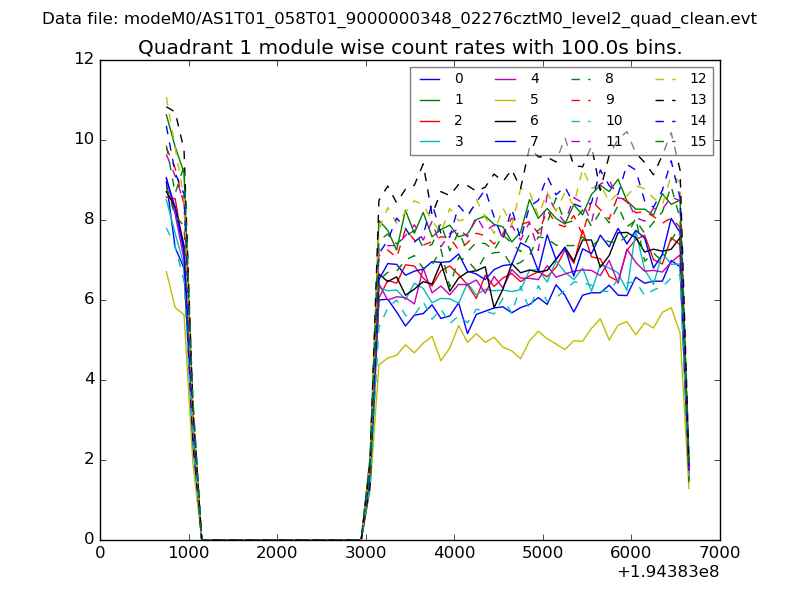

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

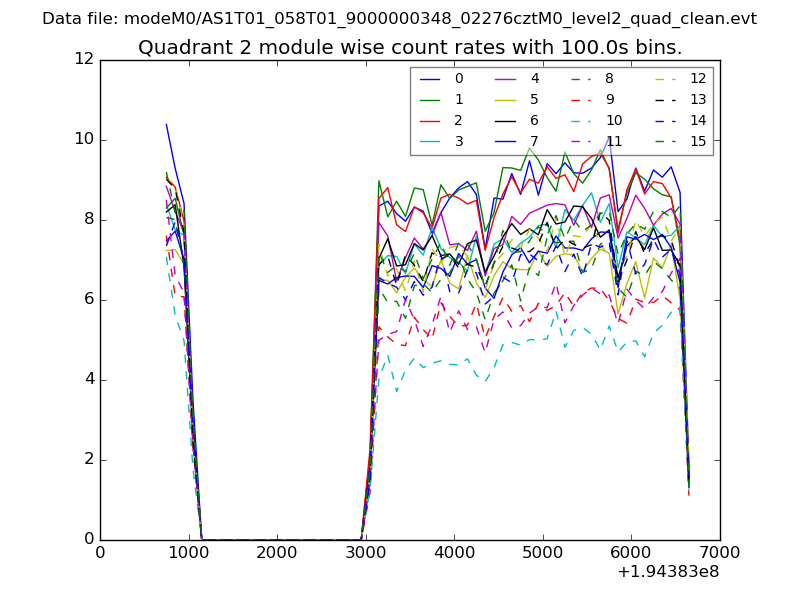

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

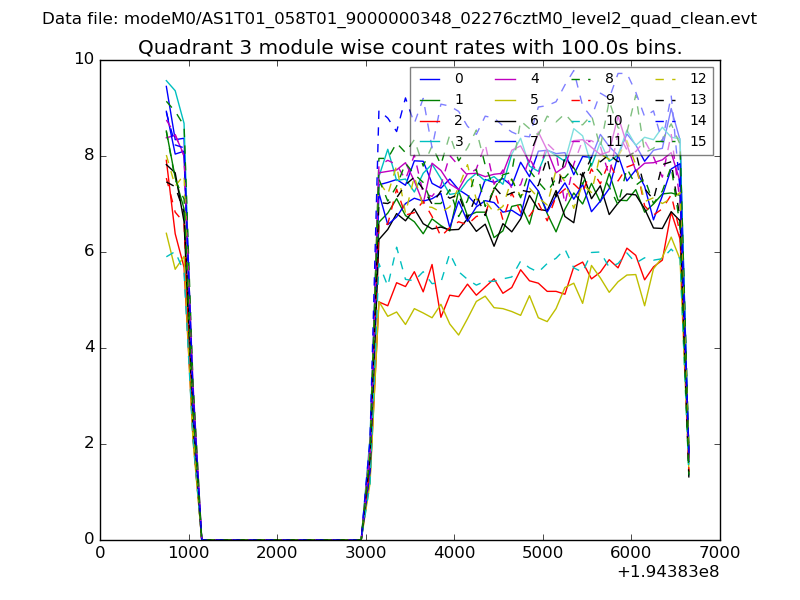

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

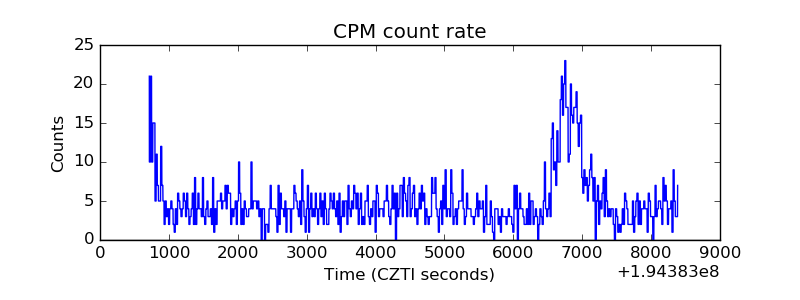

| _CPM_Rate |  |

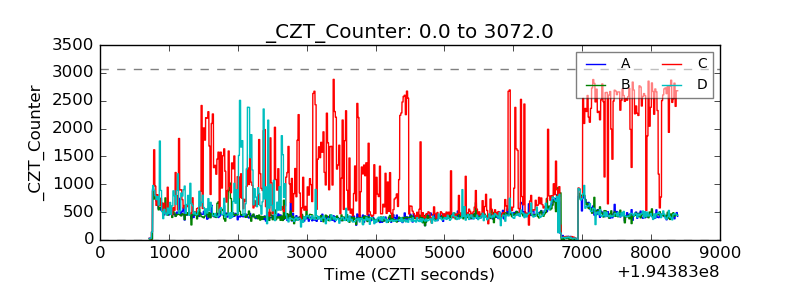

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

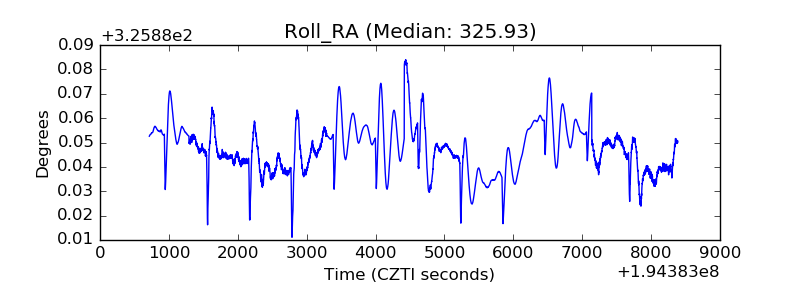

| _Roll_RA |  |
| Veto Counter |  |
