| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_058T01_9000000348_02288cztM0_level2.evt | modeM0/AS1T01_058T01_9000000348_02288cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,043,200 | 70,473,600 |
| Size | 412.0 MB | 67.2 MB |
| Events in quadrant A | 2,601,195 | 439,788 |
| Events in quadrant B | 4,522,753 | 398,757 |
| Events in quadrant C | 2,974,379 | 451,075 |
| Events in quadrant D | 2,588,379 | 435,591 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11881 | 2 |
| B | 0 | 17444 | 1 |
| C | 0 | 12597 | 1 |
| D | 0 | 12025 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5838 | 46 | 0.787941% |
| B | 5838 | 865 | 14.816718% |
| C | 5838 | 53 | 0.907845% |
| D | 5838 | 41 | 0.702295% |

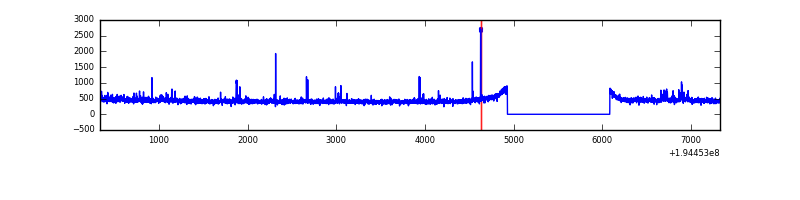

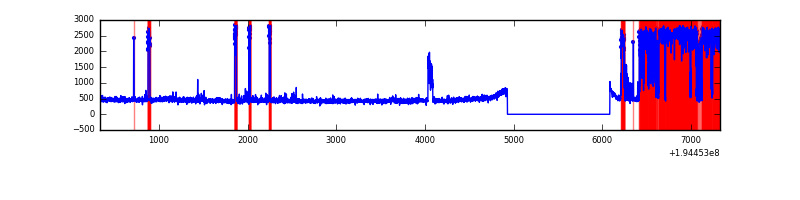

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6993 | 5838 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6992 | 5837 | 800 | 800 | 11.44% | 13.71% |  |
| C | 6993 | 5838 | 9 | 9 | 0.13% | 0.15% |  |
| D | 6993 | 5838 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 7798 | 52.09 | 675 | 660 | 137.0 |
| A | 0 | 226 | 7177 | 47.56 | 675 | 660 | 137.0 |
| A | 13 | 9 | 2153 | 10.9 | 675 | 660 | 137.0 |
| B | 4 | 48 | 2102861 | 17643.07 | 624 | 609 | 119.2 |
| B | 12 | 111 | 8763 | 68.43 | 624 | 609 | 119.2 |
| B | 7 | 205 | 7691 | 59.44 | 624 | 609 | 119.2 |
| C | 5 | 234 | 276689 | 1774.24 | 667 | 670 | 155.6 |
| C | 2 | 53 | 32998 | 207.8 | 667 | 670 | 155.6 |
| C | 8 | 112 | 23861 | 149.07 | 667 | 670 | 155.6 |
| D | 13 | 169 | 30587 | 191.14 | 661 | 647 | 156.6 |
| D | 2 | 14 | 22483 | 139.41 | 661 | 647 | 156.6 |
| D | 9 | 64 | 13630 | 82.89 | 661 | 647 | 156.6 |

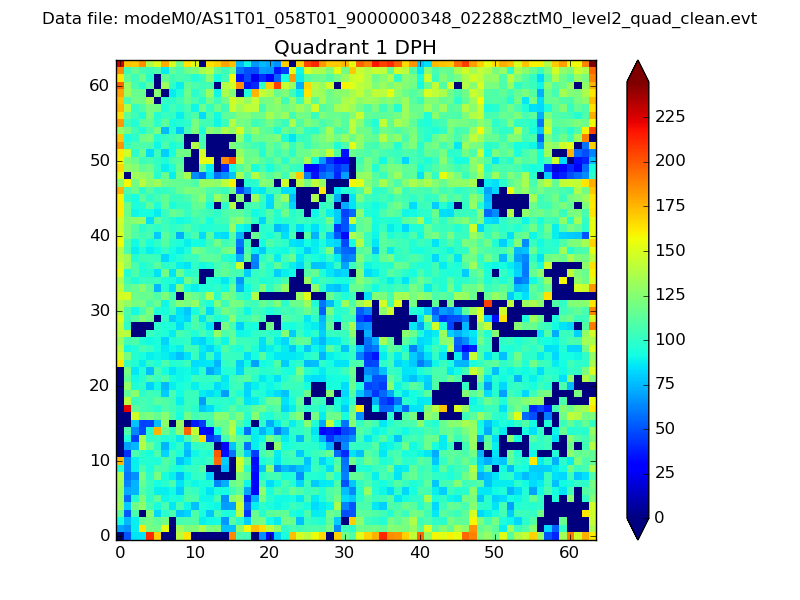

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

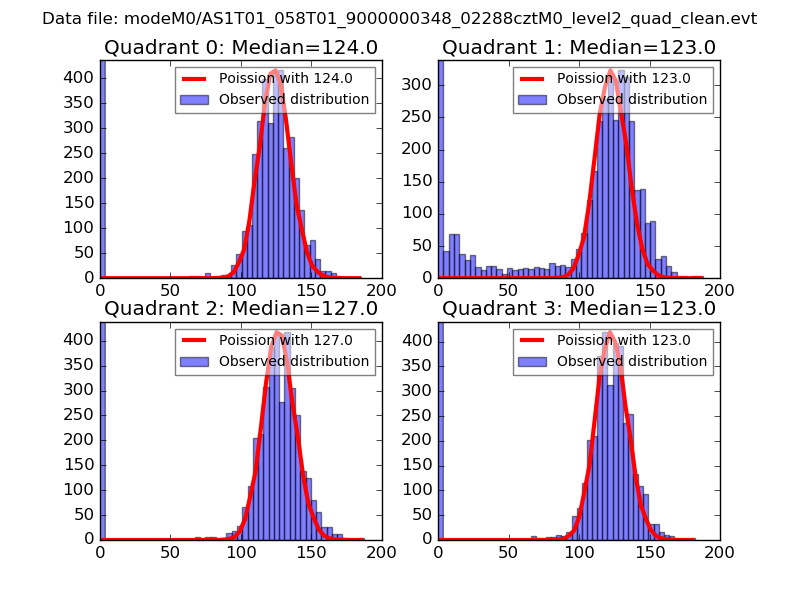

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

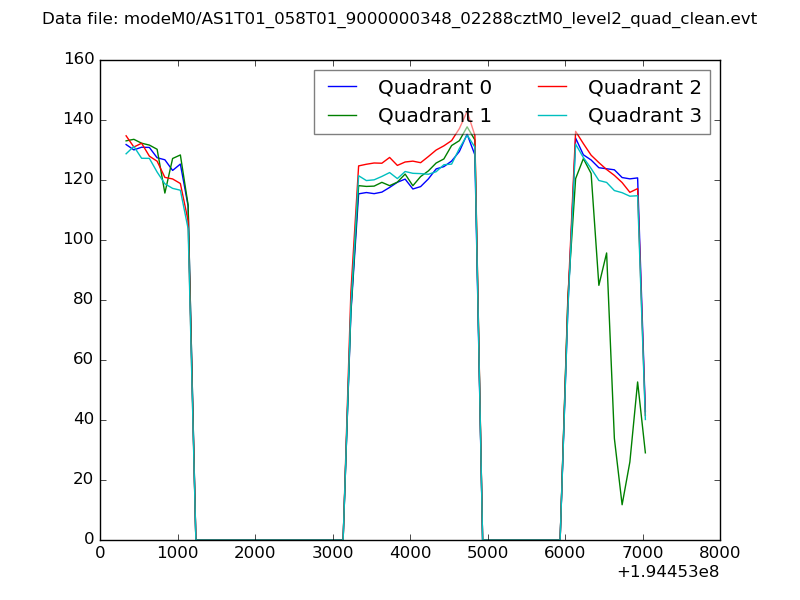

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

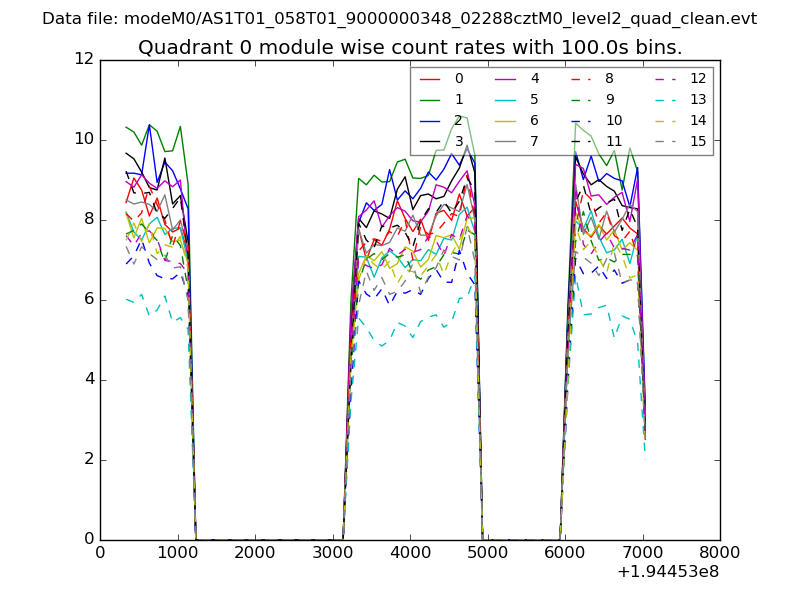

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

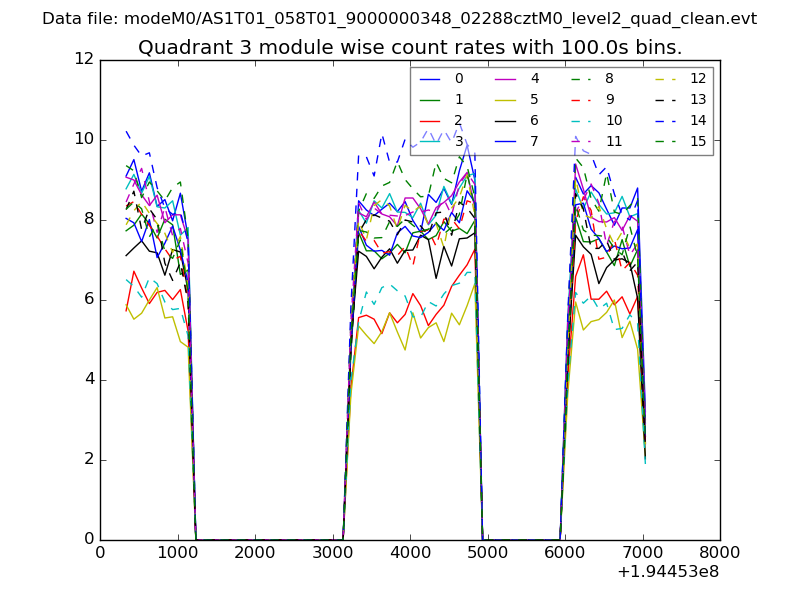

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

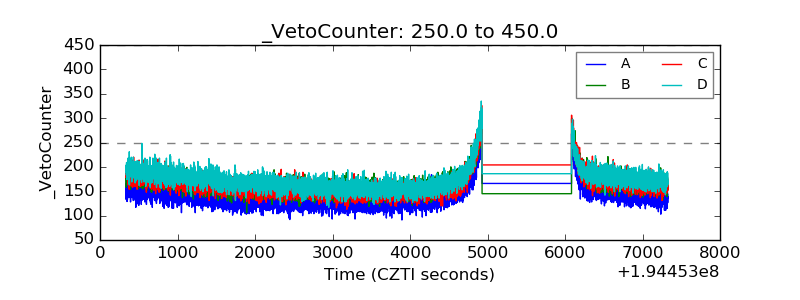

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
