| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1SLEW_01234_9000000349_02298cztM0_level2.evt | modeM0/AS1SLEW_01234_9000000349_02298cztM0_level2_quad_clean.evt |
| Size (bytes) | 48,297,600 | 11,445,120 |
| Size | 46.1 MB | 10.9 MB |
| Events in quadrant A | 296,836 | 73,314 |
| Events in quadrant B | 307,094 | 75,651 |
| Events in quadrant C | 306,630 | 76,091 |
| Events in quadrant D | 507,288 | 70,659 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 12 |
| B | 0 | 24 | 12 |
| C | 0 | 24 | 12 |
| D | 0 | 24 | 12 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2540 | 1271 |
| B | 0 | 2550 | 1276 |
| C | 0 | 2580 | 1291 |
| D | 0 | 3966 | 1984 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 610 | 1 | 0.163934% |
| B | 610 | 0 | 0.000000% |
| C | 610 | 0 | 0.000000% |
| D | 610 | 20 | 3.278689% |

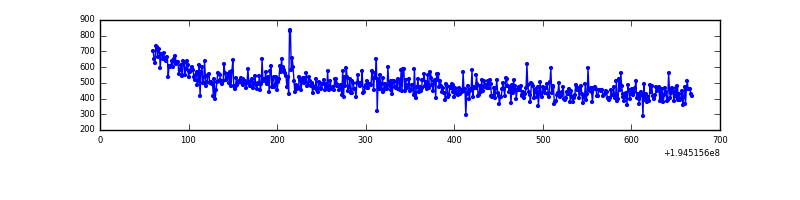

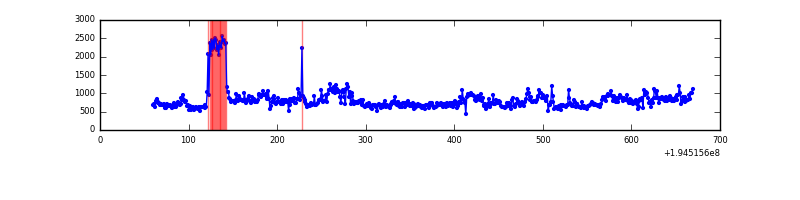

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 609 | 609 | 0 | 0 | 0.00% | 0.00% |  |
| B | 609 | 609 | 0 | 0 | 0.00% | 0.00% |  |
| C | 610 | 610 | 0 | 0 | 0.00% | 0.00% |  |
| D | 610 | 610 | 21 | 21 | 3.44% | 3.44% |  |

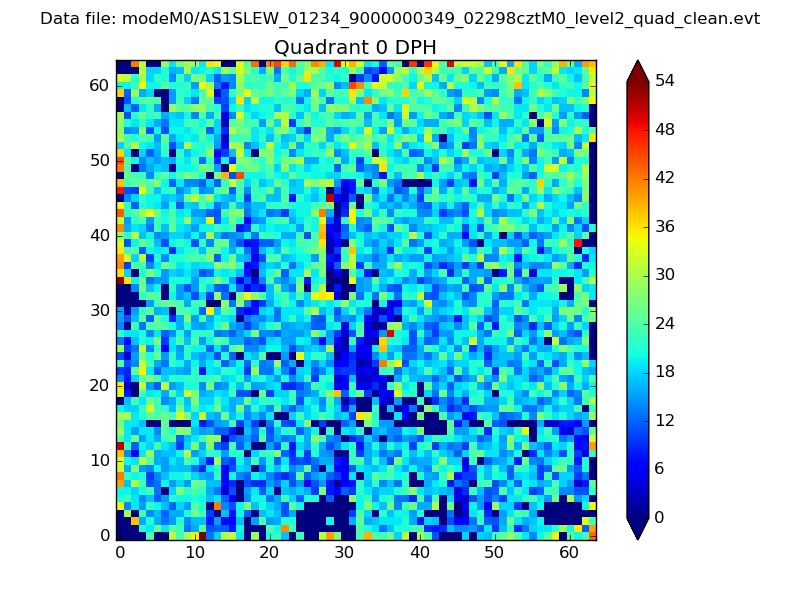

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

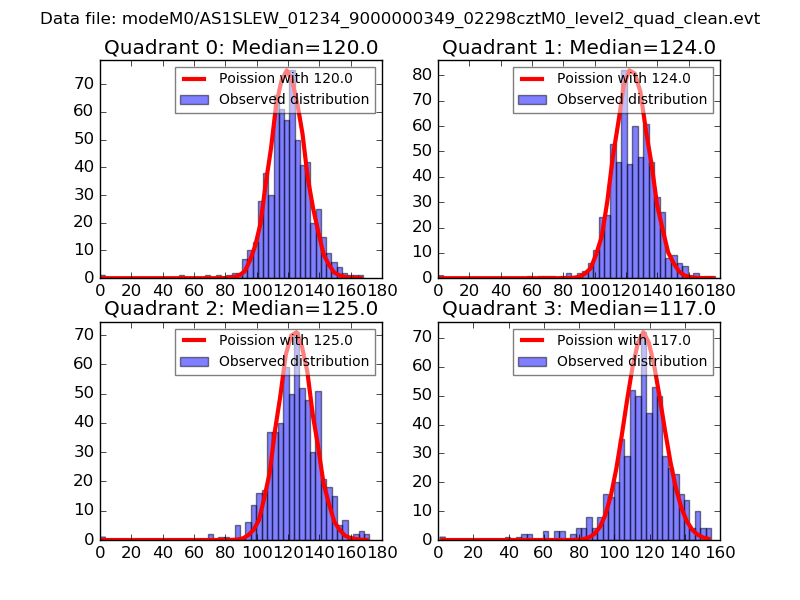

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

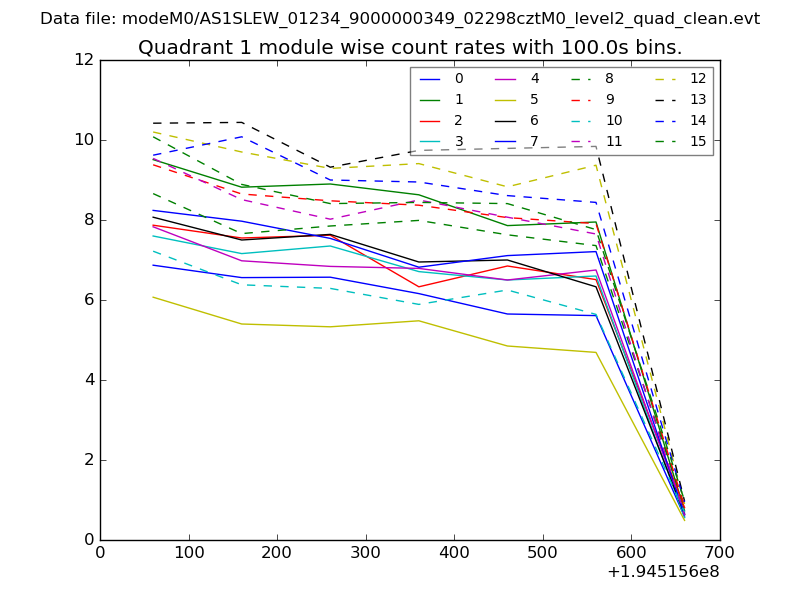

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

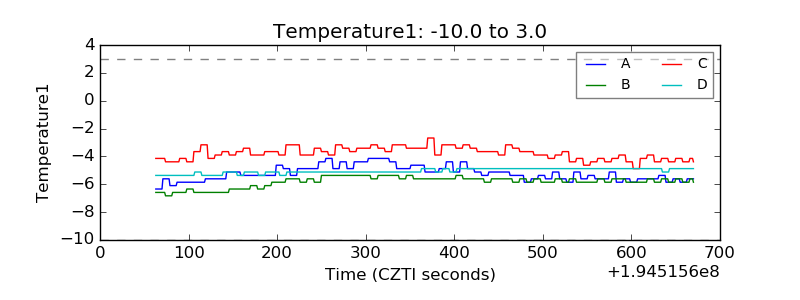

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

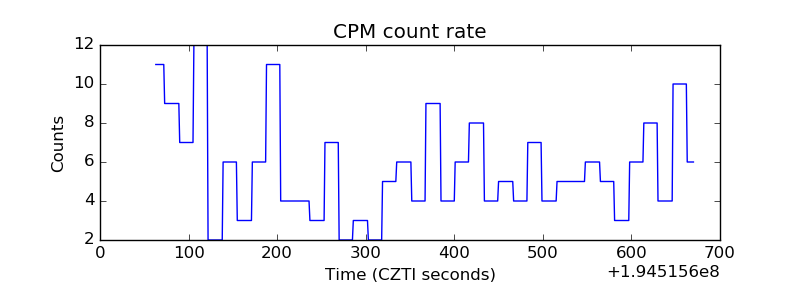

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
