| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_043T01_9000000350_02300cztM0_level2.evt | modeM0/AS1T01_043T01_9000000350_02300cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,227,200 | 104,495,040 |
| Size | 425.6 MB | 99.7 MB |
| Events in quadrant A | 2,842,051 | 694,923 |
| Events in quadrant B | 2,941,629 | 707,854 |
| Events in quadrant C | 3,278,651 | 686,380 |
| Events in quadrant D | 4,038,984 | 651,383 |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7275 | 6075 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7275 | 6075 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7275 | 6075 | 29 | 29 | 0.40% | 0.48% |  |
| D | 7275 | 6075 | 184 | 184 | 2.53% | 3.03% |  |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

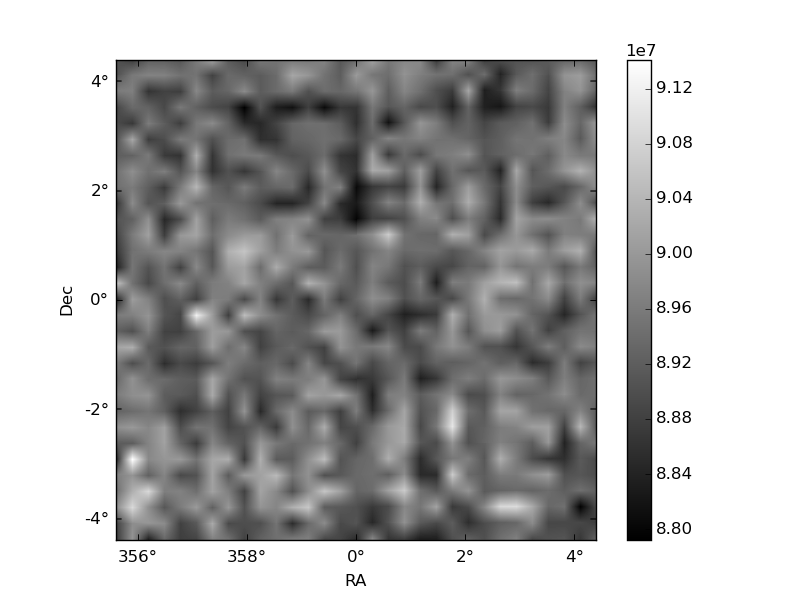

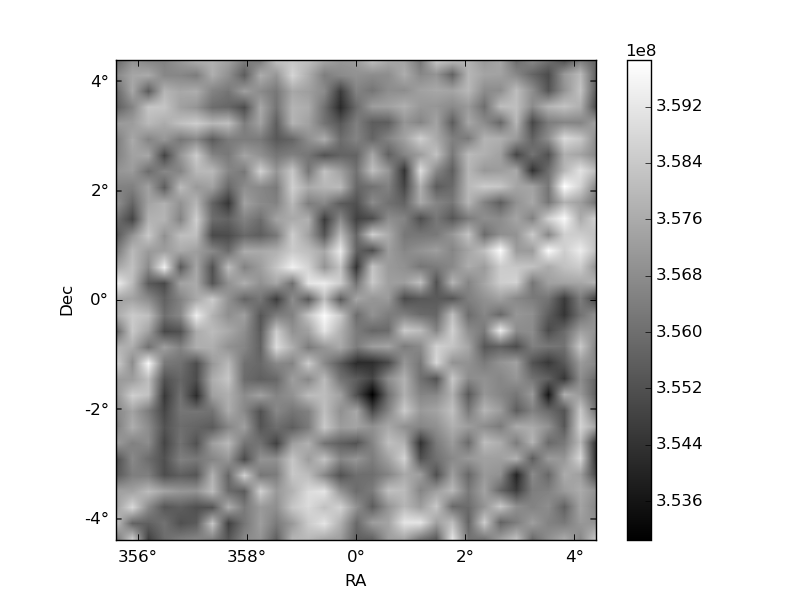

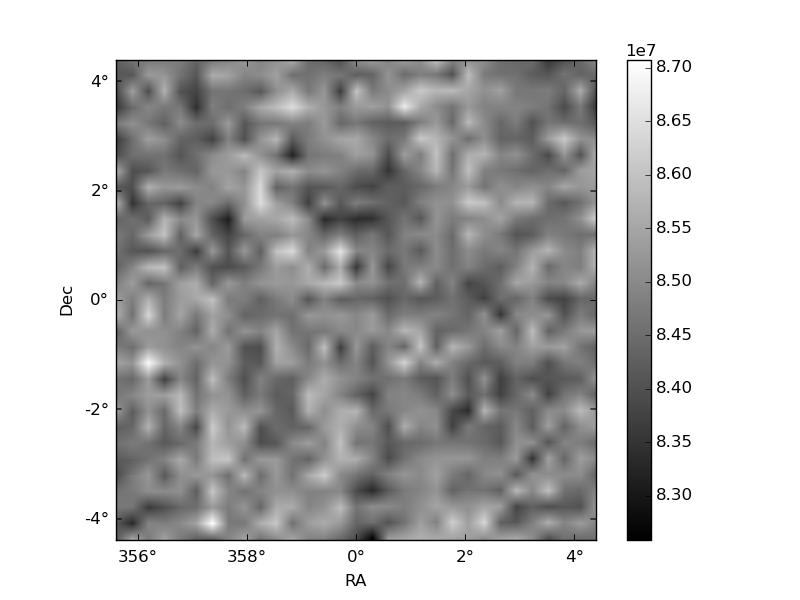

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

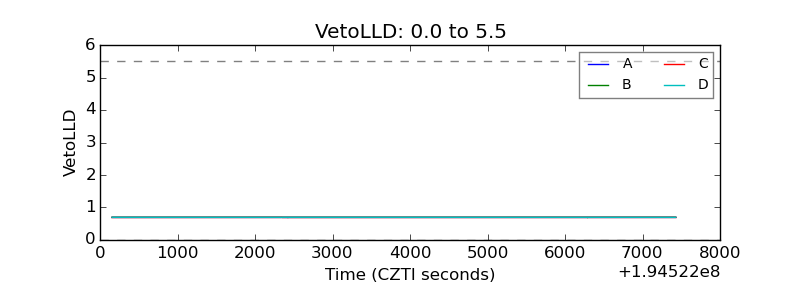

| Veto LLD |  |
| Alpha Counter |  |

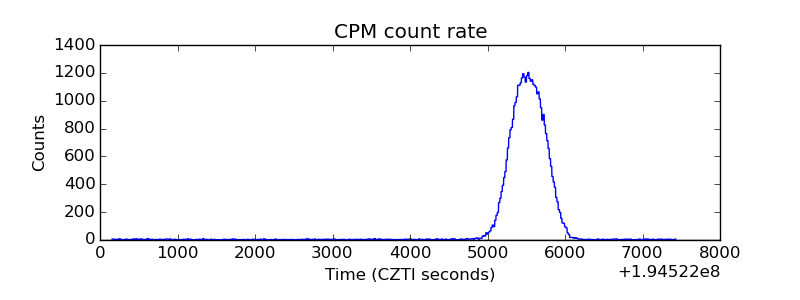

| _CPM_Rate |  |

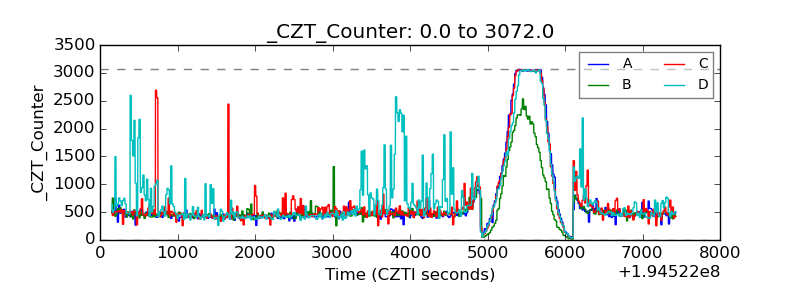

| CZT Counter |  |

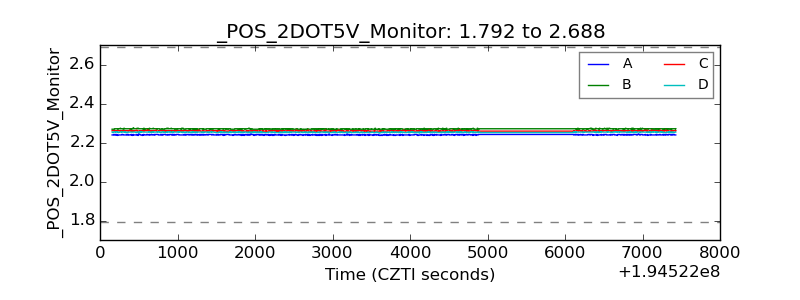

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
