| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1SLEW_01234_9000000353_02313cztM0_level2.evt | modeM0/AS1SLEW_01234_9000000353_02313cztM0_level2_quad_clean.evt |
| Size (bytes) | 46,656,000 | 7,663,680 |
| Size | 44.5 MB | 7.3 MB |
| Events in quadrant A | 197,190 | 50,092 |
| Events in quadrant B | 742,022 | 44,888 |
| Events in quadrant C | 251,985 | 48,004 |
| Events in quadrant D | 186,633 | 47,895 |

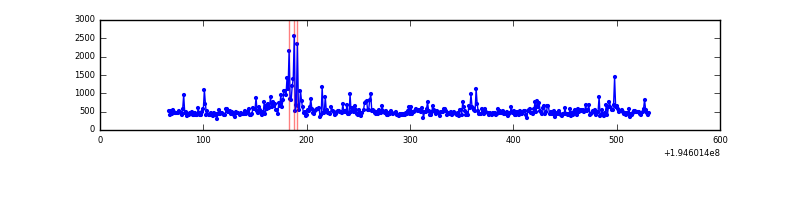

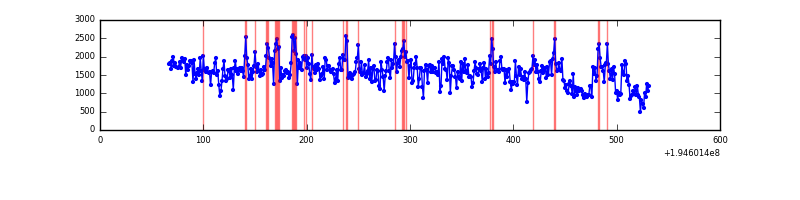

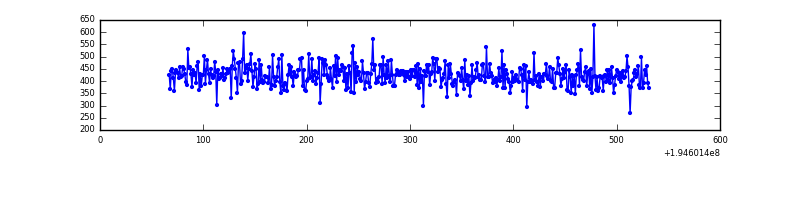

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 465 | 465 | 0 | 0 | 0.00% | 0.00% |  |
| B | 465 | 465 | 38 | 38 | 8.17% | 8.17% |  |
| C | 465 | 465 | 3 | 3 | 0.65% | 0.65% |  |
| D | 465 | 465 | 0 | 0 | 0.00% | 0.00% |  |

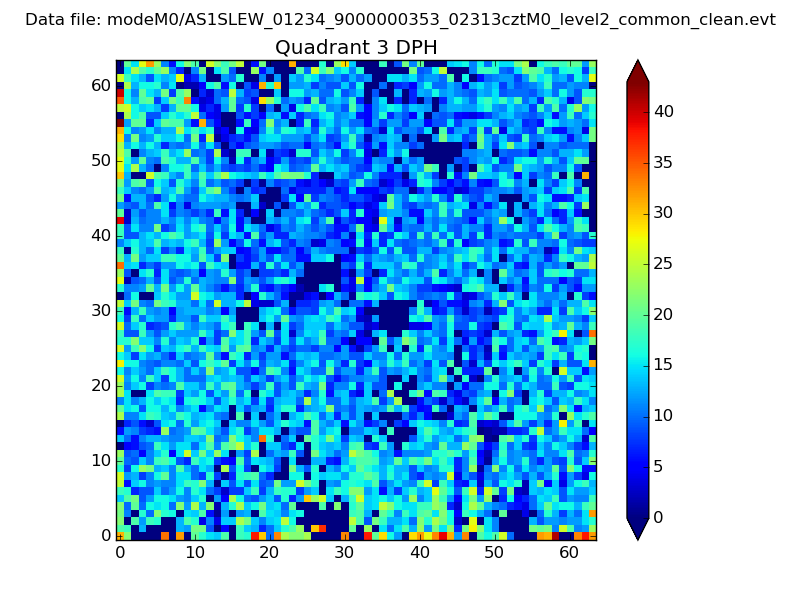

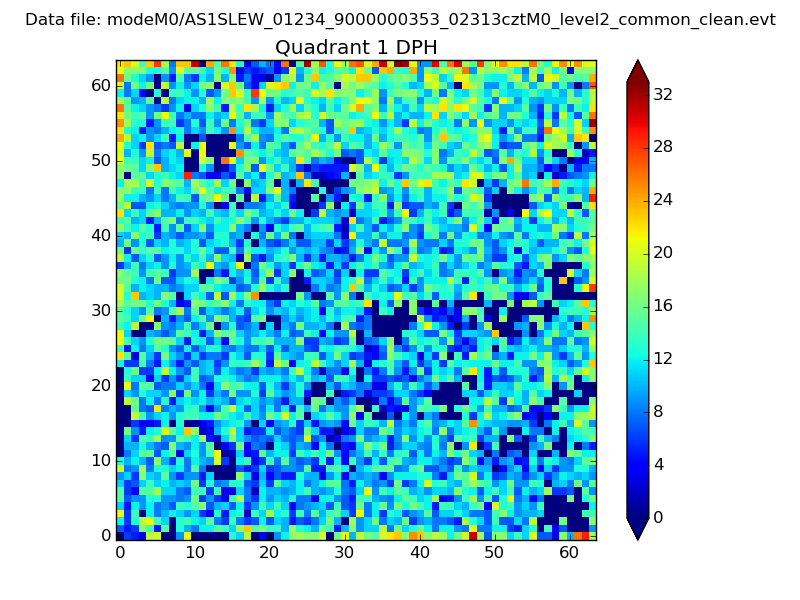

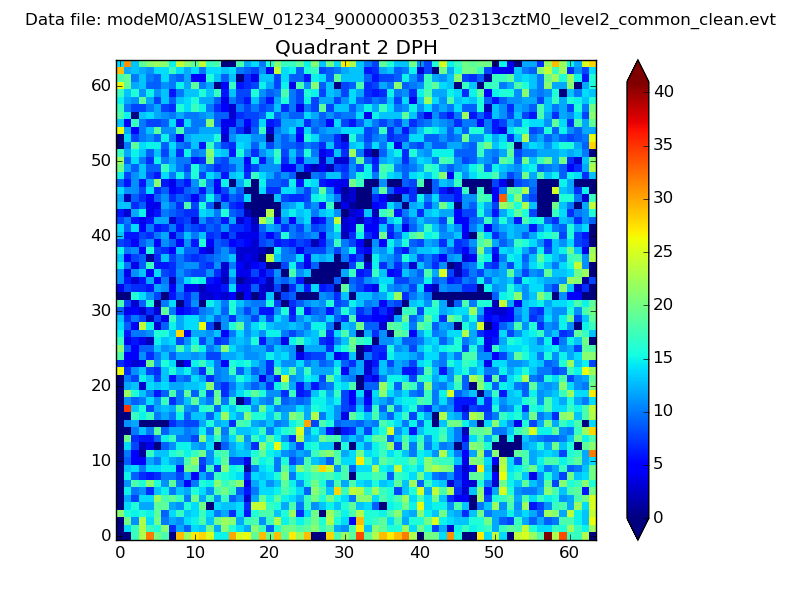

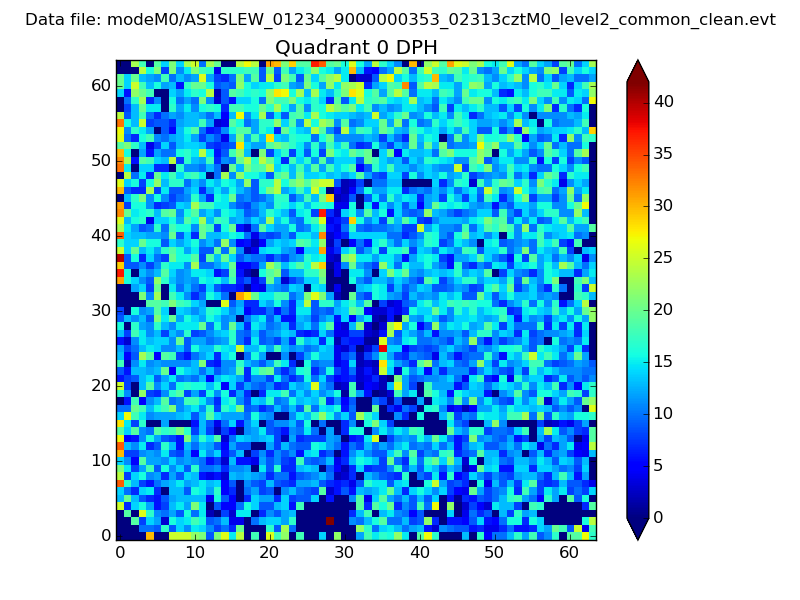

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

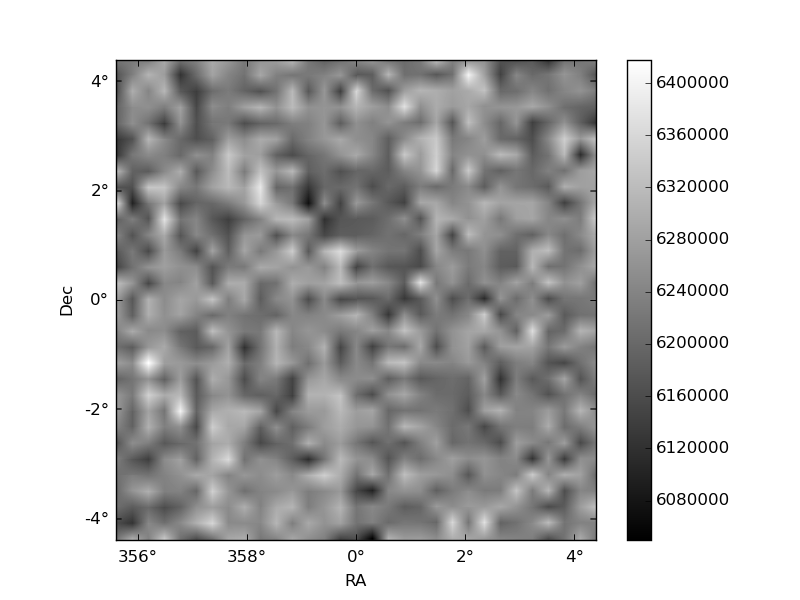

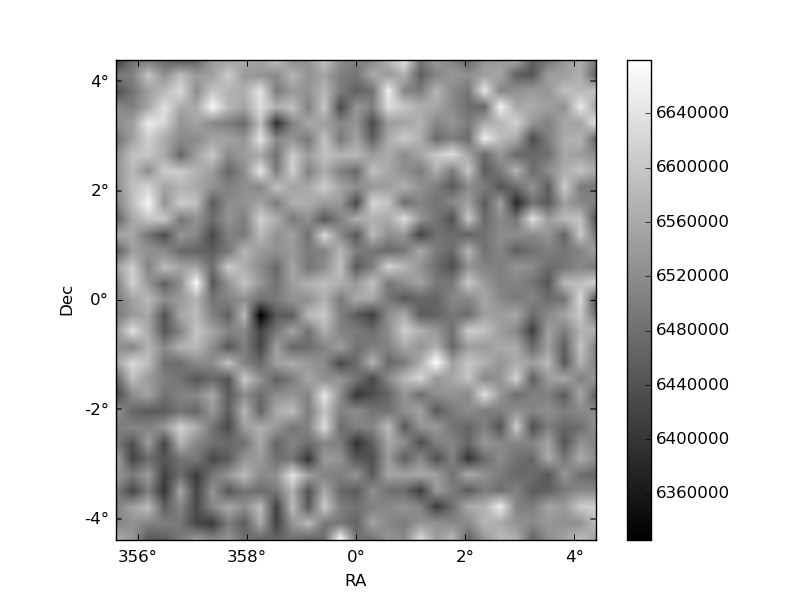

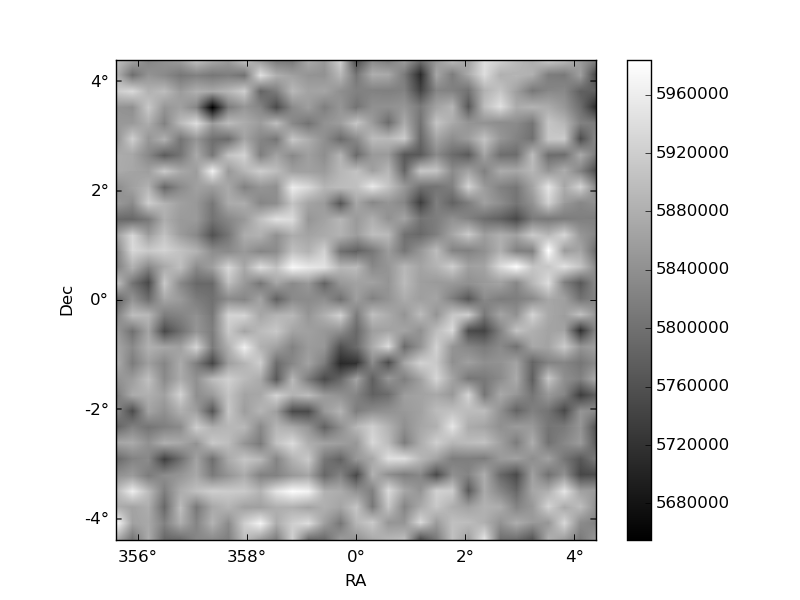

| Plot type | Count rate plots | Images |
|---|---|---|

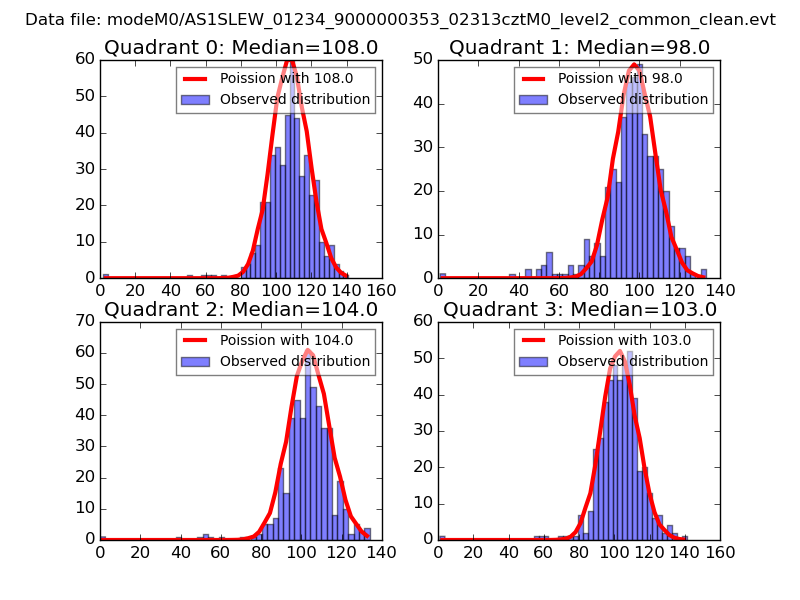

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

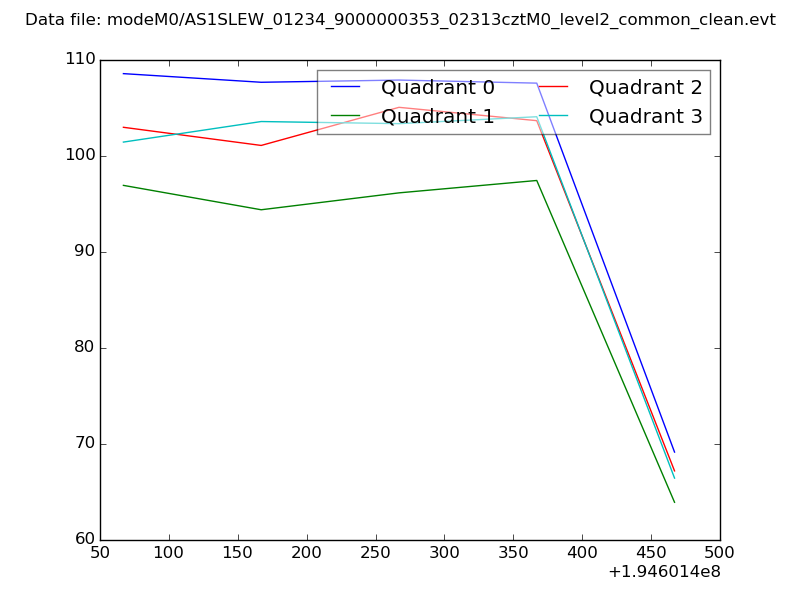

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

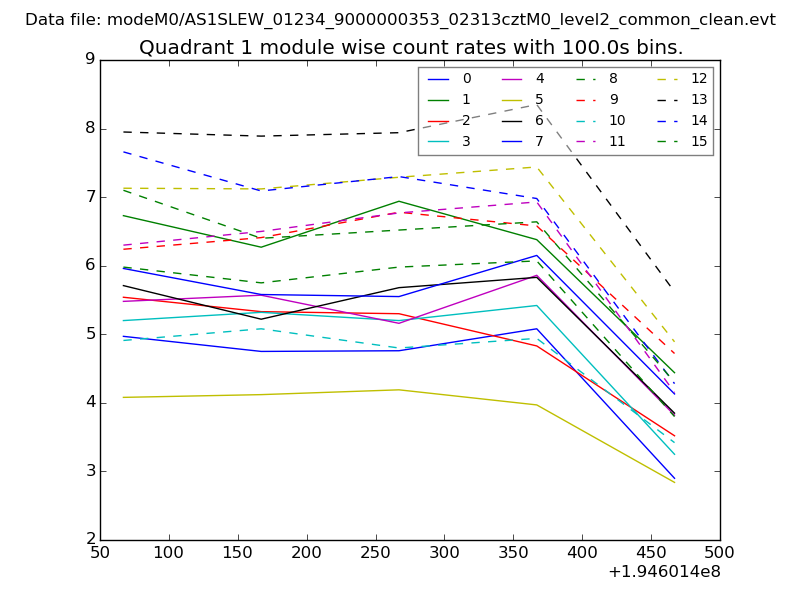

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

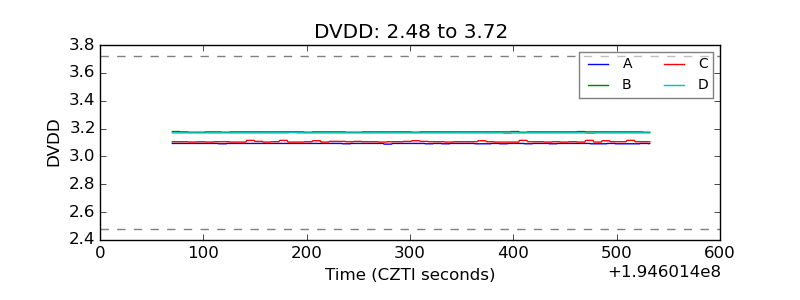

| D_VDD |  |
| Temperature 1 |  |

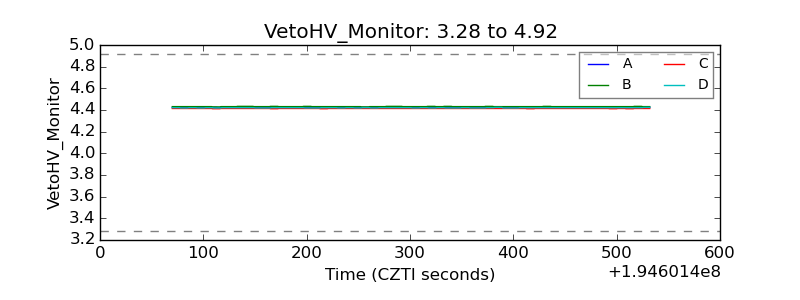

| Veto HV Monitor |  |

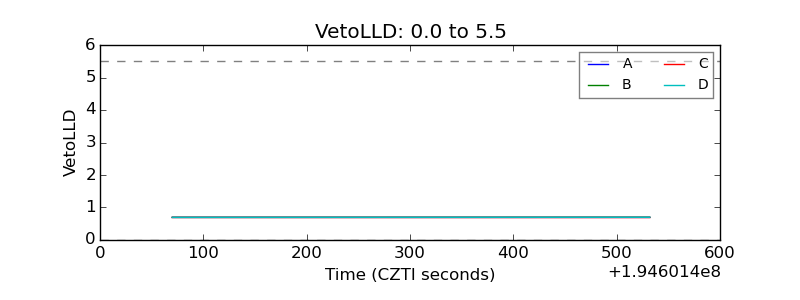

| Veto LLD |  |

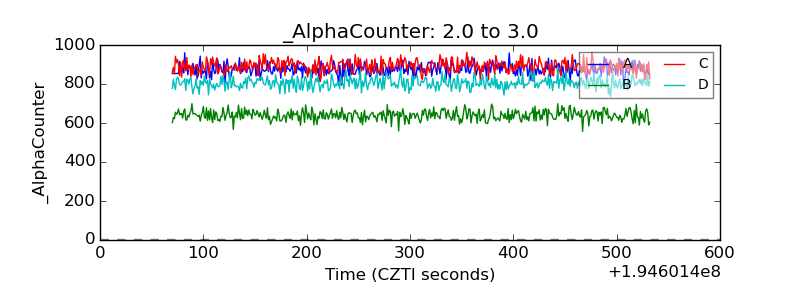

| Alpha Counter |  |

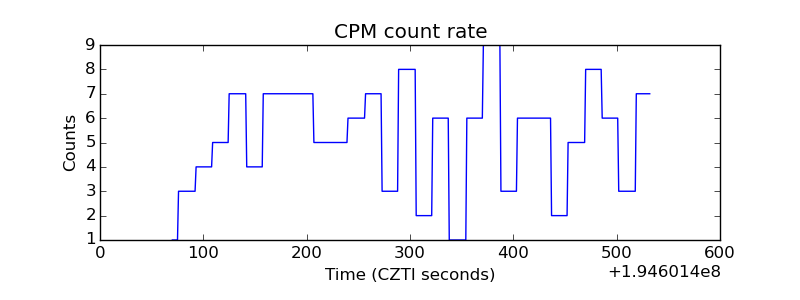

| _CPM_Rate |  |

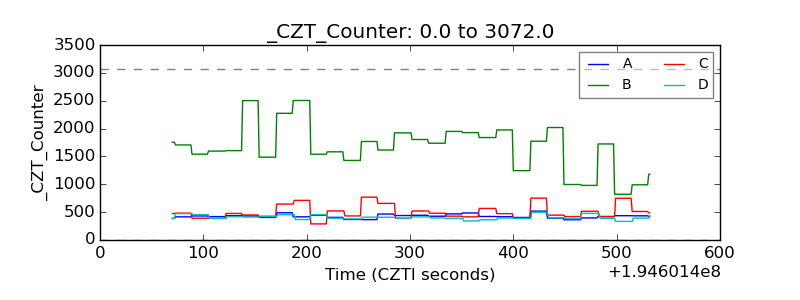

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
