| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_030T01_9000000358_02356cztM0_level2.evt | modeM0/AS1T01_030T01_9000000358_02356cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,414,644,480 | 360,025,920 |
| Size | 1.3 GB | 343.3 MB |
| Events in quadrant A | 11,539,057 | 2,362,591 |
| Events in quadrant B | 10,199,486 | 2,412,961 |
| Events in quadrant C | 10,223,360 | 2,345,610 |
| Events in quadrant D | 9,393,386 | 2,270,722 |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25397 | 21997 | 444 | 444 | 1.75% | 2.02% |  |
| B | 25397 | 21997 | 27 | 27 | 0.11% | 0.12% |  |
| C | 25397 | 21997 | 50 | 50 | 0.20% | 0.23% |  |
| D | 25397 | 21997 | 6 | 6 | 0.02% | 0.03% |  |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

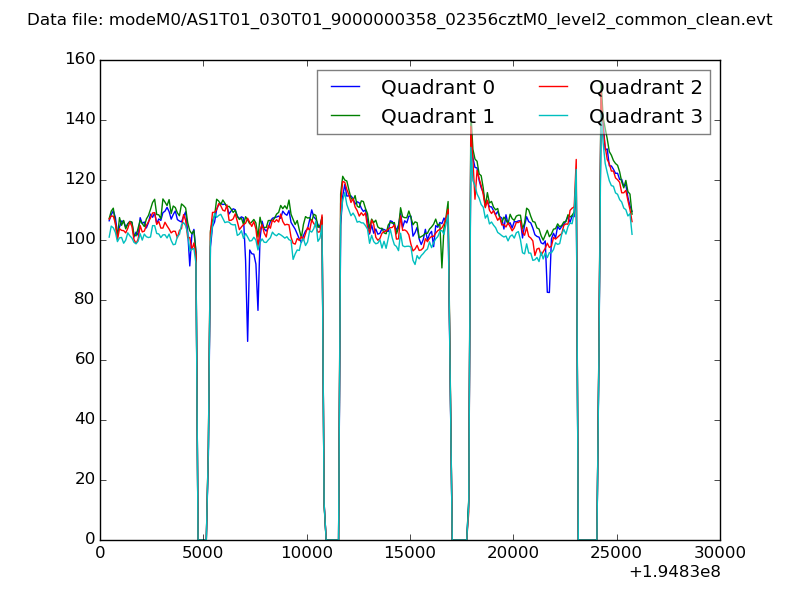

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

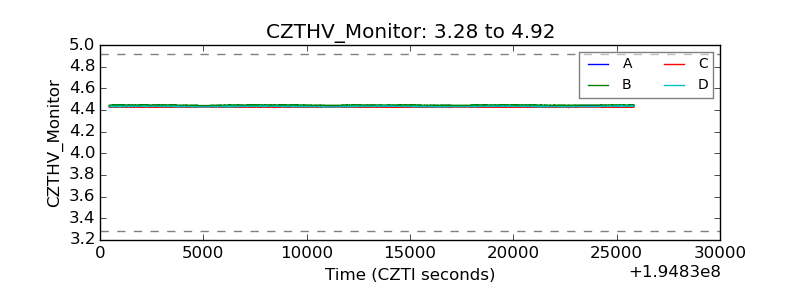

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

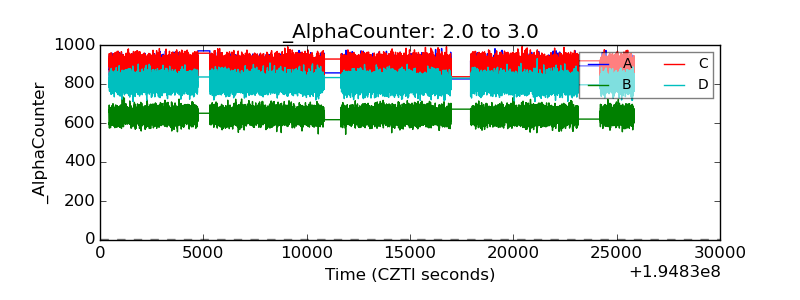

| Alpha Counter |  |

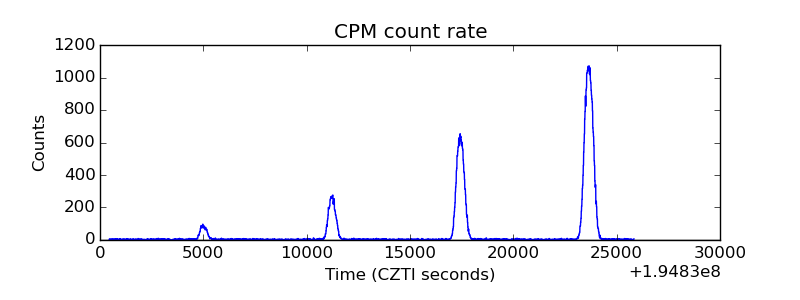

| _CPM_Rate |  |

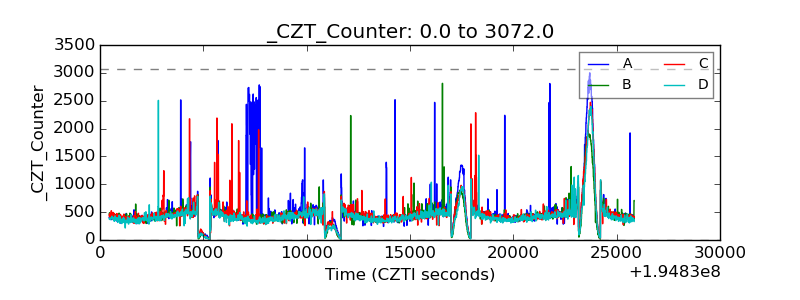

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
