| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_018T06_9000000370_02458cztM0_level2.evt | modeM0/AS1G02_018T06_9000000370_02458cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,670,400 | 71,890,560 |
| Size | 413.6 MB | 68.6 MB |
| Events in quadrant A | 3,101,094 | 421,653 |
| Events in quadrant B | 3,221,300 | 434,606 |
| Events in quadrant C | 3,278,882 | 427,350 |
| Events in quadrant D | 3,066,293 | 415,616 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13964 | 3 |
| B | 0 | 14146 | 2 |
| C | 0 | 14481 | 2 |
| D | 0 | 14187 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6856 | 50 | 0.729288% |
| B | 6856 | 56 | 0.816803% |
| C | 6856 | 88 | 1.283547% |
| D | 6856 | 48 | 0.700117% |

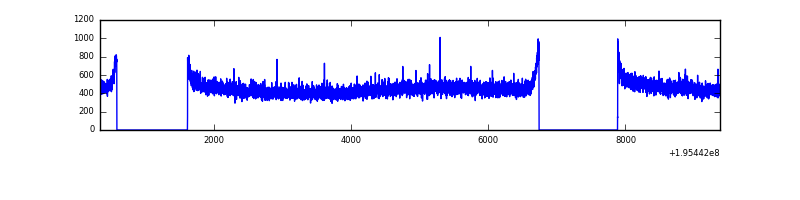

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9031 | 6858 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9031 | 6858 | 4 | 4 | 0.04% | 0.06% |  |
| C | 9031 | 6858 | 25 | 25 | 0.28% | 0.36% |  |
| D | 9031 | 6858 | 4 | 4 | 0.04% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 9062 | 50.64 | 801 | 782 | 163.5 |
| A | 12 | 194 | 8780 | 48.91 | 801 | 782 | 163.5 |
| A | 0 | 226 | 8612 | 47.89 | 801 | 782 | 163.5 |
| B | 10 | 244 | 48005 | 301.75 | 820 | 801 | 156.4 |
| B | 12 | 111 | 11445 | 68.04 | 820 | 801 | 156.4 |
| B | 11 | 111 | 9629 | 56.43 | 820 | 801 | 156.4 |
| C | 2 | 53 | 159786 | 869.95 | 784 | 787 | 182.8 |
| C | 8 | 208 | 19646 | 103.19 | 784 | 787 | 182.8 |
| C | 12 | 4 | 11640 | 59.38 | 784 | 787 | 182.8 |
| D | 7 | 67 | 79860 | 432.92 | 773 | 753 | 182.7 |
| D | 2 | 184 | 15109 | 78.56 | 773 | 753 | 182.7 |
| D | 15 | 194 | 14177 | 73.46 | 773 | 753 | 182.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

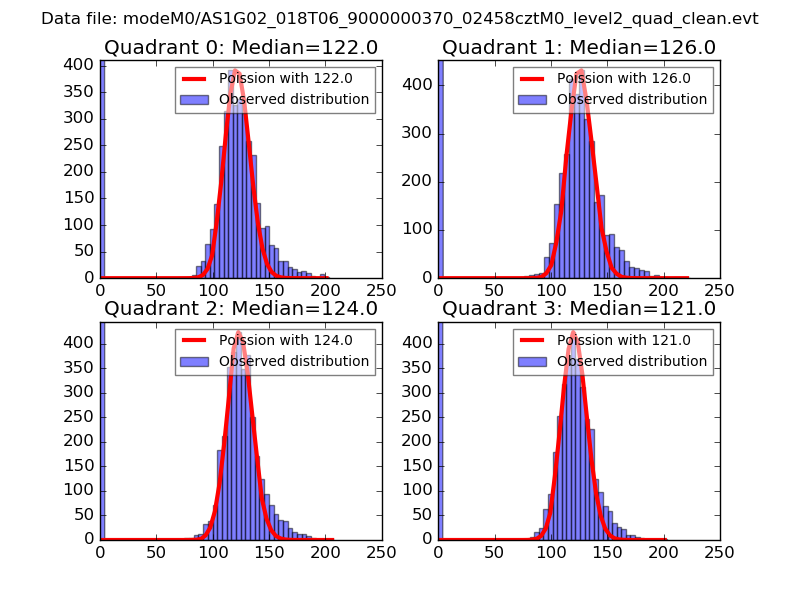

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

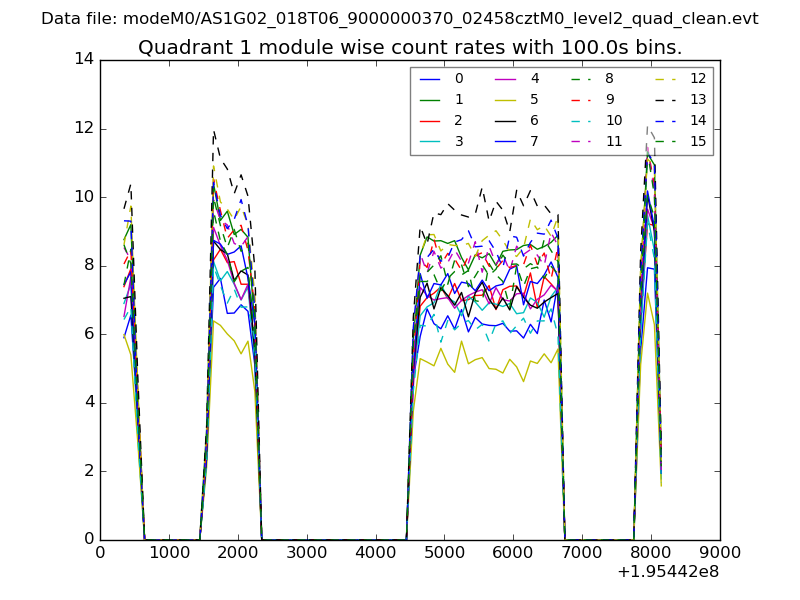

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

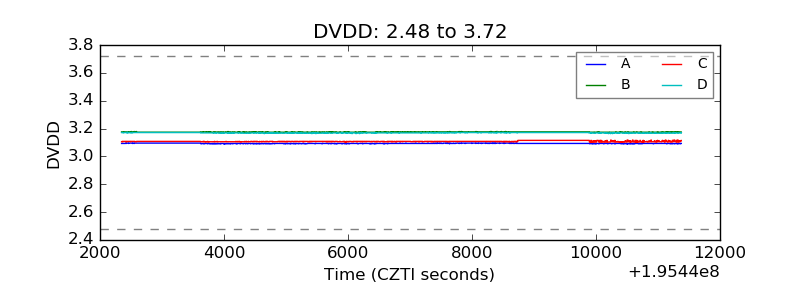

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

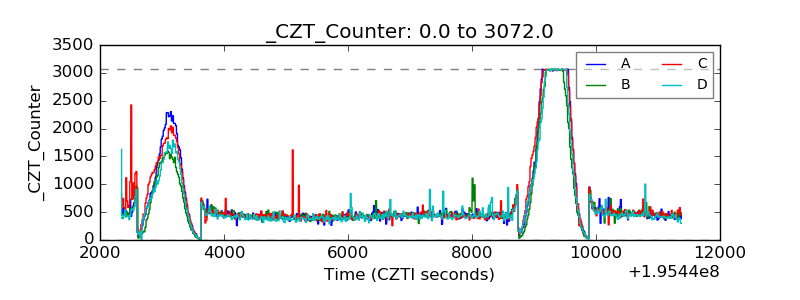

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

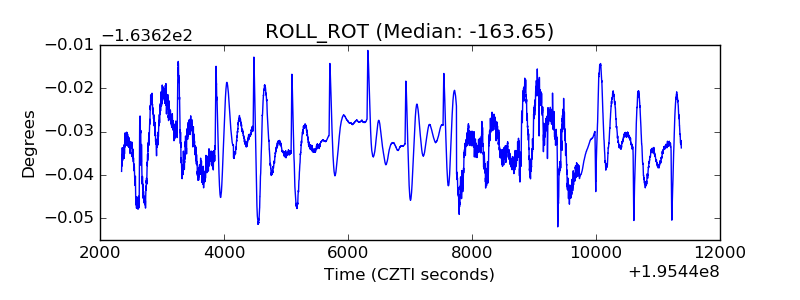

| _ROLL_ROT |  |
| _Roll_DEC |  |

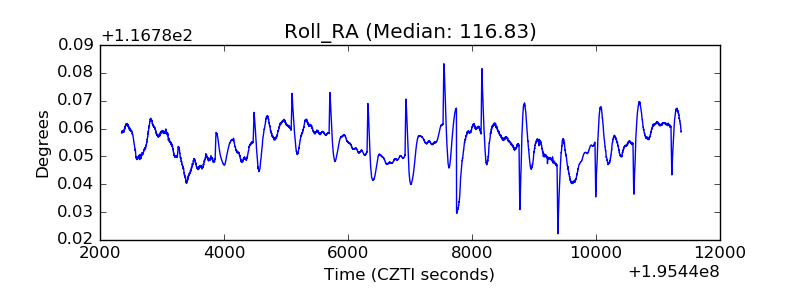

| _Roll_RA |  |
| Veto Counter |  |
