| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_018T06_9000000370_02462cztM0_level2.evt | modeM0/AS1G02_018T06_9000000370_02462cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,988,800 | 80,530,560 |
| Size | 415.8 MB | 76.8 MB |
| Events in quadrant A | 3,134,279 | 488,523 |
| Events in quadrant B | 3,216,570 | 506,783 |
| Events in quadrant C | 3,135,865 | 500,240 |
| Events in quadrant D | 3,269,533 | 484,354 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13667 | 3 |
| B | 0 | 13754 | 2 |
| C | 0 | 13764 | 2 |
| D | 0 | 14187 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6571 | 184 | 2.800183% |
| B | 6571 | 176 | 2.678436% |
| C | 6571 | 166 | 2.526252% |
| D | 6571 | 170 | 2.587125% |

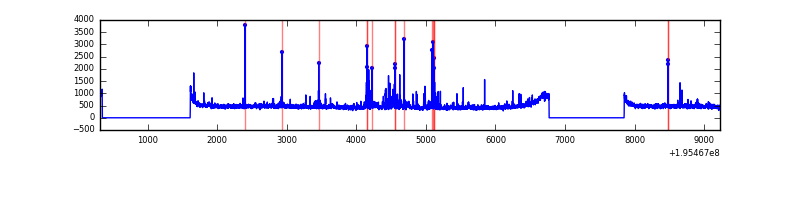

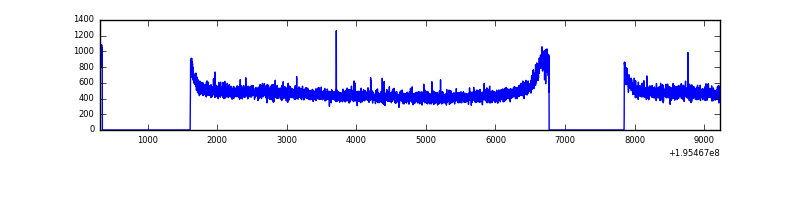

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8915 | 6572 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8916 | 6573 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8916 | 6573 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8915 | 6572 | 15 | 15 | 0.17% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 8984 | 49.38 | 811 | 794 | 165.8 |
| A | 0 | 226 | 8777 | 48.13 | 811 | 794 | 165.8 |
| A | 13 | 9 | 6772 | 36.04 | 811 | 794 | 165.8 |
| B | 4 | 200 | 20886 | 127.26 | 825 | 805 | 157.8 |
| B | 5 | 6 | 15887 | 95.58 | 825 | 805 | 157.8 |
| B | 12 | 111 | 11384 | 67.04 | 825 | 805 | 157.8 |
| C | 12 | 4 | 19700 | 101.19 | 794 | 794 | 186.8 |
| C | 13 | 61 | 7158 | 34.06 | 794 | 794 | 186.8 |
| C | 14 | 223 | 4568 | 20.2 | 794 | 794 | 186.8 |
| D | 7 | 67 | 141789 | 749.21 | 789 | 772 | 188.2 |
| D | 13 | 169 | 37403 | 194.62 | 789 | 772 | 188.2 |
| D | 9 | 64 | 27817 | 143.69 | 789 | 772 | 188.2 |

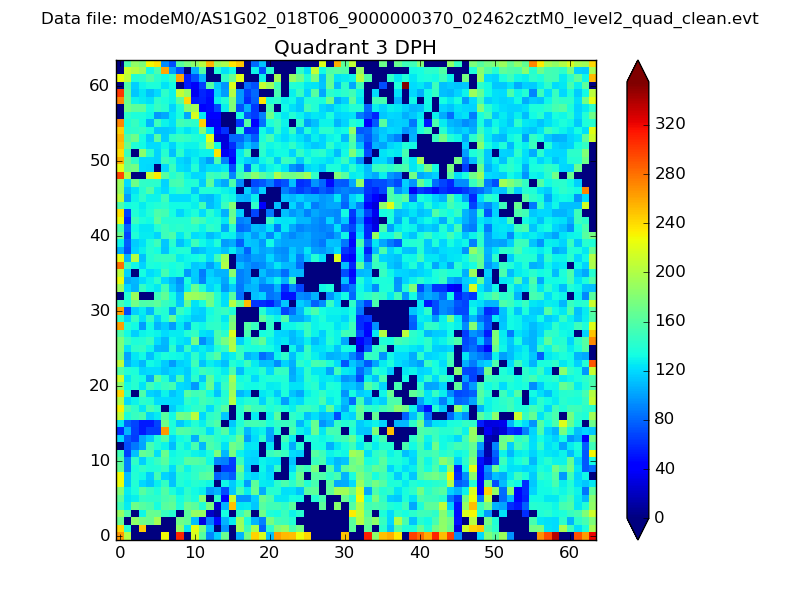

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

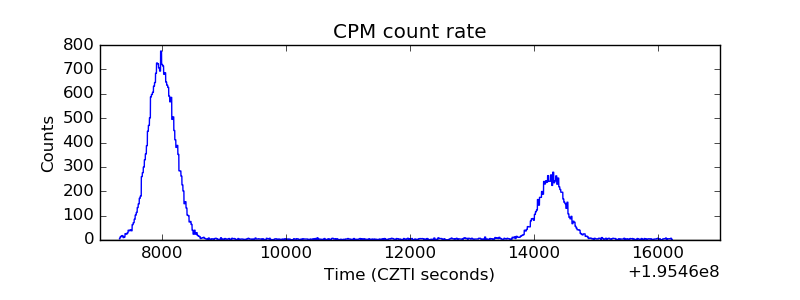

| _CPM_Rate |  |
| CZT Counter |  |

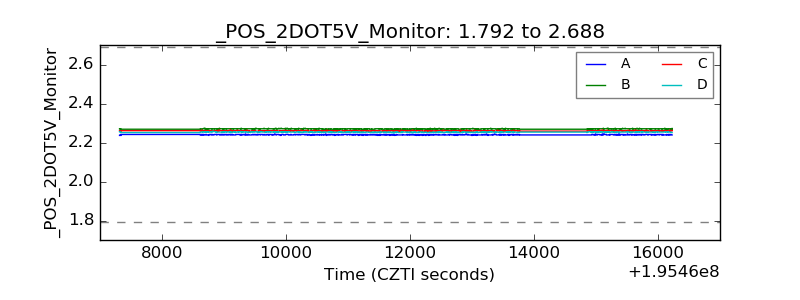

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

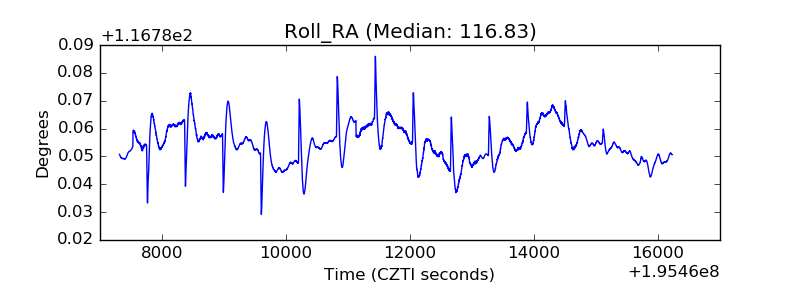

| _Roll_RA |  |
| Veto Counter |  |
