| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_018T06_9000000370_02464cztM0_level2.evt | modeM0/AS1G02_018T06_9000000370_02464cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,733,440 | 90,259,200 |
| Size | 461.3 MB | 86.1 MB |
| Events in quadrant A | 3,445,950 | 548,942 |
| Events in quadrant B | 3,513,845 | 566,207 |
| Events in quadrant C | 3,691,229 | 559,549 |
| Events in quadrant D | 3,495,386 | 543,432 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15450 | 3 |
| B | 0 | 15503 | 2 |
| C | 0 | 16067 | 2 |
| D | 0 | 15836 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7404 | 208 | 2.809292% |
| B | 7404 | 237 | 3.200972% |
| C | 7404 | 153 | 2.066451% |
| D | 7404 | 171 | 2.309562% |

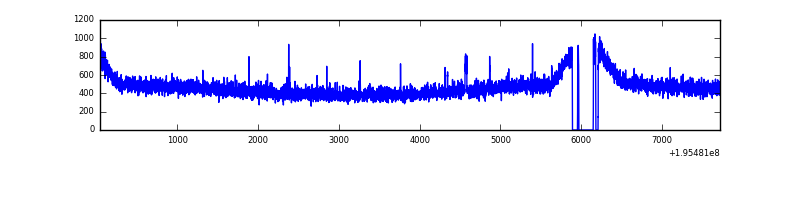

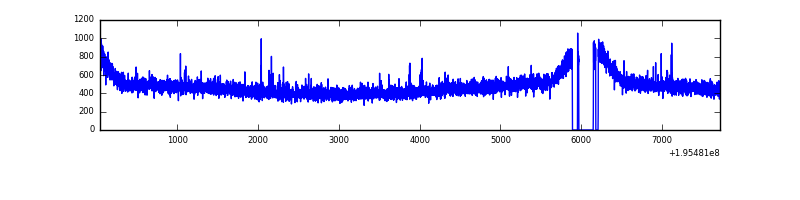

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 7407 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7679 | 7407 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7679 | 7407 | 12 | 12 | 0.16% | 0.16% |  |
| D | 7679 | 7407 | 32 | 32 | 0.42% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 133 | 12427 | 62.84 | 888 | 866 | 184.0 |
| A | 12 | 194 | 10014 | 49.73 | 888 | 866 | 184.0 |
| A | 0 | 226 | 9599 | 47.47 | 888 | 866 | 184.0 |
| B | 12 | 111 | 13098 | 69.66 | 902 | 878 | 175.4 |
| B | 15 | 85 | 12524 | 66.38 | 902 | 878 | 175.4 |
| B | 11 | 111 | 11203 | 58.85 | 902 | 878 | 175.4 |
| C | 7 | 220 | 206768 | 1024.98 | 862 | 865 | 200.9 |
| C | 14 | 223 | 51173 | 250.43 | 862 | 865 | 200.9 |
| C | 8 | 112 | 31533 | 152.66 | 862 | 865 | 200.9 |
| D | 7 | 67 | 153272 | 730.43 | 861 | 839 | 208.7 |
| D | 2 | 14 | 31998 | 149.31 | 861 | 839 | 208.7 |
| D | 5 | 172 | 15974 | 72.52 | 861 | 839 | 208.7 |

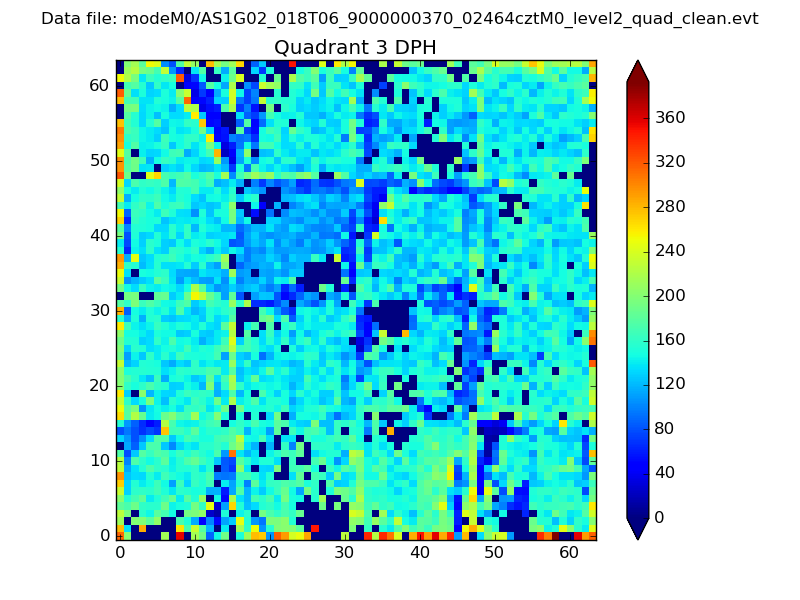

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

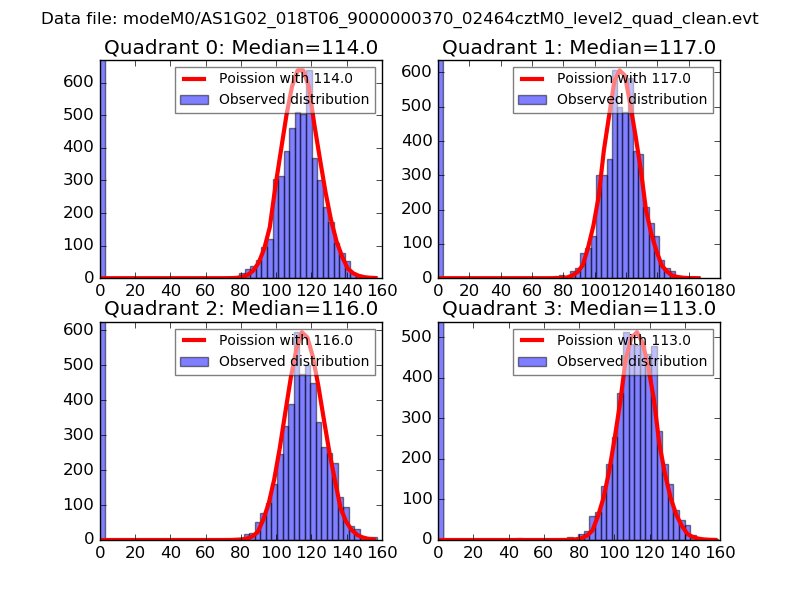

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

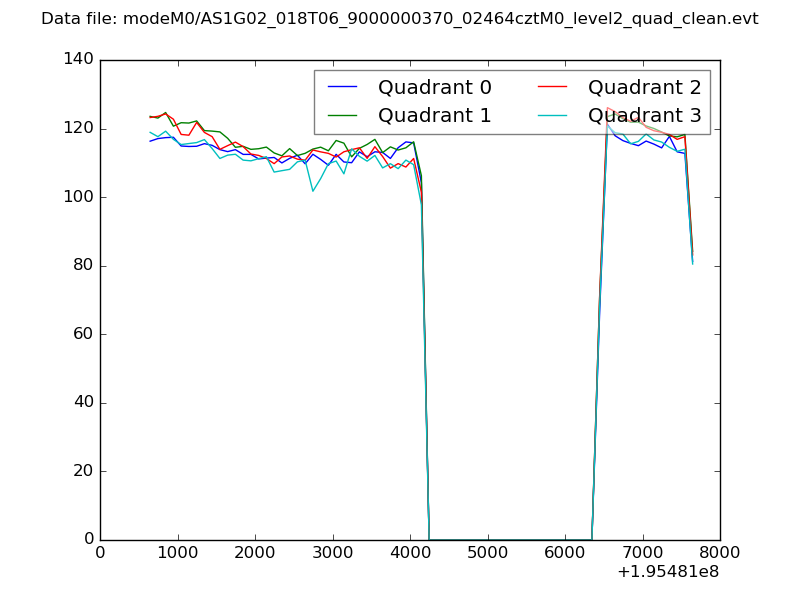

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

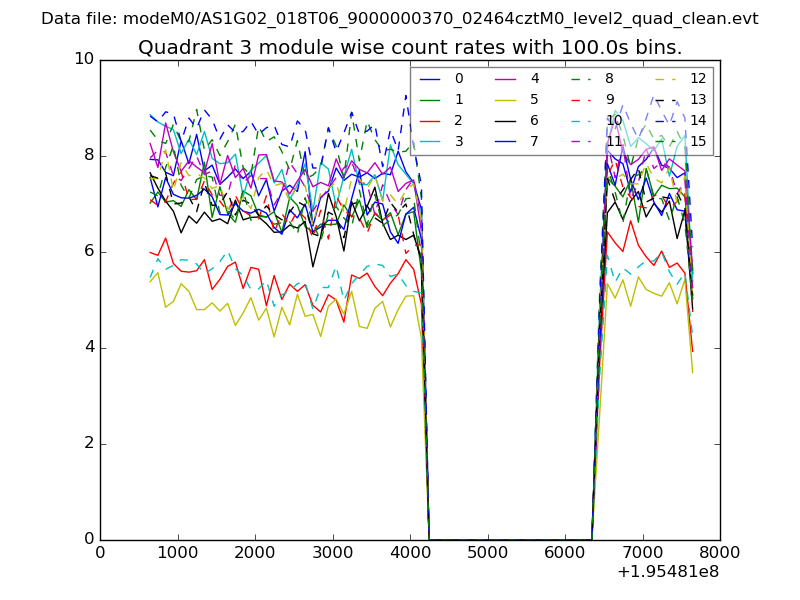

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

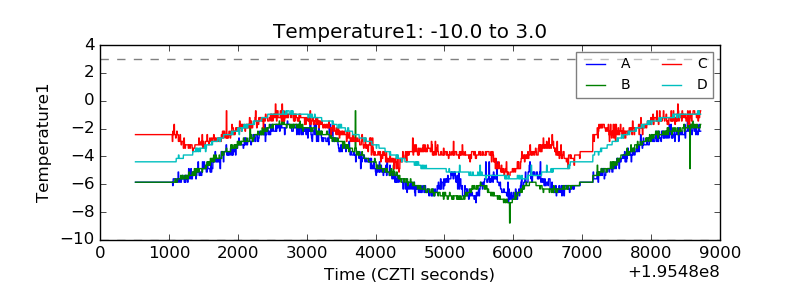

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

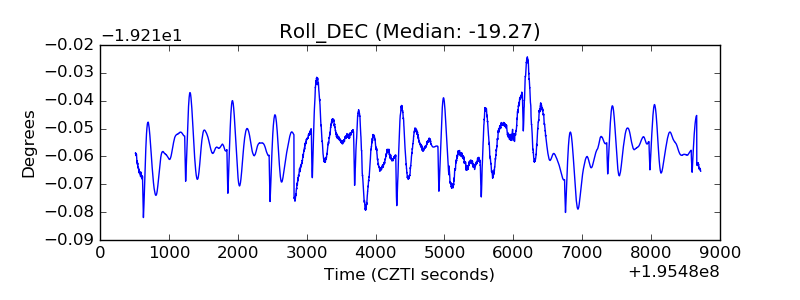

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
