| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_018T06_9000000370_02480cztM0_level2.evt | modeM0/AS1G02_018T06_9000000370_02480cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,346,240 | 100,474,560 |
| Size | 497.2 MB | 95.8 MB |
| Events in quadrant A | 3,763,298 | 614,615 |
| Events in quadrant B | 3,893,354 | 635,556 |
| Events in quadrant C | 3,770,856 | 632,146 |
| Events in quadrant D | 3,822,907 | 609,547 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16788 | 2 |
| B | 0 | 17020 | 1 |
| C | 0 | 16881 | 1 |
| D | 0 | 17224 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7933 | 257 | 3.239632% |
| B | 7933 | 270 | 3.403504% |
| C | 7933 | 126 | 1.588302% |
| D | 7933 | 140 | 1.764780% |

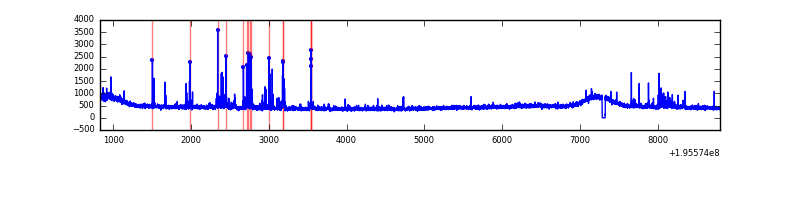

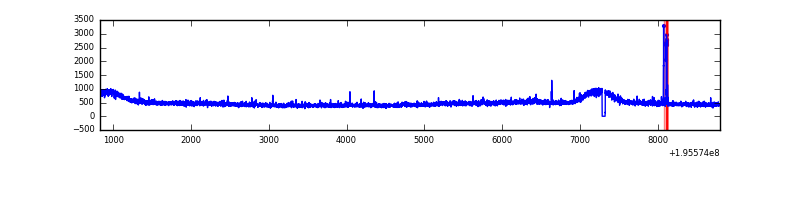

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

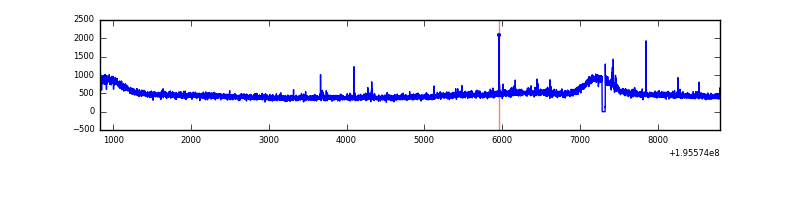

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7973 | 7934 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7973 | 7934 | 11 | 11 | 0.14% | 0.14% |  |
| C | 7973 | 7934 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7973 | 7934 | 15 | 15 | 0.19% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 11128 | 50.37 | 972 | 948 | 202.1 |
| A | 14 | 63 | 10819 | 48.84 | 972 | 948 | 202.1 |
| A | 0 | 226 | 10457 | 47.05 | 972 | 948 | 202.1 |
| B | 0 | 87 | 40342 | 204.44 | 986 | 961 | 192.6 |
| B | 4 | 48 | 18421 | 90.64 | 986 | 961 | 192.6 |
| B | 12 | 111 | 14660 | 71.12 | 986 | 961 | 192.6 |
| C | 12 | 4 | 19932 | 85.0 | 946 | 946 | 223.4 |
| C | 10 | 65 | 19053 | 81.06 | 946 | 946 | 223.4 |
| C | 8 | 208 | 11517 | 47.32 | 946 | 946 | 223.4 |
| D | 2 | 184 | 136817 | 603.29 | 941 | 916 | 225.3 |
| D | 5 | 172 | 77907 | 341.78 | 941 | 916 | 225.3 |
| D | 9 | 64 | 17908 | 75.43 | 941 | 916 | 225.3 |

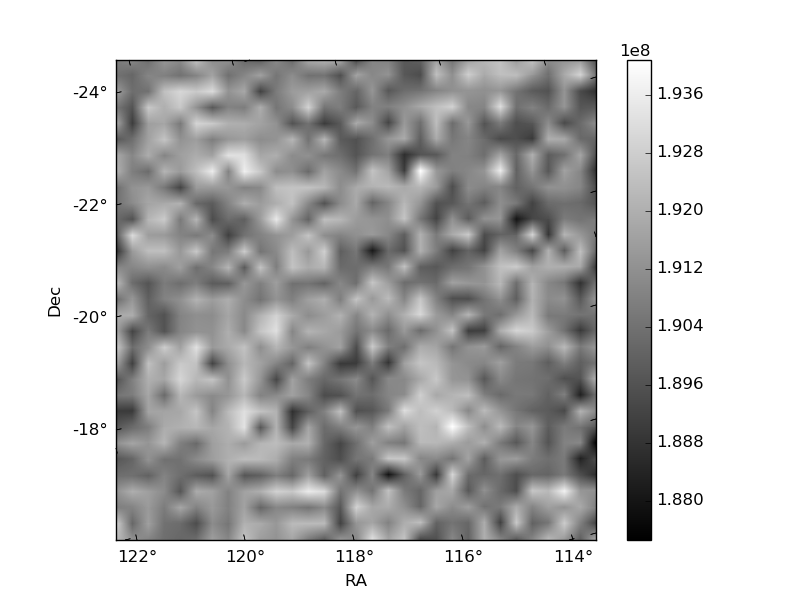

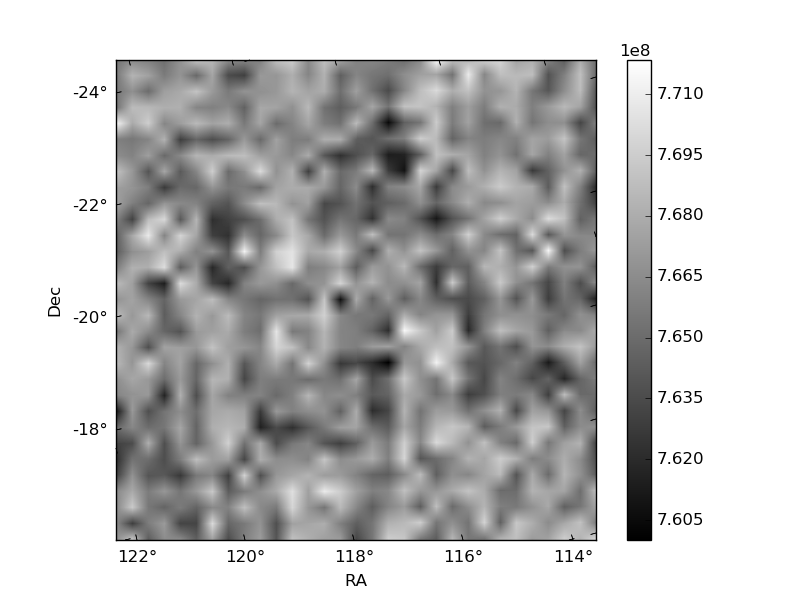

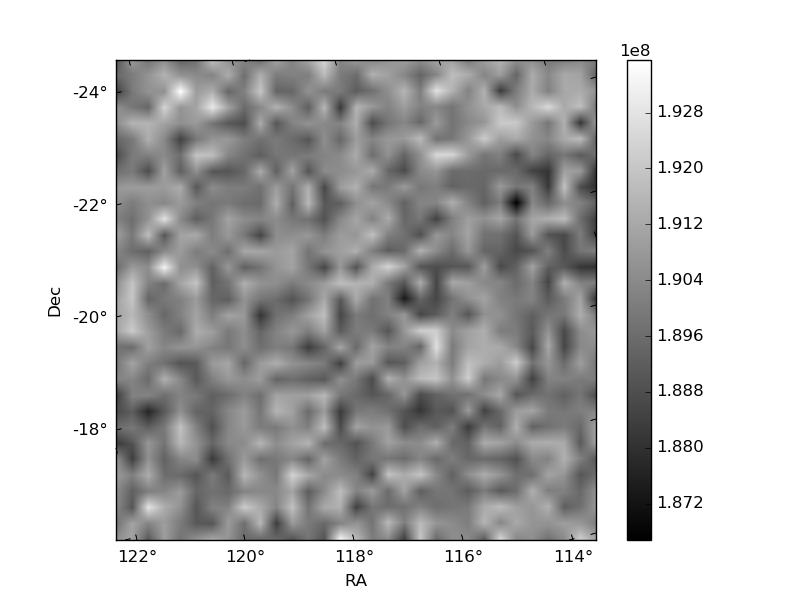

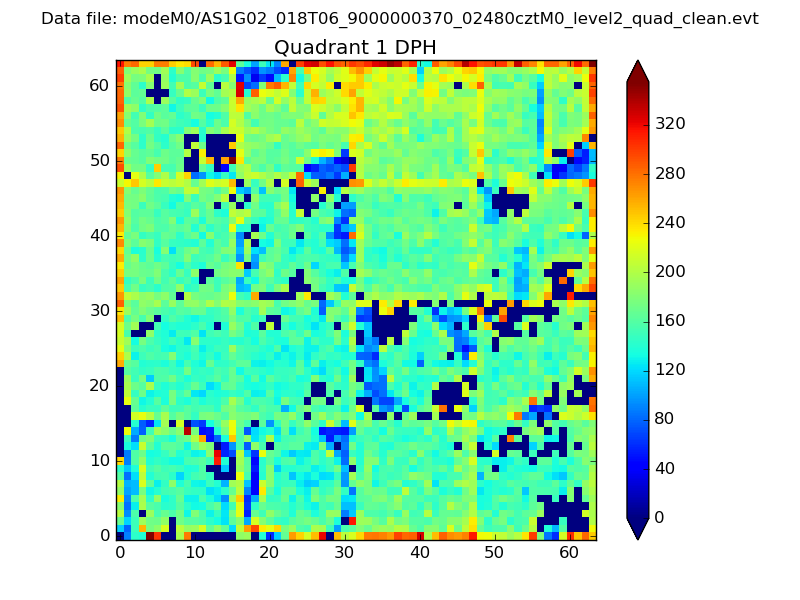

Histogram calculated using DETX and DETY for each event in the final _common_clean file

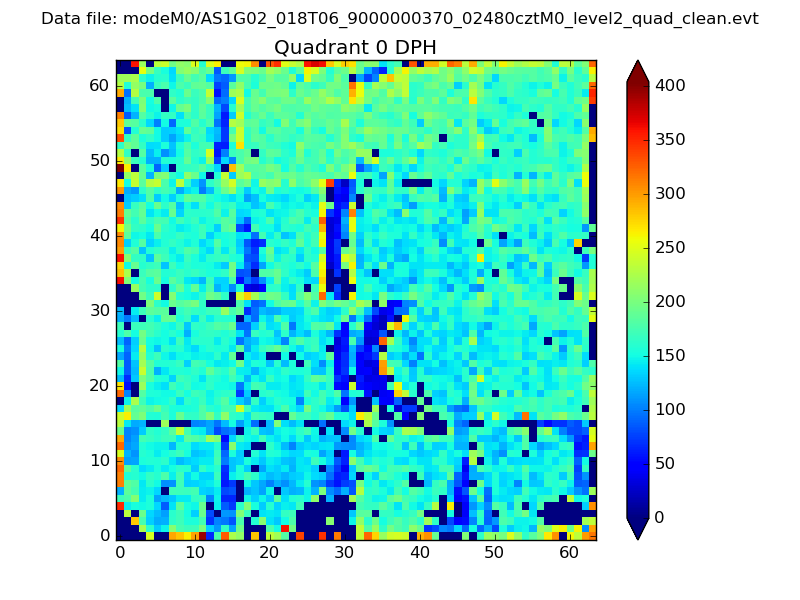

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

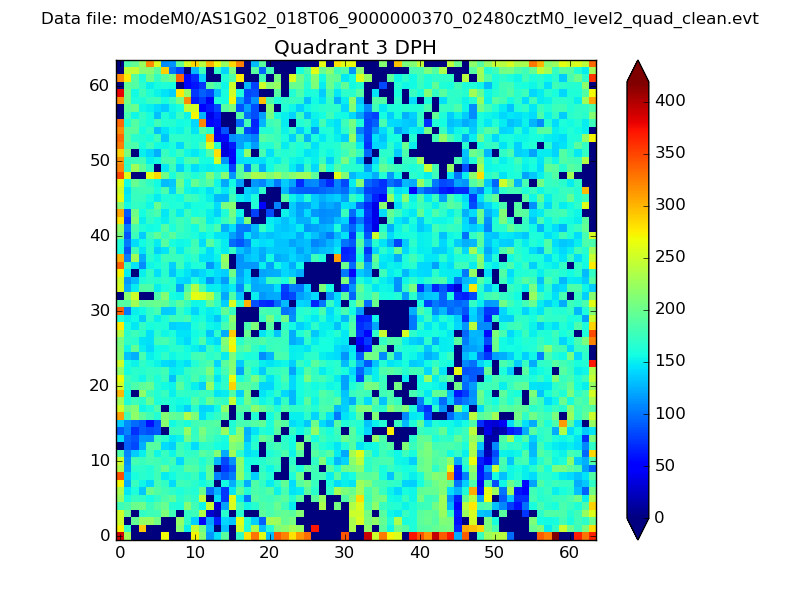

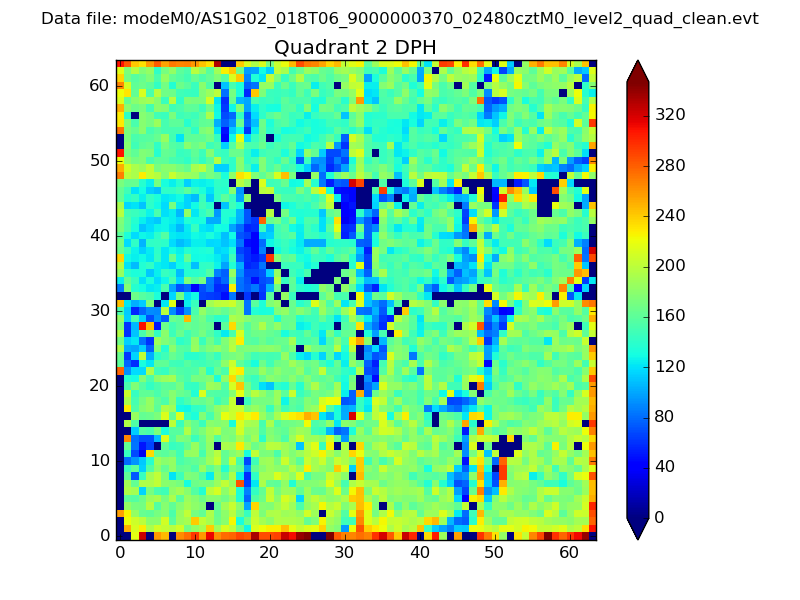

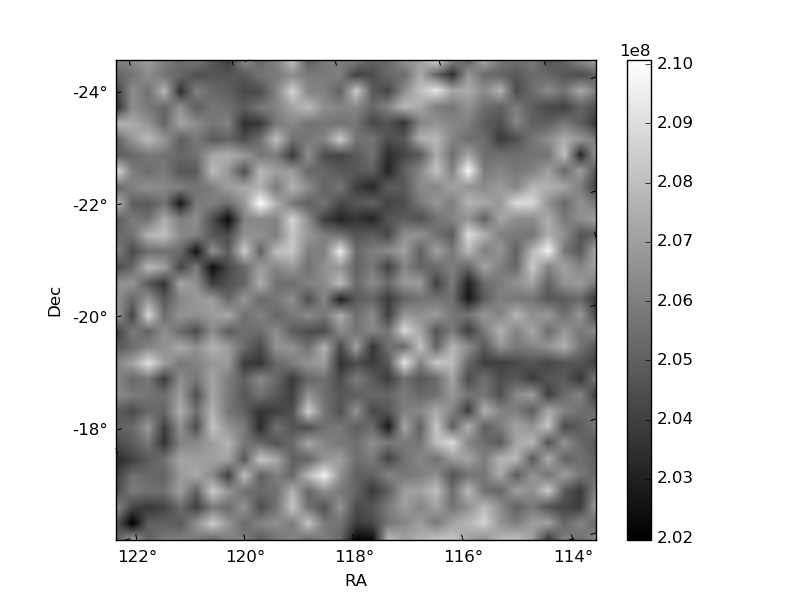

Quadrant C |

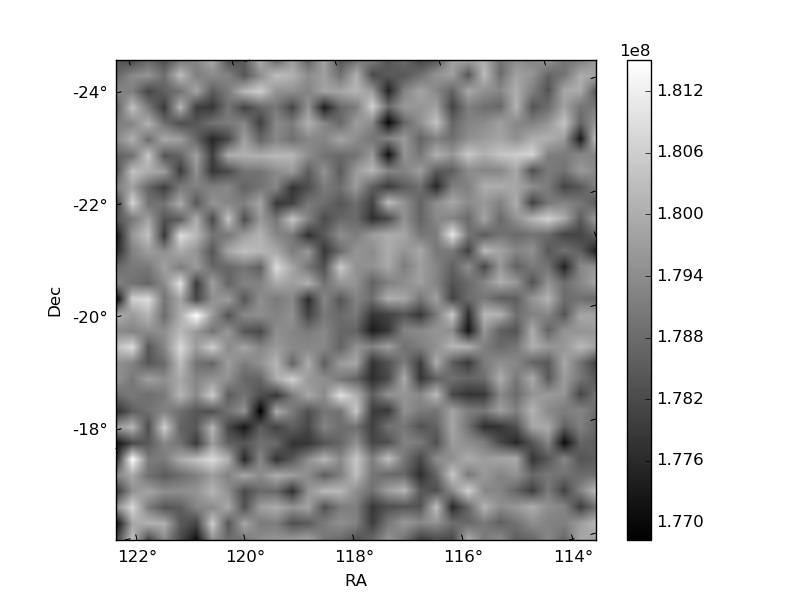

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

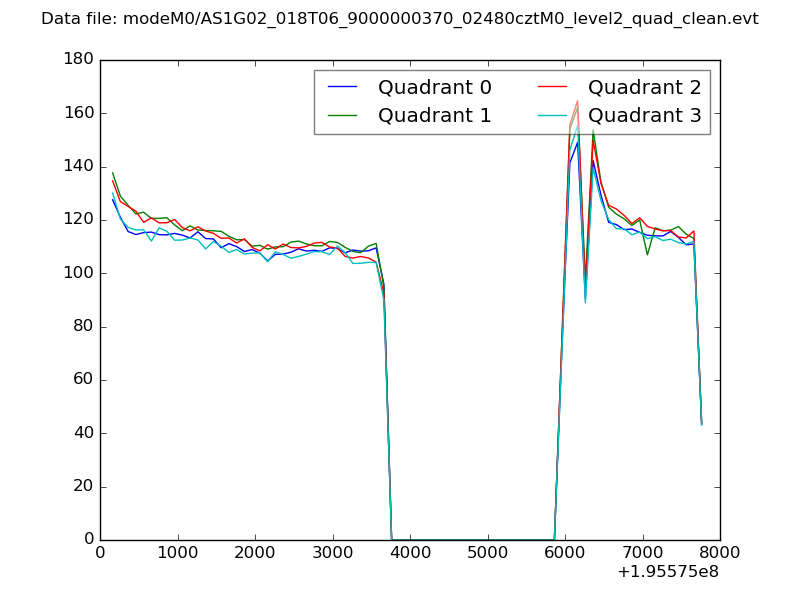

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

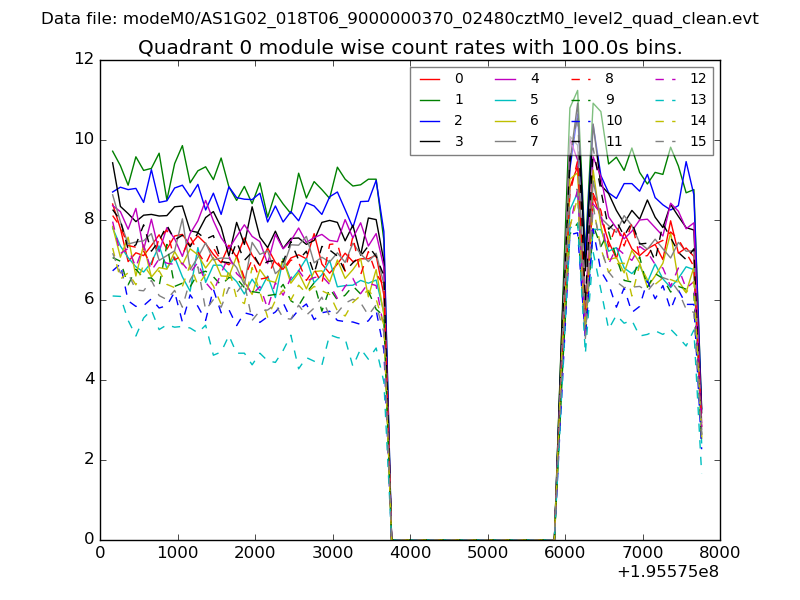

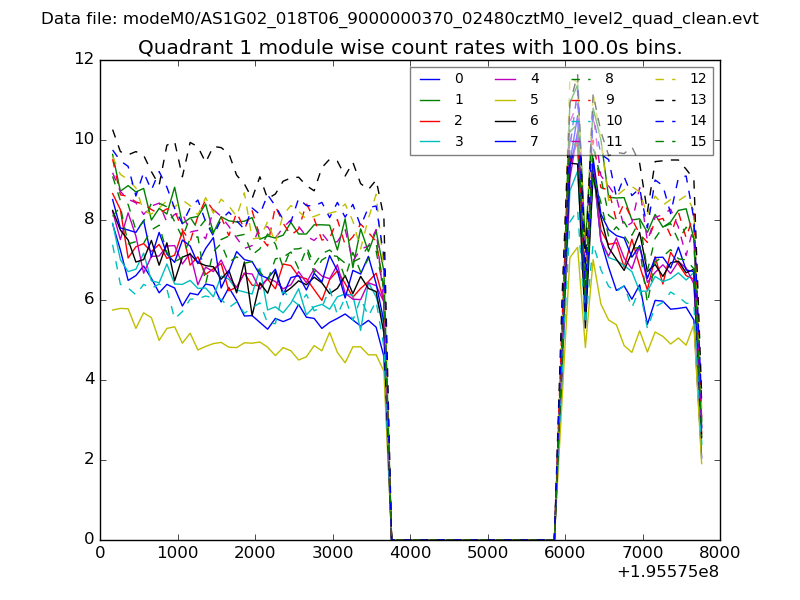

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

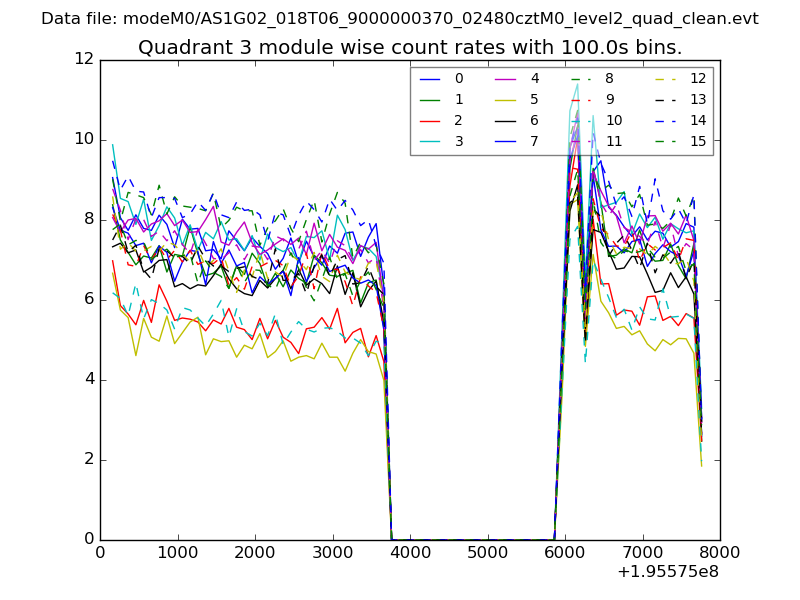

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

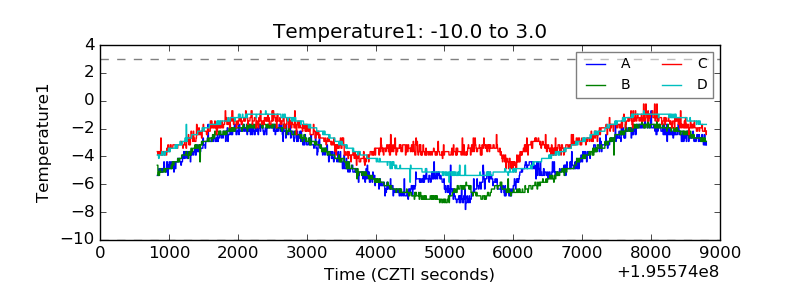

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

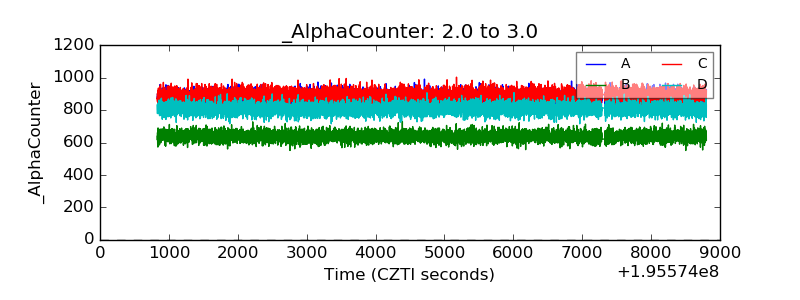

| Alpha Counter |  |

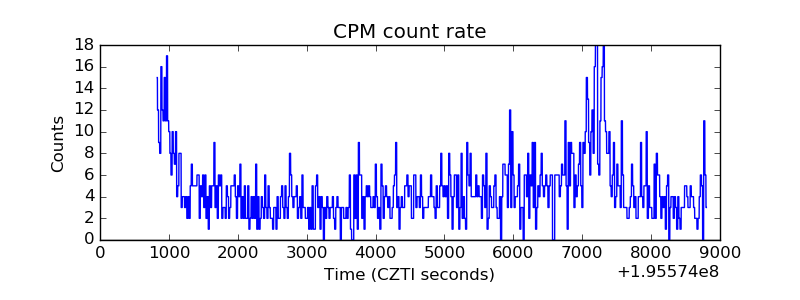

| _CPM_Rate |  |

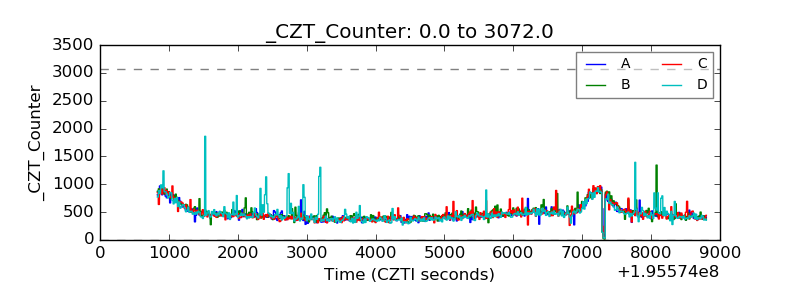

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

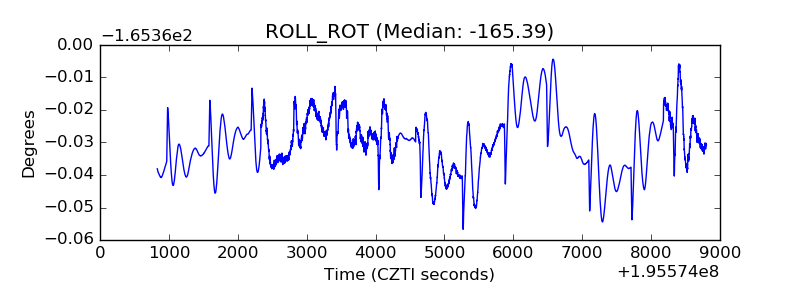

| _ROLL_ROT |  |

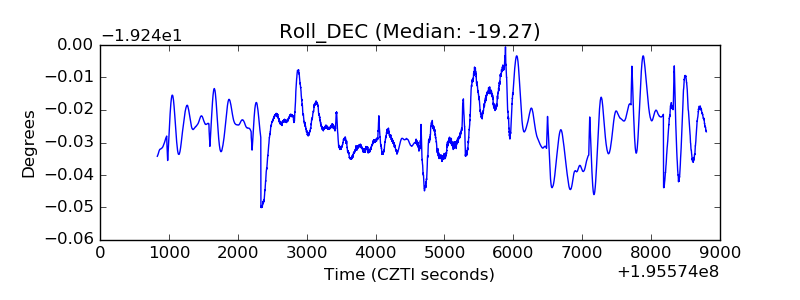

| _Roll_DEC |  |

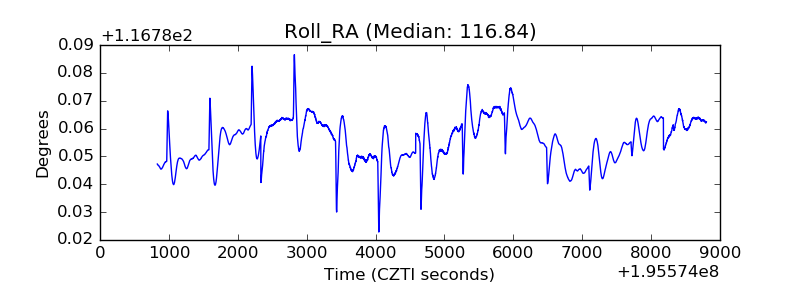

| _Roll_RA |  |

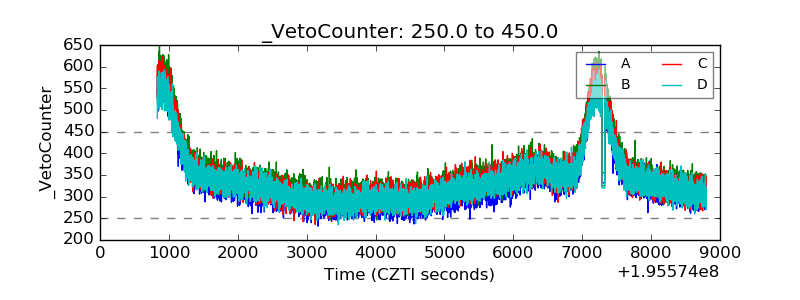

| Veto Counter |  |
