| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G02_018T06_9000000370_02482cztM0_level2.evt | modeM0/AS1G02_018T06_9000000370_02482cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,123,520 | 98,061,120 |
| Size | 451.2 MB | 93.5 MB |
| Events in quadrant A | 3,442,622 | 607,329 |
| Events in quadrant B | 3,548,896 | 621,545 |
| Events in quadrant C | 3,432,421 | 615,875 |
| Events in quadrant D | 3,391,525 | 599,941 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15654 | 3 |
| B | 0 | 15703 | 2 |
| C | 0 | 15750 | 2 |
| D | 0 | 15884 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7543 | 56 | 0.742410% |
| B | 7543 | 69 | 0.914755% |
| C | 7543 | 55 | 0.729153% |
| D | 7543 | 31 | 0.410977% |

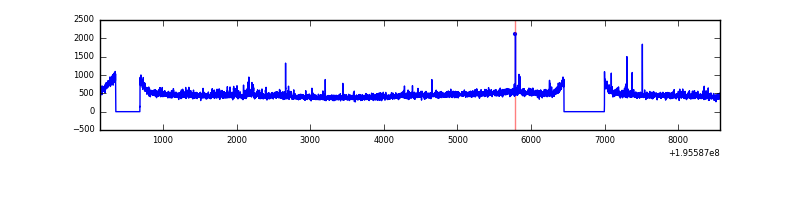

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8423 | 7545 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8423 | 7545 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8423 | 7545 | 13 | 13 | 0.15% | 0.17% |  |
| D | 8423 | 7545 | 7 | 7 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 61451 | 337.16 | 869 | 846 | 179.7 |
| A | 12 | 189 | 25765 | 138.63 | 869 | 846 | 179.7 |
| A | 14 | 63 | 10364 | 52.95 | 869 | 846 | 179.7 |
| B | 4 | 48 | 63727 | 368.33 | 883 | 860 | 170.7 |
| B | 4 | 200 | 34941 | 199.67 | 883 | 860 | 170.7 |
| B | 5 | 6 | 17780 | 99.13 | 883 | 860 | 170.7 |
| C | 10 | 65 | 84722 | 423.11 | 842 | 846 | 198.2 |
| C | 2 | 53 | 19406 | 93.63 | 842 | 846 | 198.2 |
| C | 12 | 4 | 10968 | 51.06 | 842 | 846 | 198.2 |
| D | 2 | 184 | 130064 | 646.22 | 836 | 816 | 200.0 |
| D | 5 | 172 | 33675 | 164.29 | 836 | 816 | 200.0 |
| D | 9 | 64 | 20820 | 100.02 | 836 | 816 | 200.0 |

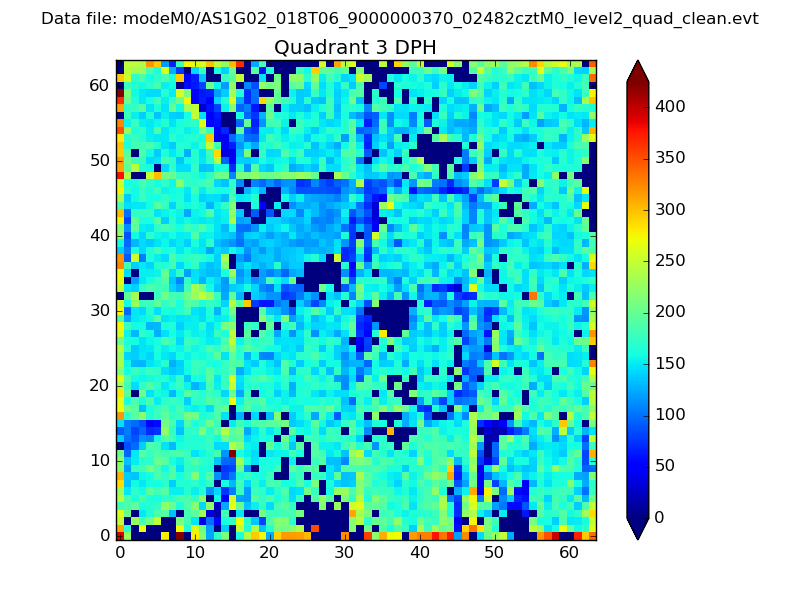

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

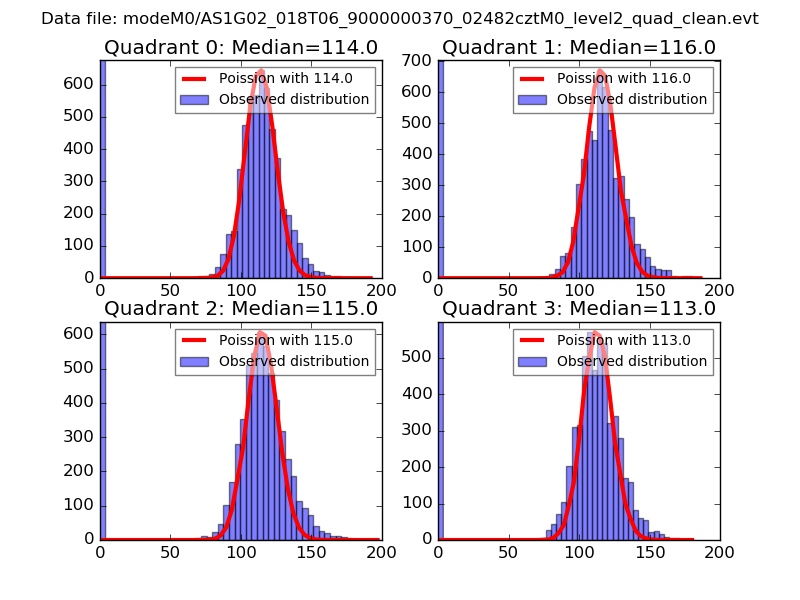

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

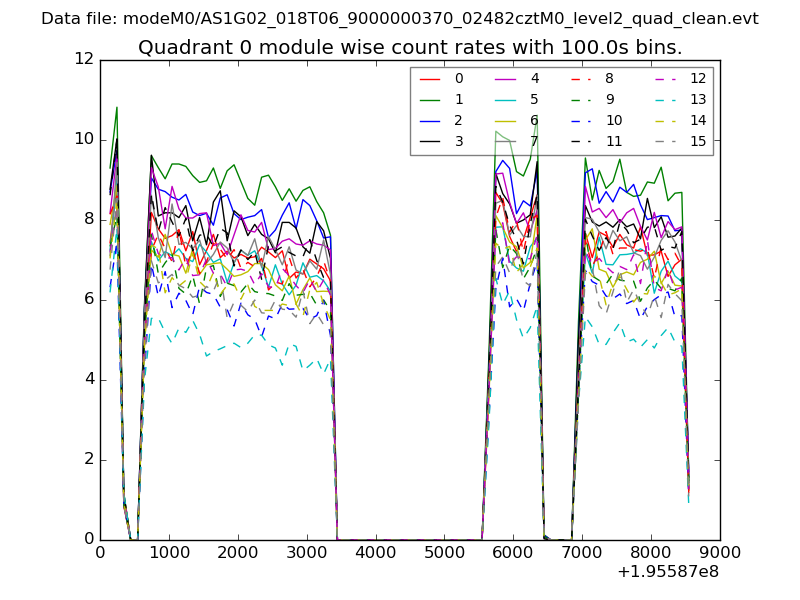

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

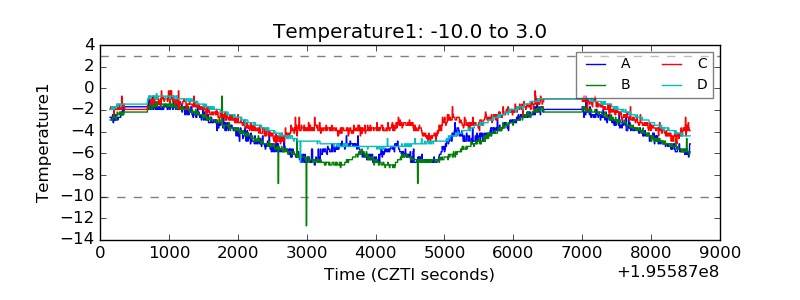

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

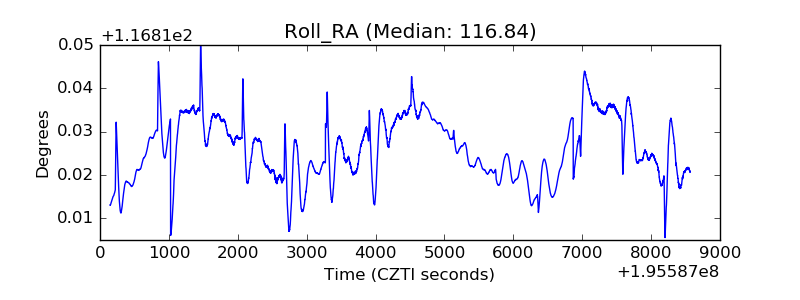

| _Roll_RA |  |

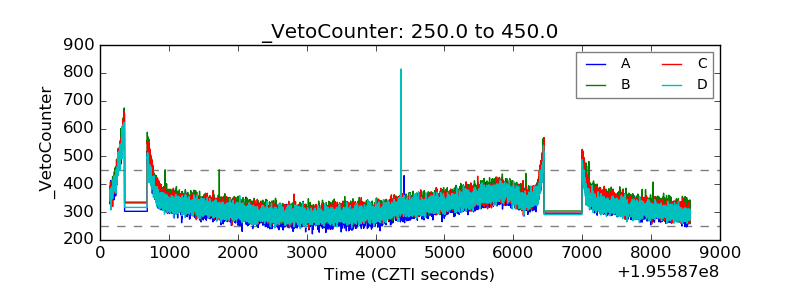

| Veto Counter |  |
