| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_046T01_9000000372_02492cztM0_level2.fits | modeM0/AS1T01_046T01_9000000372_02492cztM0_level2_quad_clean.evt |
| Size (bytes) | 361,840,320 | 115,263,360 |
| Size | 345.1 MB | 109.9 MB |
| Events in quadrant A | 3,169,646 | 762,796 |
| Events in quadrant B | 3,232,272 | 787,908 |
| Events in quadrant C | 3,145,943 | 747,536 |
| Events in quadrant D | 3,287,443 | 692,938 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14693 | 3 |
| B | 0 | 14760 | 2 |
| C | 0 | 14673 | 2 |
| D | 0 | 15187 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7167 | 148 | 2.065020% |
| B | 7167 | 142 | 1.981303% |
| C | 7167 | 111 | 1.548765% |
| D | 7167 | 122 | 1.702246% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7912 | 7168 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7912 | 7168 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7912 | 7168 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7912 | 7168 | 10 | 10 | 0.13% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 9157 | 49.81 | 820 | 800 | 167.8 |
| A | 9 | 175 | 9017 | 48.97 | 820 | 800 | 167.8 |
| A | 0 | 226 | 9007 | 48.91 | 820 | 800 | 167.8 |
| B | 15 | 85 | 28977 | 175.96 | 826 | 802 | 160.1 |
| B | 5 | 6 | 17749 | 105.84 | 826 | 802 | 160.1 |
| B | 12 | 111 | 12011 | 70.0 | 826 | 802 | 160.1 |
| C | 10 | 65 | 23241 | 121.8 | 791 | 792 | 184.3 |
| C | 8 | 112 | 9427 | 46.85 | 791 | 792 | 184.3 |
| C | 8 | 208 | 9003 | 44.55 | 791 | 792 | 184.3 |
| D | 13 | 238 | 77661 | 413.73 | 788 | 768 | 185.9 |
| D | 2 | 14 | 46406 | 245.56 | 788 | 768 | 185.9 |
| D | 2 | 184 | 43953 | 232.36 | 788 | 768 | 185.9 |

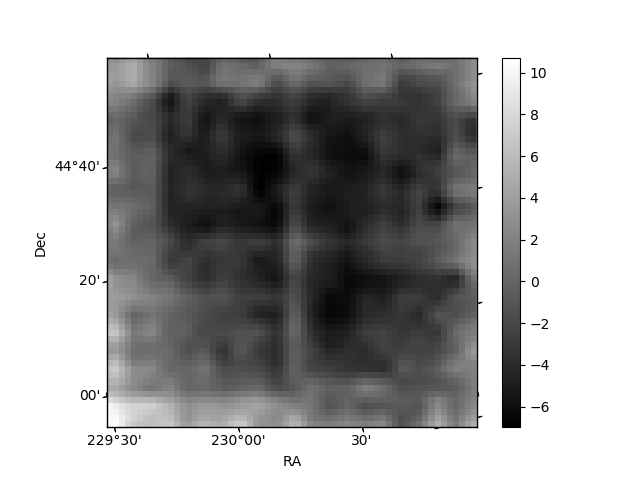

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

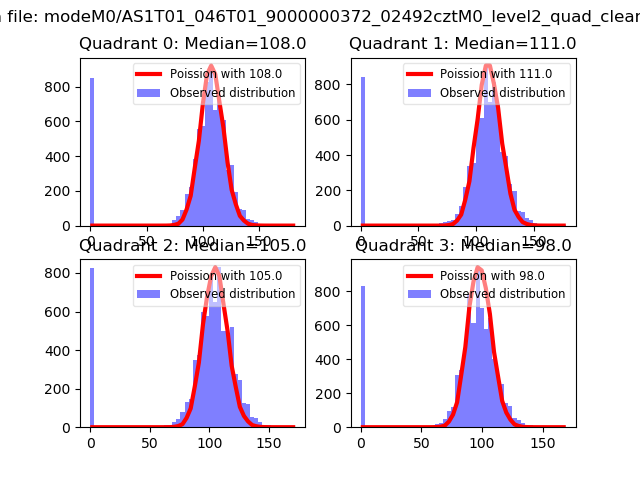

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

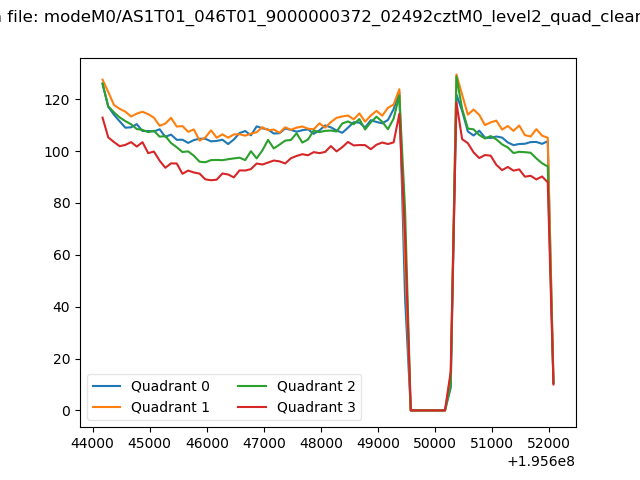

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

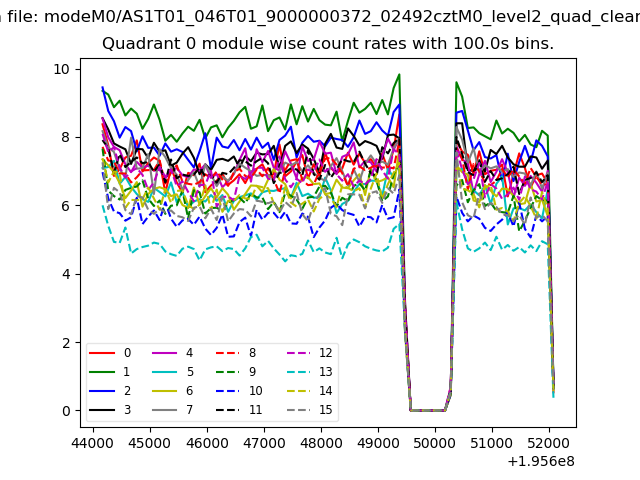

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

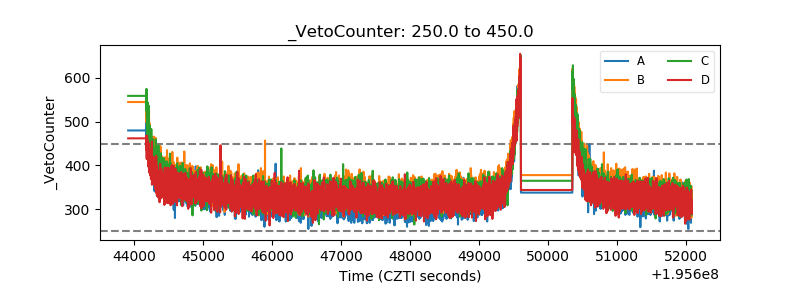

| Veto Counter |  |
