| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_103T01_9000000374_02510cztM0_level2.evt | modeM0/AS1T01_103T01_9000000374_02510cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,464,320 | 83,943,360 |
| Size | 514.5 MB | 80.1 MB |
| Events in quadrant A | 3,634,635 | 502,563 |
| Events in quadrant B | 3,710,521 | 501,596 |
| Events in quadrant C | 4,062,626 | 495,395 |
| Events in quadrant D | 4,384,782 | 484,371 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16668 | 3 |
| B | 0 | 16748 | 2 |
| C | 0 | 17394 | 2 |
| D | 0 | 18744 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8020 | 135 | 1.683292% |
| B | 8020 | 172 | 2.144638% |
| C | 8020 | 159 | 1.982544% |
| D | 8020 | 134 | 1.670823% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8470 | 8022 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8470 | 8022 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8470 | 8022 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8470 | 8022 | 9 | 9 | 0.11% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 45481 | 232.14 | 932 | 907 | 192.0 |
| A | 12 | 194 | 10545 | 50.2 | 932 | 907 | 192.0 |
| A | 0 | 226 | 9925 | 46.97 | 932 | 907 | 192.0 |
| B | 0 | 182 | 41146 | 222.1 | 942 | 917 | 181.1 |
| B | 3 | 220 | 16886 | 88.16 | 942 | 917 | 181.1 |
| B | 12 | 111 | 14595 | 75.51 | 942 | 917 | 181.1 |
| C | 2 | 53 | 468479 | 2170.58 | 911 | 913 | 215.4 |
| C | 10 | 65 | 22285 | 99.22 | 911 | 913 | 215.4 |
| C | 13 | 61 | 7973 | 32.77 | 911 | 913 | 215.4 |
| D | 11 | 131 | 593666 | 2742.55 | 902 | 876 | 216.1 |
| D | 11 | 130 | 246240 | 1135.18 | 902 | 876 | 216.1 |
| D | 2 | 184 | 53959 | 245.59 | 902 | 876 | 216.1 |

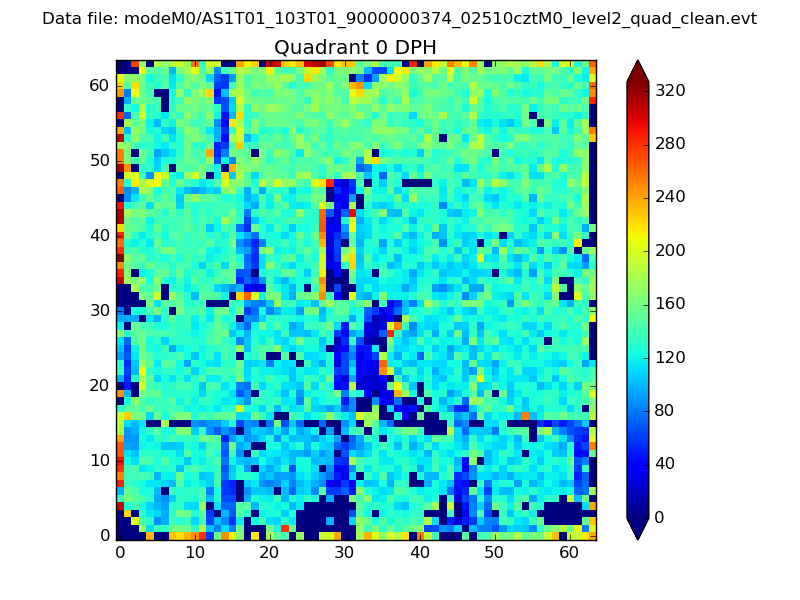

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

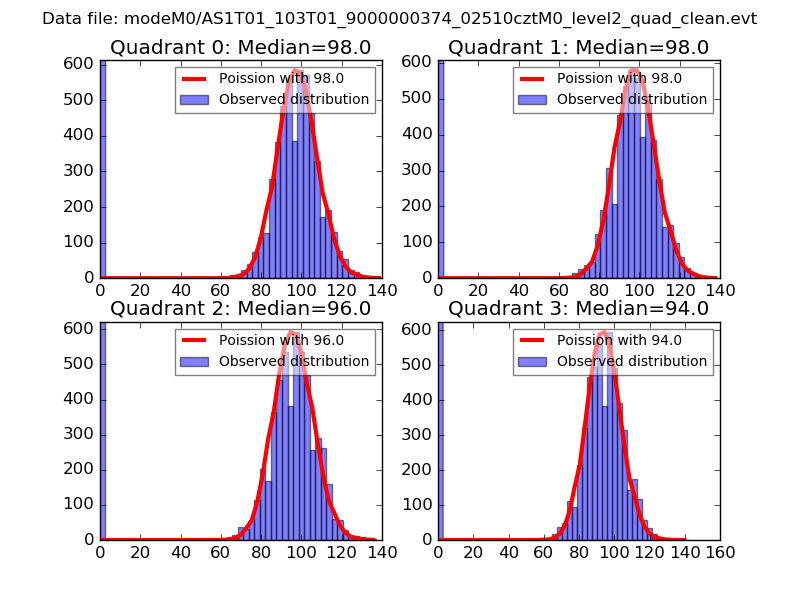

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

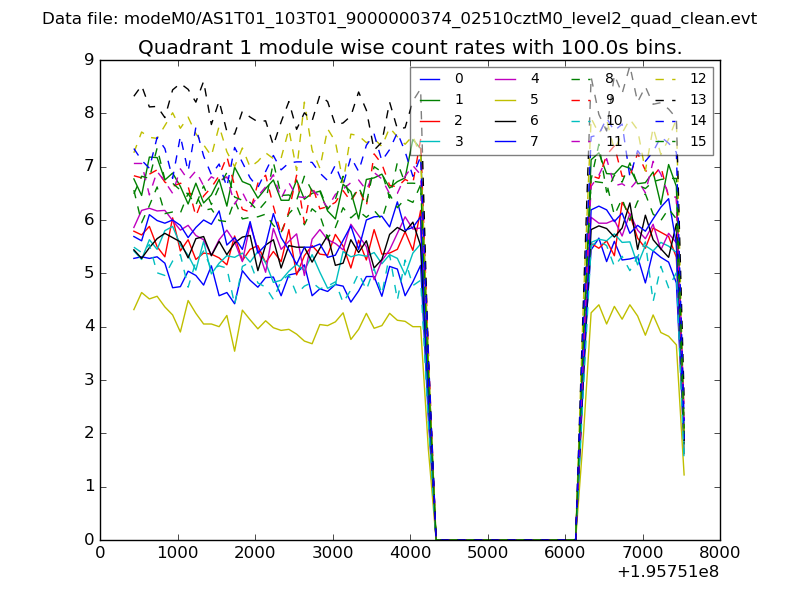

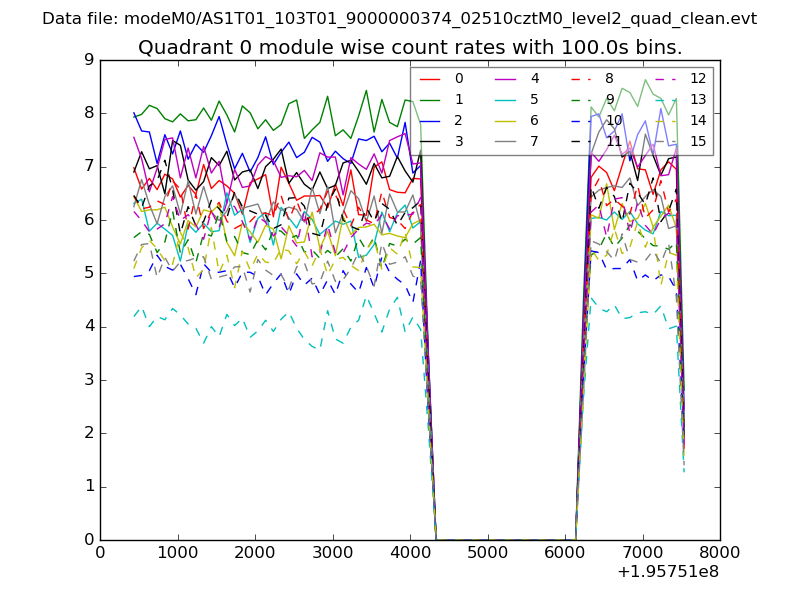

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

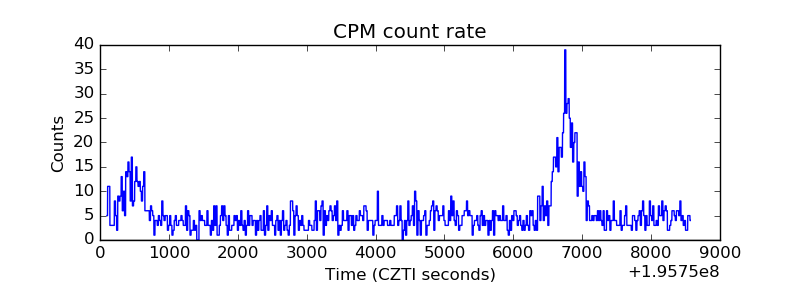

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

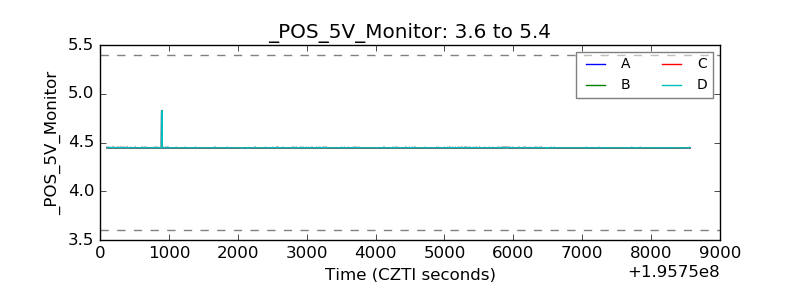

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
