| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_103T01_9000000374_02520cztM0_level2.evt | modeM0/AS1T01_103T01_9000000374_02520cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,905,280 | 62,233,920 |
| Size | 544.5 MB | 59.4 MB |
| Events in quadrant A | 3,007,271 | 369,269 |
| Events in quadrant B | 4,011,715 | 374,192 |
| Events in quadrant C | 2,960,506 | 369,380 |
| Events in quadrant D | 6,858,432 | 306,451 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13668 | 2 |
| B | 0 | 16601 | 1 |
| C | 0 | 13667 | 1 |
| D | 0 | 24968 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6657 | 137 | 2.057984% |
| B | 6657 | 219 | 3.289770% |
| C | 6657 | 104 | 1.562265% |
| D | 6657 | 1373 | 20.624906% |

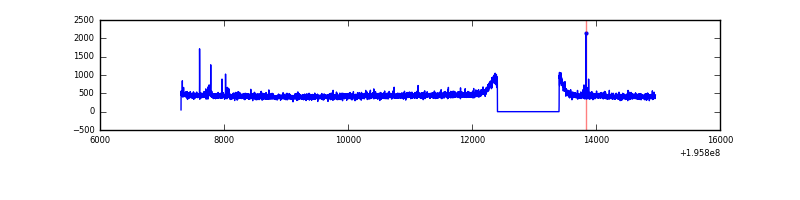

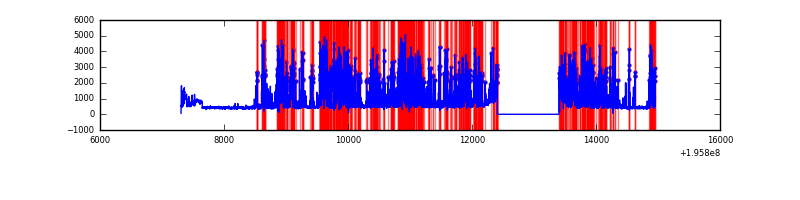

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

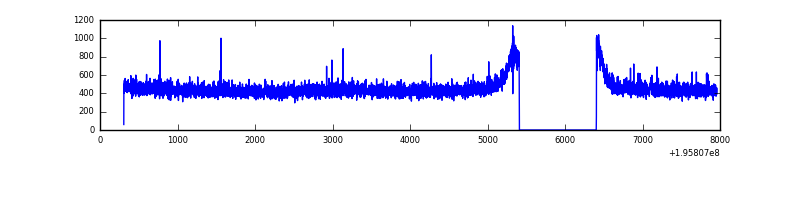

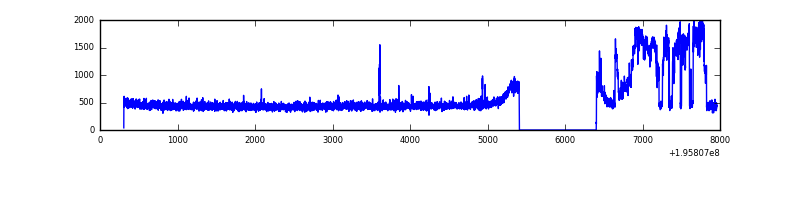

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7652 | 6658 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7652 | 6658 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7652 | 6658 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7652 | 6658 | 997 | 997 | 13.03% | 14.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 9095 | 52.8 | 776 | 758 | 157.9 |
| A | 12 | 194 | 8527 | 49.21 | 776 | 758 | 157.9 |
| A | 0 | 166 | 8478 | 48.9 | 776 | 758 | 157.9 |
| B | 6 | 36 | 980840 | 6560.92 | 780 | 760 | 149.4 |
| B | 5 | 6 | 14612 | 92.73 | 780 | 760 | 149.4 |
| B | 12 | 111 | 12564 | 79.02 | 780 | 760 | 149.4 |
| C | 10 | 82 | 11377 | 60.5 | 749 | 751 | 175.6 |
| C | 14 | 223 | 7118 | 36.25 | 749 | 751 | 175.6 |
| C | 13 | 61 | 6938 | 35.23 | 749 | 751 | 175.6 |
| D | 11 | 130 | 3959546 | 25601.56 | 652 | 634 | 154.6 |
| D | 11 | 131 | 179929 | 1159.47 | 652 | 634 | 154.6 |
| D | 1 | 31 | 132651 | 853.73 | 652 | 634 | 154.6 |

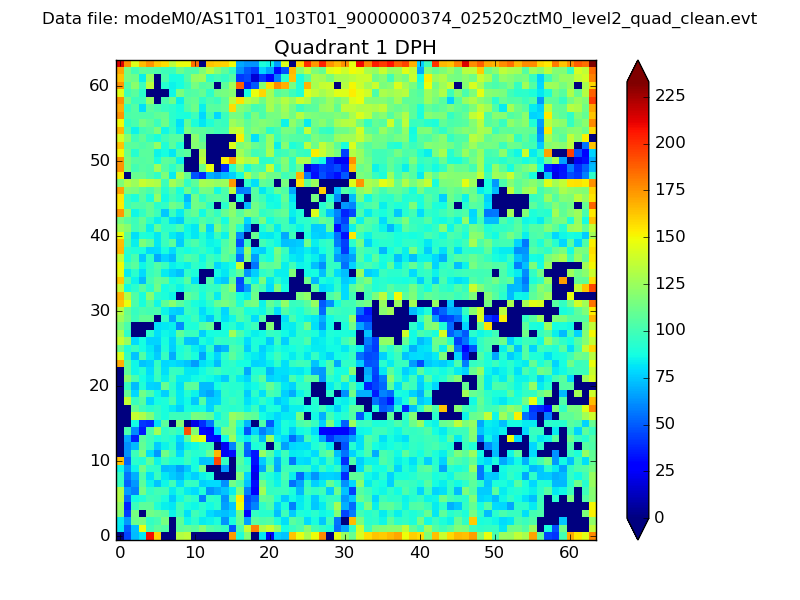

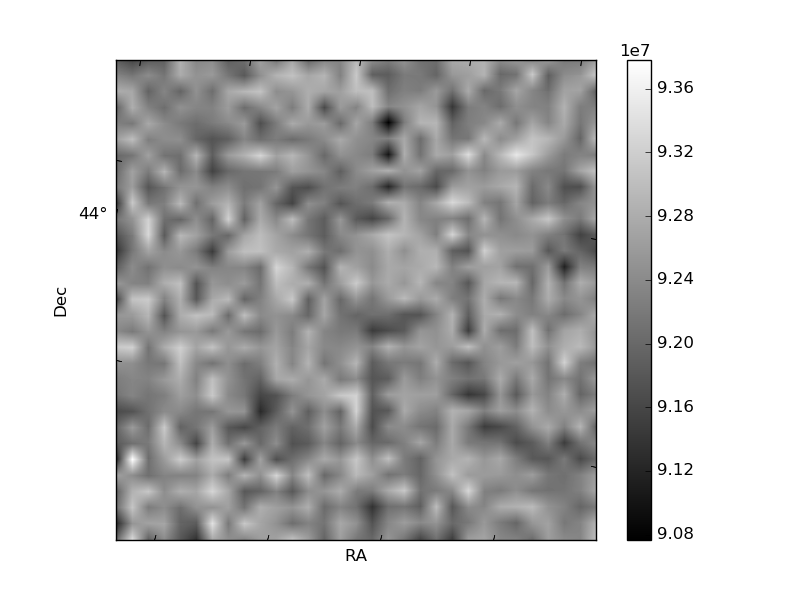

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

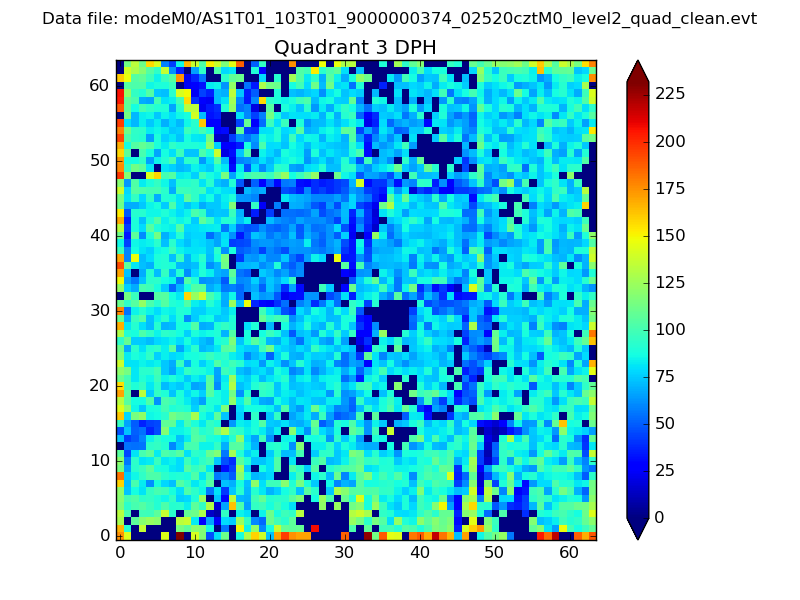

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

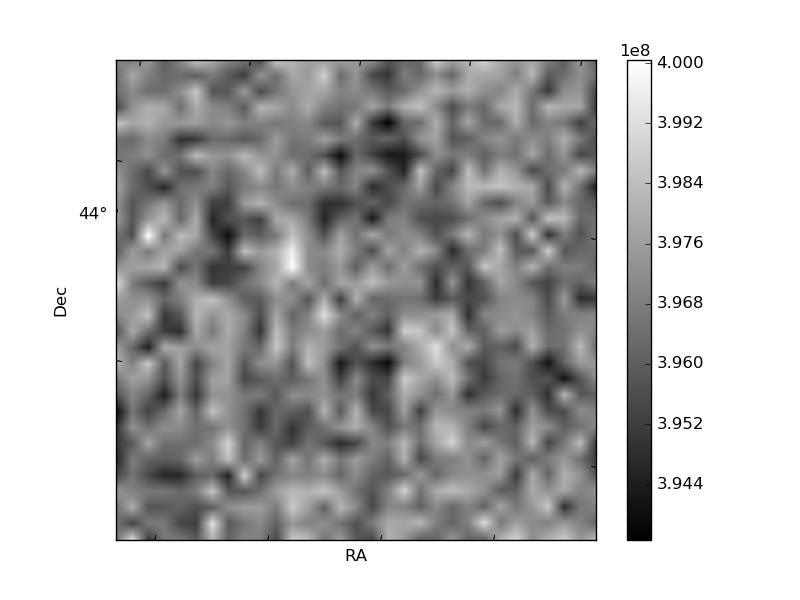

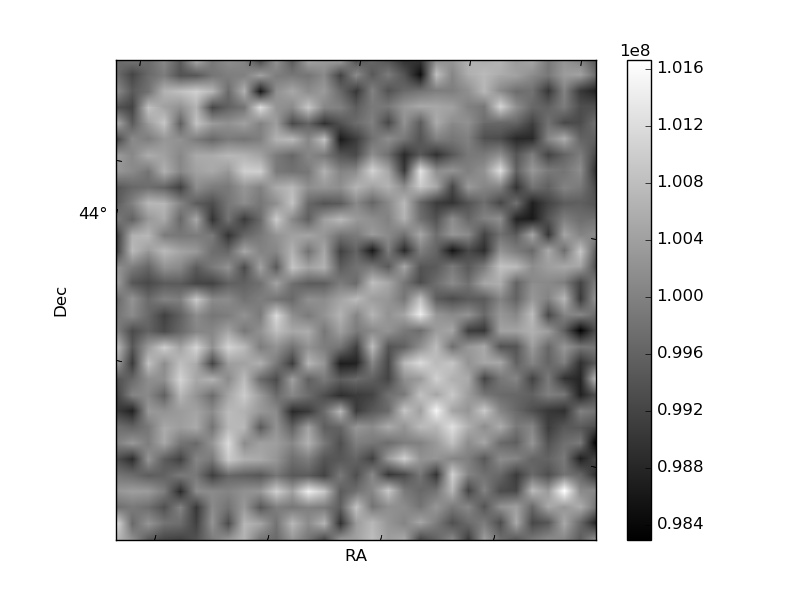

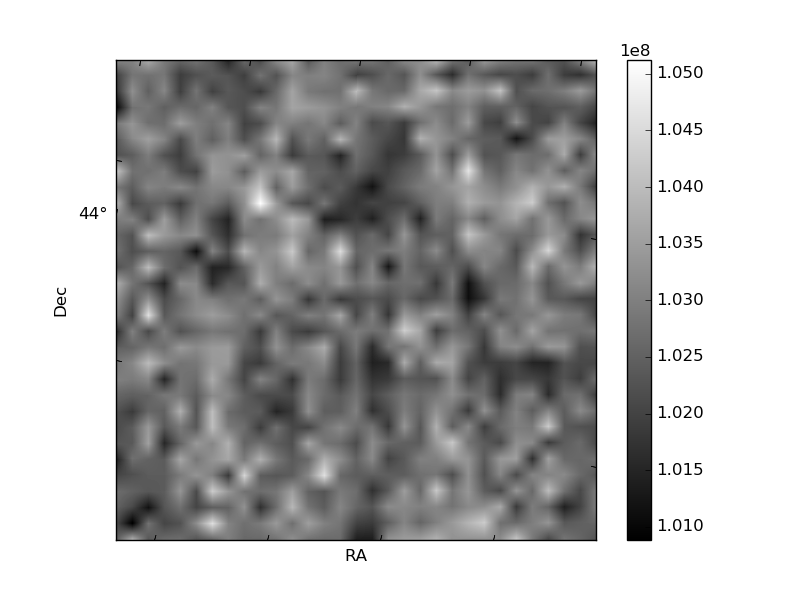

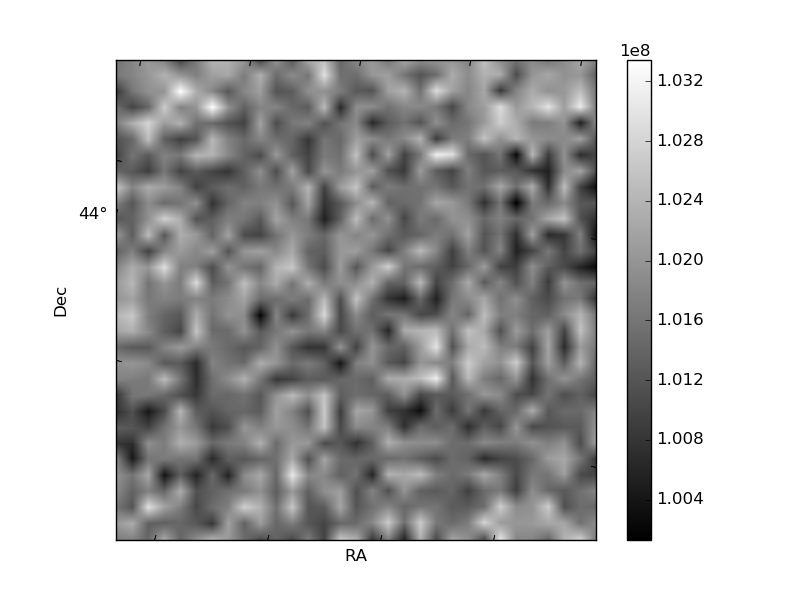

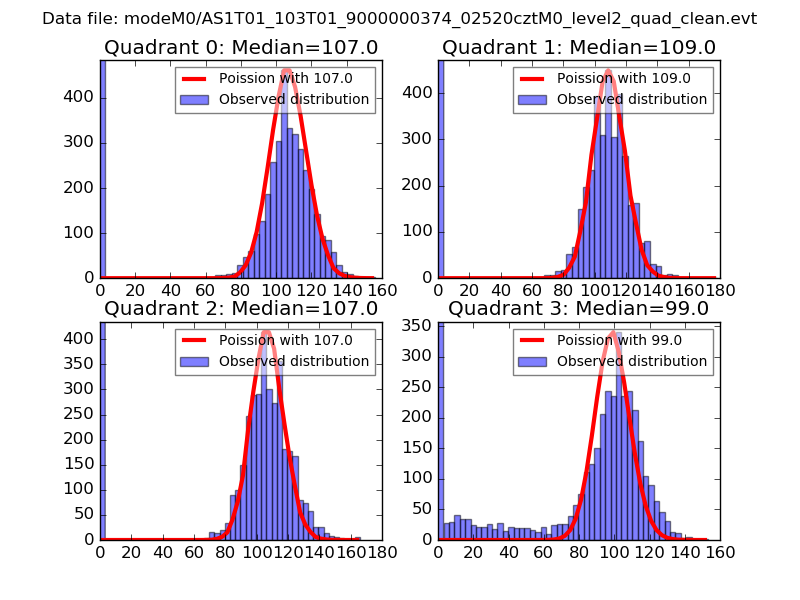

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

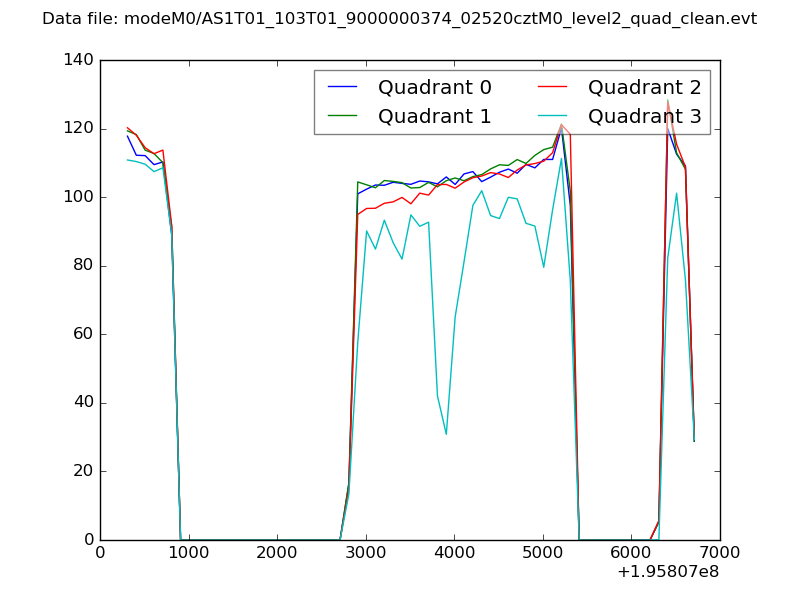

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

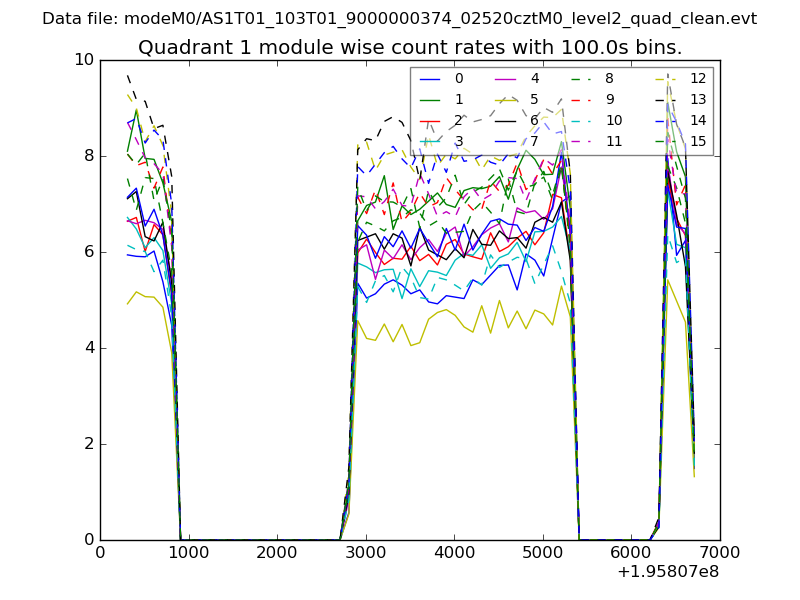

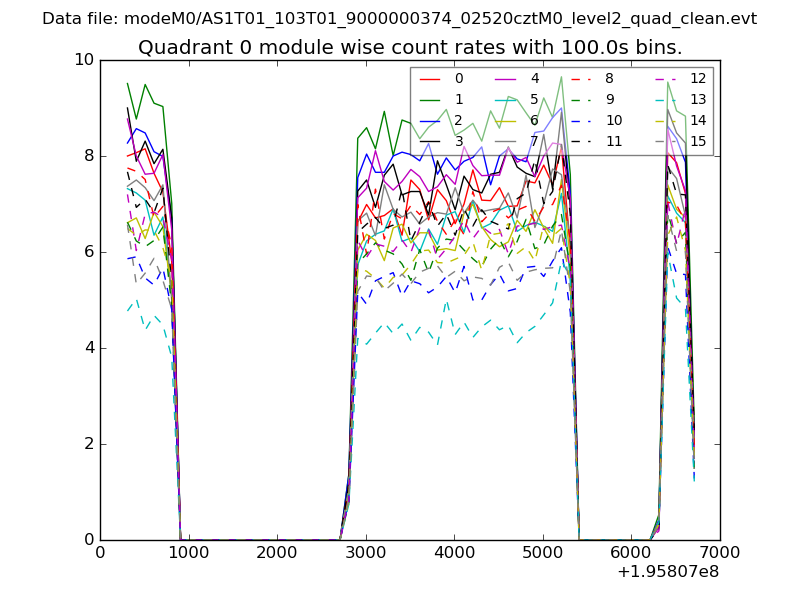

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

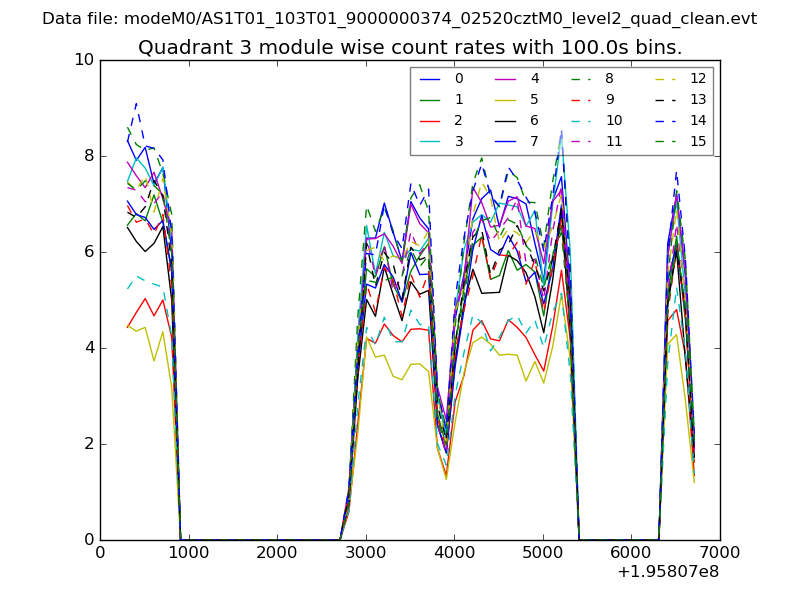

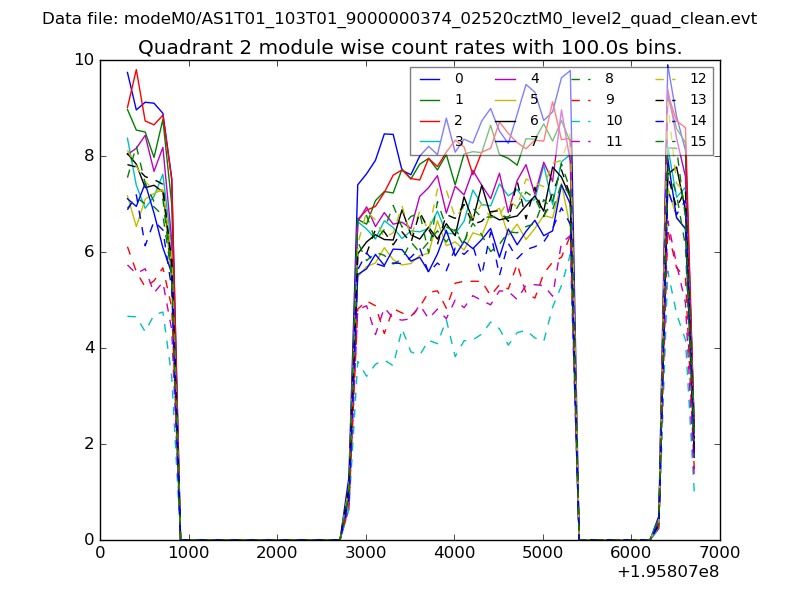

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

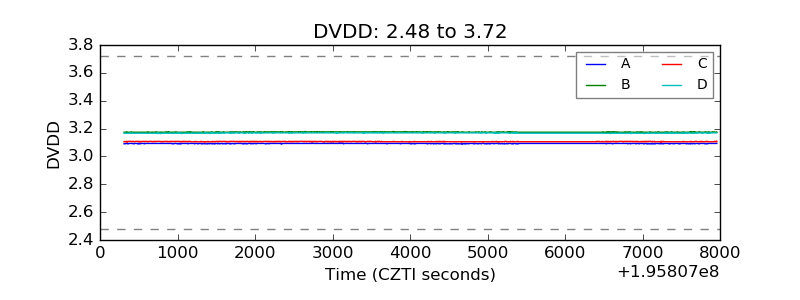

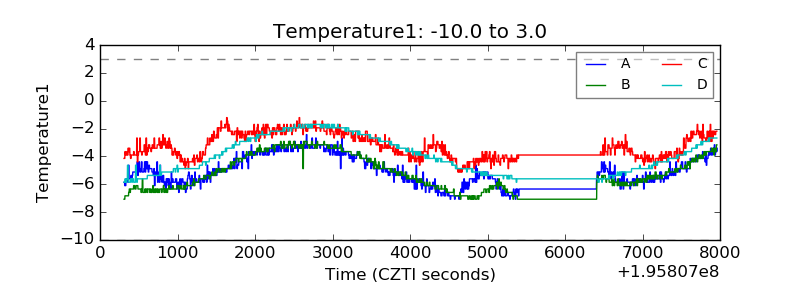

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

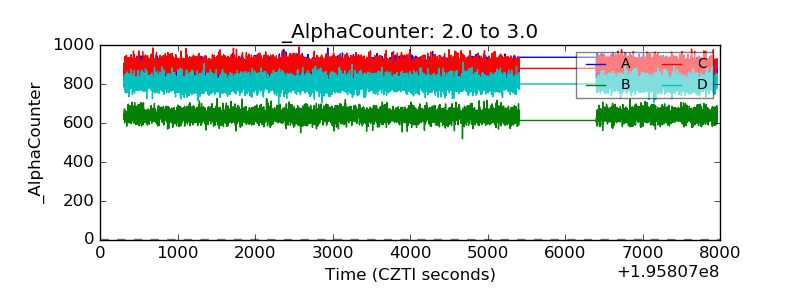

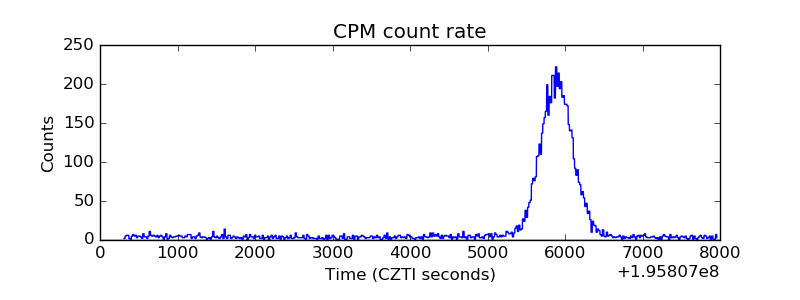

| Alpha Counter |  |
| _CPM_Rate |  |

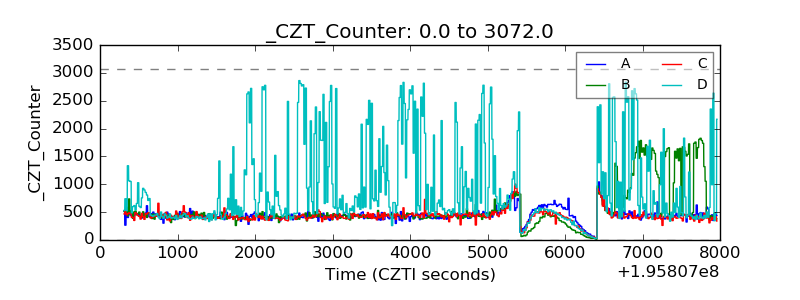

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

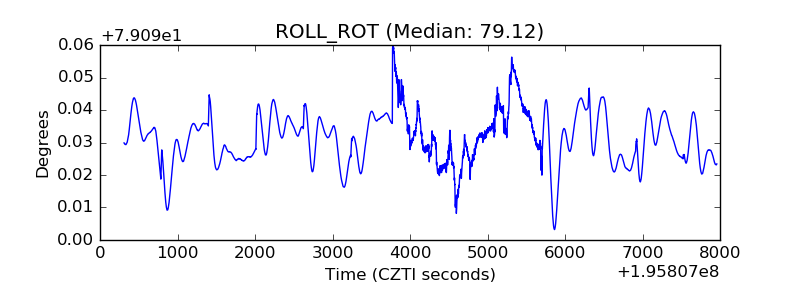

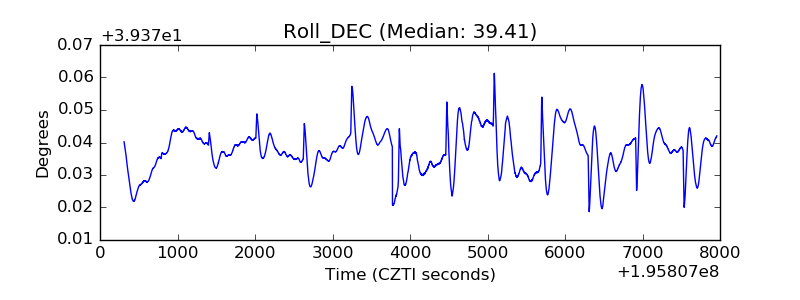

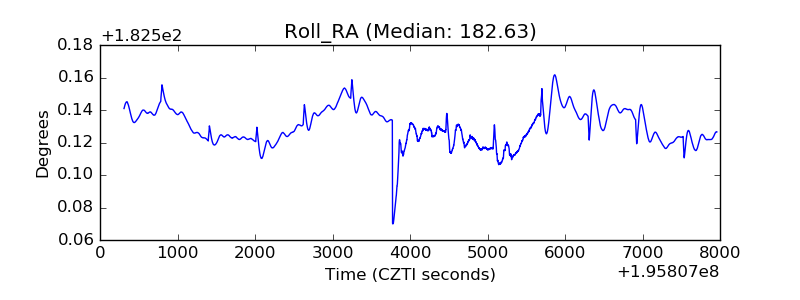

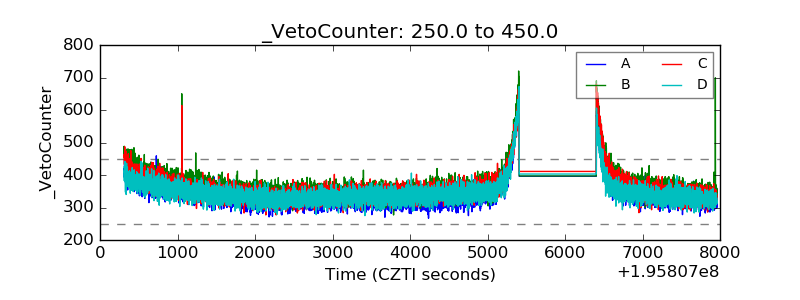

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
