| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1SLEW_01234_9000000377_02530cztM0_level2.evt | modeM0/AS1SLEW_01234_9000000377_02530cztM0_level2_quad_clean.evt |
| Size (bytes) | 27,959,040 | 5,713,920 |
| Size | 26.7 MB | 5.4 MB |
| Events in quadrant A | 155,386 | 35,810 |
| Events in quadrant B | 167,662 | 35,952 |
| Events in quadrant C | 162,213 | 35,851 |
| Events in quadrant D | 333,622 | 31,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 707 | 0 |
| B | 0 | 723 | 0 |
| C | 0 | 710 | 0 |
| D | 0 | 1210 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 353 | 2 | 0.566572% |
| B | 353 | 0 | 0.000000% |
| C | 353 | 0 | 0.000000% |
| D | 353 | 51 | 14.447592% |

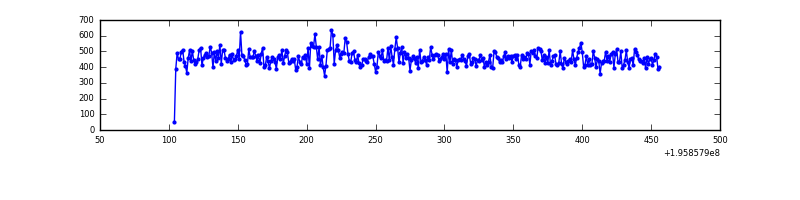

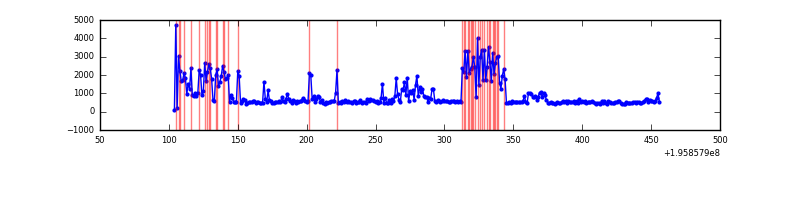

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 353 | 353 | 0 | 0 | 0.00% | 0.00% |  |
| B | 353 | 353 | 0 | 0 | 0.00% | 0.00% |  |
| C | 353 | 353 | 0 | 0 | 0.00% | 0.00% |  |
| D | 353 | 353 | 40 | 40 | 11.33% | 11.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 476 | 41.65 | 40 | 39 | 10.5 |
| A | 0 | 226 | 426 | 36.88 | 40 | 39 | 10.5 |
| A | 11 | 246 | 128 | 8.48 | 40 | 39 | 10.5 |
| B | 15 | 85 | 3536 | 342.69 | 41 | 40 | 10.2 |
| B | 10 | 244 | 2312 | 222.71 | 41 | 40 | 10.2 |
| B | 5 | 172 | 1084 | 102.34 | 41 | 40 | 10.2 |
| C | 14 | 223 | 1378 | 115.54 | 40 | 40 | 11.6 |
| C | 13 | 61 | 342 | 26.08 | 40 | 40 | 11.6 |
| C | 7 | 220 | 270 | 19.86 | 40 | 40 | 11.6 |
| D | 11 | 130 | 65163 | 6156.96 | 37 | 36 | 10.6 |
| D | 1 | 31 | 65111 | 6152.05 | 37 | 36 | 10.6 |
| D | 2 | 136 | 24804 | 2341.51 | 37 | 36 | 10.6 |

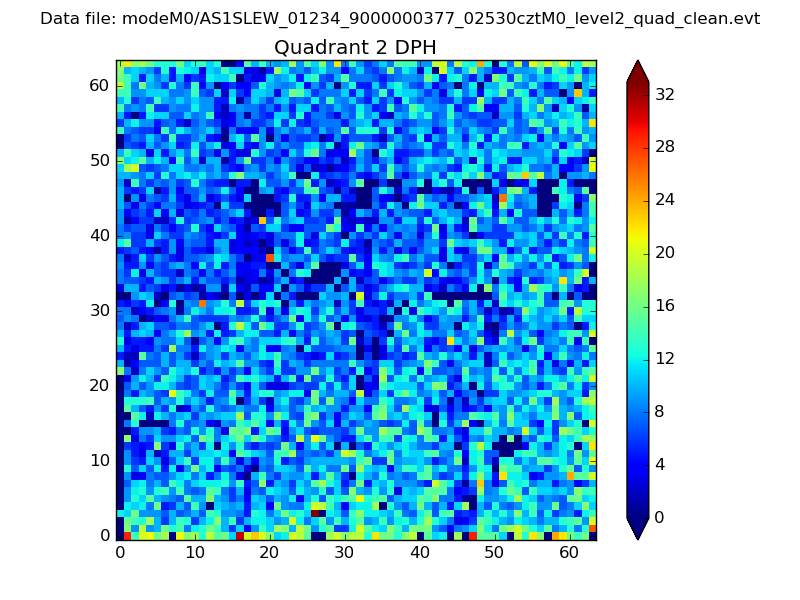

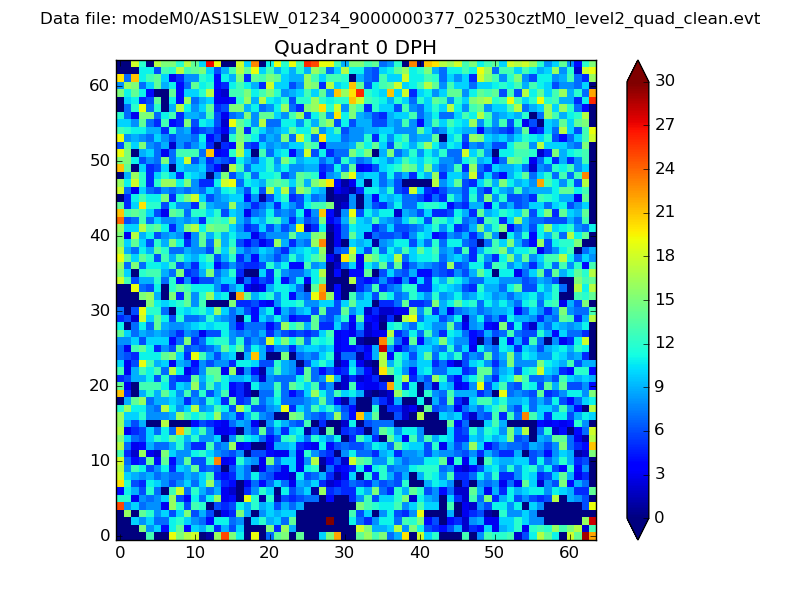

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

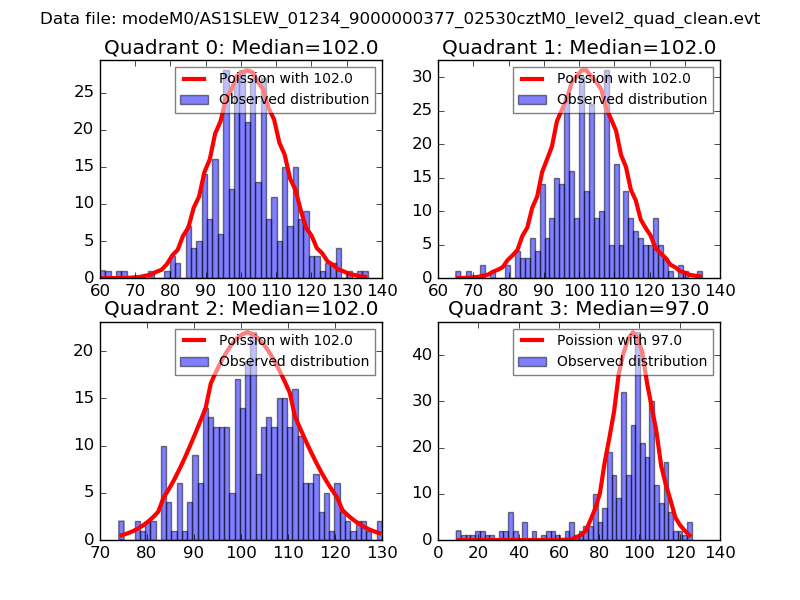

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

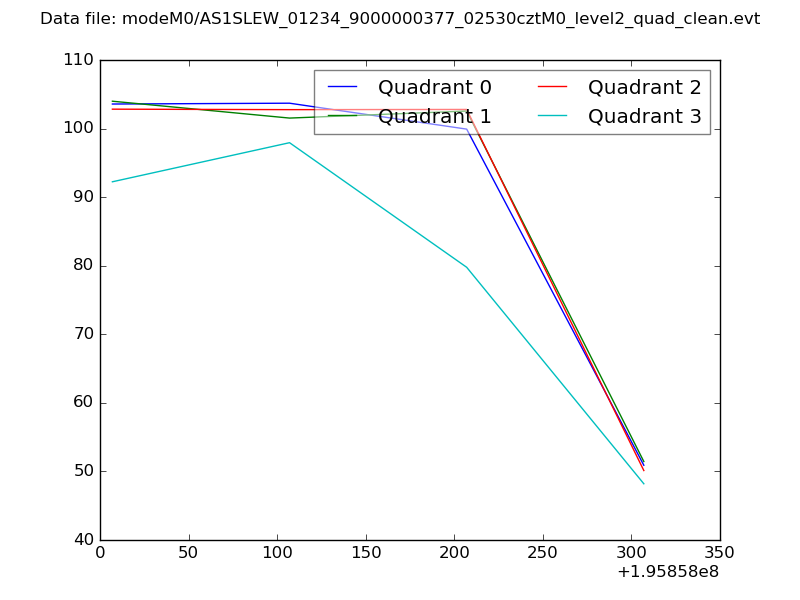

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

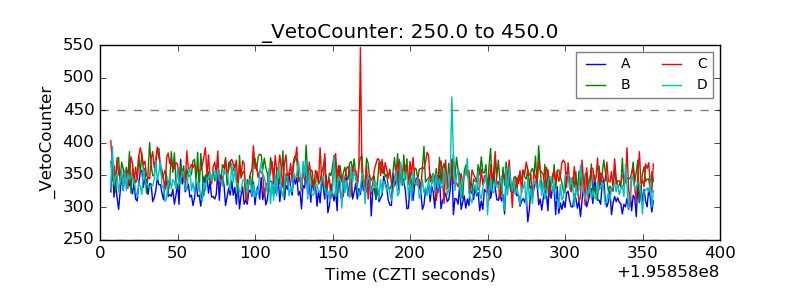

| Veto Counter |  |
