| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_999T99_9000000410_02837cztM0_level2.evt | modeM0/AS1P01_999T99_9000000410_02837cztM0_level2_quad_clean.evt |
| Size (bytes) | 662,610,240 | 46,638,720 |
| Size | 631.9 MB | 44.5 MB |
| Events in quadrant A | 2,462,580 | 288,669 |
| Events in quadrant B | 4,220,671 | 265,192 |
| Events in quadrant C | 5,645,982 | 259,963 |
| Events in quadrant D | 7,400,516 | 247,243 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10935 | 3 |
| B | 0 | 15890 | 2 |
| C | 0 | 20101 | 2 |
| D | 0 | 25395 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4983 | 24 | 0.481638% |
| B | 4983 | 485 | 9.733093% |
| C | 4983 | 1174 | 23.560104% |
| D | 4983 | 2003 | 40.196669% |

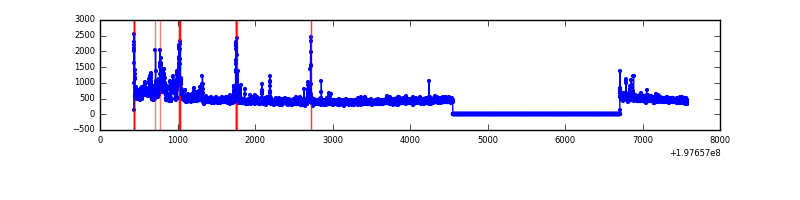

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7139 | 4984 | 22 | 22 | 0.31% | 0.44% |  |
| B | 7139 | 4983 | 413 | 413 | 5.79% | 8.29% |  |
| C | 7139 | 4983 | 867 | 867 | 12.14% | 17.40% |  |
| D | 7139 | 4984 | 1526 | 1526 | 21.38% | 30.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 5 | 148432 | 1346.48 | 543 | 531 | 109.8 |
| A | 0 | 31 | 92943 | 841.31 | 543 | 531 | 109.8 |
| A | 0 | 149 | 29389 | 262.72 | 543 | 531 | 109.8 |
| B | 0 | 168 | 1061467 | 10514.93 | 527 | 518 | 100.9 |
| B | 0 | 173 | 640039 | 6338.21 | 527 | 518 | 100.9 |
| B | 0 | 191 | 161608 | 1596.54 | 527 | 518 | 100.9 |
| C | 0 | 64 | 3008772 | 26367.31 | 488 | 491 | 114.1 |
| C | 0 | 219 | 370012 | 3238.82 | 488 | 491 | 114.1 |
| C | 1 | 16 | 106614 | 930.16 | 488 | 491 | 114.1 |
| D | 0 | 226 | 2899397 | 27255.0 | 428 | 420 | 106.4 |
| D | 1 | 4 | 1838515 | 17281.02 | 428 | 420 | 106.4 |
| D | 1 | 35 | 400865 | 3764.82 | 428 | 420 | 106.4 |

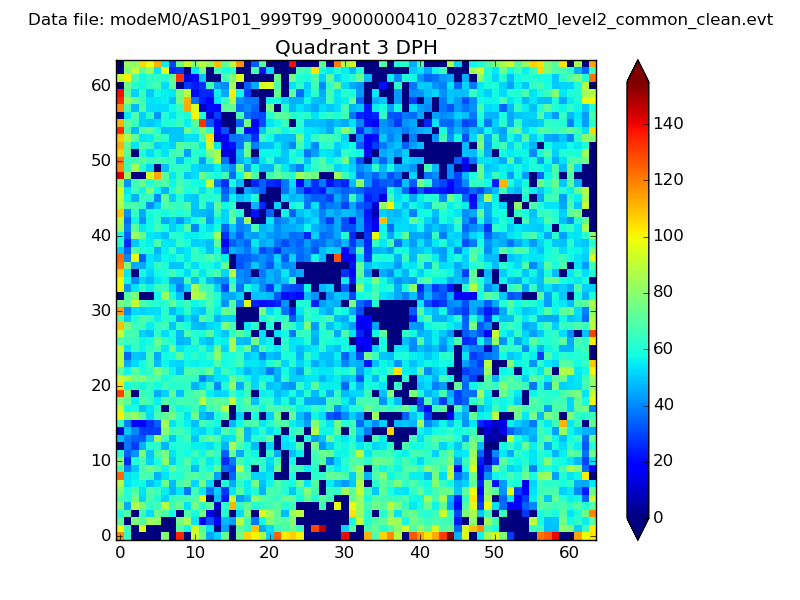

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

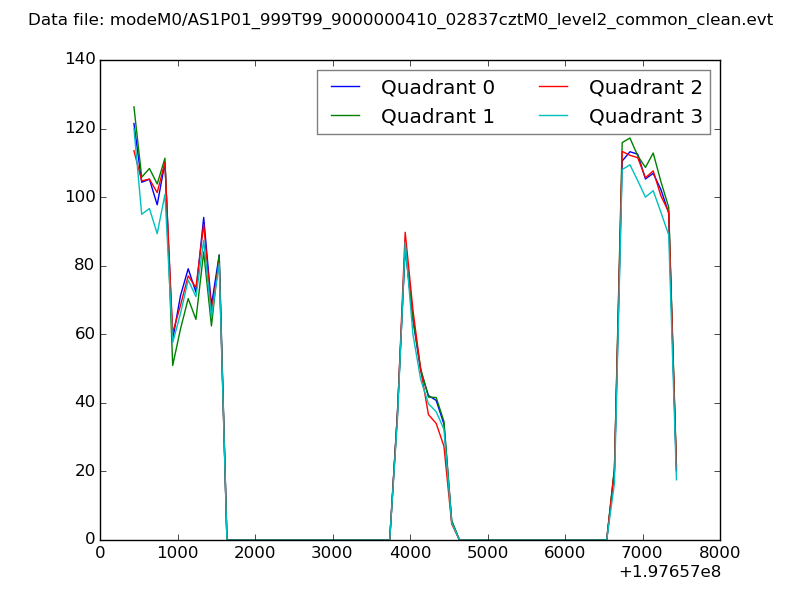

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

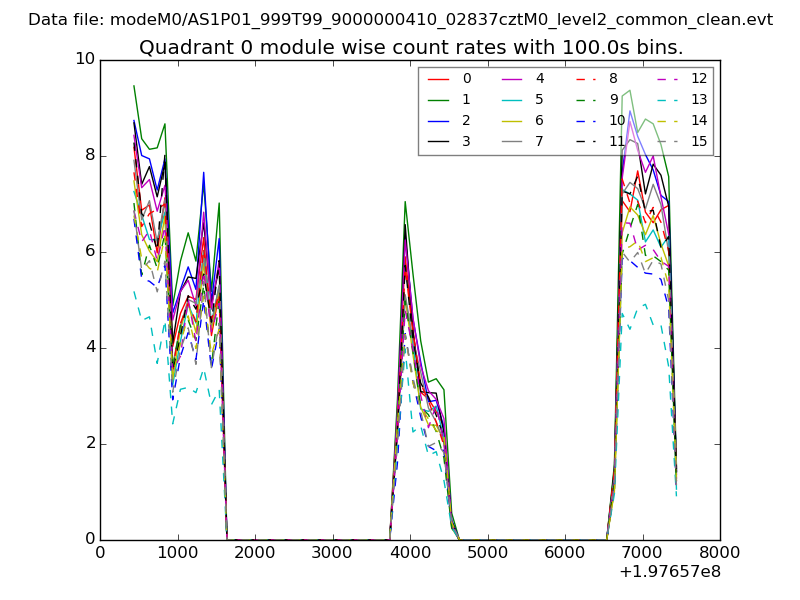

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

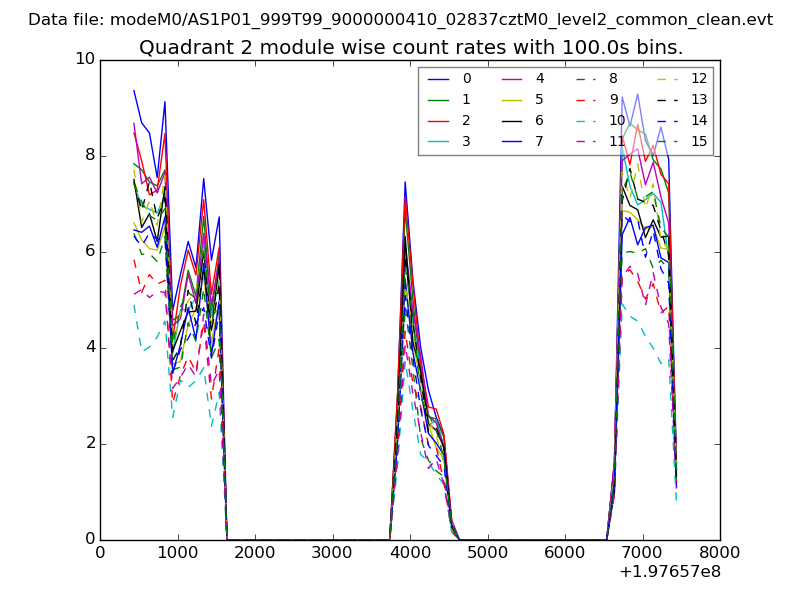

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

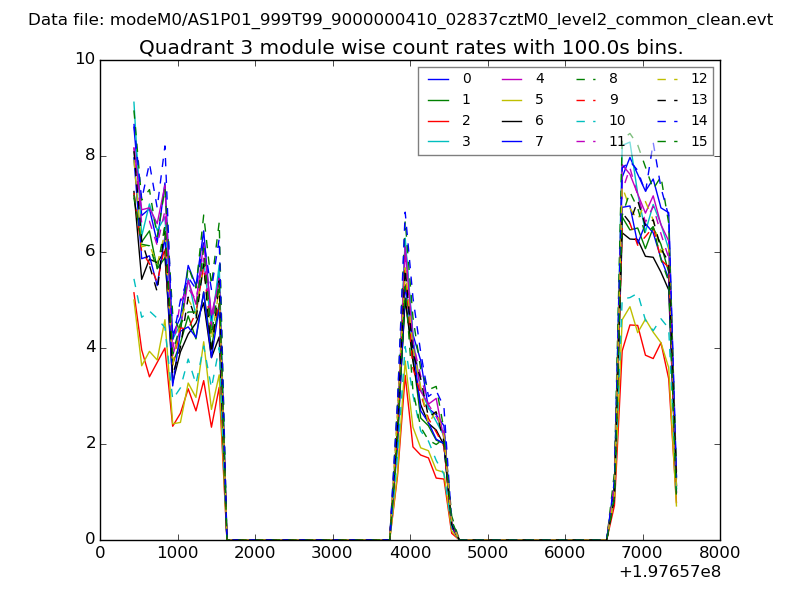

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

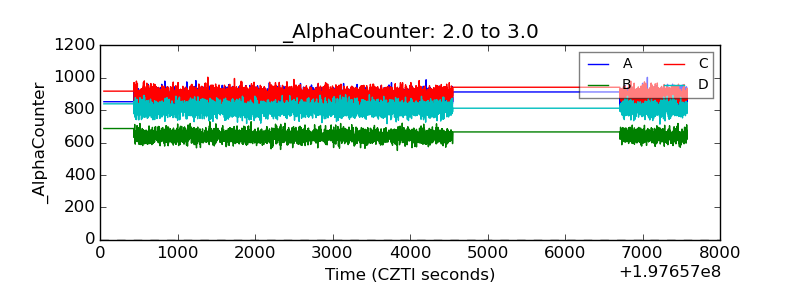

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

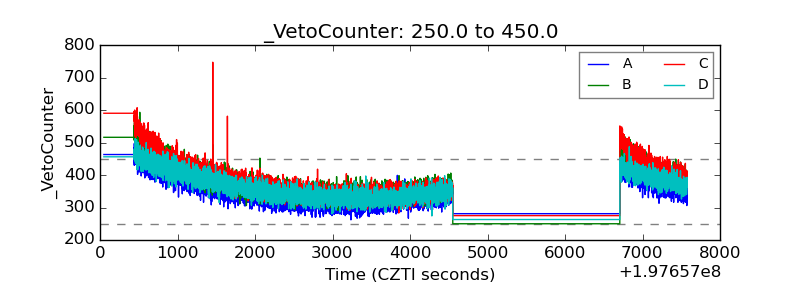

| Veto Counter |  |
