| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_999T99_9000000414_02942cztM0_level2.evt | modeM0/AS1P01_999T99_9000000414_02942cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,629,440 | 33,595,200 |
| Size | 543.2 MB | 32.0 MB |
| Events in quadrant A | 2,557,588 | 172,713 |
| Events in quadrant B | 2,963,617 | 173,658 |
| Events in quadrant C | 2,413,238 | 183,304 |
| Events in quadrant D | 8,978,397 | 136,368 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11272 | 2 |
| B | 0 | 12307 | 1 |
| C | 0 | 10826 | 1 |
| D | 0 | 30168 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4996 | 46 | 0.920737% |
| B | 4996 | 92 | 1.841473% |
| C | 4996 | 23 | 0.460368% |
| D | 4996 | 2626 | 52.562050% |

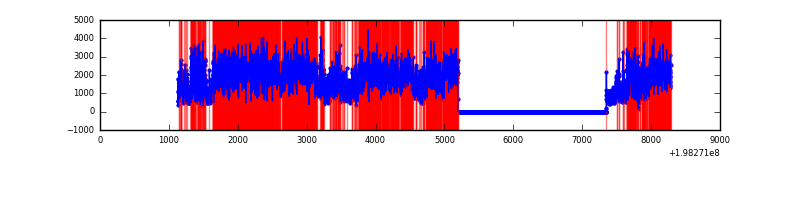

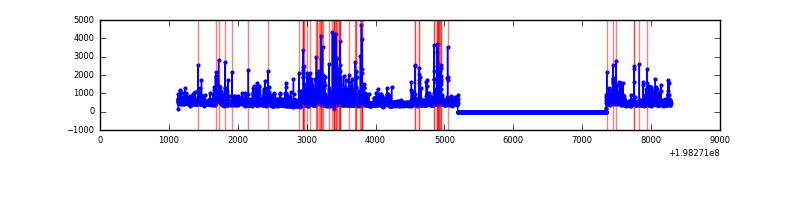

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7151 | 4997 | 39 | 39 | 0.55% | 0.78% |  |
| B | 7151 | 4997 | 72 | 72 | 1.01% | 1.44% |  |
| C | 7151 | 4997 | 13 | 13 | 0.18% | 0.26% |  |
| D | 7151 | 4997 | 2098 | 2098 | 29.34% | 41.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 164 | 260487 | 2489.02 | 502 | 489 | 104.5 |
| A | 8 | 15 | 213839 | 2042.45 | 502 | 489 | 104.5 |
| A | 12 | 133 | 51222 | 485.68 | 502 | 489 | 104.5 |
| B | 3 | 175 | 422674 | 4206.34 | 511 | 500 | 100.4 |
| B | 3 | 27 | 280789 | 2792.67 | 511 | 500 | 100.4 |
| B | 0 | 219 | 102404 | 1015.32 | 511 | 500 | 100.4 |
| C | 0 | 219 | 171666 | 1432.09 | 504 | 505 | 119.5 |
| C | 8 | 146 | 48694 | 403.19 | 504 | 505 | 119.5 |
| C | 6 | 80 | 45777 | 378.79 | 504 | 505 | 119.5 |
| D | 15 | 50 | 3181787 | 31359.18 | 392 | 383 | 101.5 |
| D | 15 | 194 | 2009670 | 19805.59 | 392 | 383 | 101.5 |
| D | 14 | 81 | 417274 | 4109.31 | 392 | 383 | 101.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

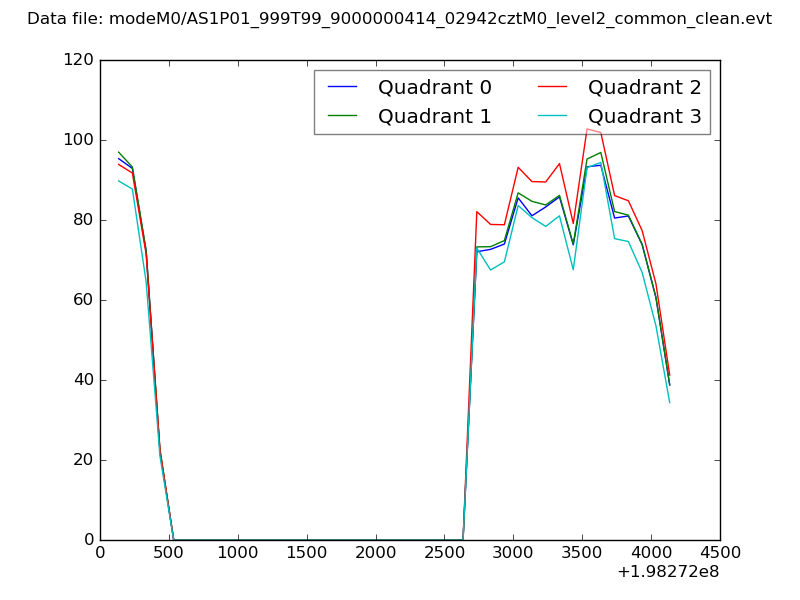

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

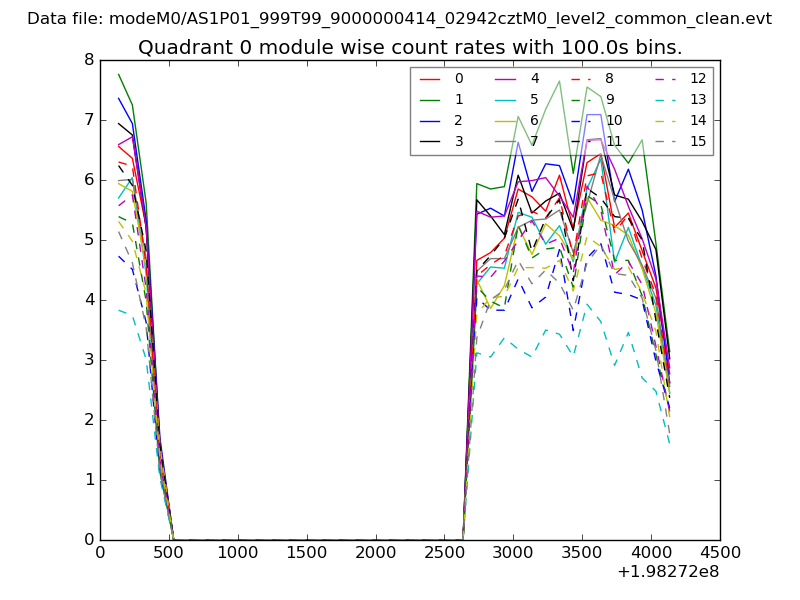

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

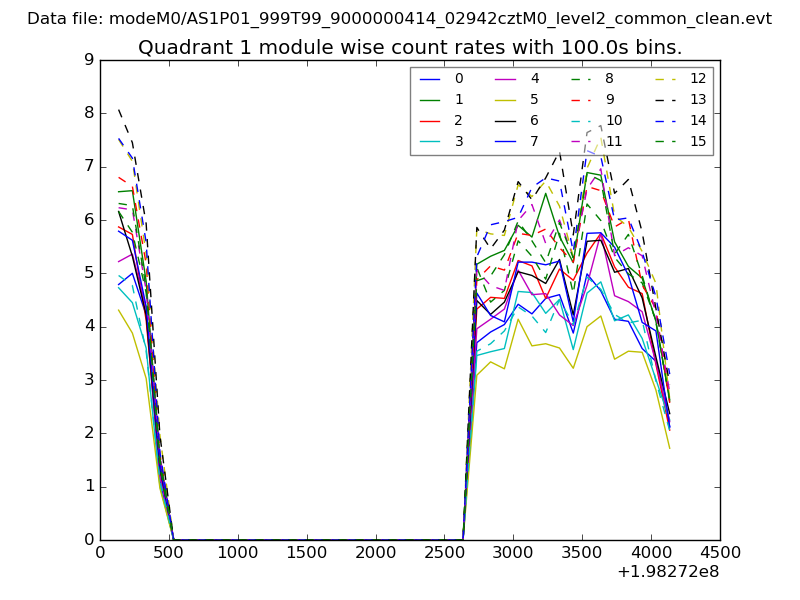

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

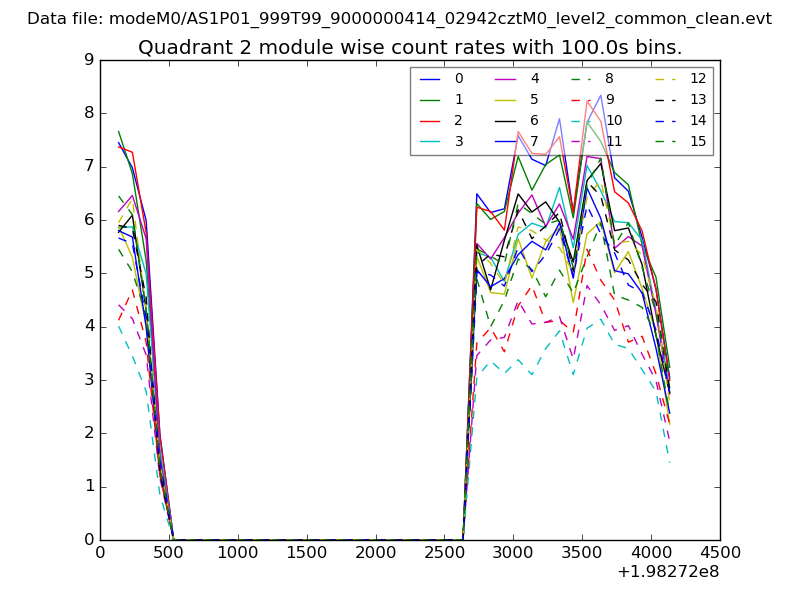

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

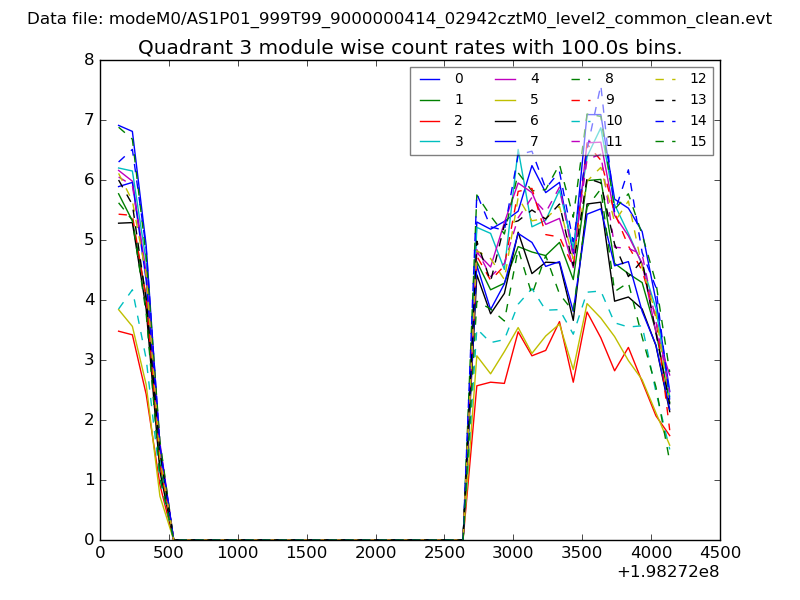

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

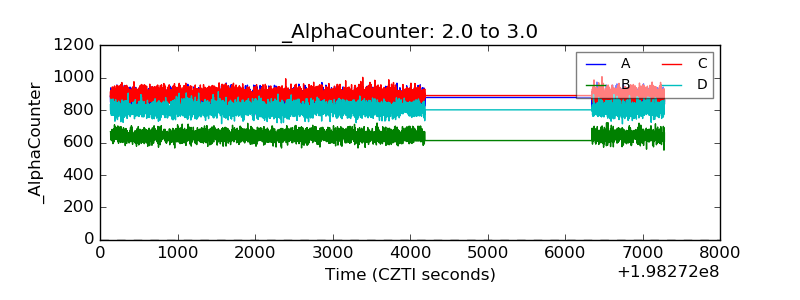

| Alpha Counter |  |

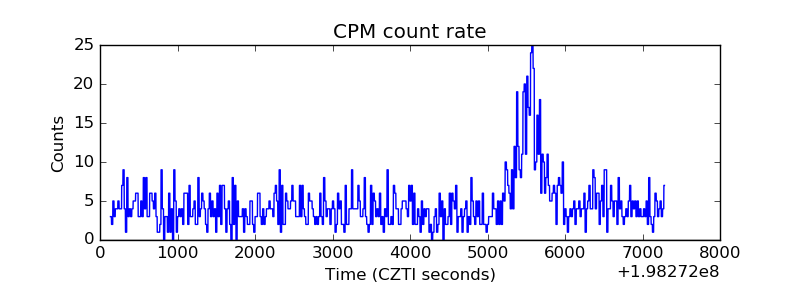

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

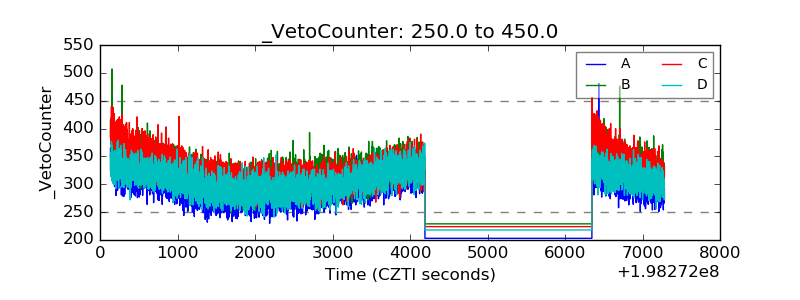

| Veto Counter |  |
