| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T04_9000000416_02962cztM0_level2.evt | modeM0/AS1G05_238T04_9000000416_02962cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,779,200 | 43,257,600 |
| Size | 449.0 MB | 41.3 MB |
| Events in quadrant A | 2,617,938 | 251,780 |
| Events in quadrant B | 2,464,357 | 251,517 |
| Events in quadrant C | 3,487,540 | 235,668 |
| Events in quadrant D | 5,327,156 | 198,225 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11541 | 3 |
| B | 0 | 11092 | 2 |
| C | 0 | 13971 | 2 |
| D | 0 | 19525 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5314 | 59 | 1.110275% |
| B | 5314 | 21 | 0.395183% |
| C | 5314 | 203 | 3.820098% |
| D | 5314 | 965 | 18.159578% |

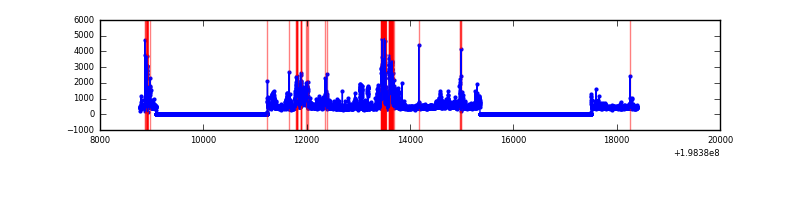

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9622 | 5316 | 32 | 32 | 0.33% | 0.60% |  |
| B | 9622 | 5316 | 10 | 10 | 0.10% | 0.19% |  |
| C | 9622 | 5316 | 170 | 170 | 1.77% | 3.20% |  |
| D | 9622 | 5316 | 789 | 789 | 8.20% | 14.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 300600 | 2528.02 | 576 | 564 | 118.7 |
| A | 8 | 15 | 23459 | 192.91 | 576 | 564 | 118.7 |
| A | 0 | 31 | 21870 | 179.52 | 576 | 564 | 118.7 |
| B | 5 | 70 | 52054 | 450.01 | 586 | 572 | 114.4 |
| B | 15 | 85 | 32975 | 283.23 | 586 | 572 | 114.4 |
| B | 14 | 167 | 32746 | 281.23 | 586 | 572 | 114.4 |
| C | 0 | 219 | 653509 | 5041.99 | 549 | 550 | 129.5 |
| C | 1 | 192 | 482925 | 3724.78 | 549 | 550 | 129.5 |
| C | 6 | 80 | 154159 | 1186.13 | 549 | 550 | 129.5 |
| D | 12 | 1 | 2852103 | 23454.36 | 507 | 496 | 121.6 |
| D | 14 | 81 | 136116 | 1115.47 | 507 | 496 | 121.6 |
| D | 2 | 209 | 124216 | 1017.59 | 507 | 496 | 121.6 |

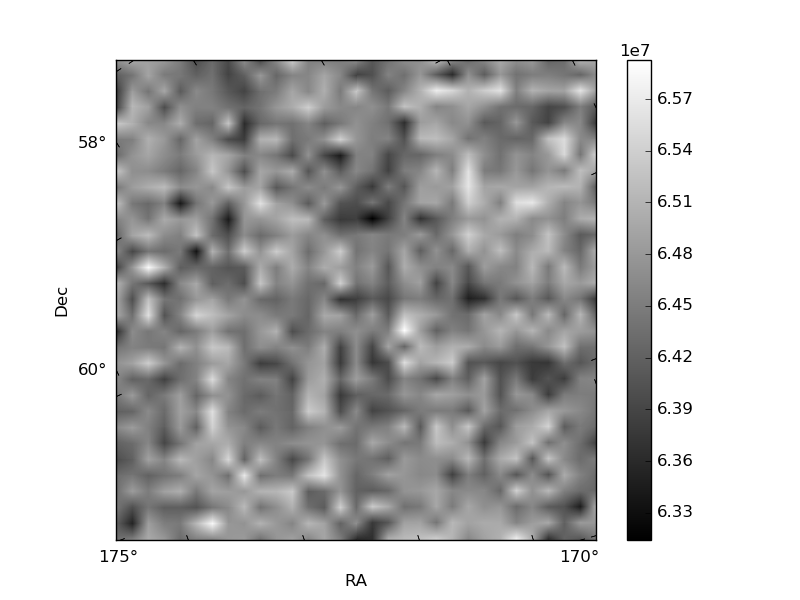

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

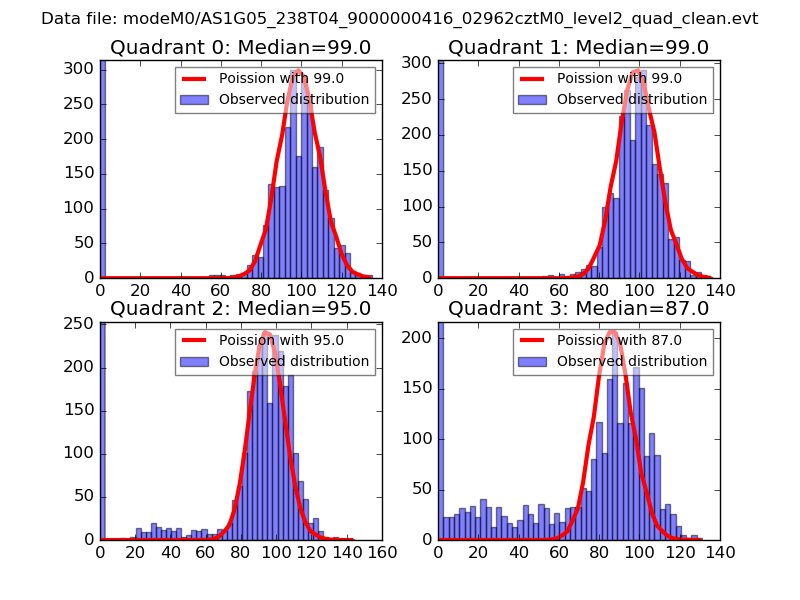

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

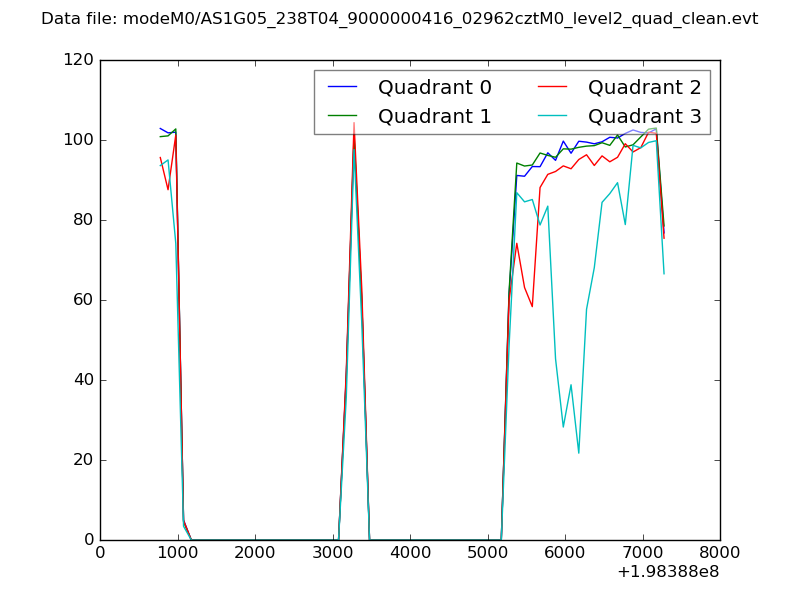

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

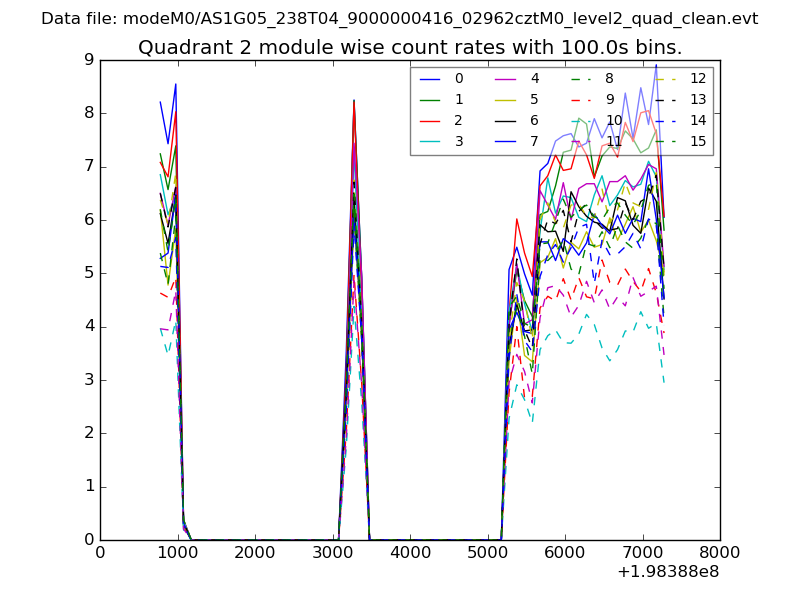

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

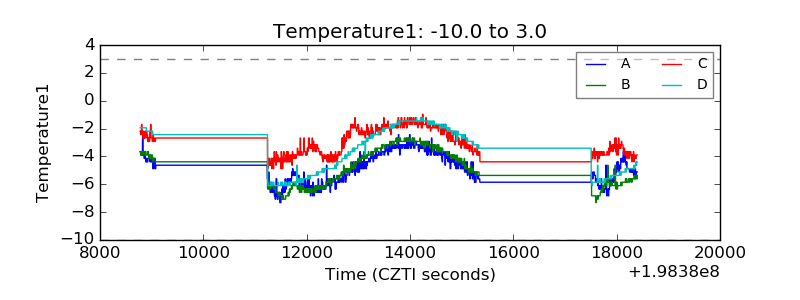

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

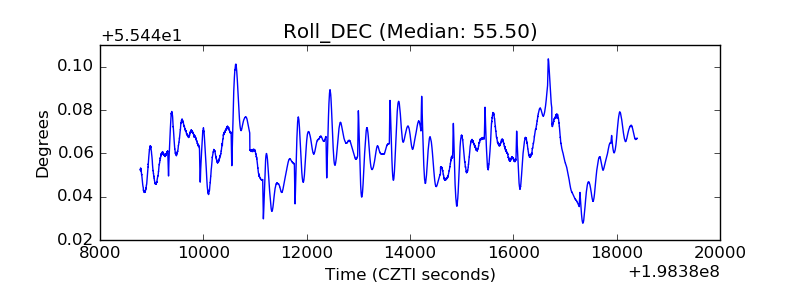

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
