| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T04_9000000416_02966cztM0_level2.evt | modeM0/AS1G05_238T04_9000000416_02966cztM0_level2_quad_clean.evt |
| Size (bytes) | 379,212,480 | 68,474,880 |
| Size | 361.6 MB | 65.3 MB |
| Events in quadrant A | 2,876,530 | 432,082 |
| Events in quadrant B | 2,717,135 | 435,604 |
| Events in quadrant C | 2,522,062 | 426,934 |
| Events in quadrant D | 3,014,432 | 413,982 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11716 | 3 |
| B | 0 | 11318 | 2 |
| C | 0 | 10870 | 2 |
| D | 0 | 12363 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5208 | 93 | 1.785714% |
| B | 5208 | 26 | 0.499232% |
| C | 5208 | 13 | 0.249616% |
| D | 5208 | 55 | 1.056068% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

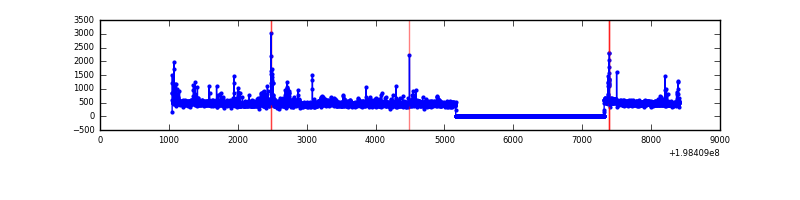

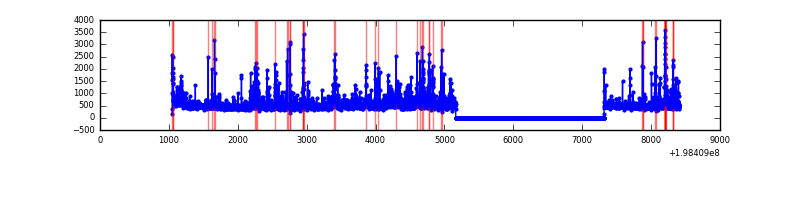

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7363 | 5209 | 71 | 71 | 0.96% | 1.36% |  |
| B | 7363 | 5209 | 21 | 21 | 0.29% | 0.40% |  |
| C | 7363 | 5209 | 6 | 6 | 0.08% | 0.12% |  |
| D | 7363 | 5209 | 51 | 51 | 0.69% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 167924 | 1373.07 | 603 | 589 | 121.9 |
| A | 8 | 15 | 133583 | 1091.28 | 603 | 589 | 121.9 |
| A | 0 | 50 | 86371 | 703.88 | 603 | 589 | 121.9 |
| B | 0 | 219 | 91580 | 779.92 | 609 | 596 | 116.7 |
| B | 14 | 50 | 77401 | 658.38 | 609 | 596 | 116.7 |
| B | 3 | 27 | 40076 | 338.43 | 609 | 596 | 116.7 |
| C | 1 | 192 | 115907 | 856.4 | 583 | 586 | 134.7 |
| C | 6 | 80 | 80177 | 591.06 | 583 | 586 | 134.7 |
| C | 10 | 55 | 16203 | 115.98 | 583 | 586 | 134.7 |
| D | 12 | 1 | 289159 | 2104.82 | 580 | 567 | 137.1 |
| D | 14 | 81 | 117647 | 853.91 | 580 | 567 | 137.1 |
| D | 2 | 209 | 101397 | 735.39 | 580 | 567 | 137.1 |

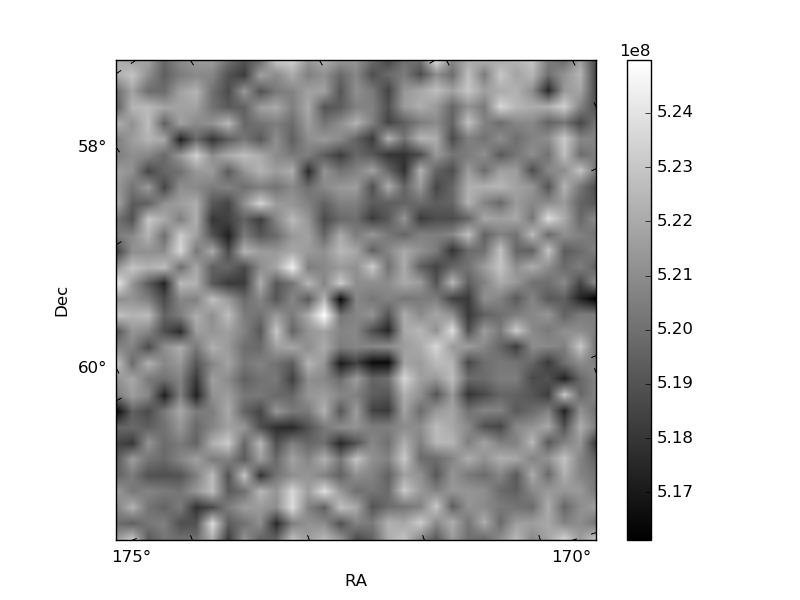

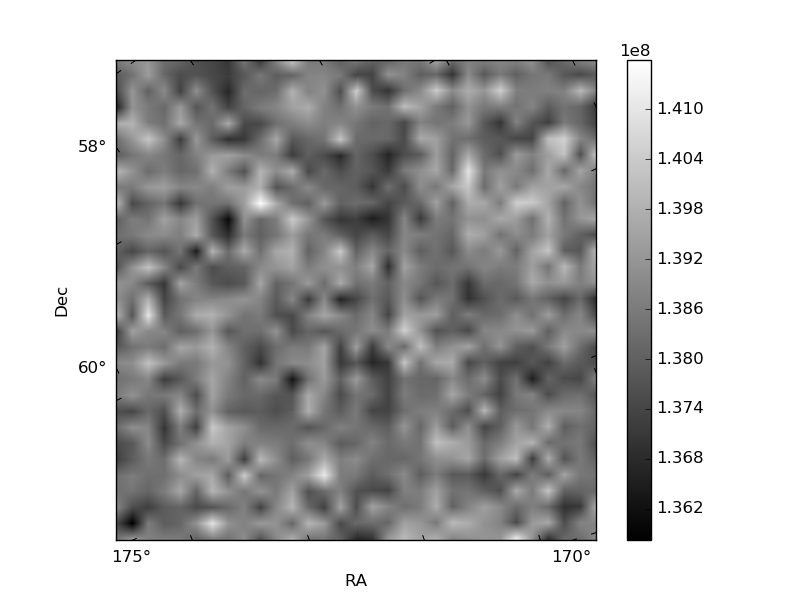

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

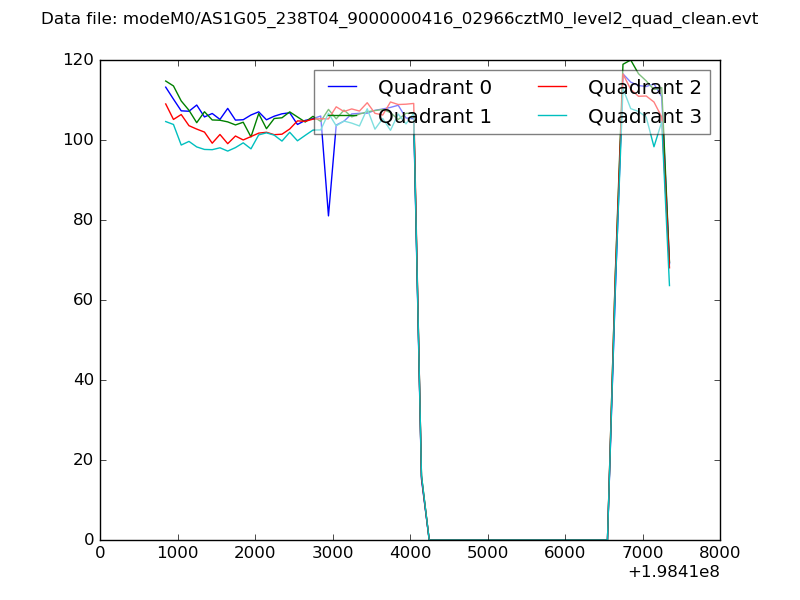

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

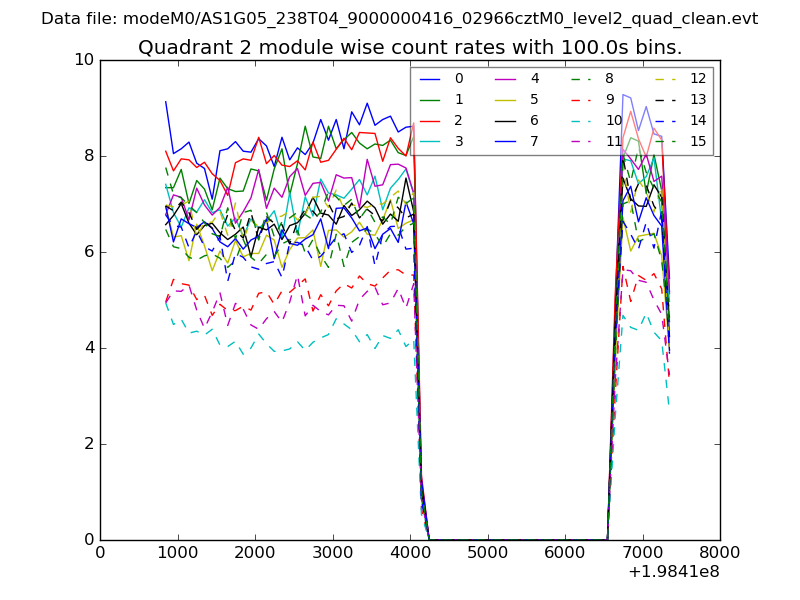

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

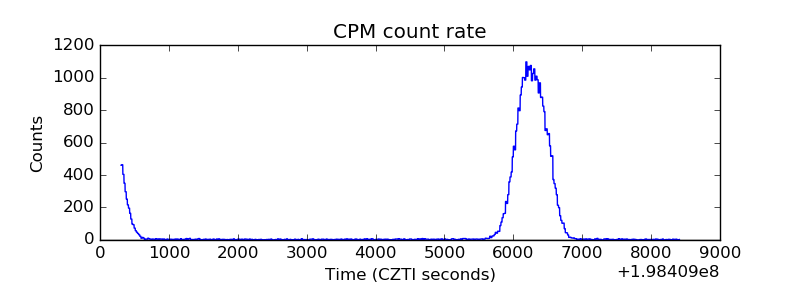

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
