| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T04_9000000416_02967cztM0_level2.evt | modeM0/AS1G05_238T04_9000000416_02967cztM0_level2_quad_clean.evt |
| Size (bytes) | 373,584,960 | 80,887,680 |
| Size | 356.3 MB | 77.1 MB |
| Events in quadrant A | 2,775,373 | 527,263 |
| Events in quadrant B | 2,523,743 | 530,507 |
| Events in quadrant C | 2,480,128 | 522,463 |
| Events in quadrant D | 3,180,667 | 504,820 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11591 | 3 |
| B | 0 | 10861 | 2 |
| C | 0 | 10884 | 2 |
| D | 0 | 12875 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5203 | 87 | 1.672112% |
| B | 5203 | 14 | 0.269076% |
| C | 5203 | 22 | 0.422833% |
| D | 5203 | 114 | 2.191044% |

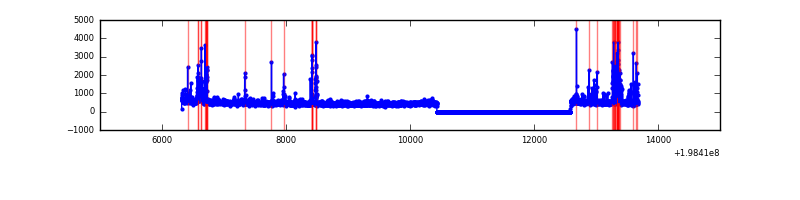

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7359 | 5204 | 54 | 54 | 0.73% | 1.04% |  |
| B | 7359 | 5204 | 8 | 8 | 0.11% | 0.15% |  |
| C | 7359 | 5204 | 15 | 15 | 0.20% | 0.29% |  |
| D | 7359 | 5204 | 100 | 100 | 1.36% | 1.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 247 | 165542 | 1369.65 | 596 | 583 | 120.4 |
| A | 8 | 15 | 89062 | 734.64 | 596 | 583 | 120.4 |
| A | 0 | 31 | 87204 | 719.21 | 596 | 583 | 120.4 |
| B | 3 | 27 | 70056 | 612.59 | 601 | 590 | 113.4 |
| B | 0 | 219 | 43618 | 379.44 | 601 | 590 | 113.4 |
| B | 8 | 3 | 36839 | 319.66 | 601 | 590 | 113.4 |
| C | 6 | 80 | 128436 | 953.59 | 580 | 583 | 134.1 |
| C | 8 | 82 | 26511 | 193.38 | 580 | 583 | 134.1 |
| C | 1 | 192 | 14996 | 107.5 | 580 | 583 | 134.1 |
| D | 12 | 1 | 319254 | 2324.59 | 576 | 562 | 137.1 |
| D | 9 | 35 | 182657 | 1328.23 | 576 | 562 | 137.1 |
| D | 14 | 81 | 95858 | 695.1 | 576 | 562 | 137.1 |

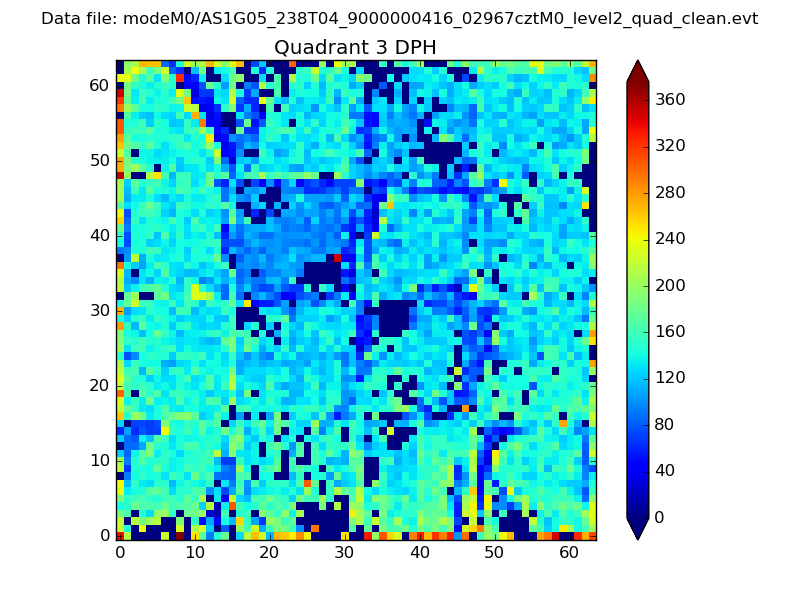

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

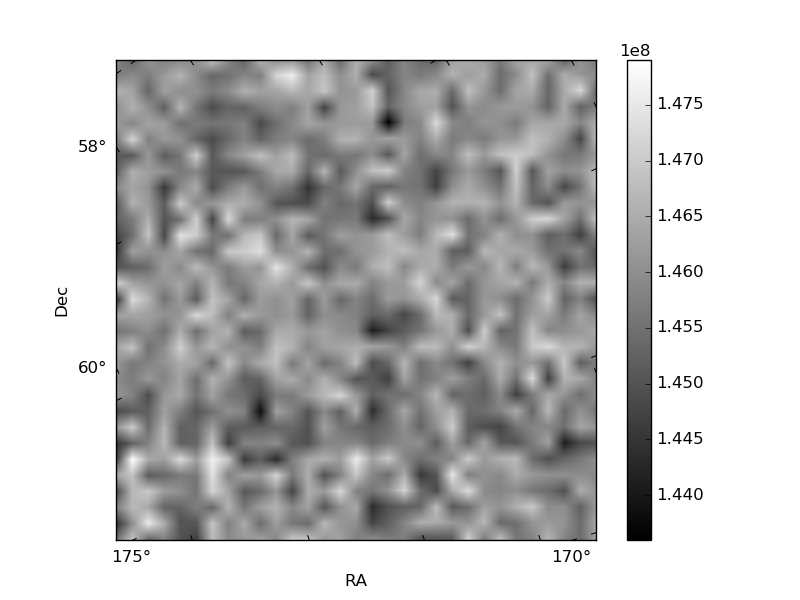

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

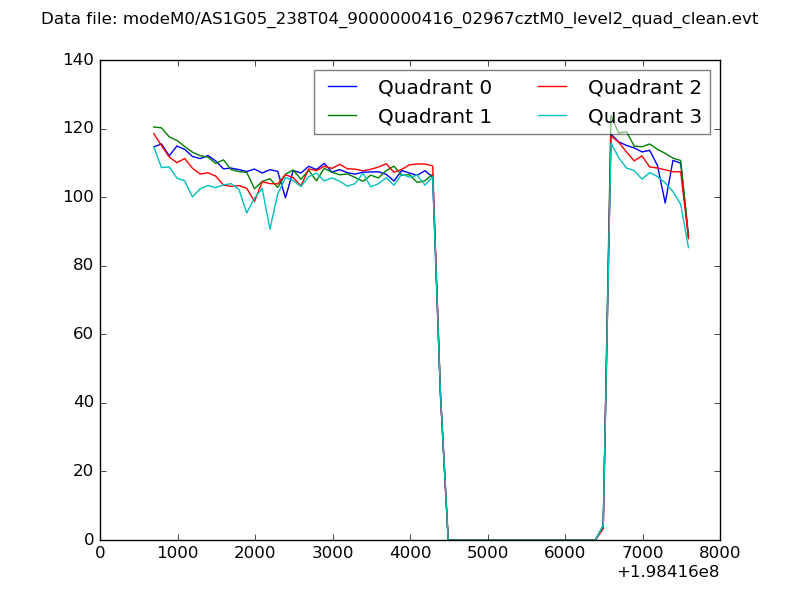

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

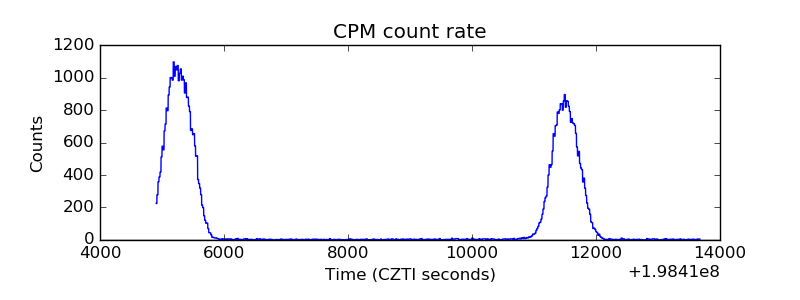

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

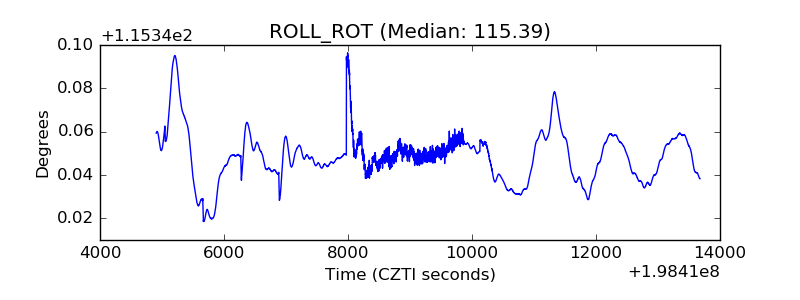

| _ROLL_ROT |  |

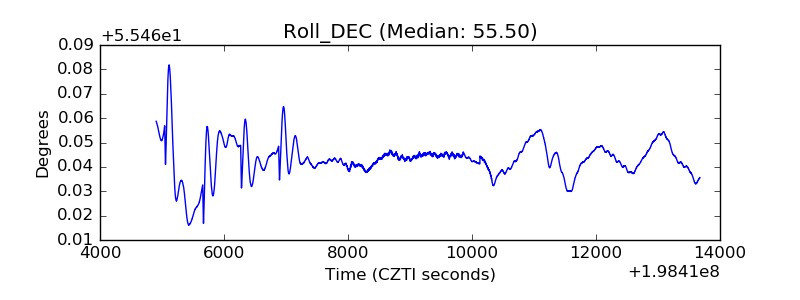

| _Roll_DEC |  |
| _Roll_RA |  |

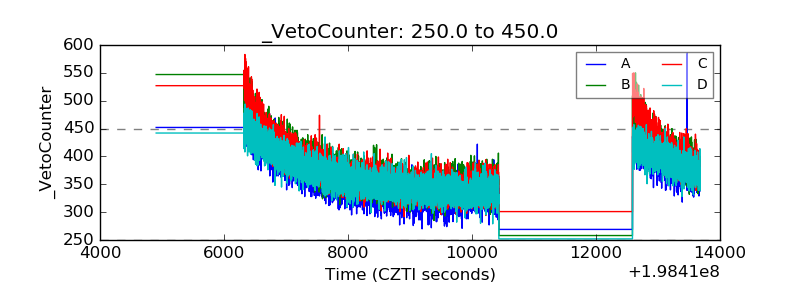

| Veto Counter |  |
