| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T04_9000000416_02969cztM0_level2.evt | modeM0/AS1G05_238T04_9000000416_02969cztM0_level2_quad_clean.evt |
| Size (bytes) | 383,310,720 | 68,457,600 |
| Size | 365.6 MB | 65.3 MB |
| Events in quadrant A | 3,046,270 | 428,912 |
| Events in quadrant B | 2,243,268 | 439,685 |
| Events in quadrant C | 2,437,457 | 437,064 |
| Events in quadrant D | 3,547,306 | 422,730 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12468 | 3 |
| B | 0 | 10207 | 2 |
| C | 0 | 10829 | 2 |
| D | 0 | 14008 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4908 | 340 | 6.927465% |
| B | 4908 | 16 | 0.325998% |
| C | 4908 | 84 | 1.711491% |
| D | 4908 | 135 | 2.750611% |

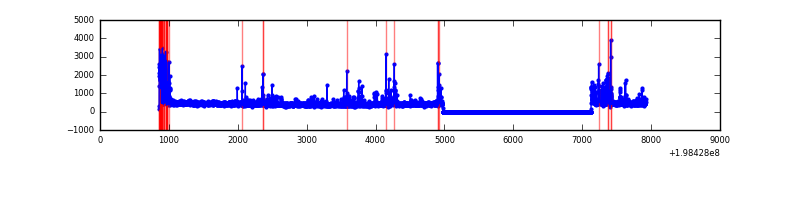

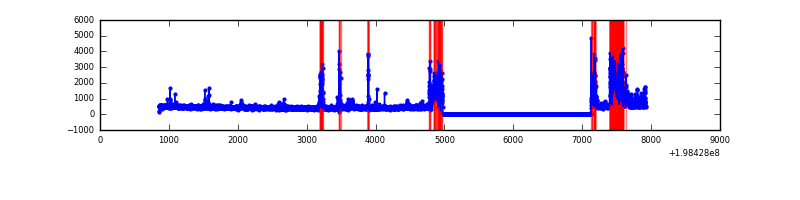

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7064 | 4909 | 210 | 210 | 2.97% | 4.28% |  |
| B | 7064 | 4909 | 8 | 8 | 0.11% | 0.16% |  |
| C | 7064 | 4909 | 49 | 49 | 0.69% | 1.00% |  |
| D | 7064 | 4909 | 137 | 137 | 1.94% | 2.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 9 | 965536 | 9341.48 | 504 | 492 | 103.3 |
| A | 8 | 15 | 104856 | 1010.22 | 504 | 492 | 103.3 |
| A | 0 | 50 | 8412 | 76.66 | 504 | 492 | 103.3 |
| B | 0 | 219 | 61629 | 598.89 | 534 | 522 | 102.0 |
| B | 14 | 50 | 18306 | 174.29 | 534 | 522 | 102.0 |
| B | 15 | 54 | 16906 | 160.57 | 534 | 522 | 102.0 |
| C | 6 | 80 | 167673 | 1369.25 | 517 | 521 | 122.1 |
| C | 0 | 219 | 132895 | 1084.36 | 517 | 521 | 122.1 |
| C | 1 | 192 | 59804 | 485.63 | 517 | 521 | 122.1 |
| D | 13 | 114 | 614024 | 5049.84 | 509 | 497 | 121.5 |
| D | 1 | 31 | 417609 | 3433.18 | 509 | 497 | 121.5 |
| D | 14 | 81 | 141592 | 1161.33 | 509 | 497 | 121.5 |

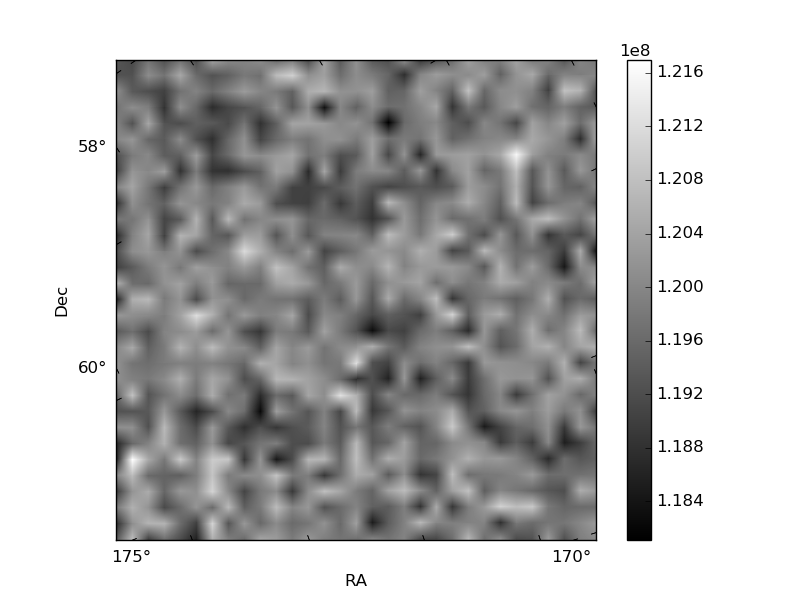

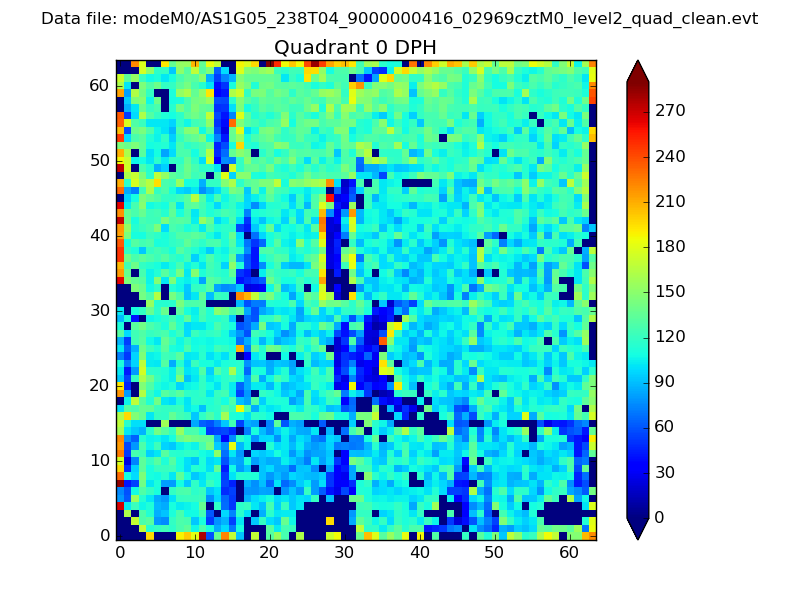

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

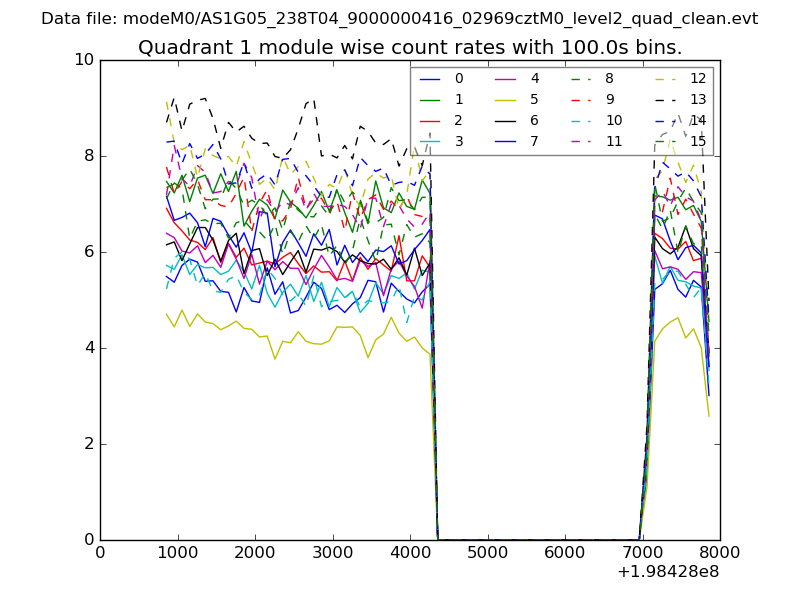

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

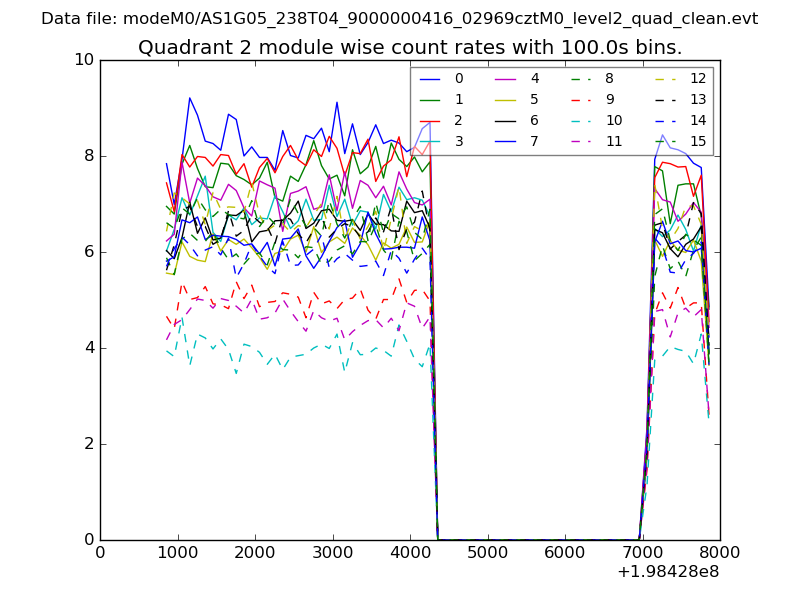

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

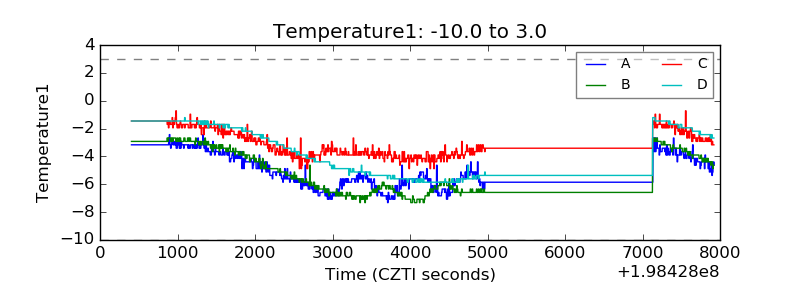

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

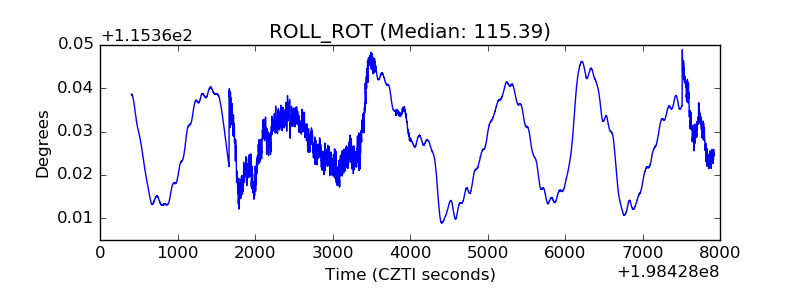

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
