| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T04_9000000416_02970cztM0_level2.evt | modeM0/AS1G05_238T04_9000000416_02970cztM0_level2_quad_clean.evt |
| Size (bytes) | 401,172,480 | 62,988,480 |
| Size | 382.6 MB | 60.1 MB |
| Events in quadrant A | 3,514,109 | 380,675 |
| Events in quadrant B | 2,261,377 | 393,332 |
| Events in quadrant C | 2,368,521 | 397,717 |
| Events in quadrant D | 3,662,090 | 381,152 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13845 | 3 |
| B | 0 | 10532 | 2 |
| C | 0 | 10868 | 2 |
| D | 0 | 14448 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5047 | 253 | 5.012879% |
| B | 5047 | 21 | 0.416089% |
| C | 5047 | 40 | 0.792550% |
| D | 5047 | 155 | 3.071131% |

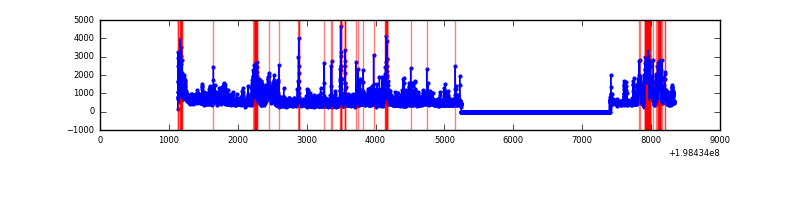

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7203 | 5048 | 190 | 190 | 2.64% | 3.76% |  |
| B | 7203 | 5048 | 12 | 12 | 0.17% | 0.24% |  |
| C | 7203 | 5048 | 28 | 28 | 0.39% | 0.55% |  |
| D | 7203 | 5048 | 146 | 146 | 2.03% | 2.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 9 | 1366614 | 12962.58 | 510 | 499 | 105.4 |
| A | 8 | 15 | 124344 | 1175.12 | 510 | 499 | 105.4 |
| A | 7 | 144 | 15977 | 146.87 | 510 | 499 | 105.4 |
| B | 0 | 219 | 40881 | 393.81 | 534 | 523 | 102.5 |
| B | 2 | 249 | 32859 | 315.53 | 534 | 523 | 102.5 |
| B | 14 | 167 | 29845 | 286.12 | 534 | 523 | 102.5 |
| C | 6 | 80 | 188973 | 1557.87 | 519 | 522 | 121.0 |
| C | 15 | 208 | 83498 | 685.94 | 519 | 522 | 121.0 |
| C | 1 | 192 | 27493 | 222.96 | 519 | 522 | 121.0 |
| D | 13 | 114 | 903669 | 7301.43 | 509 | 496 | 123.7 |
| D | 2 | 209 | 236745 | 1909.88 | 509 | 496 | 123.7 |
| D | 1 | 31 | 113437 | 913.04 | 509 | 496 | 123.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

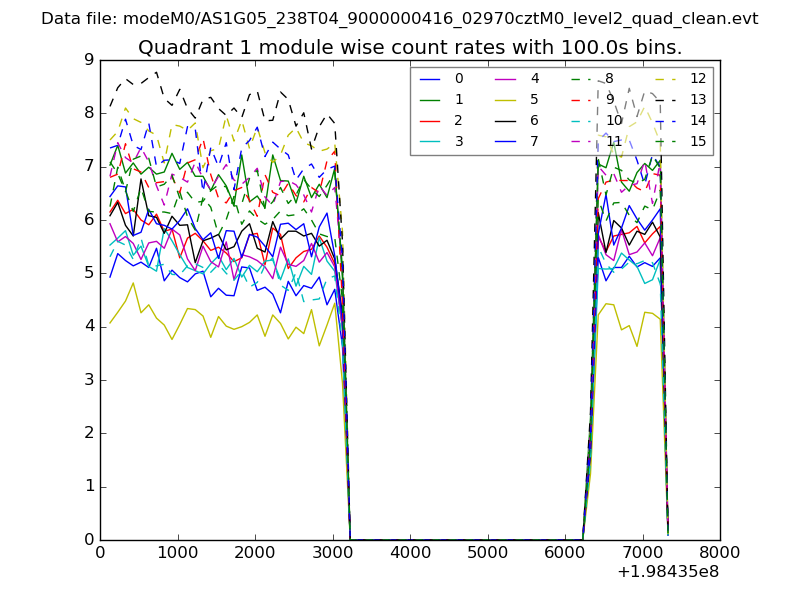

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

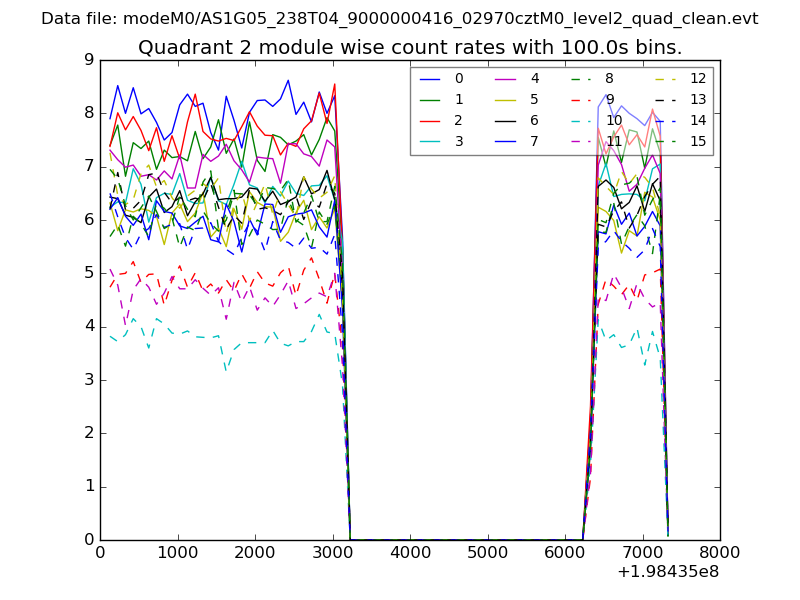

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

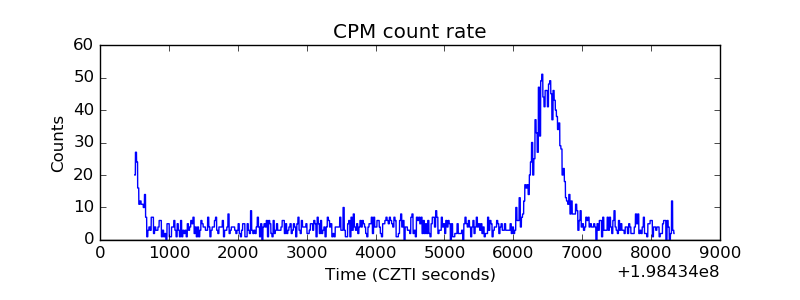

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

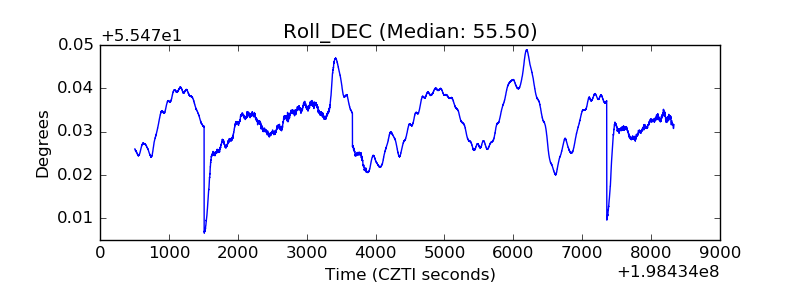

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
