| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T05_9000000418_02977cztM0_level2.evt | modeM0/AS1G05_238T05_9000000418_02977cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,410,880 | 45,351,360 |
| Size | 392.4 MB | 43.3 MB |
| Events in quadrant A | 3,631,397 | 255,766 |
| Events in quadrant B | 2,952,200 | 262,445 |
| Events in quadrant C | 2,227,263 | 257,039 |
| Events in quadrant D | 3,303,449 | 241,233 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14245 | 3 |
| B | 0 | 12264 | 2 |
| C | 0 | 10347 | 2 |
| D | 0 | 13504 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 43 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5085 | 296 | 5.821042% |
| B | 5085 | 37 | 0.727630% |
| C | 5085 | 7 | 0.137660% |
| D | 5085 | 176 | 3.461160% |

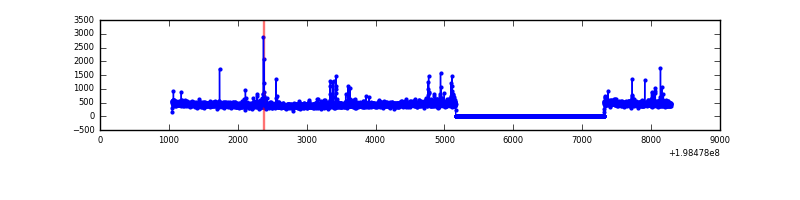

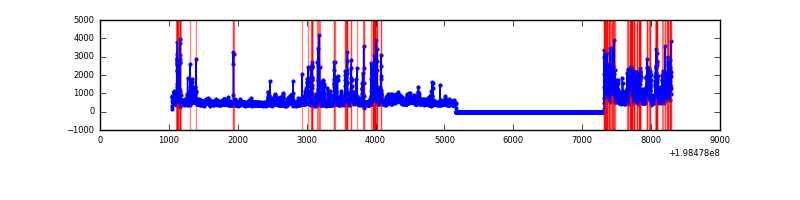

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7240 | 5086 | 177 | 177 | 2.44% | 3.48% |  |
| B | 7240 | 5086 | 18 | 18 | 0.25% | 0.35% |  |
| C | 7240 | 5086 | 2 | 2 | 0.03% | 0.04% |  |
| D | 7240 | 5086 | 146 | 146 | 2.02% | 2.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 9 | 1138256 | 10117.69 | 547 | 536 | 112.4 |
| A | 0 | 50 | 200519 | 1778.44 | 547 | 536 | 112.4 |
| A | 12 | 247 | 106448 | 941.87 | 547 | 536 | 112.4 |
| B | 6 | 203 | 415848 | 3789.71 | 570 | 558 | 109.6 |
| B | 2 | 249 | 88302 | 800.7 | 570 | 558 | 109.6 |
| B | 5 | 70 | 68650 | 621.37 | 570 | 558 | 109.6 |
| C | 6 | 80 | 59247 | 467.81 | 538 | 542 | 125.5 |
| C | 15 | 208 | 14850 | 114.02 | 538 | 542 | 125.5 |
| C | 1 | 16 | 13389 | 102.38 | 538 | 542 | 125.5 |
| D | 13 | 114 | 574908 | 4481.61 | 529 | 516 | 128.2 |
| D | 1 | 31 | 554010 | 4318.55 | 529 | 516 | 128.2 |
| D | 2 | 152 | 28015 | 214.56 | 529 | 516 | 128.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

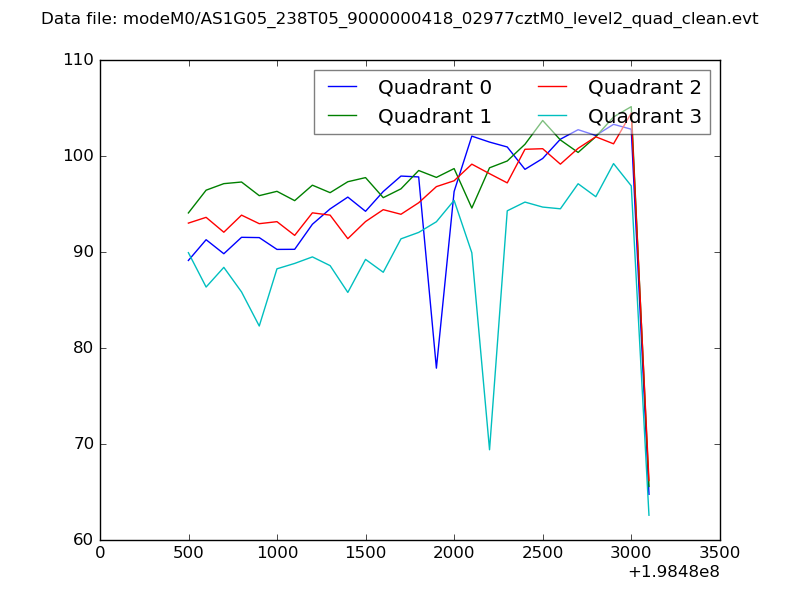

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

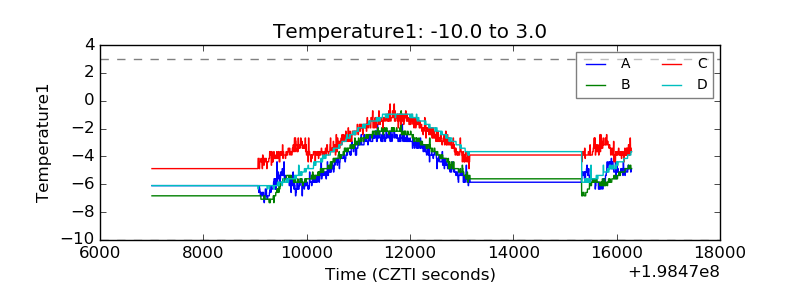

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

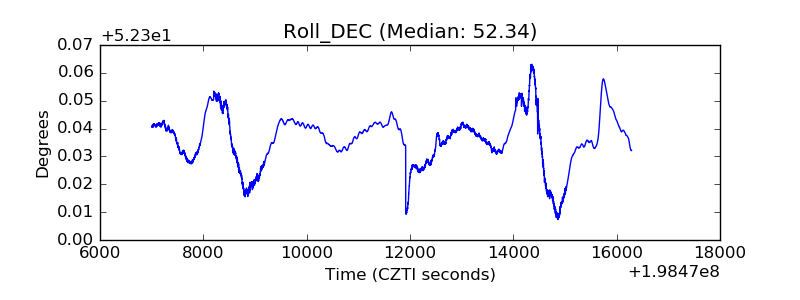

| _Roll_DEC |  |

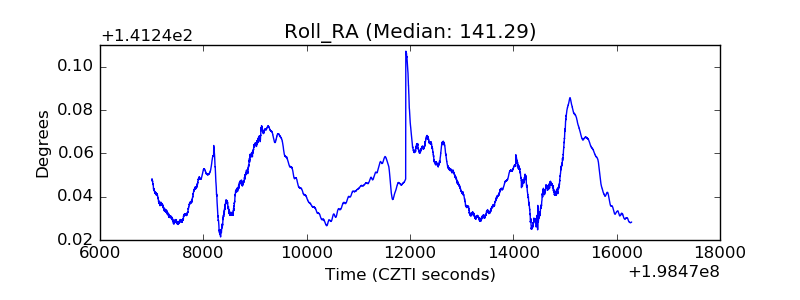

| _Roll_RA |  |

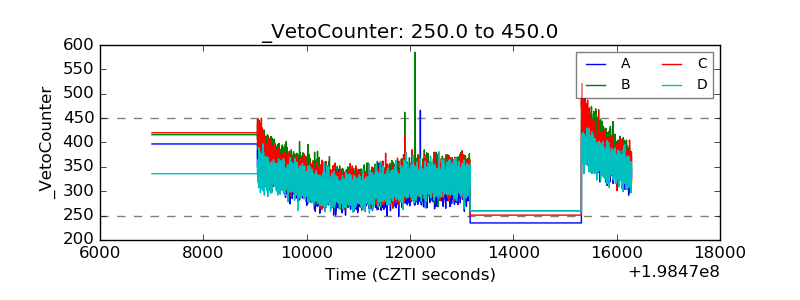

| Veto Counter |  |
