| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T02_9000000420_03002cztM0_level2.evt | modeM0/AS1G05_238T02_9000000420_03002cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,302,720 | 50,682,240 |
| Size | 441.8 MB | 48.3 MB |
| Events in quadrant A | 6,173,179 | 277,120 |
| Events in quadrant B | 2,536,407 | 297,700 |
| Events in quadrant C | 2,330,112 | 301,538 |
| Events in quadrant D | 2,638,754 | 294,066 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21882 | 3 |
| B | 0 | 11035 | 2 |
| C | 0 | 11016 | 2 |
| D | 0 | 12055 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5187 | 1358 | 26.180837% |
| B | 5187 | 5 | 0.096395% |
| C | 5187 | 46 | 0.886832% |
| D | 5187 | 86 | 1.657991% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7343 | 5188 | 1268 | 1268 | 17.27% | 24.44% |  |
| B | 7343 | 5188 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7343 | 5188 | 36 | 36 | 0.49% | 0.69% |  |
| D | 7343 | 5188 | 91 | 91 | 1.24% | 1.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 9 | 4028513 | 43903.61 | 449 | 440 | 91.7 |
| A | 14 | 249 | 371821 | 4047.83 | 449 | 440 | 91.7 |
| A | 13 | 14 | 9699 | 100.92 | 449 | 440 | 91.7 |
| B | 8 | 3 | 400593 | 3788.6 | 542 | 528 | 105.6 |
| B | 2 | 249 | 13828 | 125.95 | 542 | 528 | 105.6 |
| B | 0 | 219 | 11302 | 102.02 | 542 | 528 | 105.6 |
| C | 0 | 219 | 161730 | 1310.78 | 521 | 525 | 123.0 |
| C | 6 | 80 | 109730 | 887.96 | 521 | 525 | 123.0 |
| C | 1 | 16 | 9660 | 74.28 | 521 | 525 | 123.0 |
| D | 13 | 114 | 367659 | 2919.32 | 512 | 496 | 125.8 |
| D | 7 | 80 | 105646 | 836.05 | 512 | 496 | 125.8 |
| D | 13 | 239 | 59454 | 468.78 | 512 | 496 | 125.8 |

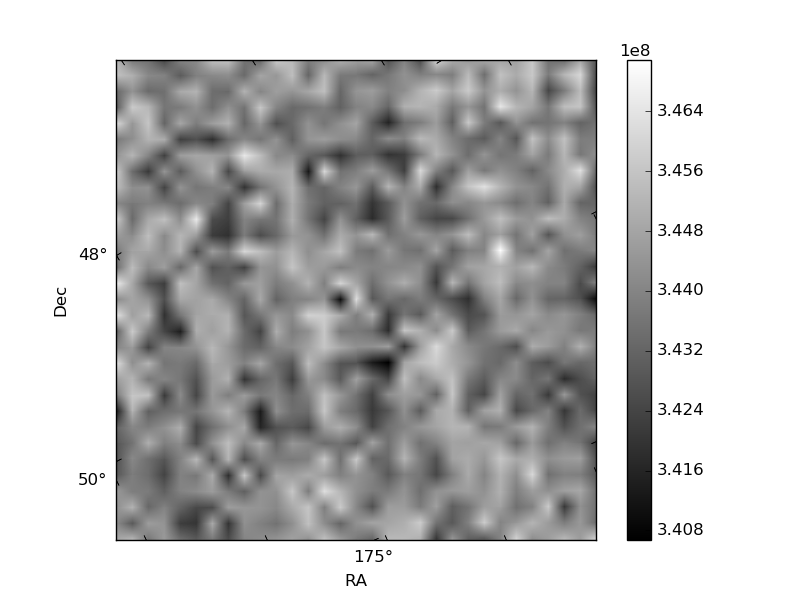

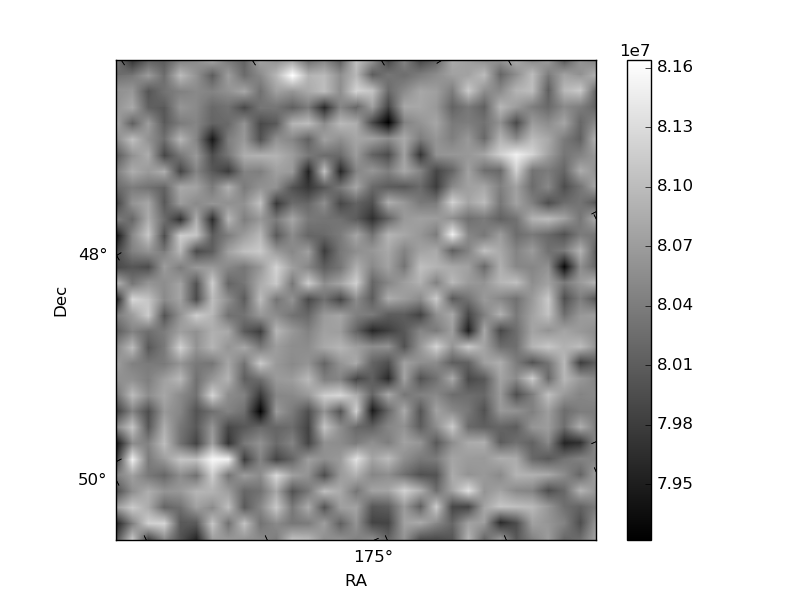

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

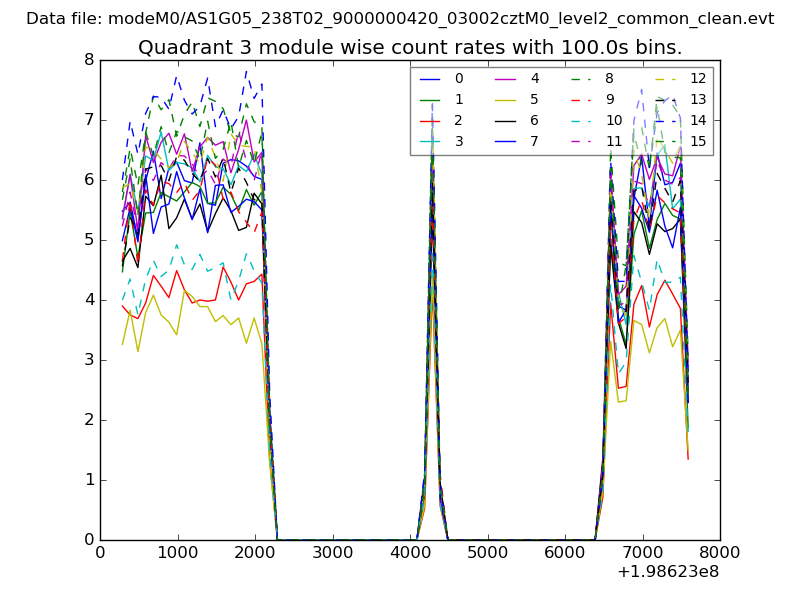

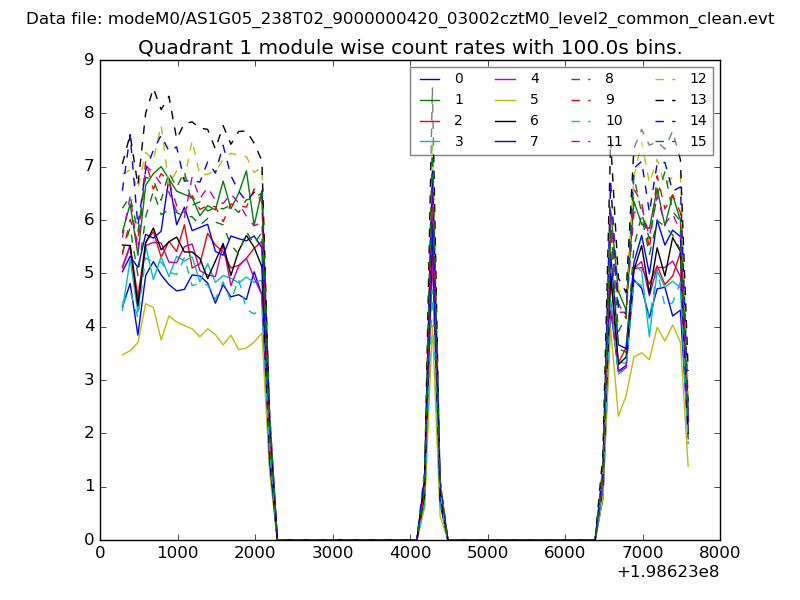

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

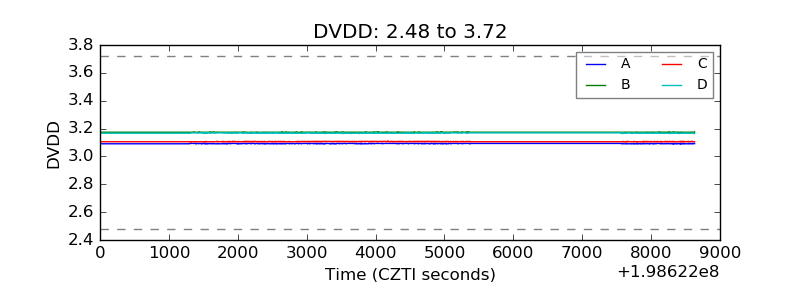

| D_VDD |  |

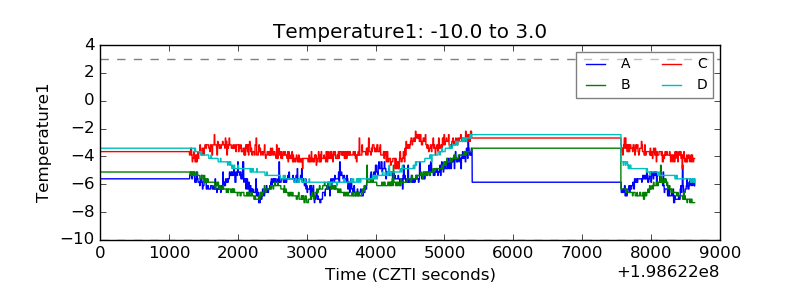

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

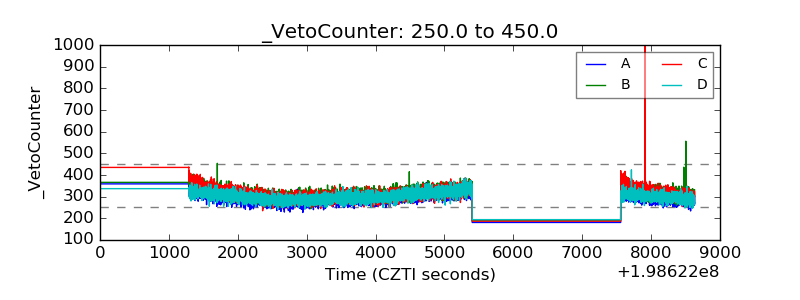

| Veto Counter |  |
