| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T02_9000000420_03013cztM0_level2.evt | modeM0/AS1G05_238T02_9000000420_03013cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,921,600 | 70,228,800 |
| Size | 387.1 MB | 67.0 MB |
| Events in quadrant A | 2,891,425 | 455,191 |
| Events in quadrant B | 2,702,859 | 450,646 |
| Events in quadrant C | 2,317,855 | 451,264 |
| Events in quadrant D | 4,036,208 | 413,656 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12133 | 3 |
| B | 0 | 11438 | 2 |
| C | 0 | 10580 | 2 |
| D | 0 | 15624 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5072 | 37 | 0.729495% |
| B | 5072 | 77 | 1.518139% |
| C | 5072 | 13 | 0.256309% |
| D | 5072 | 457 | 9.010252% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7227 | 5073 | 32 | 32 | 0.44% | 0.63% |  |
| B | 7227 | 5073 | 64 | 64 | 0.89% | 1.26% |  |
| C | 7227 | 5073 | 11 | 11 | 0.15% | 0.22% |  |
| D | 7227 | 5073 | 458 | 458 | 6.34% | 9.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 457903 | 4082.11 | 547 | 536 | 112.0 |
| A | 14 | 249 | 178252 | 1586.16 | 547 | 536 | 112.0 |
| A | 0 | 230 | 65553 | 580.29 | 547 | 536 | 112.0 |
| B | 10 | 244 | 232605 | 2166.62 | 553 | 541 | 107.1 |
| B | 14 | 50 | 143628 | 1335.9 | 553 | 541 | 107.1 |
| B | 2 | 249 | 87863 | 815.26 | 553 | 541 | 107.1 |
| C | 0 | 219 | 91462 | 714.08 | 539 | 541 | 127.3 |
| C | 1 | 192 | 67296 | 524.28 | 539 | 541 | 127.3 |
| C | 6 | 80 | 35667 | 275.87 | 539 | 541 | 127.3 |
| D | 7 | 80 | 1502355 | 12014.33 | 515 | 500 | 125.0 |
| D | 13 | 114 | 371341 | 2966.6 | 515 | 500 | 125.0 |
| D | 2 | 136 | 42437 | 335.48 | 515 | 500 | 125.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

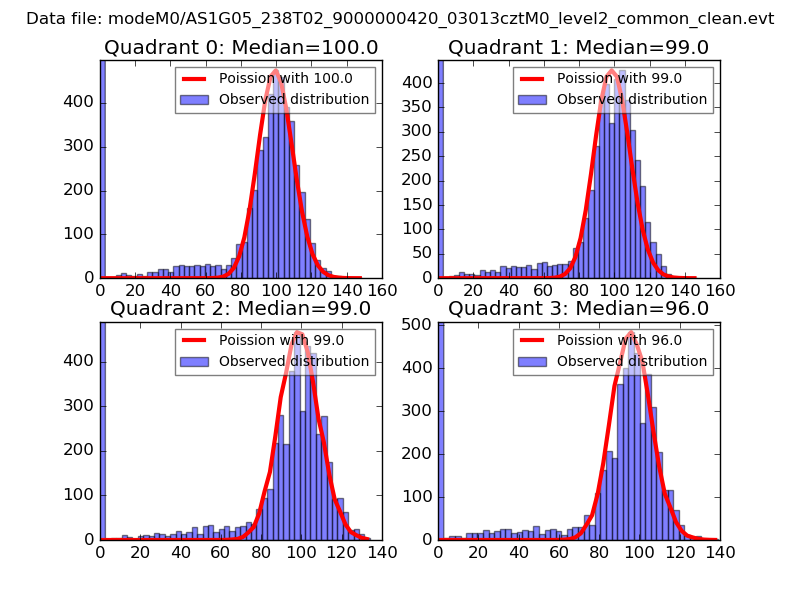

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

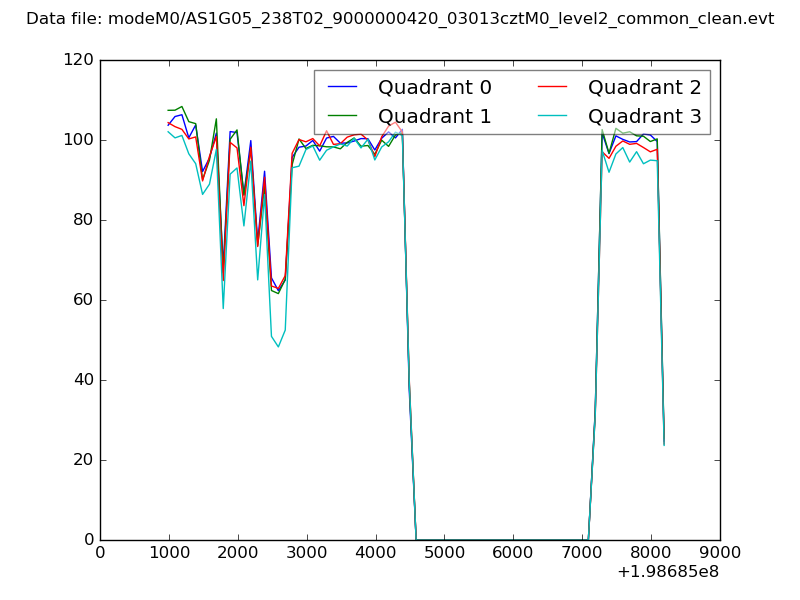

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

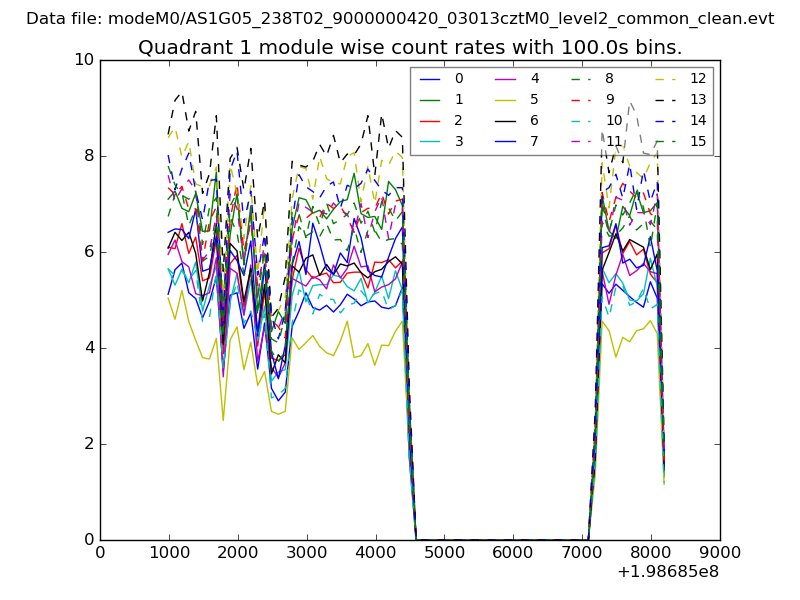

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

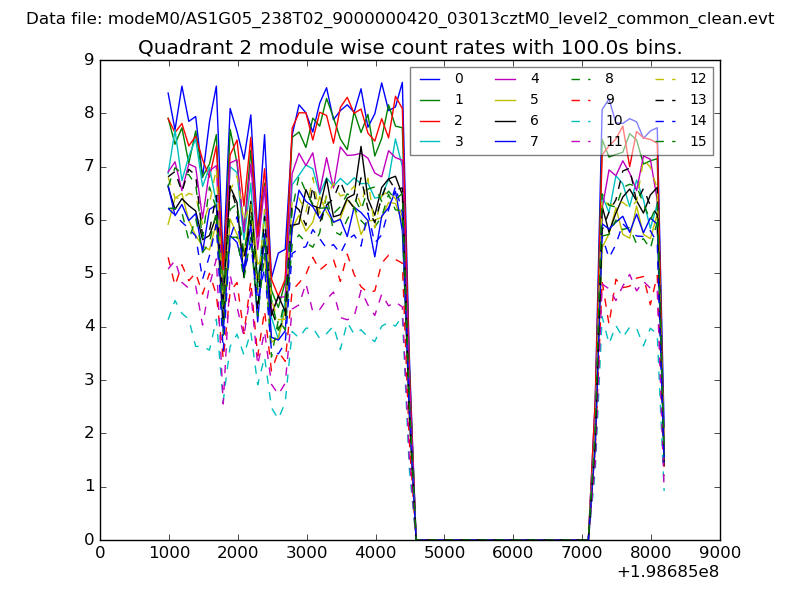

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

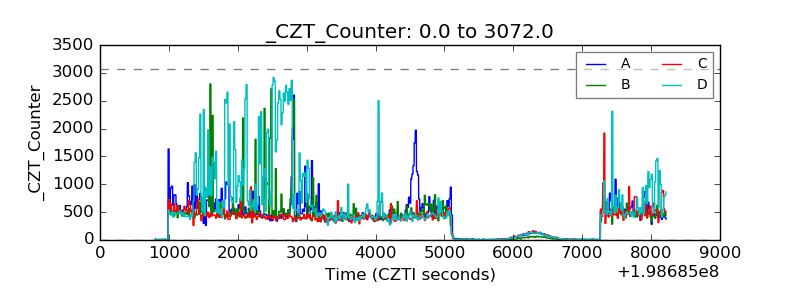

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

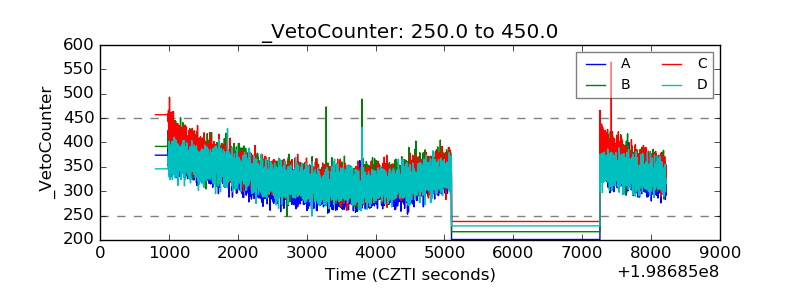

| Veto Counter |  |
