| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_238T02_9000000420_03024cztM0_level2.evt | modeM0/AS1G05_238T02_9000000420_03024cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,362,560 | 66,479,040 |
| Size | 417.1 MB | 63.4 MB |
| Events in quadrant A | 3,143,658 | 408,167 |
| Events in quadrant B | 3,046,976 | 409,595 |
| Events in quadrant C | 3,109,634 | 395,252 |
| Events in quadrant D | 3,541,535 | 384,713 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13037 | 3 |
| B | 0 | 12529 | 2 |
| C | 0 | 13105 | 2 |
| D | 0 | 14546 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43 | 0 |
| B | 0 | 43 | 0 |
| C | 0 | 43 | 0 |
| D | 0 | 43 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5944 | 9 | 0.151413% |
| B | 5944 | 22 | 0.370121% |
| C | 5944 | 69 | 1.160834% |
| D | 5944 | 56 | 0.942127% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10255 | 5946 | 1 | 1 | 0.01% | 0.02% |  |
| B | 10255 | 5946 | 18 | 18 | 0.18% | 0.30% |  |
| C | 10255 | 5946 | 65 | 65 | 0.63% | 1.09% |  |
| D | 10255 | 5946 | 57 | 57 | 0.56% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 349528 | 2466.87 | 706 | 693 | 141.4 |
| A | 0 | 50 | 33470 | 231.79 | 706 | 693 | 141.4 |
| A | 13 | 251 | 17771 | 120.77 | 706 | 693 | 141.4 |
| B | 15 | 204 | 120122 | 890.87 | 711 | 696 | 134.1 |
| B | 2 | 249 | 72826 | 538.06 | 711 | 696 | 134.1 |
| B | 14 | 167 | 52559 | 386.88 | 711 | 696 | 134.1 |
| C | 1 | 192 | 300306 | 1914.96 | 675 | 678 | 156.5 |
| C | 6 | 80 | 88958 | 564.21 | 675 | 678 | 156.5 |
| C | 15 | 208 | 34253 | 214.58 | 675 | 678 | 156.5 |
| D | 13 | 114 | 795148 | 4908.01 | 675 | 658 | 161.9 |
| D | 12 | 1 | 47267 | 287.93 | 675 | 658 | 161.9 |
| D | 7 | 80 | 45882 | 279.37 | 675 | 658 | 161.9 |

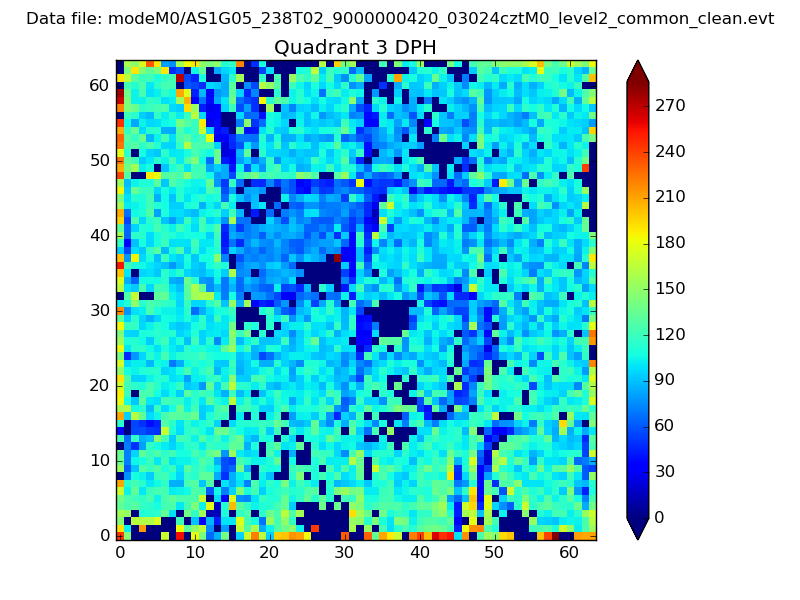

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

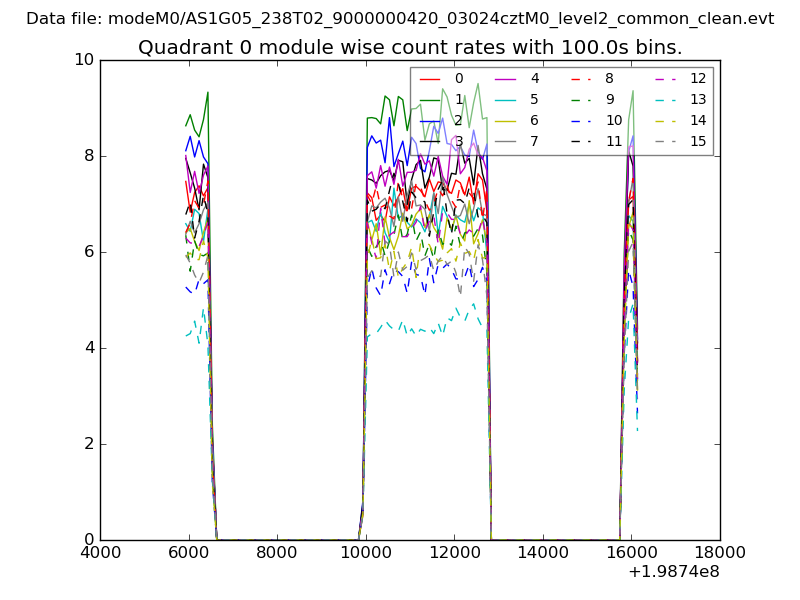

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

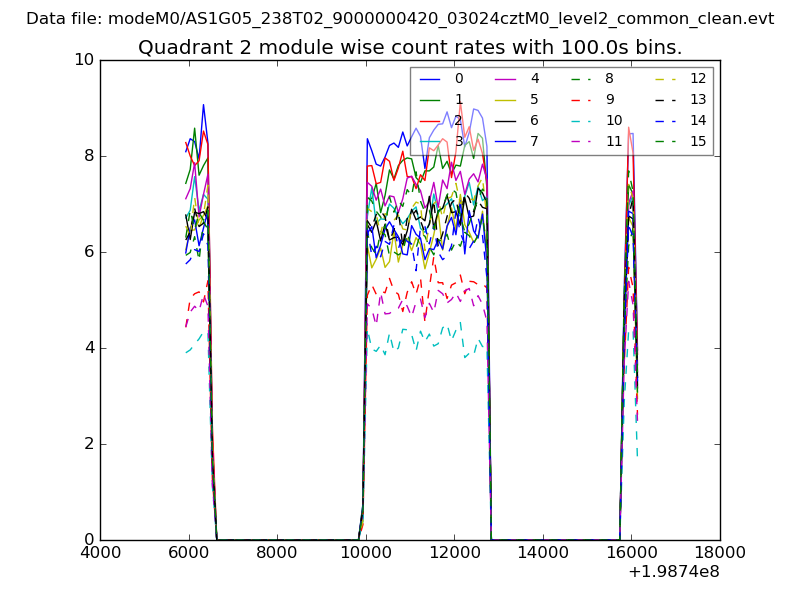

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

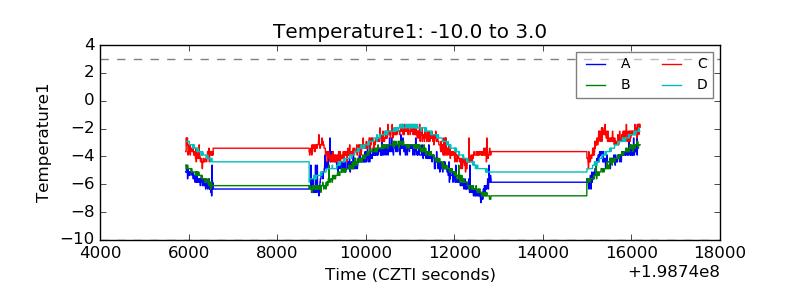

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

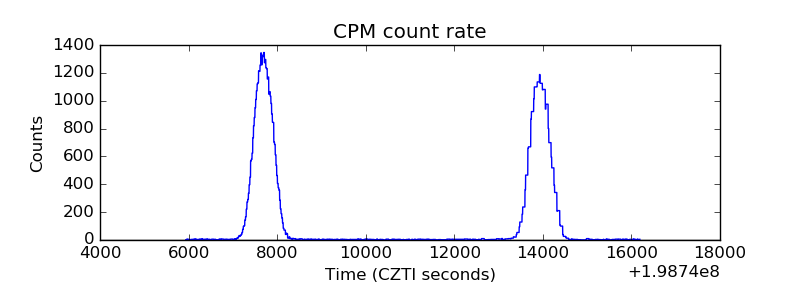

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
