| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T02_9000000422_03040cztM0_level2.evt | modeM0/AS1G05_237T02_9000000422_03040cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,911,360 | 85,936,320 |
| Size | 410.9 MB | 82.0 MB |
| Events in quadrant A | 2,407,090 | 575,440 |
| Events in quadrant B | 3,391,527 | 571,394 |
| Events in quadrant C | 3,319,225 | 544,724 |
| Events in quadrant D | 3,571,535 | 538,864 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10825 | 3 |
| B | 0 | 13491 | 2 |
| C | 0 | 13563 | 2 |
| D | 0 | 14251 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5303 | 22 | 0.414860% |
| B | 5303 | 51 | 0.961720% |
| C | 5303 | 306 | 5.770319% |
| D | 5303 | 283 | 5.336602% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

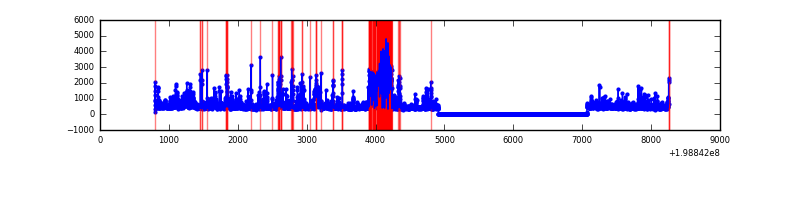

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7460 | 5304 | 13 | 13 | 0.17% | 0.25% |  |
| B | 7460 | 5304 | 30 | 30 | 0.40% | 0.57% |  |
| C | 7460 | 5304 | 196 | 196 | 2.63% | 3.70% |  |
| D | 7460 | 5304 | 238 | 238 | 3.19% | 4.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 37199 | 304.43 | 595 | 585 | 120.3 |
| A | 12 | 247 | 24991 | 202.93 | 595 | 585 | 120.3 |
| A | 14 | 249 | 23005 | 186.41 | 595 | 585 | 120.3 |
| B | 15 | 204 | 612451 | 5420.49 | 598 | 584 | 112.9 |
| B | 0 | 230 | 161550 | 1425.99 | 598 | 584 | 112.9 |
| B | 2 | 249 | 88985 | 783.14 | 598 | 584 | 112.9 |
| C | 1 | 192 | 785390 | 6126.35 | 556 | 558 | 128.1 |
| C | 0 | 219 | 194532 | 1514.15 | 556 | 558 | 128.1 |
| C | 6 | 80 | 137953 | 1072.5 | 556 | 558 | 128.1 |
| D | 7 | 80 | 769907 | 5816.42 | 562 | 549 | 132.3 |
| D | 12 | 217 | 177203 | 1335.52 | 562 | 549 | 132.3 |
| D | 10 | 213 | 144569 | 1088.8 | 562 | 549 | 132.3 |

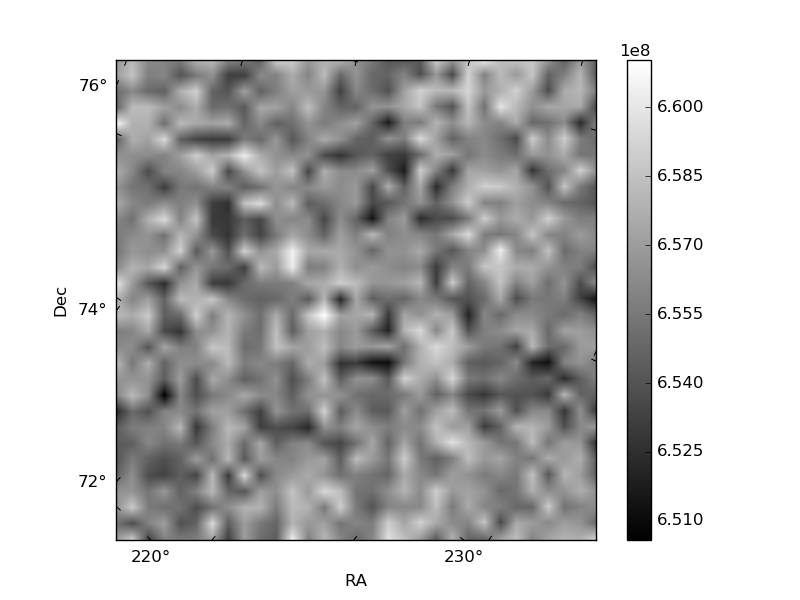

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

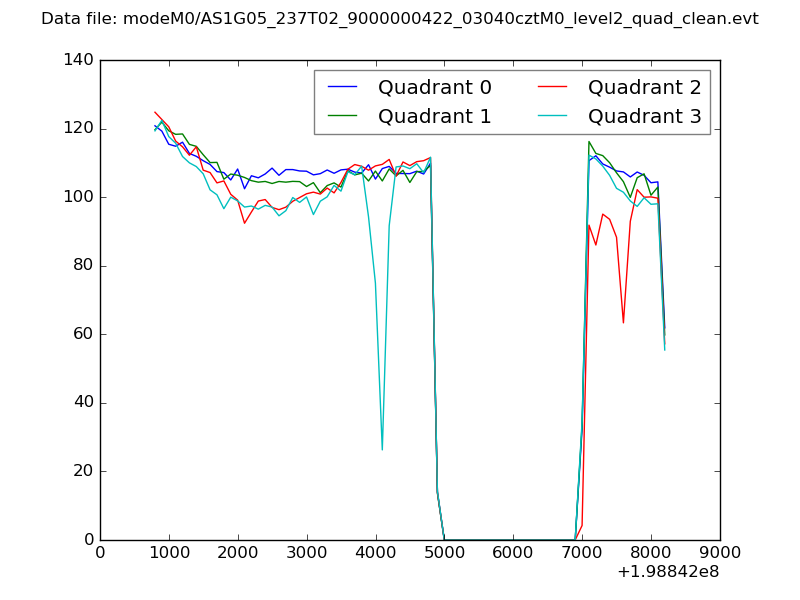

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

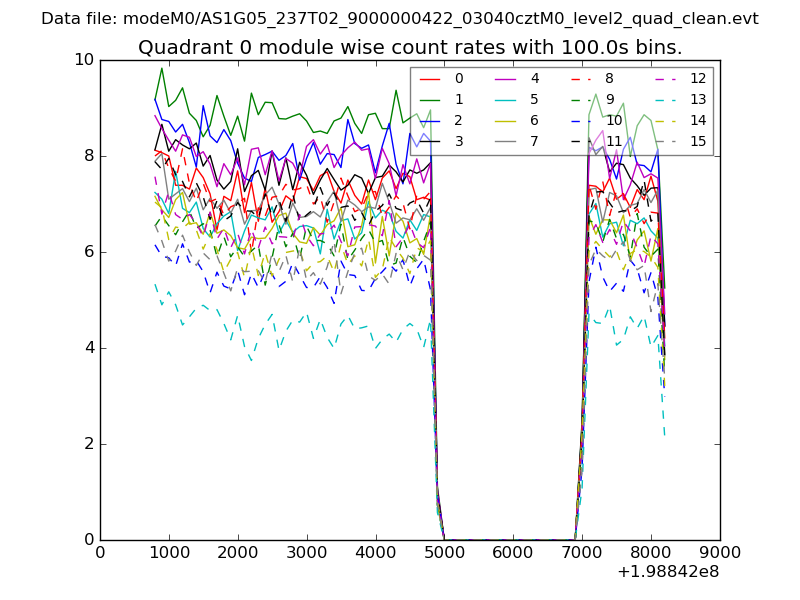

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

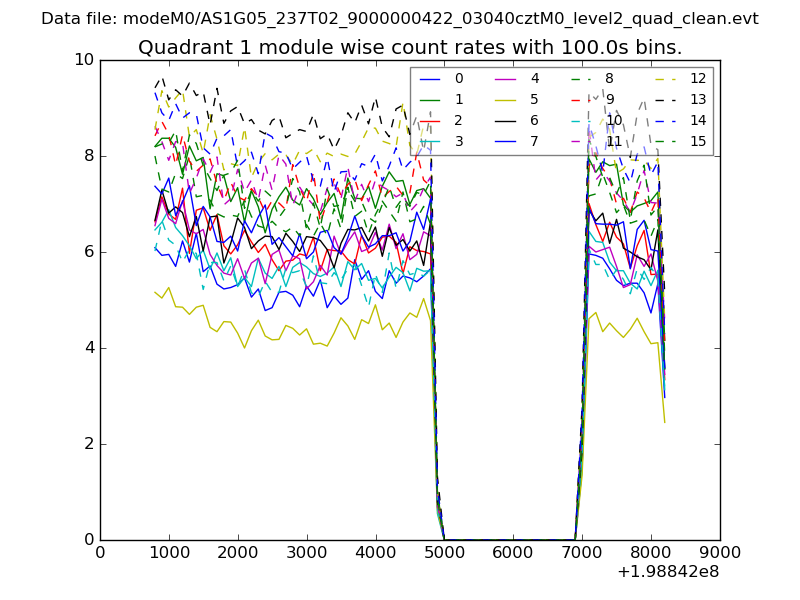

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

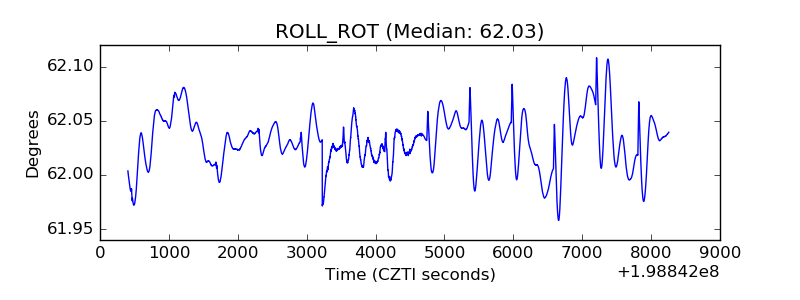

| _ROLL_ROT |  |
| _Roll_DEC |  |

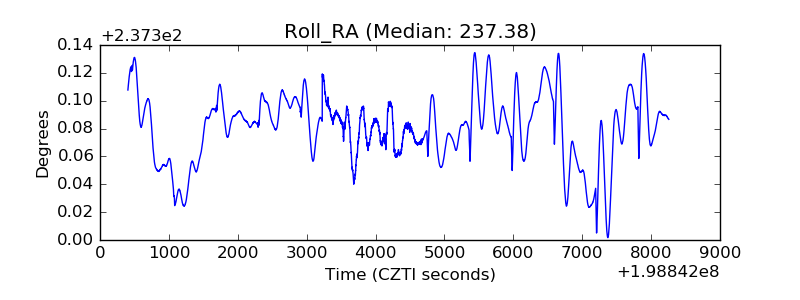

| _Roll_RA |  |

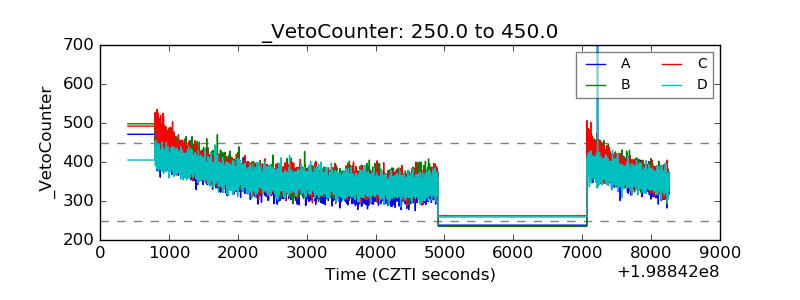

| Veto Counter |  |
